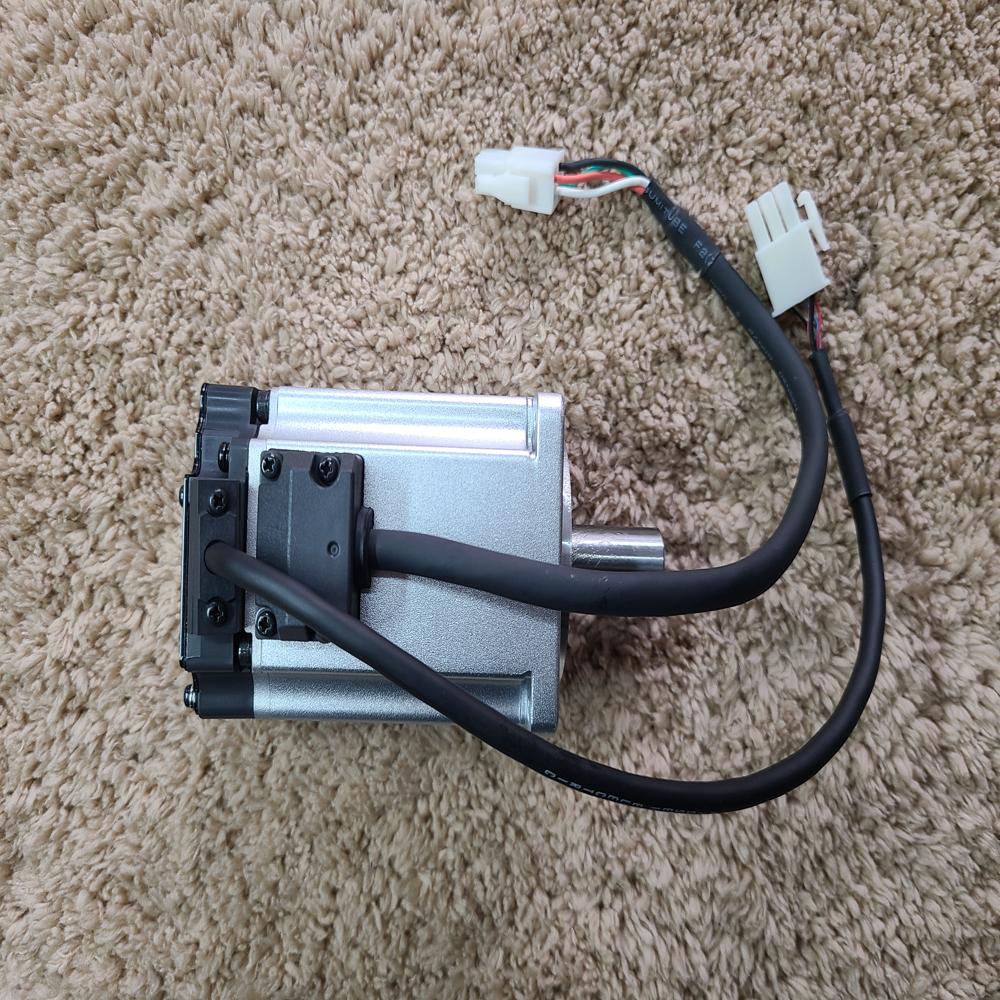

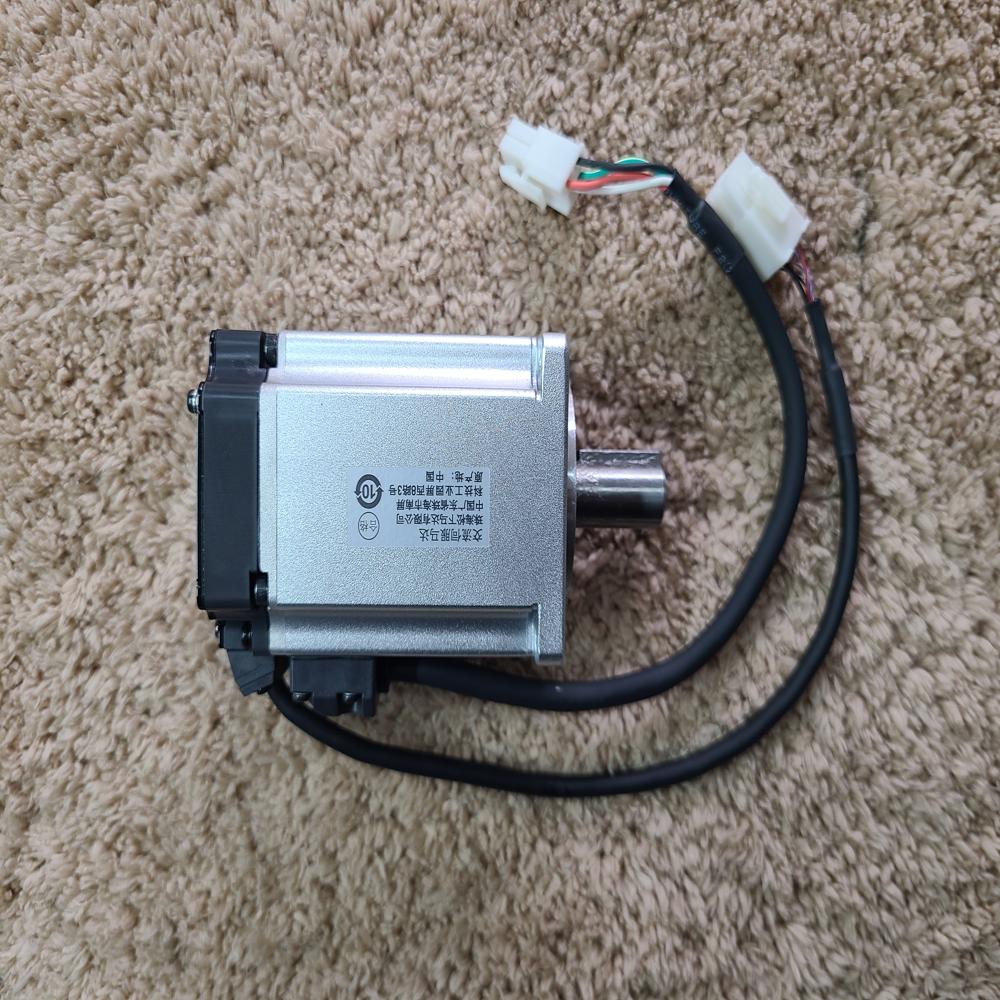

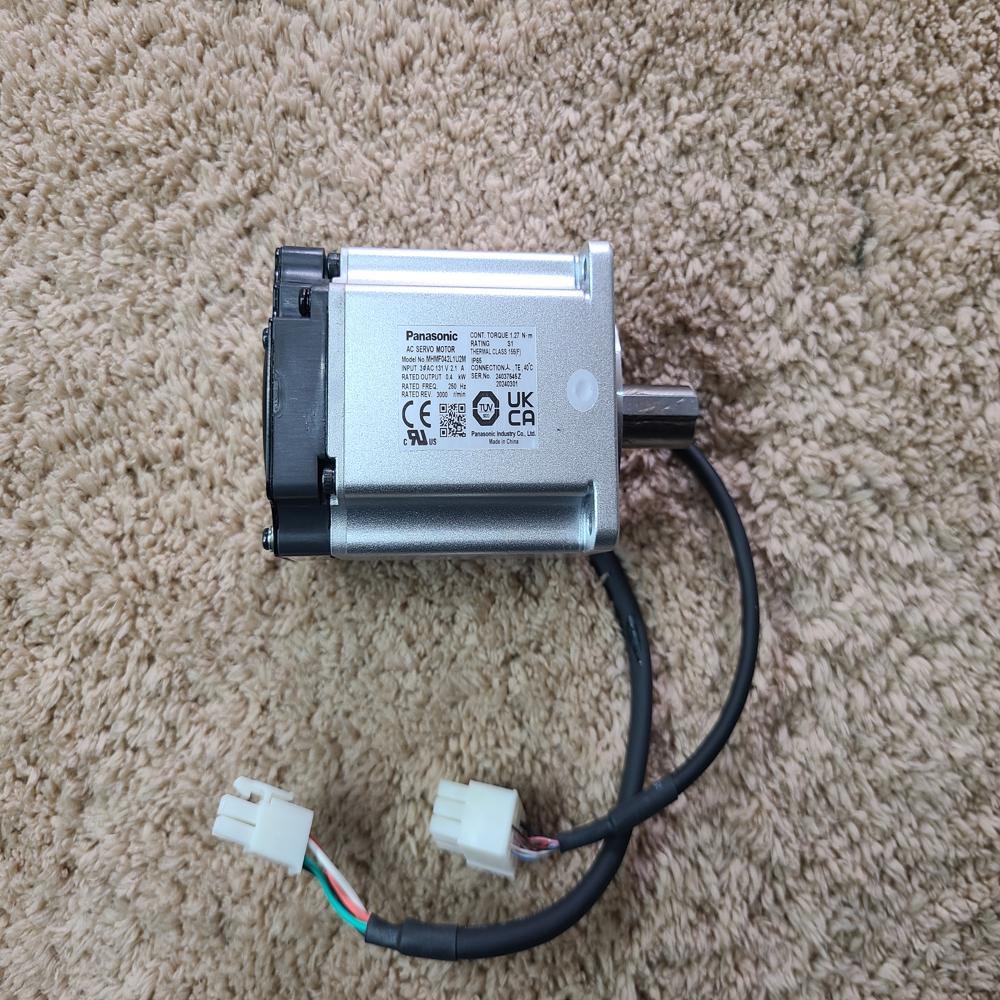

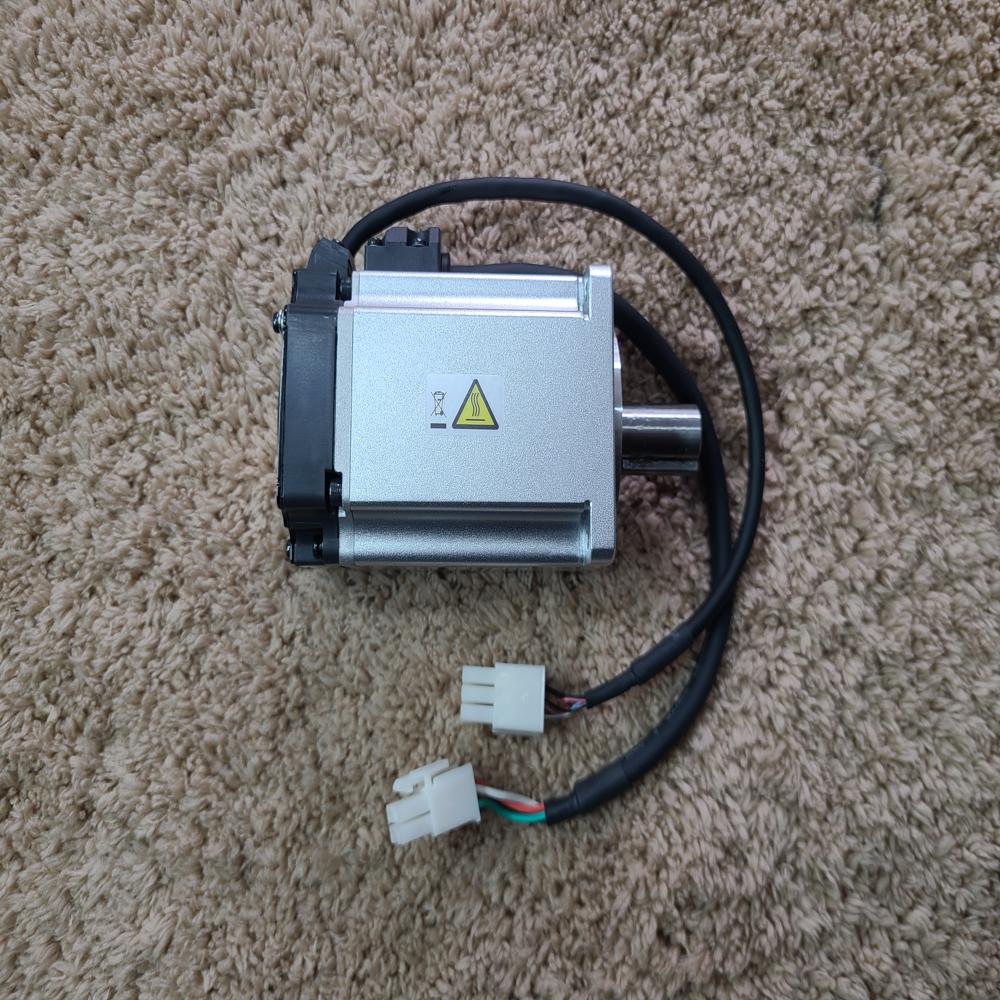

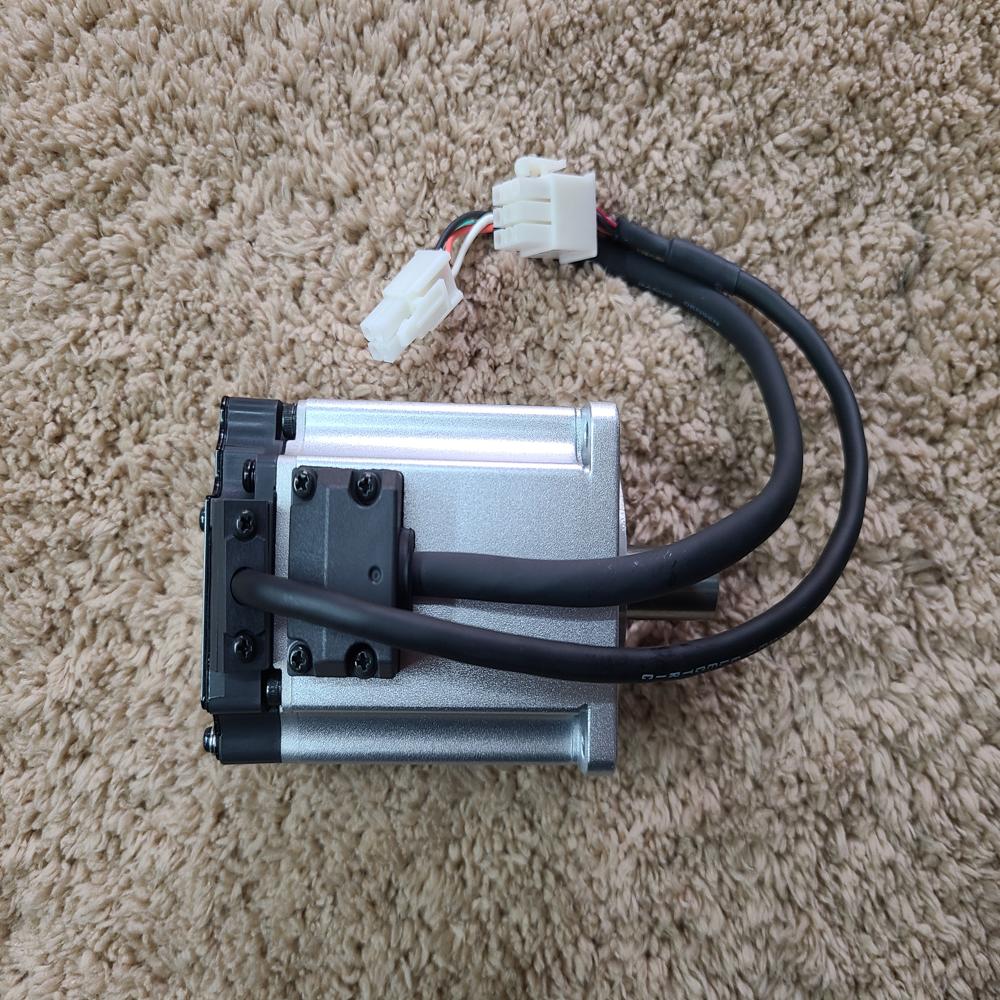

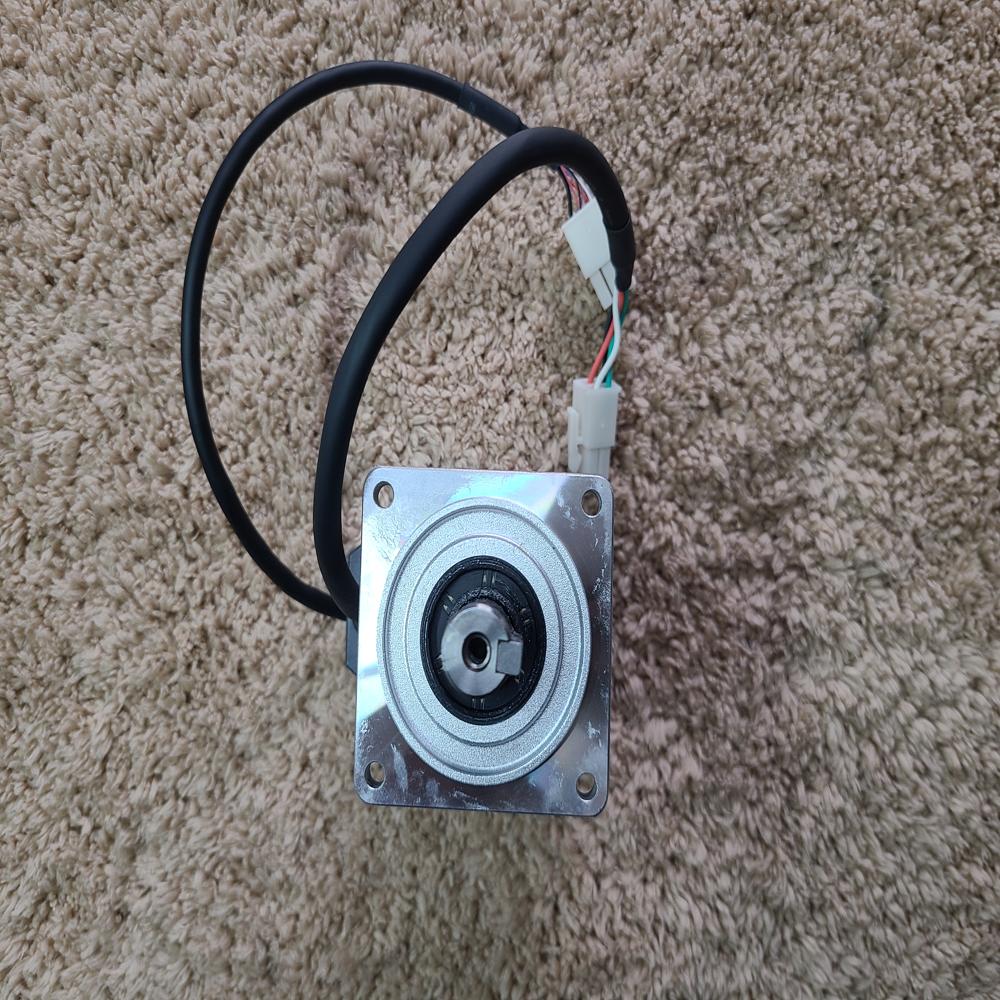

MHMD022J1A - Panasonic Liqi 200W Motor

Price 11660.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MHMD022J1A - Panasonic Liqi 200W Motor Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MHMD022J1A - Panasonic Liqi 200W Motor

The

MHMD022J1A

is a 200-watt AC Servo Motor from the Panasonic MINAS LIQI series. It is designed as a cost-effective, reliable solution for simple motion control applications such as packaging, food processing, and small linear robots.

Core Specifications

Feature	Specification
Power Output	200 Watts (0.2 kW)
Rated Speed	3000 RPM
Rated Torque	0.64 Nm
Encoder Type	2500 Pulses/Revolution (Incremental)
Frame Size	60 mm Square
Brake	Without electromagnetic brake
Shaft Design	Keyway shaft
Protection Rating	IP65 (excluding shaft and leadwire ends)

Key Features

Simple Positioning: Supports pulse train commands up to 500kpps for basic positioning tasks.
Real-Time Auto-Gain Tuning: Automatically calculates gain parameters by setting only a stiffness value, making it easier to set up than traditional servo systems.
High Performance: Features a 1kHz response frequency, which ensures quick response times and low vibration.
Compatibility: Typically paired with the MBDJT2207 servo driver or other drivers in the MINAS LIQI lineup.

Typical Applications

Because of its simple interface and cost-effectiveness, the MHMD022J1A is frequently used in:

Bottle Filling and packaging machines.
Printing and metal processing equipment.
Linear Actuators for basic pick-and-place automation.

The primary function of the

MHMD022J1A

is to provide precise position control within an automated system. As a closed-loop AC servo motor, it works by constantly comparing its actual shaft position against a target command from a controller, correcting any errors in real-time.

Functional Capabilities

Unlike standard induction motors that simply spin when powered, this motor is designed for high-performance motion:

Positioning Accuracy: Using its built-in incremental encoder (2500 pulses/rev), it can achieve a resolution of 10,000 pulses per revolution, ensuring exact placement for tasks like bottle filling or pick-and-place.
High Dynamic Response: It has a 1kHz velocity response frequency, allowing it to start, stop, and change directions almost instantly with minimal vibration.
Torque Regulation: It provides a steady rated torque of 0.64 Nm, with the ability to handle peak torque requirements up to 1.91 Nm during rapid acceleration or deceleration.

Advanced Operational Features

Real-time Auto-gain Tuning: Automatically calculates the necessary mechanical "stiffness" to keep motion smooth, even if the load on the motor changes during operation.
Vibration Suppression: Uses notch and damping filters (range 1Hz to 5000Hz) to eliminate "humming" or mechanical resonance that can damage machinery.
