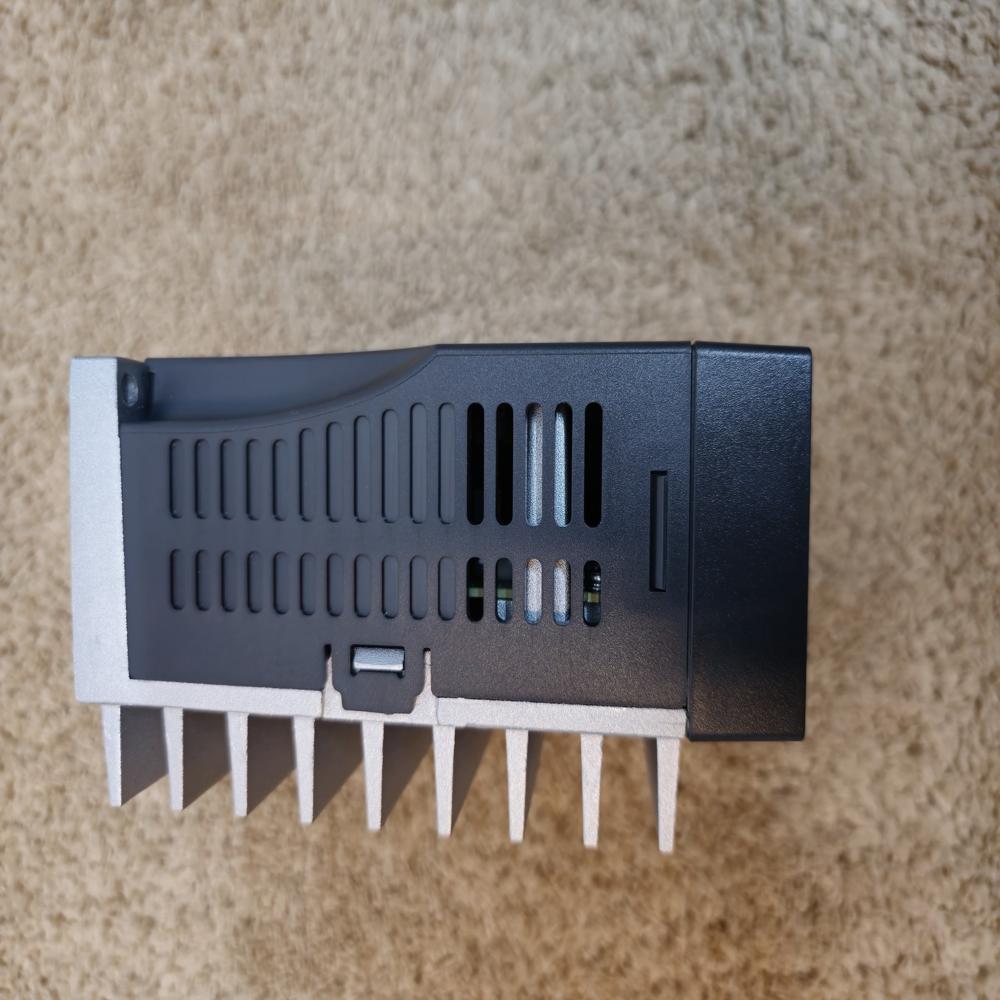

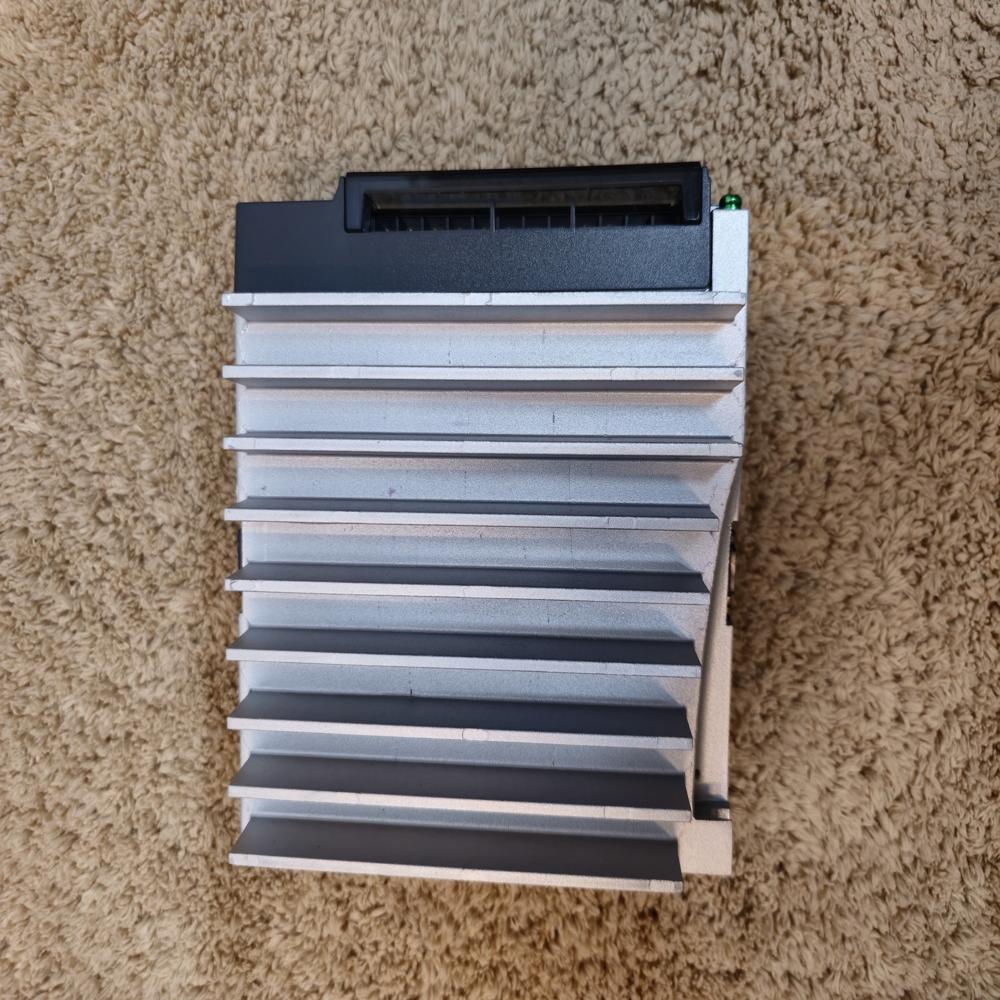

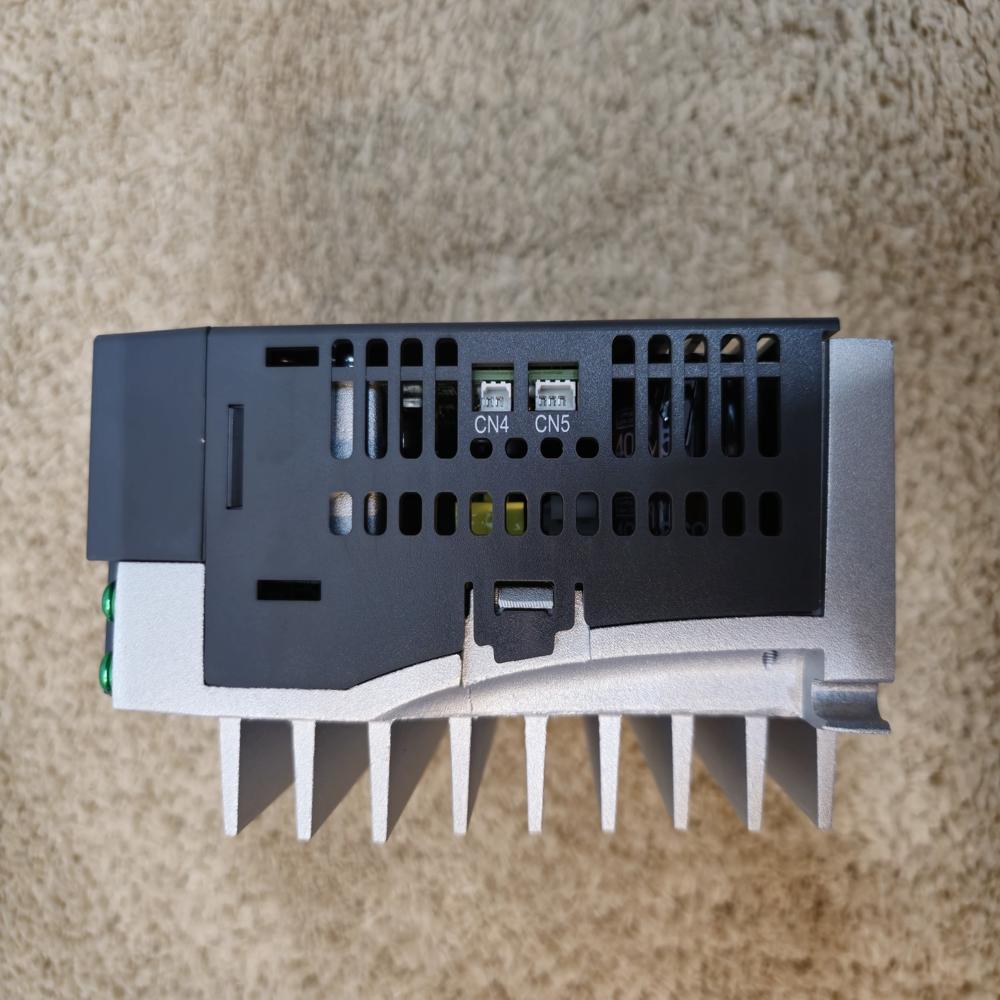

ASD-A2-3023-U* Delta A2 Series Driver - 3000W

Price 56400.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ASD-A2-3023-U* Delta A2 Series Driver - 3000W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
5.5 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ASD-A2-3023-U* Delta A2 Series Driver - 3000W Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ASD-A2-3023-U* Delta A2 Series Driver - 3000W

The ASD-A2-3023-U is the high-power 3000W (3.0 kW) AC servo drive from Deltas premium ASDA-A2 series. It is designed for heavy-duty applications requiring high current and advanced motion logic.

Core Power & Electrical

Rated Power: 3000 Watts (3.0 kW).
Input Phase/Voltage: 3-Phase, 200V ~ 230V AC (+10% / -15%), 50/60 Hz.
Continuous Output Current: 13.4 Arms.
Speed Control Range: 1:5000.
Frequency Response: 1 kHz.

Control & Motion Intelligence

Control Modes: Position, Speed, and Torque (switchable via I/O or communication).
Feedback Resolution: Supports 20-bit incremental encoders (1,280,000 pulses/rev) and 17-bit absolute encoders.
Electronic Cam (E-CAM): Built-in with up to 720 points for master-slave synchronization.
Capture & Compare: Features high-speed position latching for precise timing in packaging and cutting.

Suppression & Safety

Vibration Suppression: Dual low-frequency vibration filters to eliminate mechanical shaking during heavy moves.
Resonance Suppression: Features high-frequency auto-notch filters.
Safe Torque Off (STO): Built-in hardware-level safety circuit (SIL2/PL d compliant).

Connectivity & I/O

Communication: RS-232, RS-485, and Mini-USB for direct PC configuration via ASDA-Soft.
Digital I/O: 8 programmable inputs and 5 programmable outputs.
Analog Input: 2 channels (14-bit resolution).

For the ASD-A2-3023-U Delta A2 Series Servo Drive (3000W/3kW), here are the details in inches:

Dimensions & Weight

This drive is the most robust in the low-voltage A2 series, utilizing a larger chassis for high-power thermal management.

Dimension	Inches	Millimeters
Width	3.74"	95 mm
Height	9.84"	250 mm
Depth	7.44"	189 mm
Net Weight	~12.13 lbs	5.5 kg

Note: Shipping weight is typically around 15.4 lbs (7.0 kg) with packaging.

Function

The ASD-A2-3023-U is the high-capacity control unit for 3.0 kW motors, focusing on: [1]

Heavy-Duty Power: Designed to handle high current demands, requiring a 3-Phase 220V AC input to deliver full torque.
Dynamic Motion (E-CAM): Built-in Electronic Cam logic for complex synchronization (like rotary knives or flying saws) without an external motion controller.
Network Control: The "U" model offers advanced digital communication (RS-485/Modbus) and high-speed position capture, perfect for complex industrial automation.
Mechanical Protection: Features advanced Vibration Suppression and high-frequency notch filters to protect large mechanical systems from resonance and wear.
