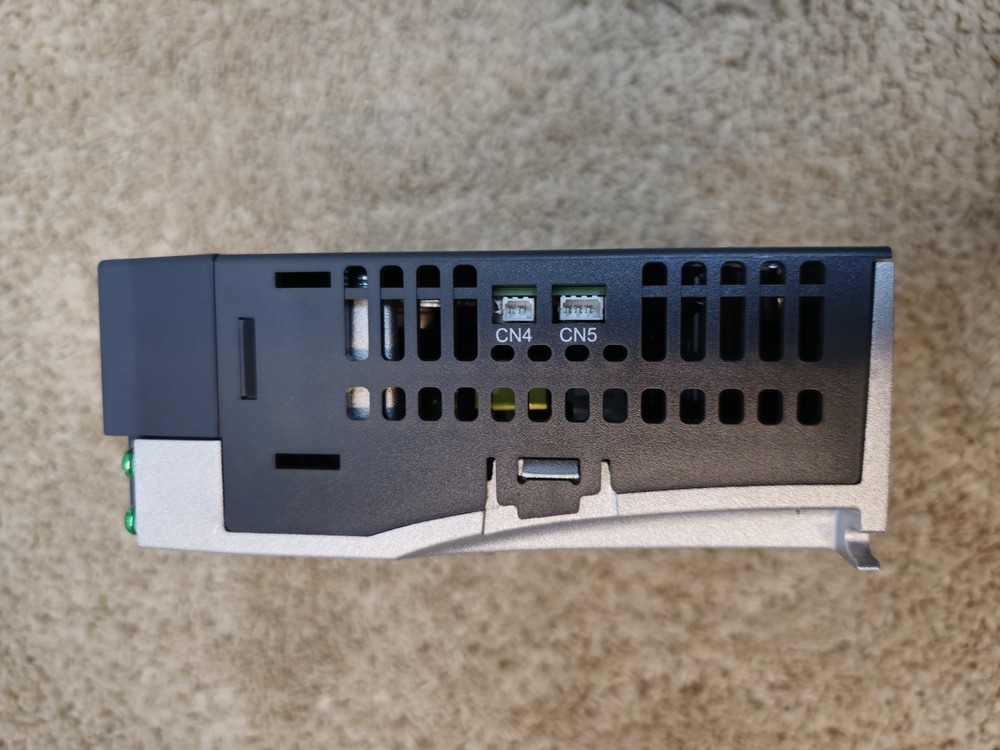

ASD-A2-7543-M Delta A2 Series Driver - 7500W

Name: ASD-A2-7543-M Delta A2 Series Driver - 7500W
Brand: Corbital Enterprise
Price: 158000.0 INR
Availability: InStock

Price 158000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ASD-A2-7543-M Delta A2 Series Driver - 7500W Specification

IP Rating
21

Product Type
VFD

Application
Industrial Machinery

Color
Black

Usage & Applications
Industrial Machinery

Weight
9 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Plastic

ASD-A2-7543-M Delta A2 Series Driver - 7500W Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ASD-A2-7543-M Delta A2 Series Driver - 7500W

Delta A2 Series Driver - 7500W

The Delta ASD-A2-7543-M is the highest-power drive in the 400V ASDA-A2 lineup, providing 7.5kW (7500W) of precision control. It is designed to drive the largest motors in the series, such as the ECMA-FA1875S3.

Dimensions & Weight

Attribute	Measurement (Inches)	Measurement (Metric)
Height	12.13 in	308 mm
Width	7.44 in	189 mm
Depth	10.24 in	260 mm
Net Weight	19.84 lbs	9.0 kg

Core Specifications

Power Output: 7.5 kW (7500 W).
Input Voltage: 3-Phase 380V 480V AC.
Continuous Current: 32.5 Arms.
Max Instantaneous Current: 78.5 Arms.
Communication: CANopen, RS-485, RS-232, and USB.
Regenerative Resistor: Built-in 20 \(\Omega \) / 100W resistor (External resistor highly recommended for 7.5kW loads).

Key Functions

Flagship Power Management: Engineered to control massive high-inertia loads with a 1 kHz response frequency.
Full Closed-Loop Support: Can interface directly with external linear scales to correct mechanical backlash on large-scale machinery.
Advanced Motion Control: Includes the full A2 feature set, including 720-point E-CAM, 64-point PR mode, and automatic Vibration Suppression.
