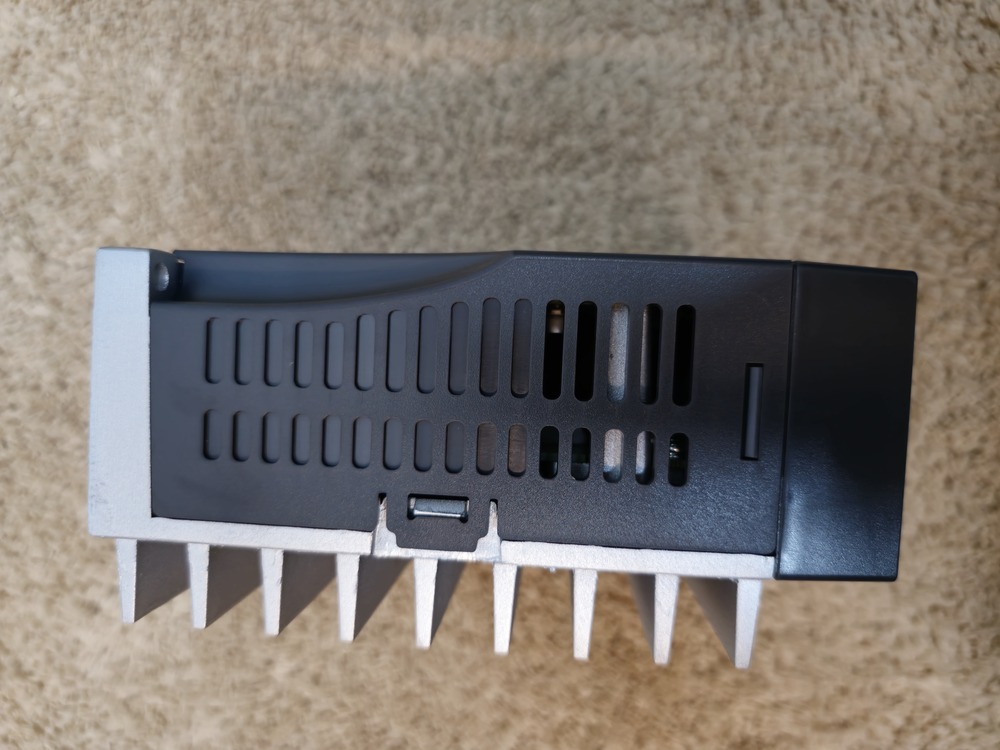

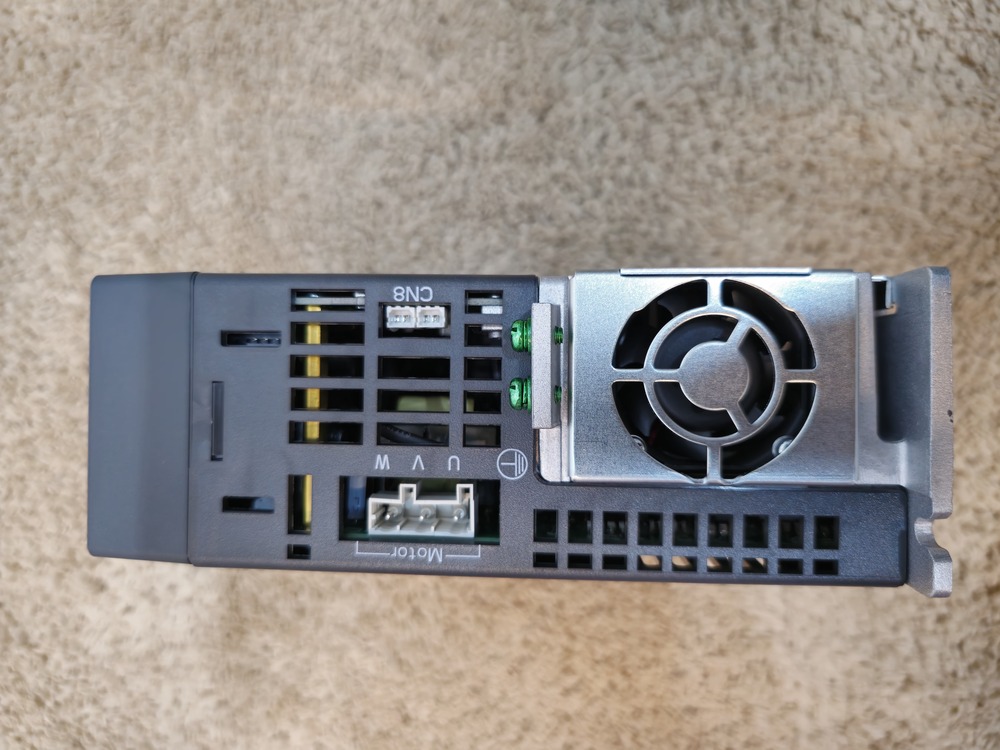

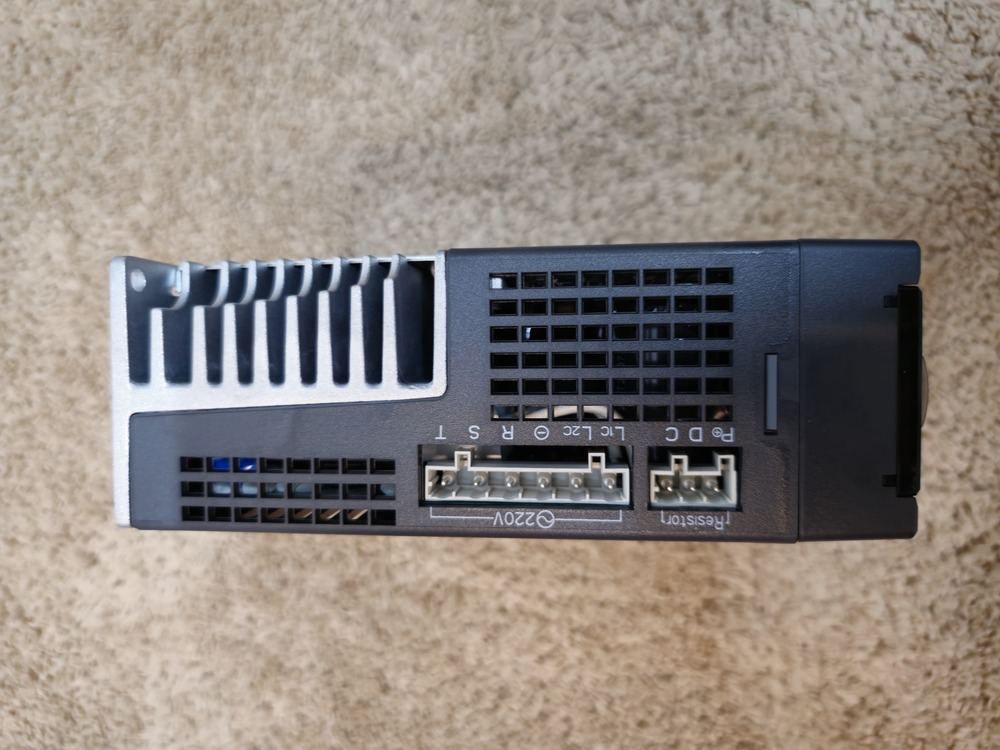

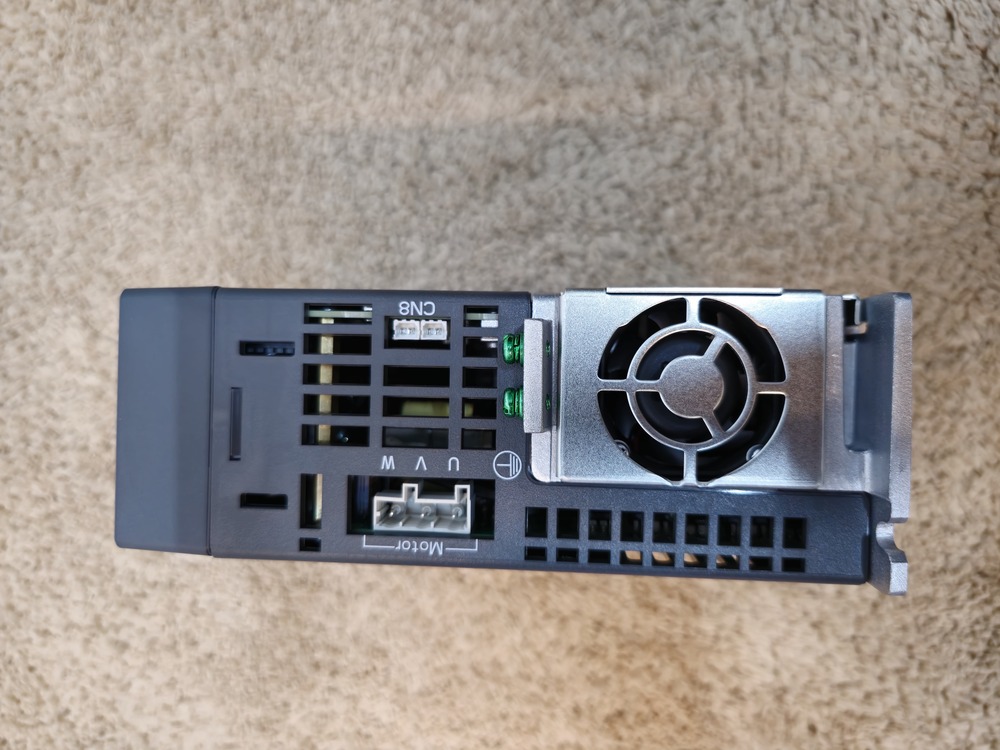

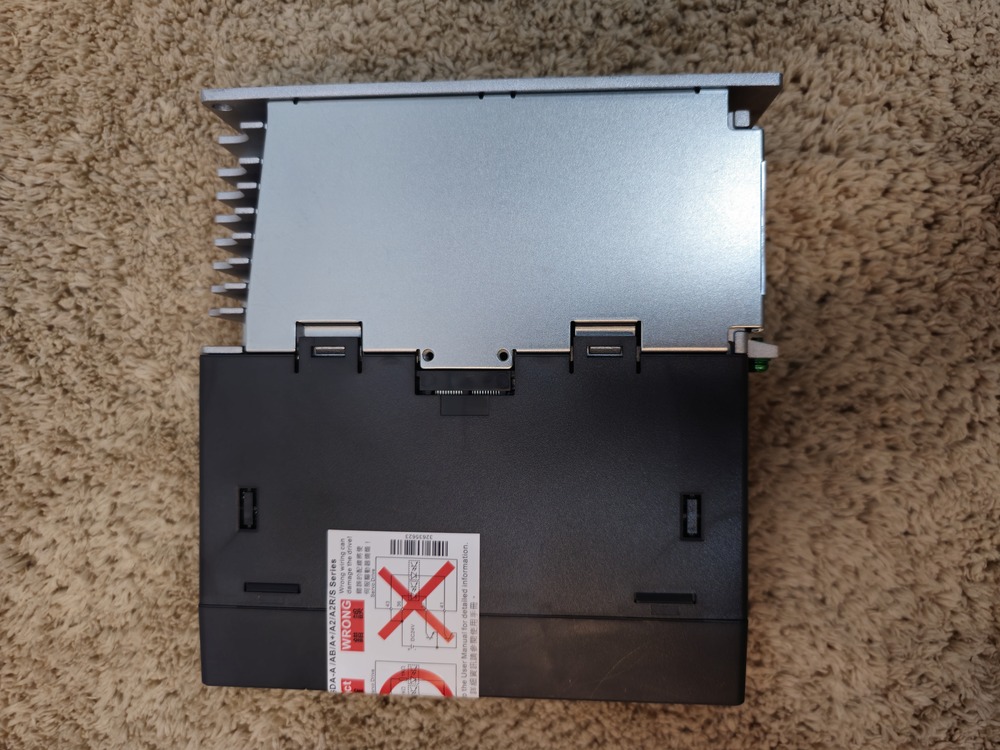

ASD-A3-7543-E Delta Servo Driver 7500W

Price 112400.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ASD-A3-7543-E Delta Servo Driver 7500W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
10 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ASD-A3-7543-E Delta Servo Driver 7500W Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ASD-A3-7543-E Delta Servo Driver 7500W

The Delta ASD-A3-7543-E is a heavy-duty 7500W (7.5 kW) AC servo drive from the ASDA-A3 series. The "-E" suffix signifies that this model is equipped with a high-speed EtherCAT communication interface, making it ideal for highly synchronized multi-axis industrial applications operating on 400V 3-phase power.

Dimensions and Weight

As one of the higher-power units in the series, it uses a large Frame G chassis to manage heat and power delivery:

Width: ~7.87 inches (200 mm)
Height: ~15.75 inches (400 mm)
Depth (Length): ~9.06 inches (230 mm)
Weight: Approximately 22.0 lbs (10.0 kg). [1]

Key Performance Specifications

Rated Power Output: 7500 W (7.5 kW).
Input Voltage: 3-phase 380V ~ 480V AC.
Communication: EtherCAT, which supports ultra-fast synchronization with cycle times as low as 125s.
Responsiveness: 3.1 kHz bandwidth, providing rapid acceleration and minimal settling time for heavy-duty machinery.
Encoder Precision: Supports 24-bit absolute encoders, delivering 16.7 million pulses per revolution for exceptional positioning accuracy. [1, 2, 3, 4, 5]

Advanced Industrial Features

Vibration Suppression: Features automatic notch filters (up to 5 kHz) that identify and eliminate mechanical resonance, which is critical for stabilizing large mechanical structures under high-torque loads.
Energy Efficiency: Includes a multi-axis DC-bus sharing design, allowing the drive to recycle energy generated during motor braking to power other drives on the same bus.
Safety (STO): Integrated Safe Torque Off function to immediately cut motor power during emergencies while keeping the EtherCAT communication active for status reporting.
Motion Functions: Built-in Electronic Cam (E-CAM) and PR mode with 99 user-defined paths for complex movements. [1, 2, 3, 4, 5]
