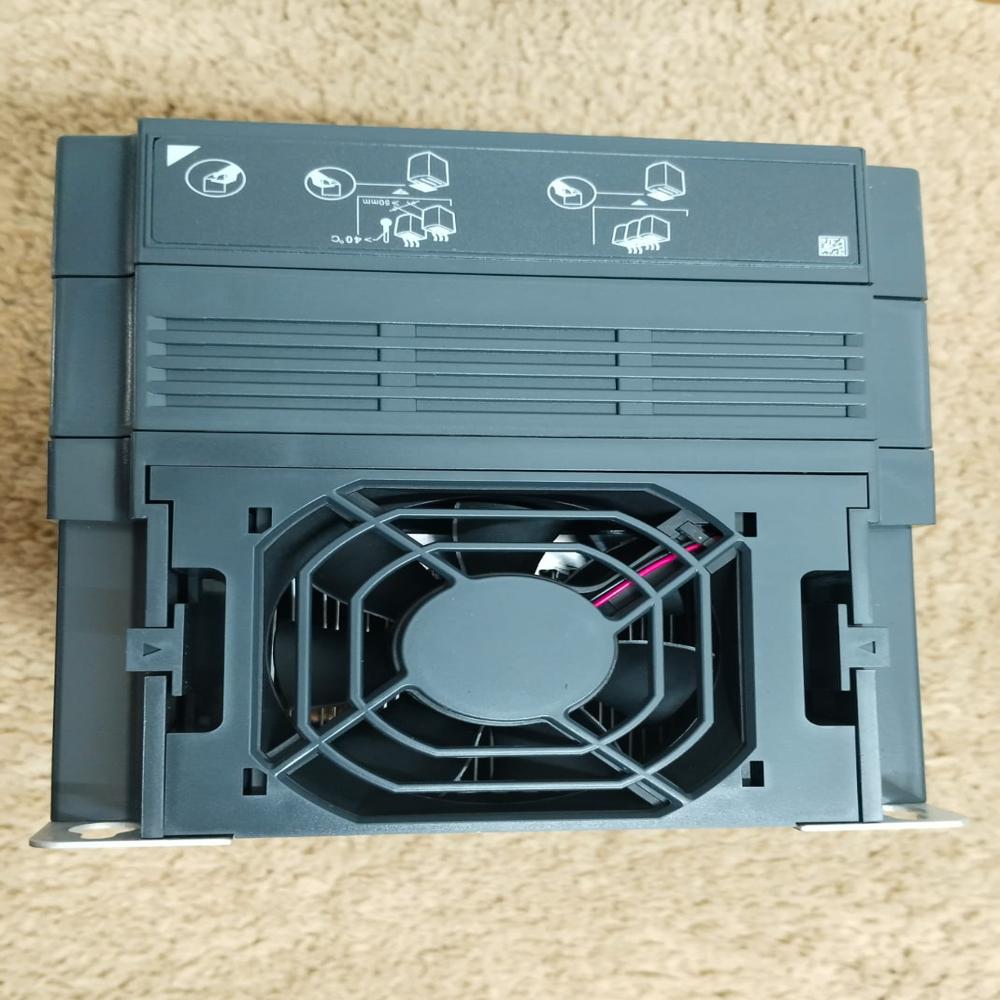

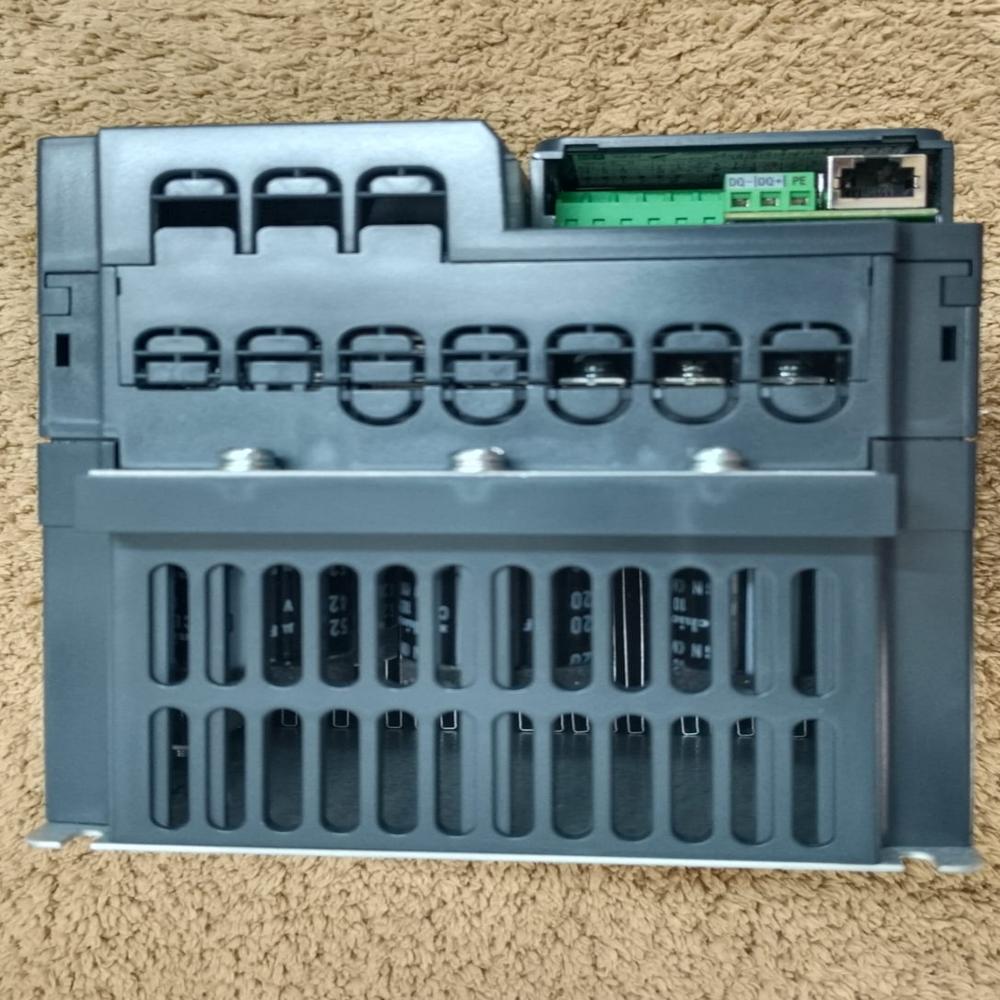

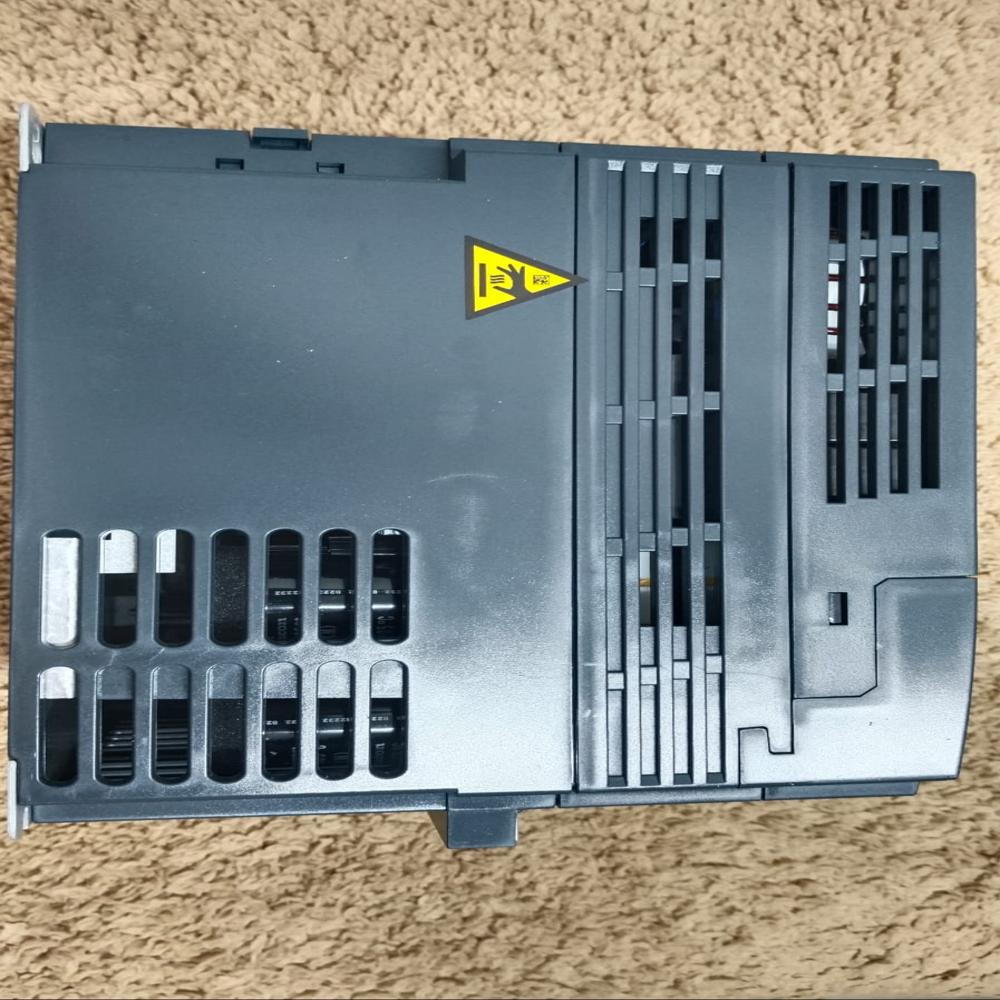

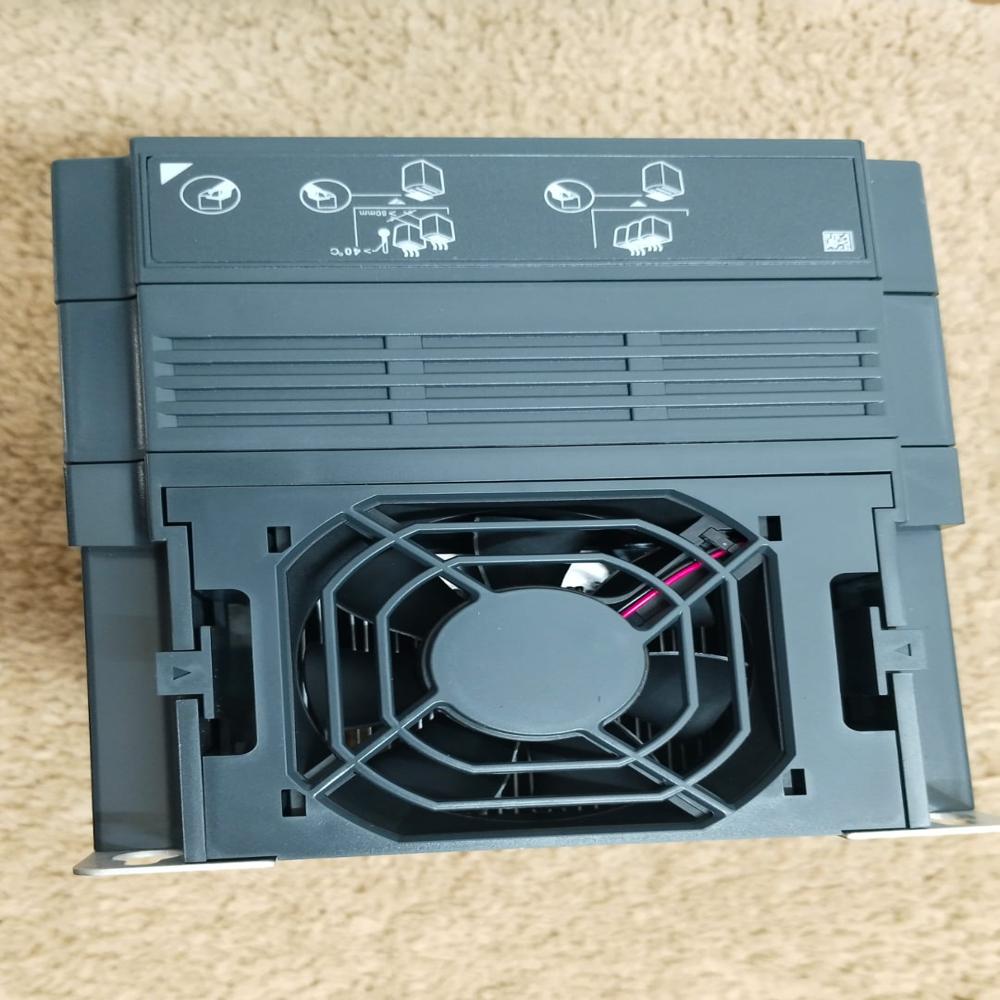

ATV310H075N4E - ATV310 - 0.75 kW - 1 hp - 380...460 V - 3 phase
ATV310H075N4E - ATV310 - 0.75 kW - 1 hp - 380...460 V - 3 phase
ATV310H075N4E - ATV310 - 0.75 kW - 1 hp - 380...460 V - 3 phase
ATV310H075N4E - ATV310 - 0.75 kW - 1 hp - 380...460 V - 3 phase
ATV310H075N4E - ATV310 - 0.75 kW - 1 hp - 380...460 V - 3 phase
ATV310H075N4E - ATV310 - 0.75 kW - 1 hp - 380...460 V - 3 phase
ATV310H075N4E - ATV310 - 0.75 kW - 1 hp - 380...460 V - 3 phase
ATV310H075N4E - ATV310 - 0.75 kW - 1 hp - 380...460 V - 3 phase
ATV310H075N4E - ATV310 - 0.75 kW - 1 hp - 380...460 V - 3 phase
ATV310H075N4E - ATV310 - 0.75 kW - 1 hp - 380...460 V - 3 phase
ATV310H075N4E - ATV310 - 0.75 kW - 1 hp - 380...460 V - 3 phase
ATV310H075N4E - ATV310 - 0.75 kW - 1 hp - 380...460 V - 3 phase

ATV310H075N4E - ATV310 - 0.75 kW - 1 hp - 380...460 V - 3 phase

Price 9200.0 INR/ Number

MOQ : 1 Number

ATV310H075N4E - ATV310 - 0.75 kW - 1 hp - 380...460 V - 3 phase Specification

  • Feature
  • Thermal Management
  • IP Rating
  • 20
  • Humidity %
  • 5% to 95%
  • Mounting Type
  • Vertical wall mounting with a heat sink
  • Power Rating
  • 380 V to 460 V
  • Product Type
  • VFD
  • Application
  • Industrial Machinery
  • Color
  • Silver-grey
  • Rated Voltage
  • 380 V to 460 V Volt (V)
  • Usage & Applications
  • Industrial Machinery
  • Warranty
  • 1 Year
  • Phase
  • 3 Phase
  • Input Voltage
  • 380 V to 460 V Volt (V)
  • Material
  • Plastic
  • Features
  • Energy Efficiency
  • Rated Current
  • 380 V to 460 V Volt (v)


ATV310H075N4E - ATV310 - 0.75 kW - 1 hp - 380...460 V - 3 phase Trade Information

  • Minimum Order Quantity
  • 1 Number
  • Delivery Time
  • 24 Hours


About ATV310H075N4E - ATV310 - 0.75 kW - 1 hp - 380...460 V - 3 phase



The  is a 0.75 kW (1 hp) variable speed drive from the Easy Altivar 310 series. While similar in physical size and features to the 0.37 kW model we discussed, it offers higher current and power ratings for larger asynchronous motors.


Key Technical Specifications

  • Power Rating: 0.75 kW / 1 hp for heavy-duty applications.

  • Voltage Range: 380 V to 460 V AC, three-phase.

  • Continuous Current: 2.3 A at 4 kHz switching frequency.

  • Transient Current: Maximum of 3.5 A for 60 seconds.

  • Apparent Power: 2.5 kVA at 460 V.


Physical Dimensions & Weight
The unit maintains a compact form factor for wall mounting.


Dimension Metric Inches (Approx.)
Height 143 mm 5.63 in
Width 72 mm 2.83 in
Depth 140 mm 5.51 in
Weight 0.8 kg ~1.76 lbs




Typical Applications
This higher-powered unit is suitable for slightly more demanding industrial equipment:
  • HVAC: Control for industrial fans and standard pumps.

  • Packaging: High-speed conveyors and printing machines.

  • Material Handling: Small lifts or larger material transfer systems.
