ATV310HD11N4E - ATV310 - 11 kW - 15 hp - 380...460 V - 3 phase

Name: ATV310HD11N4E - ATV310 - 11 kW - 15 hp - 380...460 V - 3 phase
Brand: Corbital Enterprise
Price: 24700.0 INR
Availability: InStock

Price 24700.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ATV310HD11N4E - ATV310 - 11 kW - 15 hp - 380...460 V - 3 phase Specification

Humidity %
5% to 95%

Mounting Type
Vertical wall mounting with a heat sink

Power Rating
*_380 V to 460 V_*

Product Type
VFD

Application
Industrial Machinery

Color
Silver-grey

Usage & Applications
Industrial Machinery

Rated Voltage
*_380 V to 460 V_* Volt (V)

Warranty
1 year

Input Voltage
380 V to 460 V Volt (V)

Phase
3 Phase

Material
plastic

Rated Current
*_380 V to 460 V_* Volt (v)

ATV310HD11N4E - ATV310 - 11 kW - 15 hp - 380...460 V - 3 phase Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ATV310HD11N4E - ATV310 - 11 kW - 15 hp - 380...460 V - 3 phase

ATV310HD11N4E

The

Schneider Electric ATV310HD11N4E

is a 3-phase Variable Speed Drive (VSD) from the Easy Altivar 310 series, designed for industrial motor control in applications like textile machines, material handling, and packaging. It features a dual-rating system that allows it to operate in both Heavy Duty and Normal Duty modes.

Power Rating:
- Heavy Duty (HD): 11 kW (15 hp) for constant torque loads.
- Normal Duty (ND): 15 kW (20 hp) for variable torque loads like fans.
Electrical Input: 3-phase, 380V to 460V AC at 50/60 Hz.
Current Rating: Continuous output current of 24 A for Heavy Duty and 30 A for Normal Duty.
Control Methods: Supports Sensorless Vector Control (SVC) and Voltage/Frequency ratios (Energy Saving, Quadratic U/F).

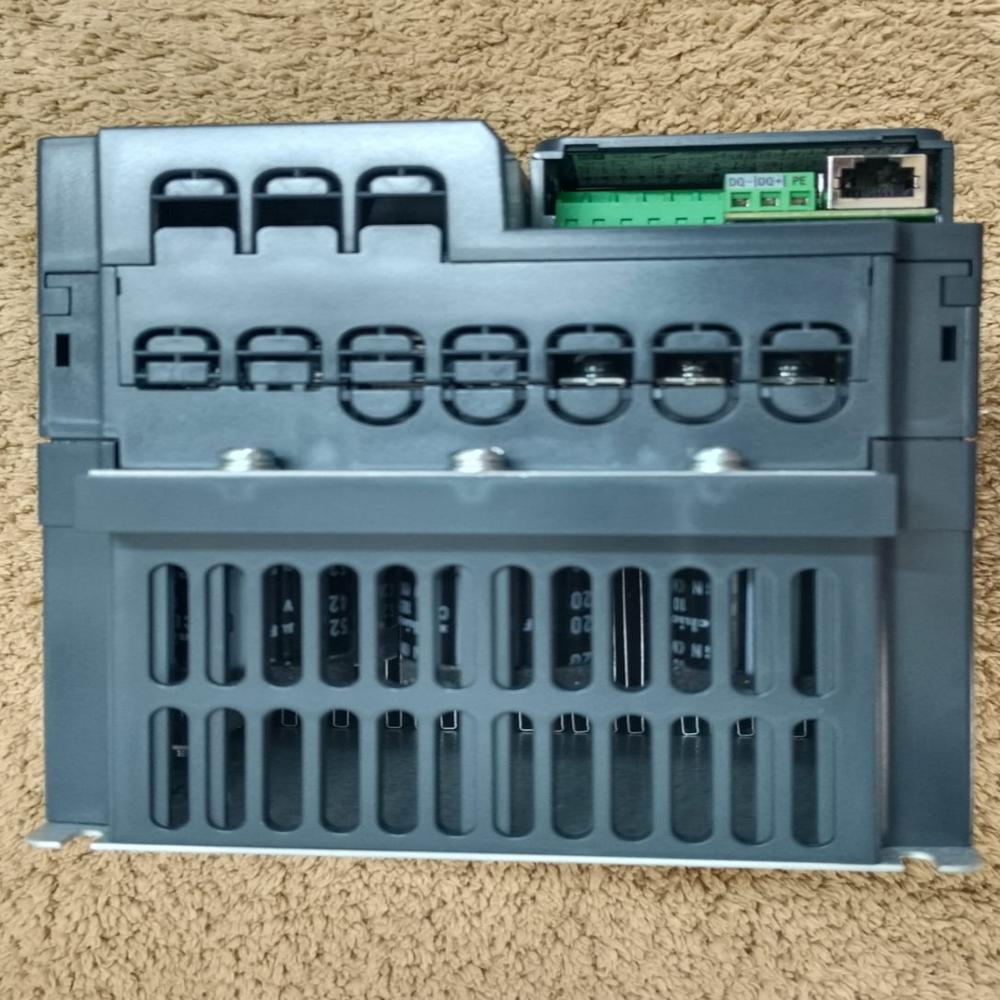

Communication: Integrated Modbus RTU via an RJ45 port.
Enclosure: IP20 rating for indoor installation.

The physical specifications for the

Schneider Electric ATV310HD11N4E

in inches and pounds are as follows:

Width: 5.91 in
Height: 9.13 in
Depth (Length): 6.73 in
Weight: 8.16 lb (3.7 kg)

The Schneider Electric ATV310HD11N4E is designed as an "Easy" linemeaning it focuses on being plug-and-play for common industrial needs.

Here are the standout features:

1. Robust Design for Harsh Environments

Coated Circuit Boards: The internal cards are coated (IEC 60721-3-3 class 3C3) to resist corrosion from dust, humidity, and chemicals.
High Temperature Tolerance: Can operate in temperatures up to 55C (131F) without de-rating.

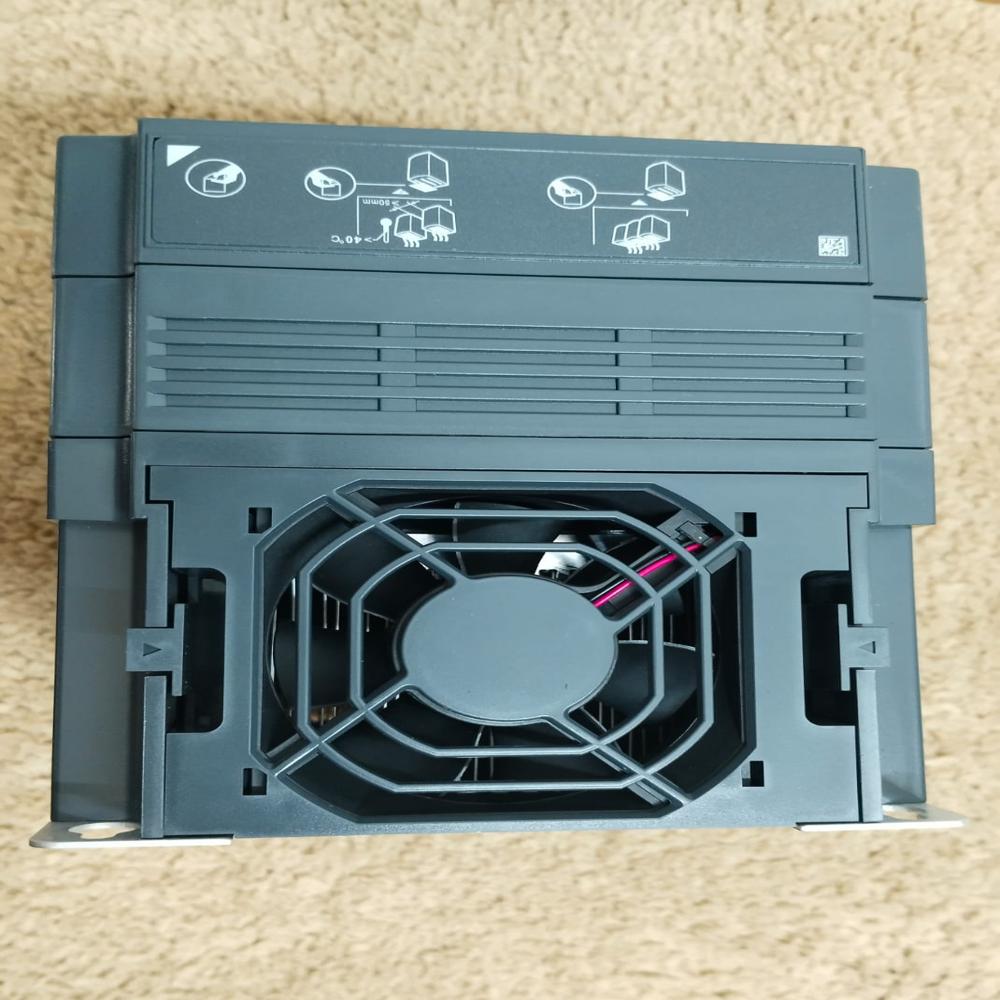

Airflow Management: The cooling air flow is isolated from the electronics to prevent dust build-up on sensitive components.
