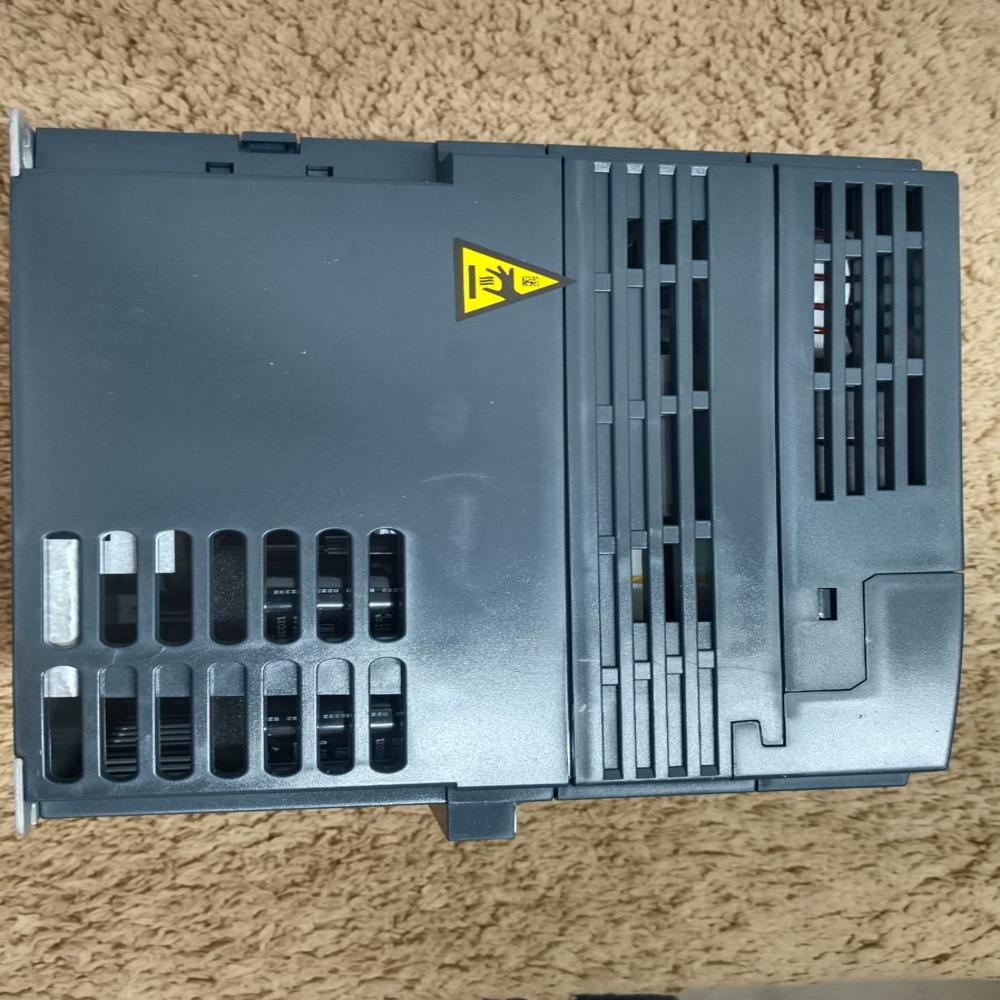

ATV310HD15N4E - ATV310 - 15 kW - 20 hp - 380...460 V - 3 phase

Name: ATV310HD15N4E - ATV310 - 15 kW - 20 hp - 380...460 V - 3 phase
Brand: Corbital Enterprise
Price: 39200.0 INR
Availability: InStock

Price 39200.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ATV310HD15N4E - ATV310 - 15 kW - 20 hp - 380...460 V - 3 phase Specification

Mounting Type
Vertical wall mounting with a heat sink

IP Rating
20

Humidity %
5% to 95%

Power Rating
380 V to 460 V

Product Type
VFD

Application
Industrial Machinery

Color
Silver-grey

Usage & Applications
Industrial Machinery

Weight
6.3 Kilograms (kg)

Rated Voltage
380 V to 460 V Volt (V)

Warranty
1 Year

Input Voltage
380 V to 460 V Volt (V)

Phase
3 Phase

Material
Plastic

Rated Current
380 V to 460 V Volt (v)

ATV310HD15N4E - ATV310 - 15 kW - 20 hp - 380...460 V - 3 phase Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ATV310HD15N4E - ATV310 - 15 kW - 20 hp - 380...460 V - 3 phase

The Schneider Electric ATV310HD15N4E is the next power step up in the Easy Altivar 310 series. It is a 3-phase Variable Speed Drive (VSD) designed for more demanding industrial motors, offering higher current and power capacity than the 11 kW model.

ore Technical Specifications

Power Output (Dual Rated):
- Heavy Duty (HD): 15 kW (20 hp) for high-torque loads.
- Normal Duty (ND): 18.5 kW (25 hp) for variable torque (fans/pumps).
Input Voltage: 380...460 V AC, 3-phase.
Output Current: 33 A (HD) / 36 A (ND).
Frequency Range: 0.5 to 400 Hz.
Communication: Integrated Modbus RTU via RJ45.

Physical Dimensions & Weight

This model uses a larger frame than the 11 kW version:

Width: 7.09 in (180 mm)
Height: 12.99 in (330 mm)
Depth: 7.52 in (191 mm)
Net Weight: 13.89 lb (6.3 kg)

Key Features

Durability: Features coated circuit boards (Class 3C3) and can operate in temperatures up to 55C without derating.
Advanced Control: Supports Sensorless Vector Control (SVC) for precise speed and torque management.
Protection: Includes short-circuit, overcurrent, and thermal protection for both the drive and the motor.
