ATV310HU40N4E - ATV310 - 4 kW - 5.5 hp - 380...460 V - 3 phase

Name: ATV310HU40N4E - ATV310 - 4 kW - 5.5 hp - 380...460 V - 3 phase
Brand: Corbital Enterprise
Price: 17700.0 INR
Availability: InStock

Price 17700.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ATV310HU40N4E - ATV310 - 4 kW - 5.5 hp - 380...460 V - 3 phase Specification

Humidity %
5% to 95%

Mounting Type
Vertical wall mounting with a heat sink

IP Rating
20

Product Type
VFD

Power Rating
380 V to 460 V

Application
Industrial Machinery

Color
Silver-grey

Weight
1.8 Kilograms (kg)

Rated Voltage
380 V to 460 V Volt (V)

Warranty
1 Year

Input Voltage
380 V to 460 V Volt (V)

Phase
3 Phase

Material
Plastic

Rated Current
380 V to 460 V Volt (v)

ATV310HU40N4E - ATV310 - 4 kW - 5.5 hp - 380...460 V - 3 phase Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ATV310HU40N4E - ATV310 - 4 kW - 5.5 hp - 380...460 V - 3 phase

The

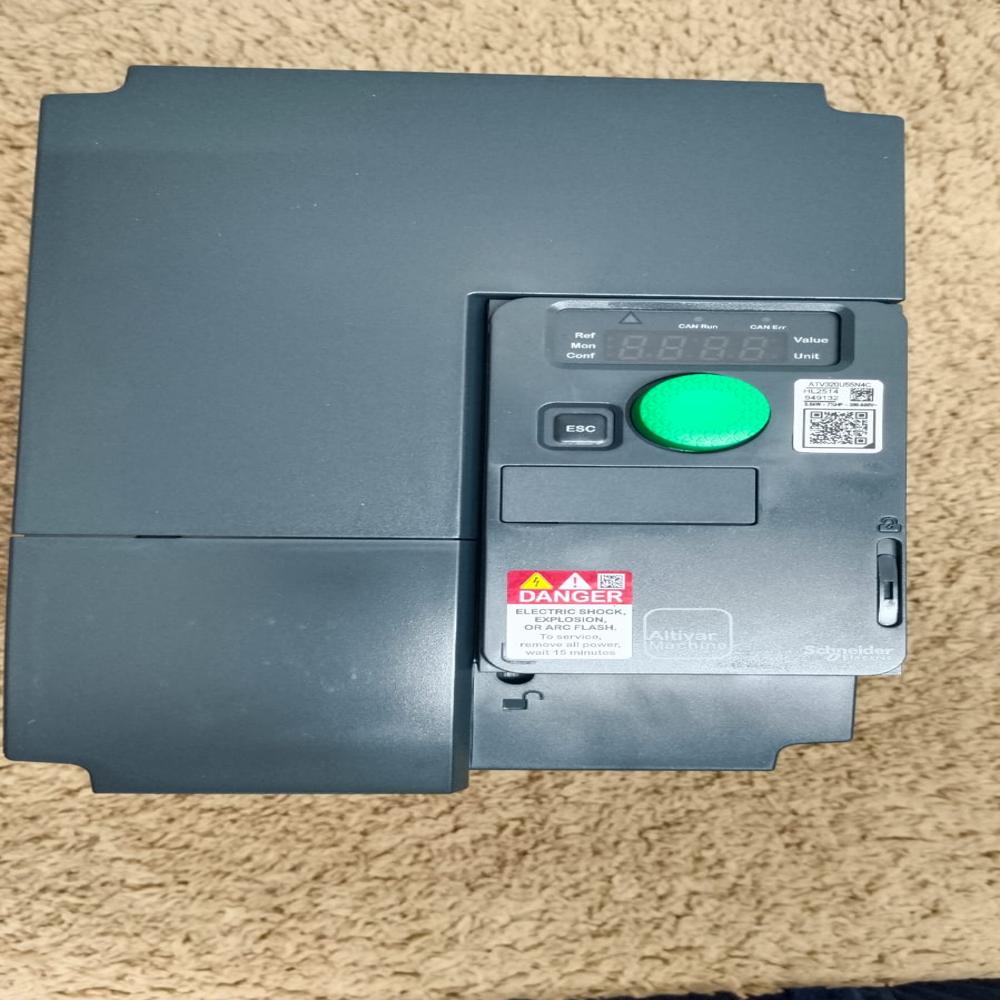

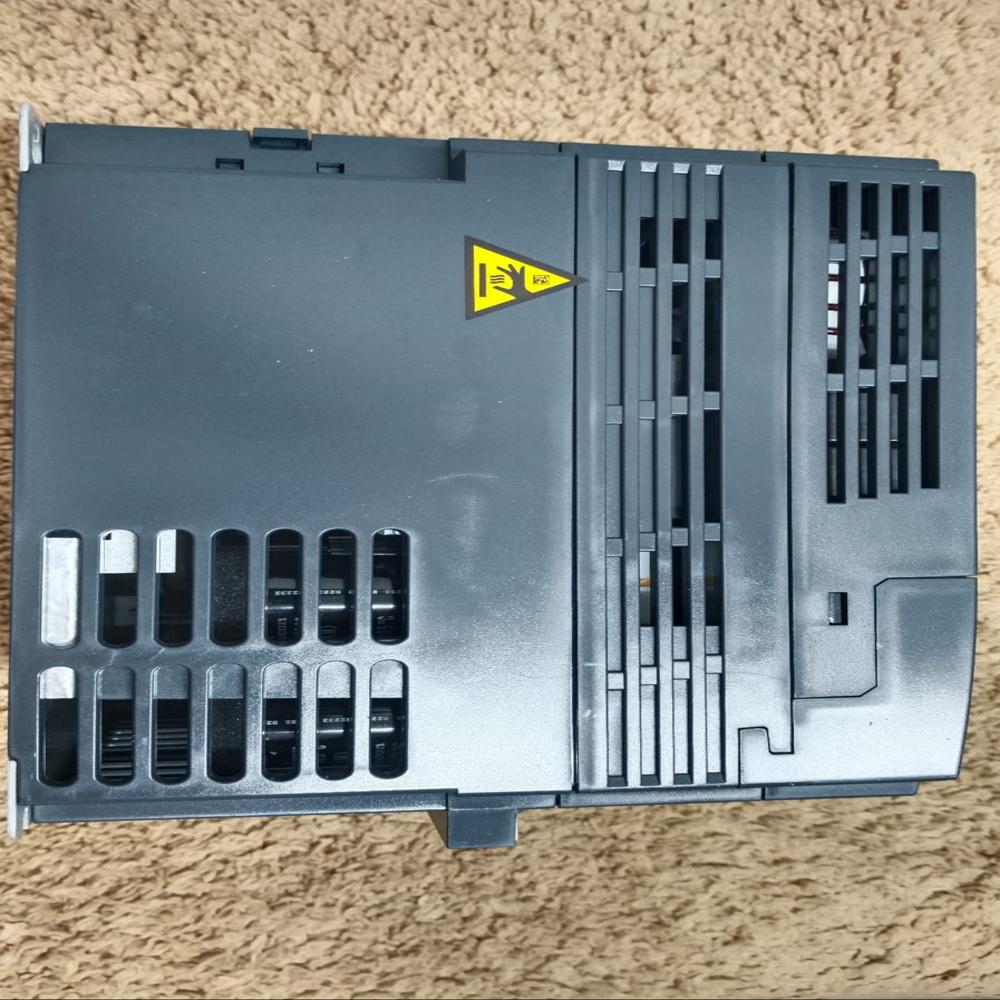

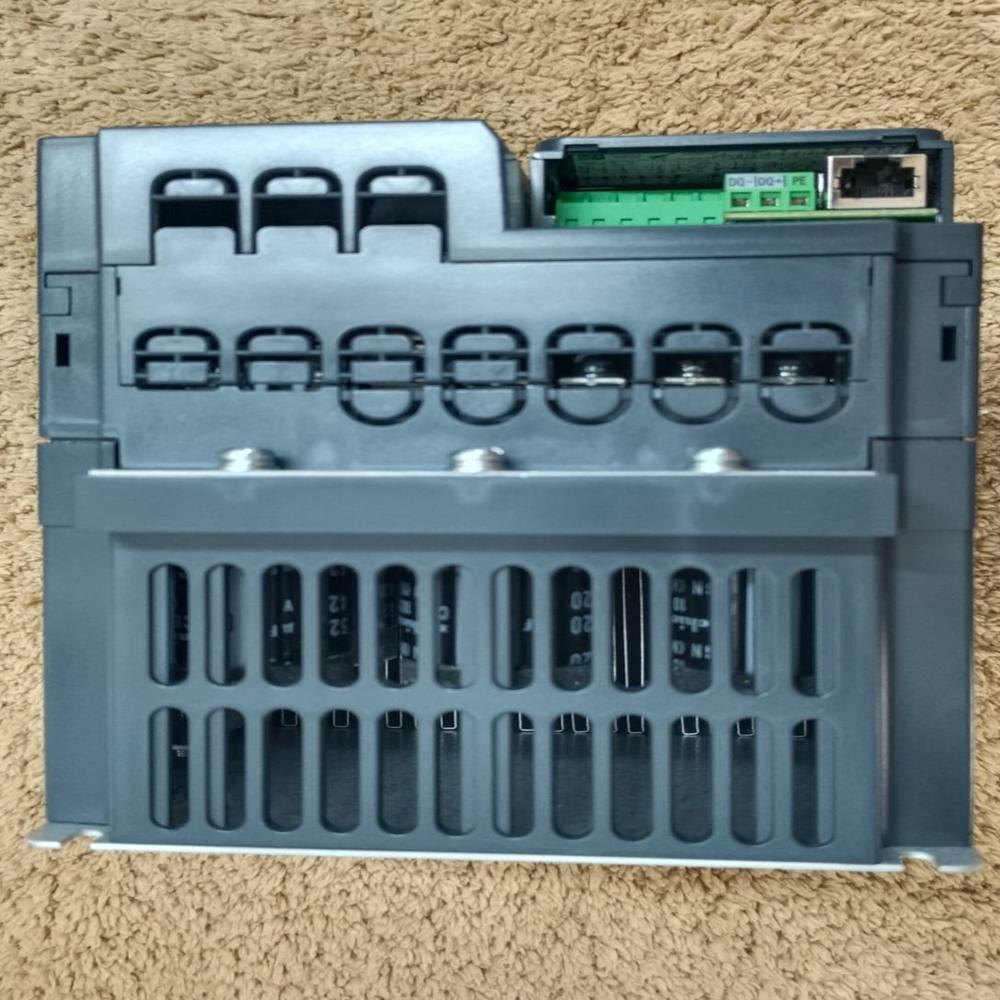

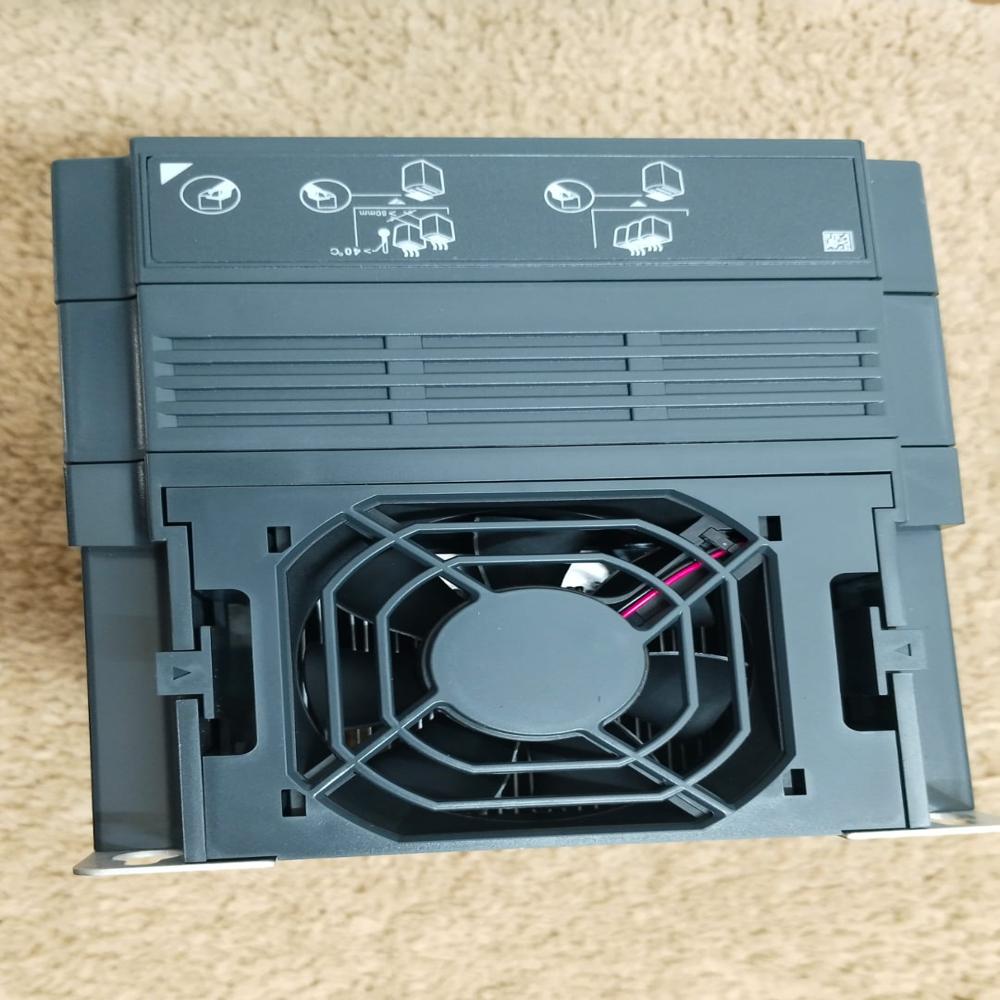

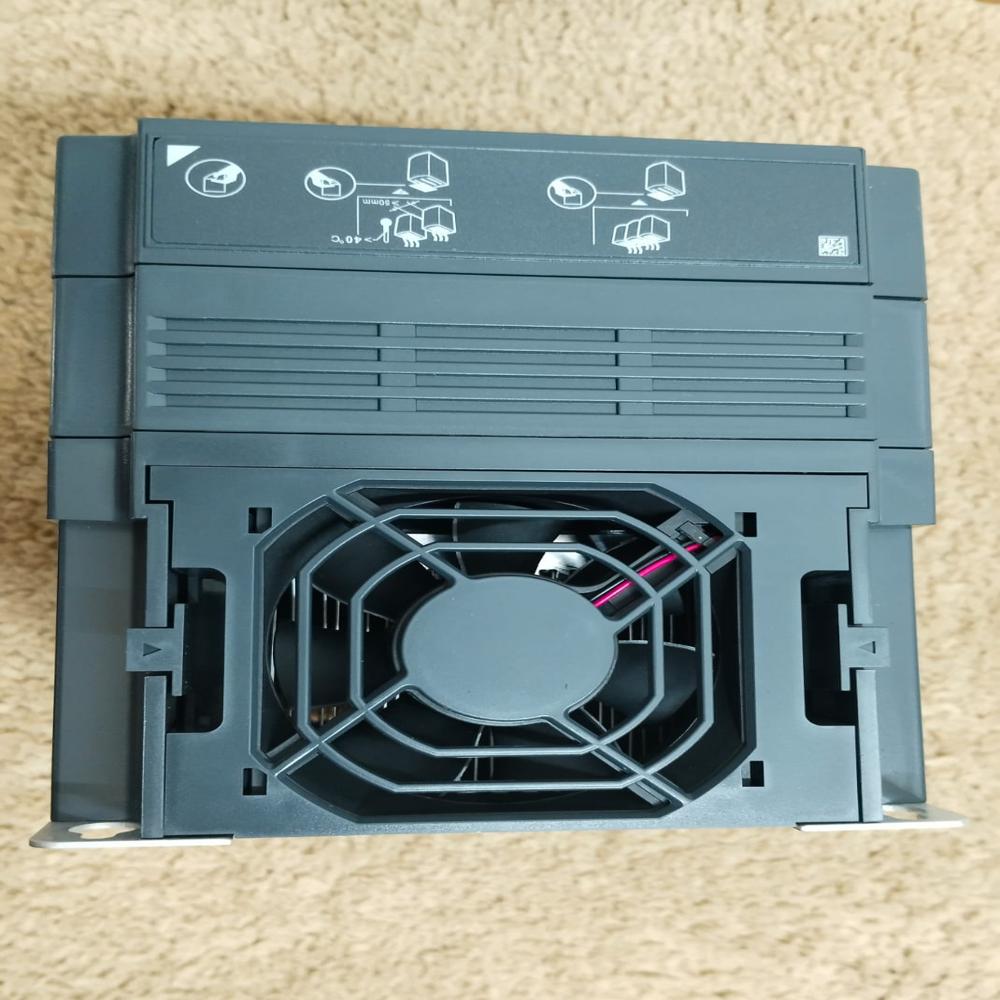

Schneider Electric ATV310HU40N4E

is a versatile variable speed drive from the Easy Altivar 310 series, providing power for 4 kW (5.5 hp) heavy-duty or 5.5 kW (7.5 hp) normal-duty asynchronous motors.

Core Features

Dual Duty Ratings: Optimized for both Heavy Duty (4 kW / 5.5 hp) and Normal Duty (5.5 kW / 7.5 hp) industrial applications.
Torque Performance: Delivers a starting torque of 150% at 3 Hz and transient overtorque up to 170200% of the nominal motor torque.
Control Methods: Includes Sensorless Vector Control (SVC) for precision and Energy Saving (quadratic U/f) for pump and fan efficiency.
Ruggedized Protection: Features Class 3C3 and 3S2 coated circuit boards to protect against chemical and dust pollution.
Plug & Play: Designed for easy installation with an integrated 4-digit LED display for clear parameter monitoring.

Environmental Resistance & Humidity

Humidity: Supports 5% to 95% relative humidity, provided there is no condensation or dripping water (conforming to IEC 60068-2-3).
Temperature: Operates at full capacity from -10C to 55C (131F) without derating; it can reach 60C with 2.2% current derating per degree.
Altitude: Can operate up to 1000 m without power derating.
