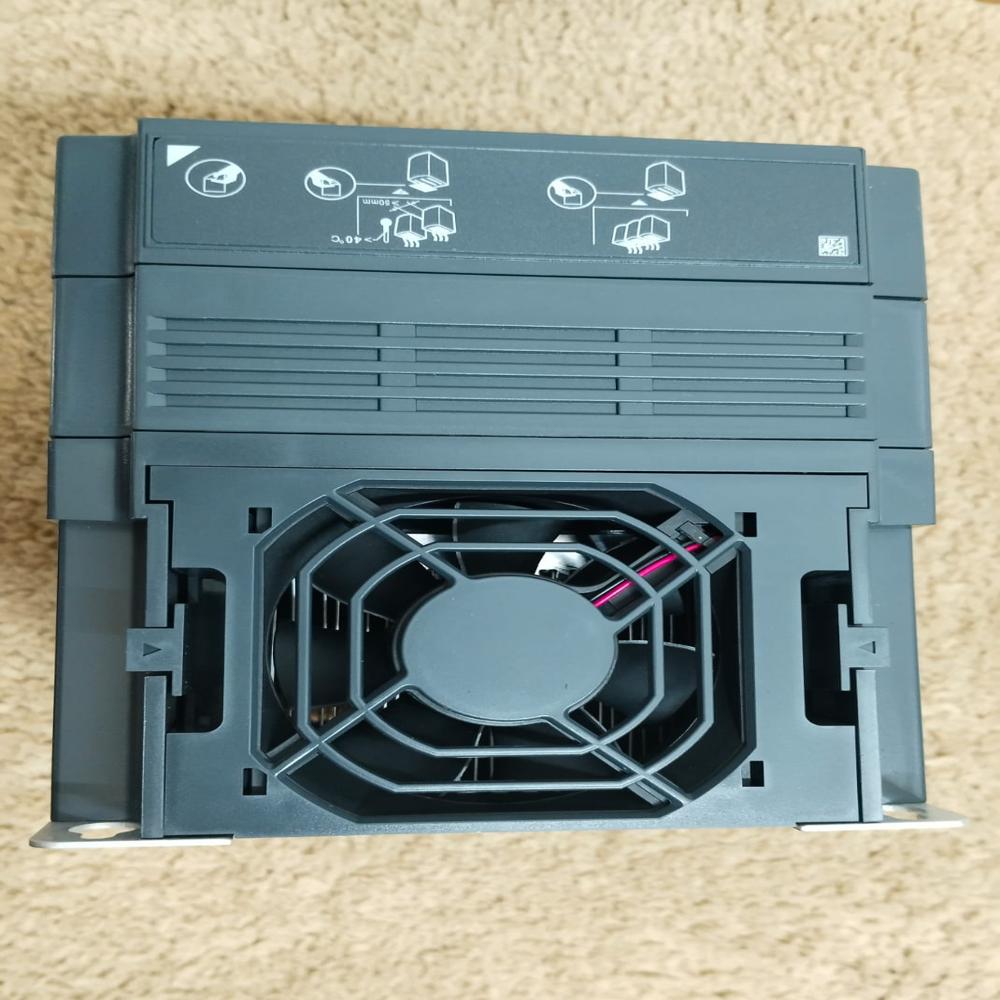

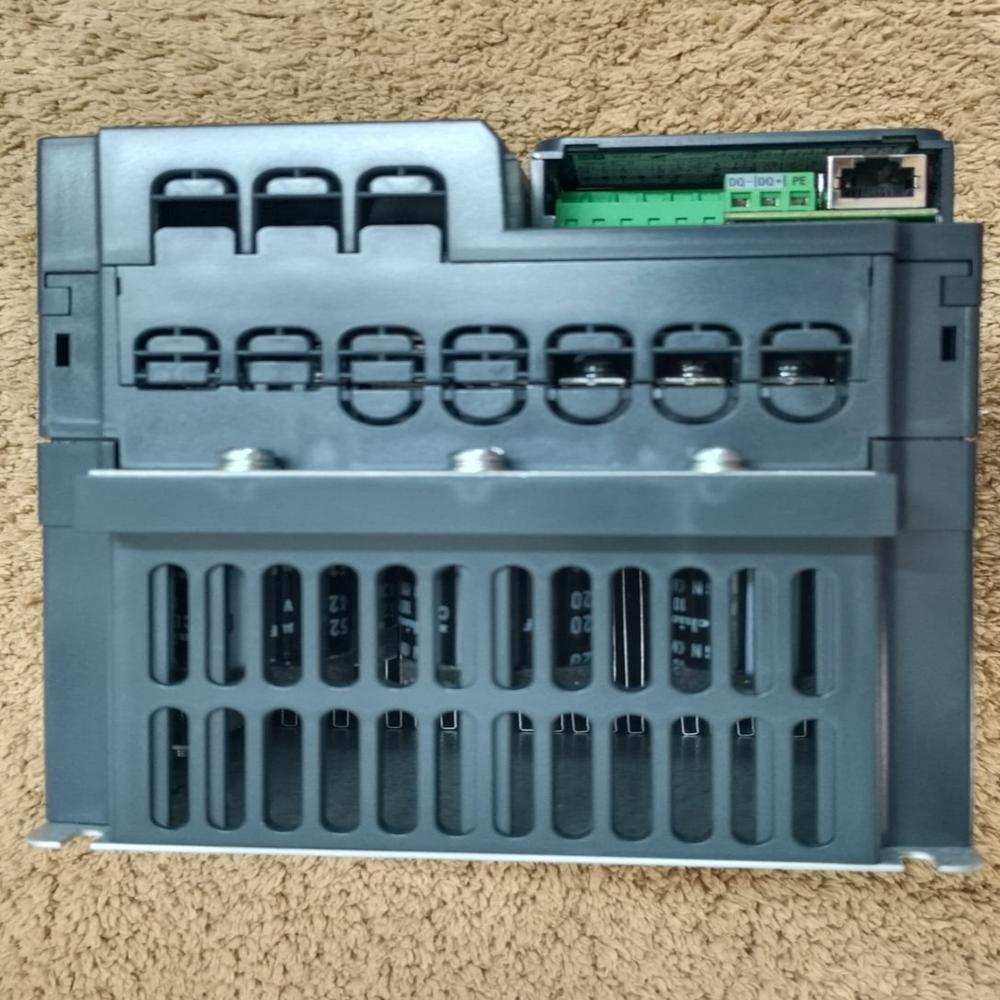

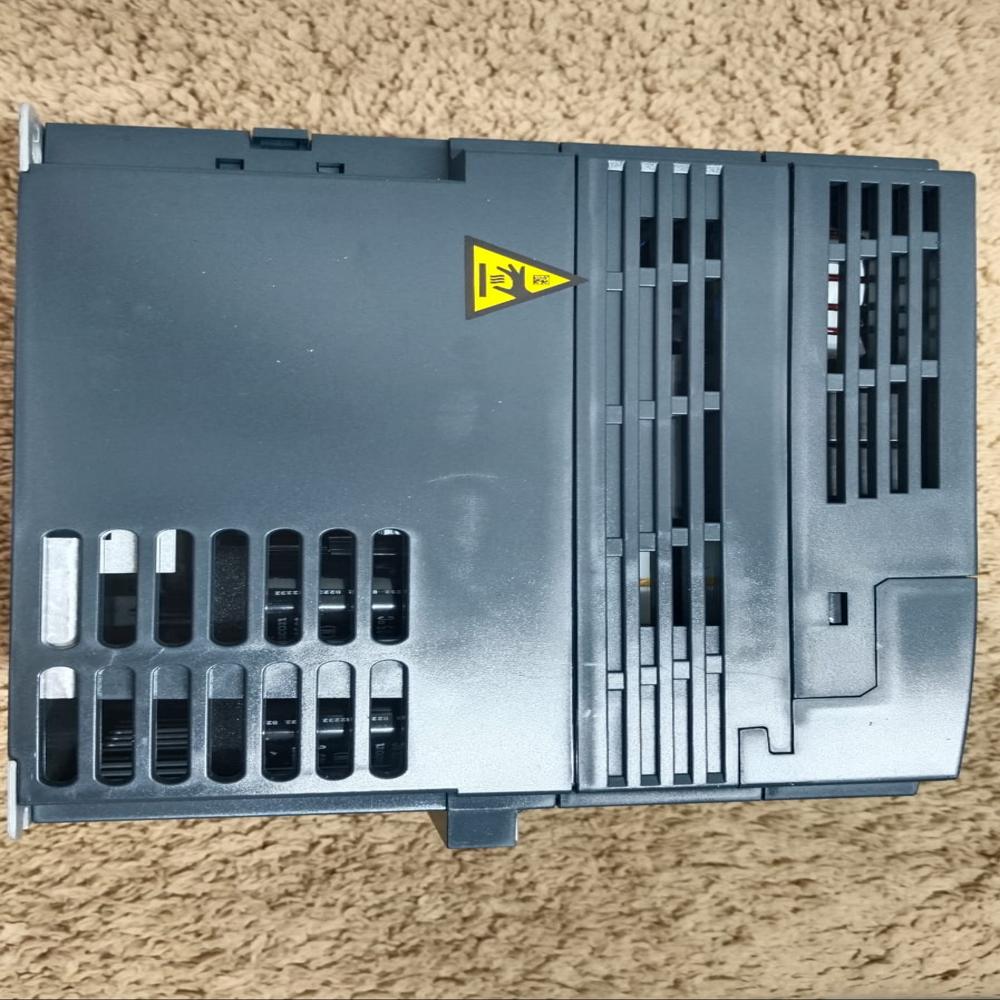

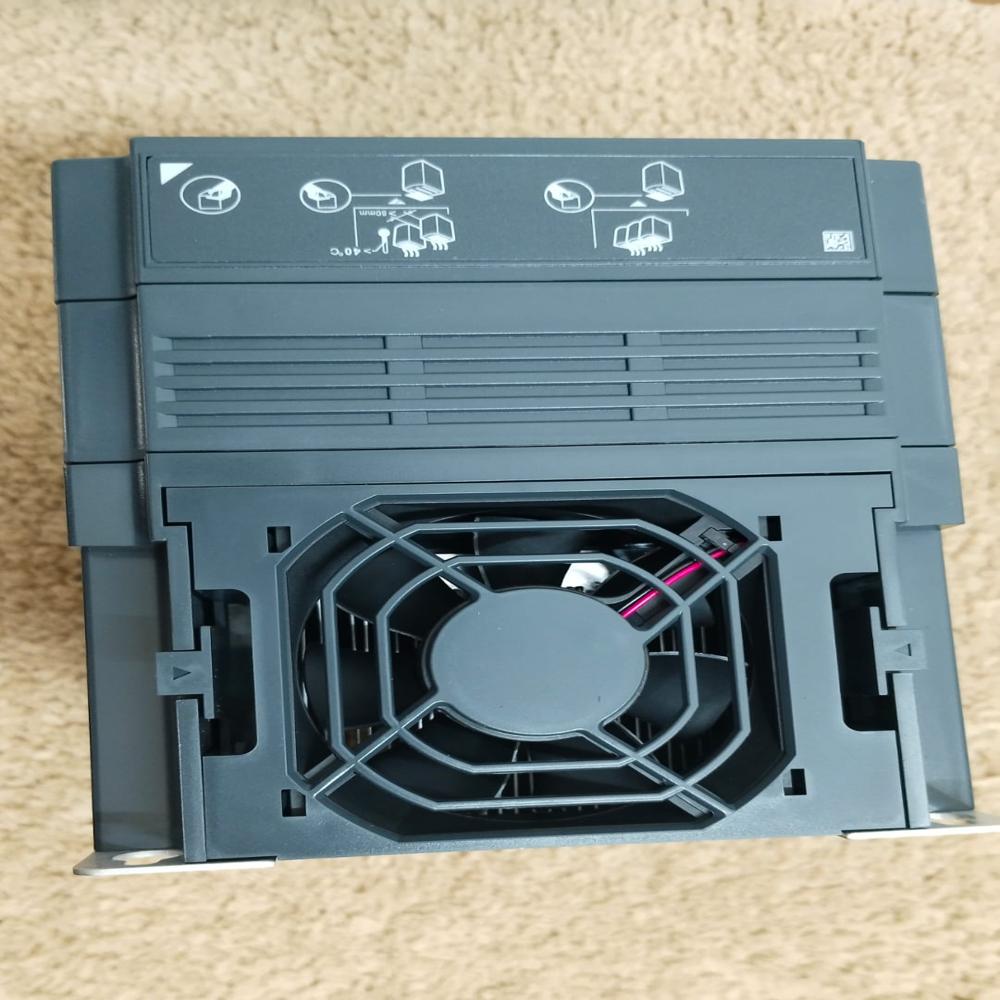

ATV310HU75N4E - ATV310 - 7.5 kW - 10 hp - 380...460 V - 3 phase

Name: ATV310HU75N4E - ATV310 - 7.5 kW - 10 hp - 380...460 V - 3 phase
Brand: Corbital Enterprise
Price: 24700.0 INR
Availability: InStock

Price 24700.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ATV310HU75N4E - ATV310 - 7.5 kW - 10 hp - 380...460 V - 3 phase Specification

IP Rating
20

Mounting Type
Vertical wall mounting with a heat sink

Humidity %
5% to 95%

Power Rating
380 V to 460 V

Product Type
VFD

Application
Industrial Machinery

Color
Silver-grey

Rated Voltage
380 V to 460 V Volt (V)

Usage & Applications
Industrial Machinery

Warranty
1 Year

Phase
3 Phase

Input Voltage
380 V to 460 V Volt (V)

Rated Current
380 V to 460 V Volt (v)

Material
Plastic

ATV310HU75N4E - ATV310 - 7.5 kW - 10 hp - 380...460 V - 3 phase Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ATV310HU75N4E - ATV310 - 7.5 kW - 10 hp - 380...460 V - 3 phase

The

Schneider Electric ATV310HU75N4E

is a powerful variable speed drive in the Easy Altivar 310 series, providing motor control for 7.5 kW (10 hp) heavy-duty or 11 kW (15 hp) normal-duty industrial applications.

Brand	Schneider Electric
Model Name/Number	ATV310HU75N4E
Motor Power	7.5Kw
Input Voltage	415 V
Input Phase	3 - Phase
Input Frequency	50 Hz

Key Technical Specifications

Power Rating:
- Heavy Duty (HD): 7.5 kW / 10 hp.
- Normal Duty (ND): 11 kW / 15 hp.
Voltage Supply: 380 V to 460 V AC, three-phase.
Current Ratings:
- Continuous Output Current: 17.0 A.
- Line Current: 22.4 A.
Torque Performance: Offers 150% starting torque at 3 Hz and transient overtorque of 170200% for 60 seconds.

Physical Dimensions & Weight

Dimension	Metric	Inches (Approx.)
Height	232 mm	9.13 in
Width	150 mm	5.91 in
Depth	171 mm	6.73 in
Net Weight	3.7 kg	8.16 lbs

Environmental & Humidity Resistance

Humidity: Supports 5% to 95% relative humidity without dripping water or condensation (IEC 60068-2-3).
Temperature: Operates at full capacity up to 55C (131F); can reach 60C with current derating and top cover removal.
Robustness: Includes Class 3C3 and 3S2 coated circuit boards for protection against dust, humidity, and chemicals.
