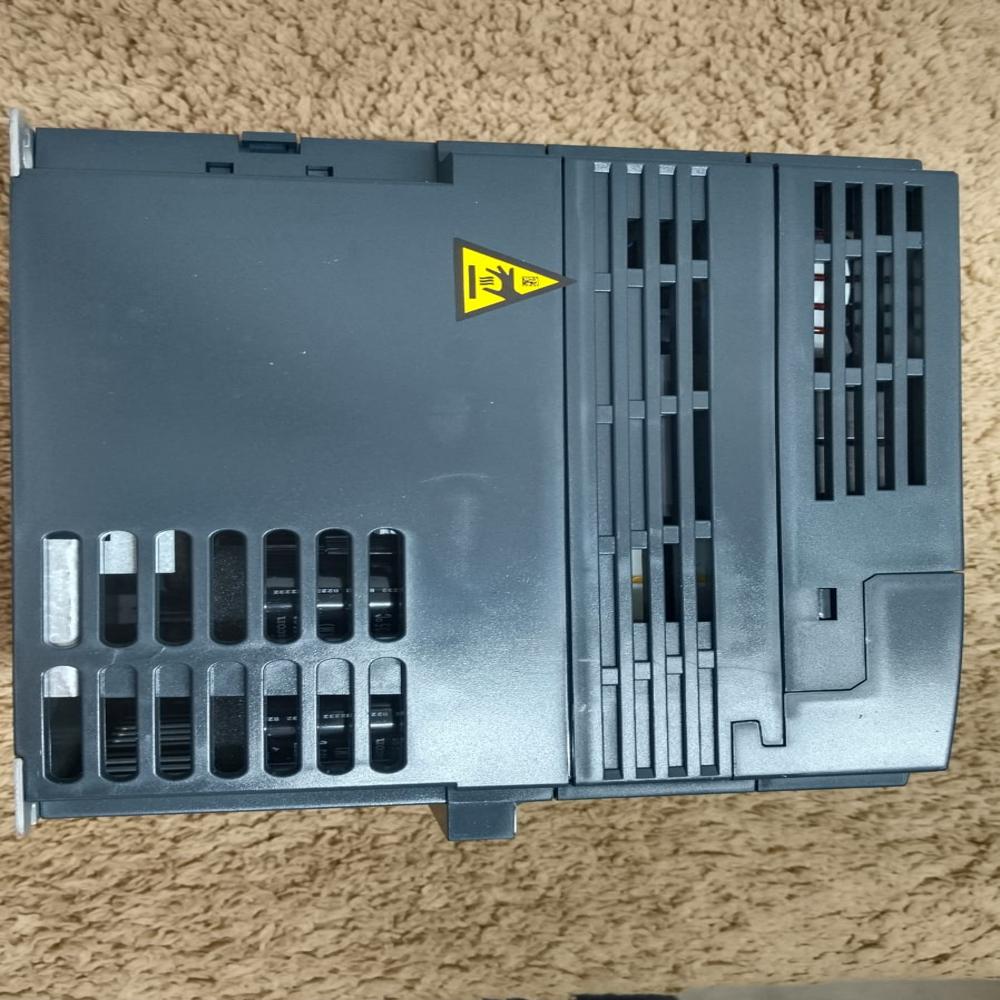

ATV320U22N4C - ATV320, 2.2 kW, 3hp 380...500 V, 3 phases, compact

Price 16100.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ATV320U22N4C - ATV320, 2.2 kW, 3hp 380...500 V, 3 phases, compact Specification

IP Rating
20

Mounting Type
Vertical wall mounting with a heat sink

Humidity %
5% to 95%

Product Type
VFD

Power Rating
380 V to 460 V

Application
Industrial Machinery

Color
Silver-grey

Weight
1.3 Kilograms (kg)

Usage & Applications
Industrial Machinery

Rated Voltage
380 V to 460 V Volt (V)

Warranty
1 Year

Input Voltage
380 V to 460 V Volt (V)

Phase
3 Phase

Rated Current
380 V to 460 V Volt (v)

Material
Plastic

ATV320U22N4C - ATV320, 2.2 kW, 3hp 380...500 V, 3 phases, compact Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ATV320U22N4C - ATV320, 2.2 kW, 3hp 380...500 V, 3 phases, compact

he Schneider Electric ATV320U22N4C is a high-performance 2.2 kW (3.0 hp) Variable Speed Drive from the Altivar Machine ATV320 series. It is specifically engineered for complex industrial machines requiring advanced safety and precise motor control.

Core Technical Specifications

Power Rating: 2.2 kW / 3.0 hp.
Input Voltage: 380V to 500V AC (3-phase).
Nominal Output Current: 5.5 A.
Frequency Range: 0.1 to 599 Hz.
Safety Features: 5 integrated functions (STO, SS1, SLS, SMS, GDL).
Communication: Built-in CANopen and Modbus RTU.

Physical Profile

Format: Compact (designed for side-by-side mounting to save panel space).

Key Performance Features

Safety Excellence: Certified to SIL3 / PLe, allowing for high-level machine safety without external safety relays or contactors.
Advanced Control: Handles both standard induction and permanent magnet motors with superior torque at low speeds.
Built-in Logic: Features Altivar Logic, a programmable function block capability that can handle simple automation tasks without a separate PLC.
Harsh Environment Ready: 3C3 coated circuit boards provide high resistance to corrosion, humidity, and chemical gases.

The Schneider Electric ATV320U22N4C (

) is a high-performance "Compact" drive designed to give machine builders maximum control and safety in a small footprint.

Here are the standout features:

1. Advanced Integrated Safety

This is the key differentiator for the ATV320 range. It eliminates the cost of external safety components:

5 Built-in Functions: Includes STO (Safe Torque Off), SS1 (Safe Stop 1), SLS (Safely-Limited Speed), SMS (Safe Maximum Speed), and GDL (Guard Door Locking).
Certified Protection: Fully meets SIL3 (IEC 61508) and PLe (ISO 13849-1) standards, allowing for high-level machine safety compliance right out of the box.

2. Smart "Altivar Logic" (Built-in PLC)

Onboard Automation: The drive has a built-in programmable logic capability. You can create simple automation sequences and logical functions within the drive itself, often removing the need for a separate small PLC.
Dynamic Performance: Optimized for fast cycles and high-speed motion common in packaging, material handling, and textile machines.

3. Precision Motor Control

Universal Motor Support: It can drive both standard Asynchronous (induction) motors and high-efficiency Synchronous (Permanent Magnet) motors.
Flux Vector Control: Provides superior sensorless speed and torque regulation, ensuring the motor maintains power even at very low RPMs.

4. Rugged and Space-Saving Design

Extreme Robustness: The circuit boards are 3C3 and 3S2 coated, making the drive highly resistant to humidity, dust, and chemical gases.
High Temperature Tolerance: Operates at ambient temperatures up to

without power loss (de-rating), and up to

with minor adjustments.
Compact Form Factor: Specifically designed for side-by-side mounting, which significantly reduces the horizontal space needed in your electrical cabinet.

5. Seamless Connectivity

Standard Ports: Built-in CANopen and Modbus RTU.
Flexible Networking: Supports "plug-in" communication modules for Profinet, EtherNet/IP, EtherCAT, and Profibus DP, allowing easy integration into any modern factory network.
