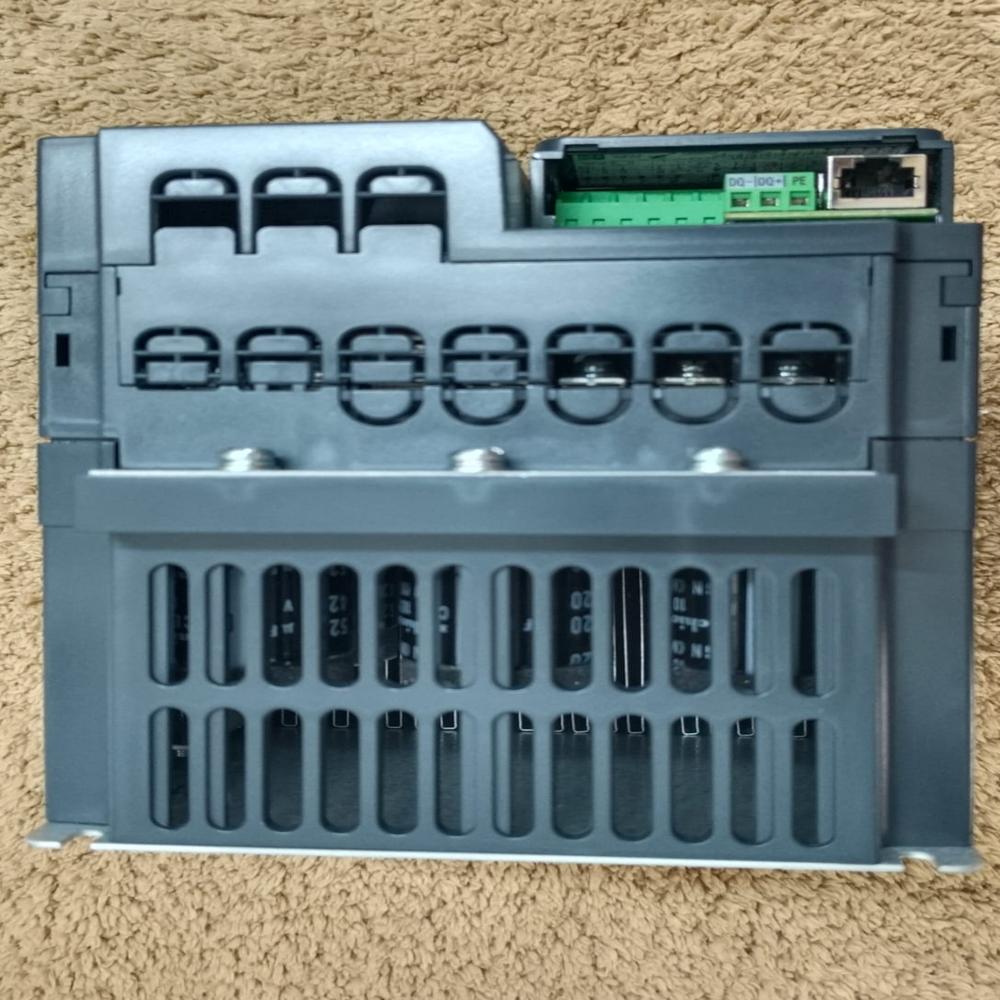

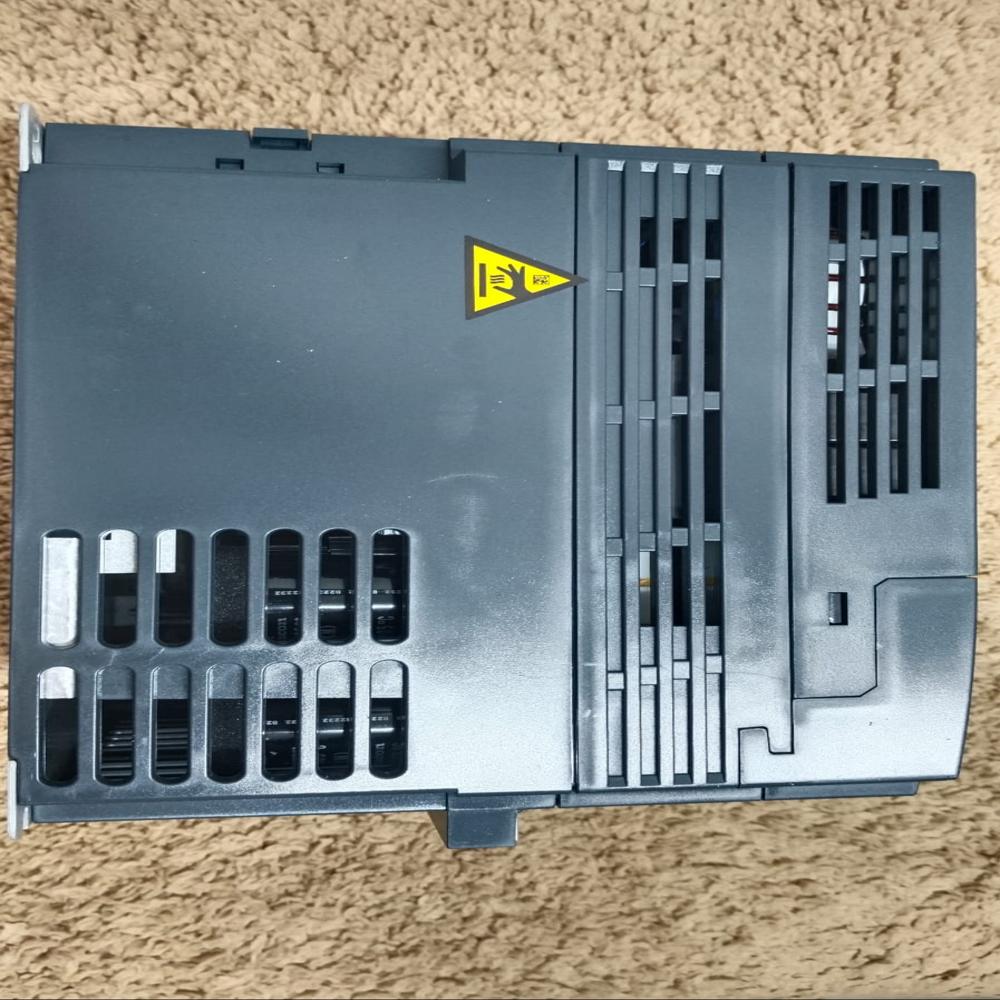

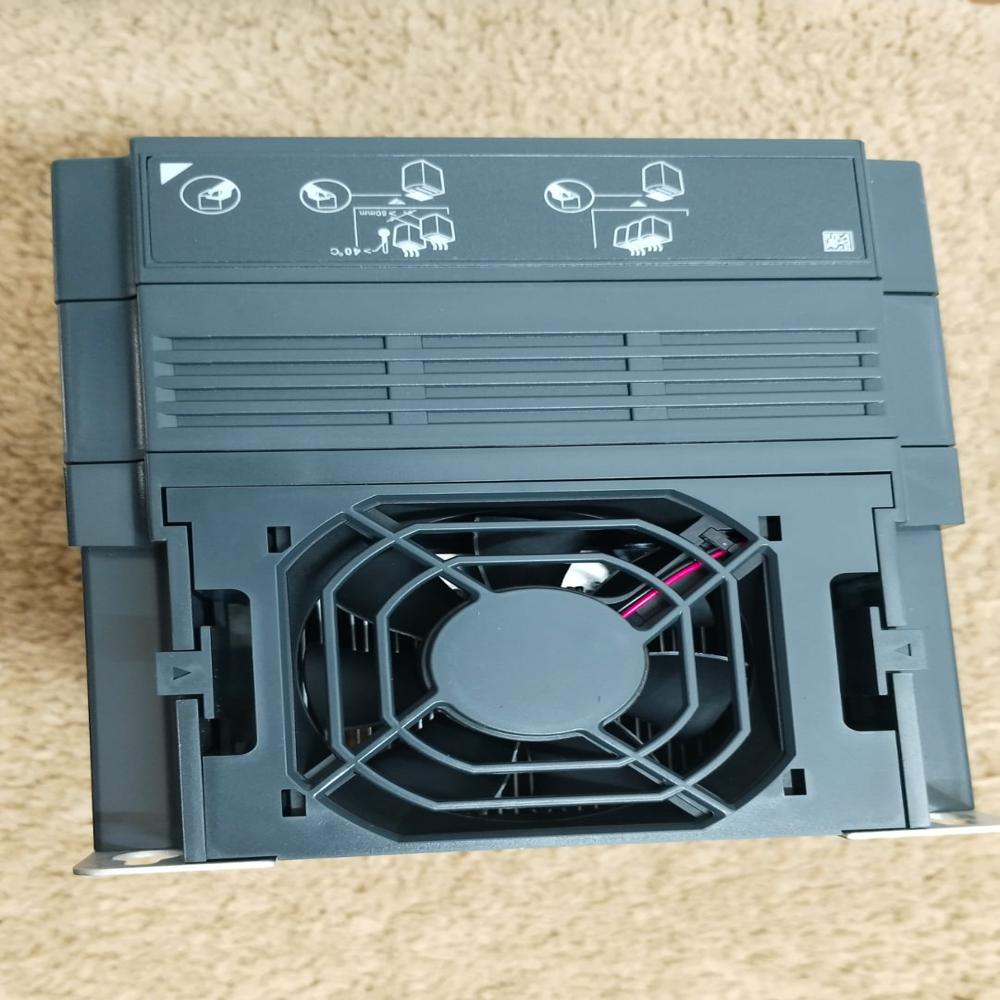

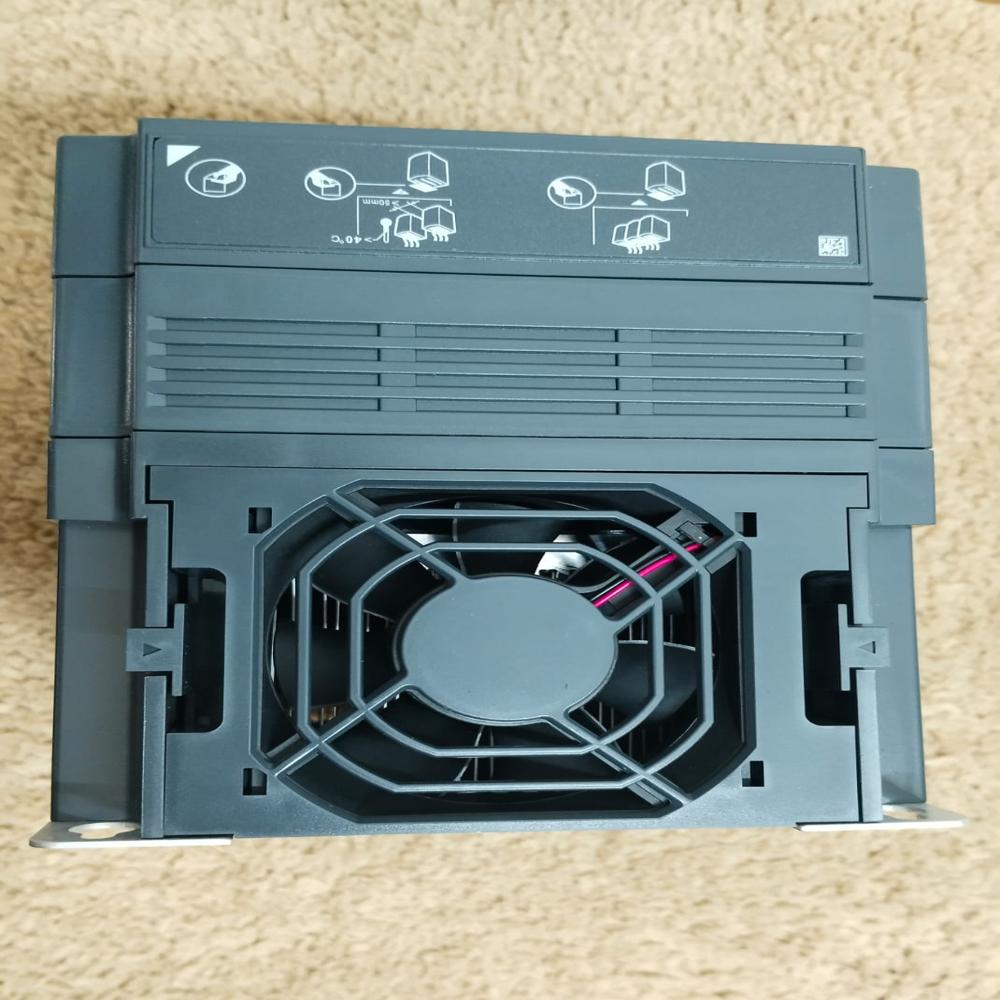

ATV340U07N4E - ATV340, 0.75 kW Heavy Duty, 400 V, 3 phases,

Name: ATV340U07N4E - ATV340, 0.75 kW Heavy Duty, 400 V, 3 phases,
Brand: Corbital Enterprise
Price: 28500.0 INR
Availability: InStock

Price 28500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ATV340U07N4E - ATV340, 0.75 kW Heavy Duty, 400 V, 3 phases, Specification

Humidity %
5% to 95%

IP Rating
20

Mounting Type
Vertical wall mounting with a heat sink

Product Type
VFD

Power Rating
380 V to 460 V

Application
Industrial Machinery

Color
Silver-grey

Weight
1.7 Kilograms (kg)

Rated Voltage
380 V to 460 V Volt (V)

Usage & Applications
Industrial Machinery

Warranty
1 Year

Input Voltage
380 V to 460 V Volt (V)

Phase
3 Phase

Rated Current
380 V to 460 V Volt (v)

Material
Plastic

ATV340U07N4E - ATV340, 0.75 kW Heavy Duty, 400 V, 3 phases, Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ATV340U07N4E - ATV340, 0.75 kW Heavy Duty, 400 V, 3 phases,

The

Schneider Electric ATV340U07N4E

is a high-performance 0.75 kW (1 hp) Variable Speed Drive (VSD) from the Altivar Machine ATV340 series. This "E" version features embedded multi-protocol Ethernet (EtherNet/IP and Modbus TCP) for real-time communication and IoT readiness.

Core Technical Specifications

Power Rating:
- Heavy Duty (HD): 0.75 kW (1 hp).
- Normal Duty (ND): 1.1 kW (1.5 hp).
Electrical Input: 3-phase, 380 V to 480 V AC (50/60 Hz).
Output Current: Nominal output current of 2.2 A (Heavy Duty).
Maximum Current: 3.4 A without a line choke.
Output Frequency: 0.1 to 599 Hz.

Physical Profile & Build

Dimensions: 3.35 in (W) x 10.63 in (H) x 9.15 in (D) (85 x 270 x 232.5 mm).
Weight: 1.7 kg (3.75 lb).
Durability: Features 3C3 and 3S3 coated circuit boards for high resistance to chemical gases and non-conductive dust.
Operating Temp: Reliably operates up to 50 C without power loss, and up to 60 C with derating.

Integrated Features & Safety

Control Methods: Supports open and closed-loop control for both synchronous and asynchronous motors.
Safety Integration: Includes Safe Torque Off (STO), Safe Stop 1 (SS1), and Safe Brake Management as standard.
Connectivity: Integrated dual-port Ethernet (EtherNet/IP, Modbus TCP) and Modbus serial line
