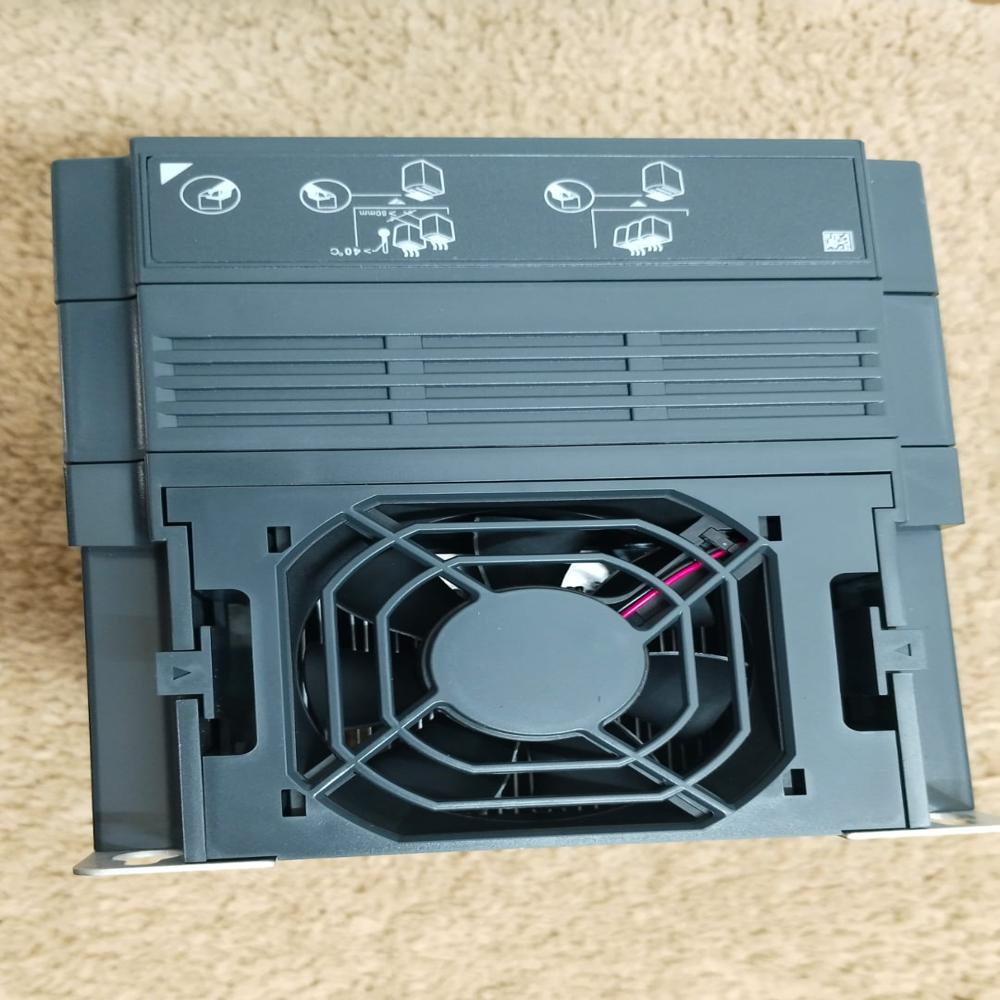

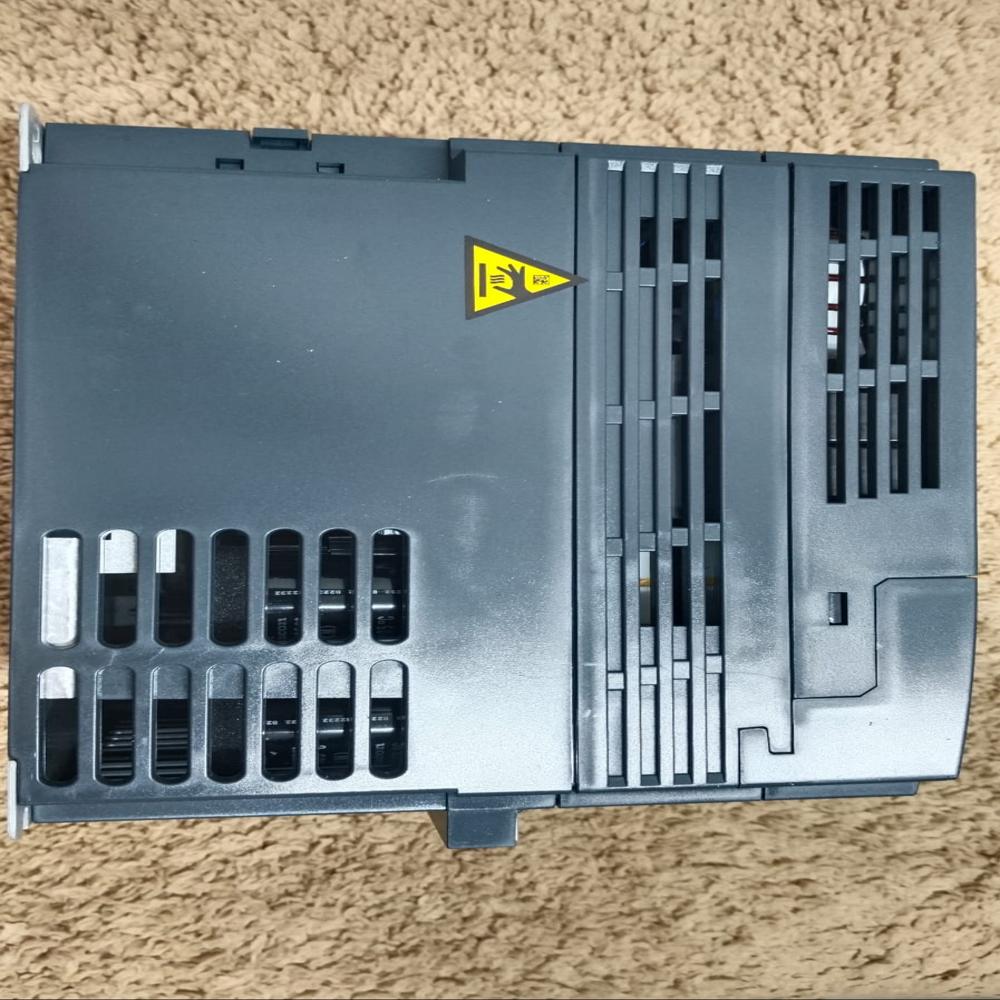

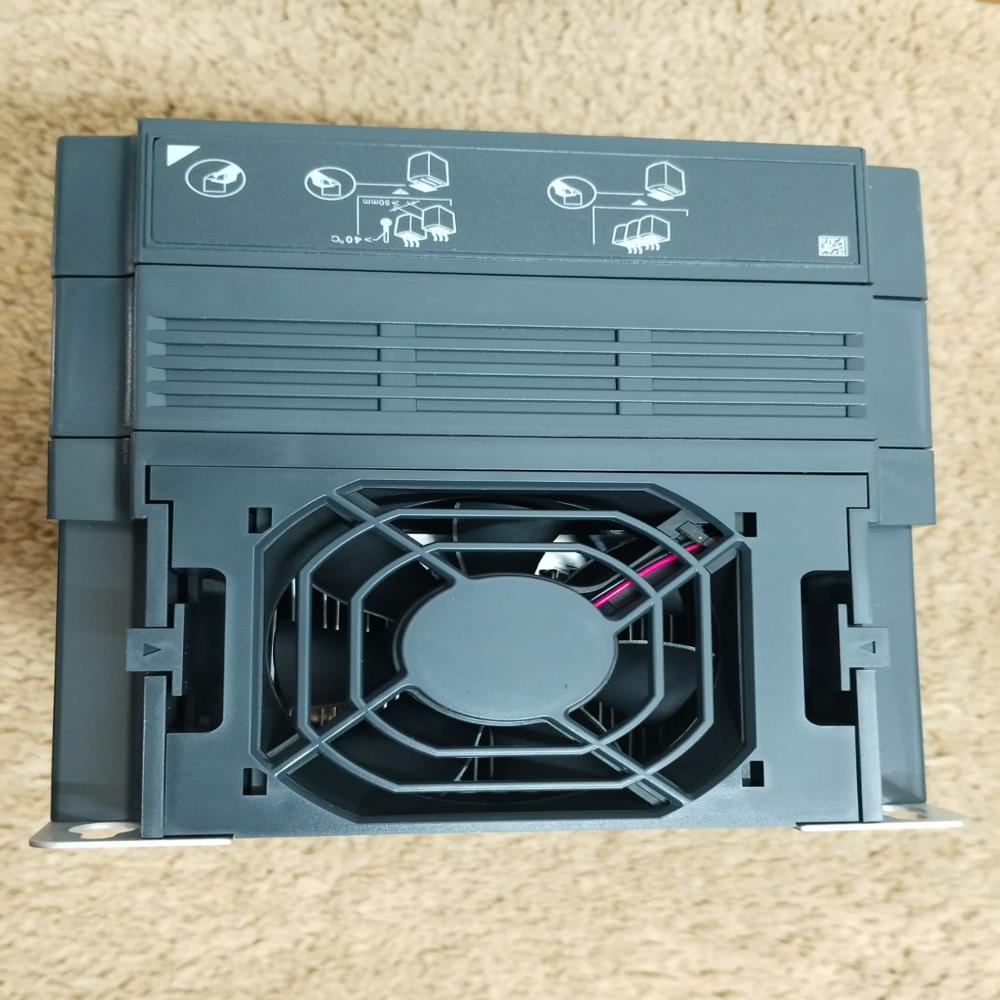

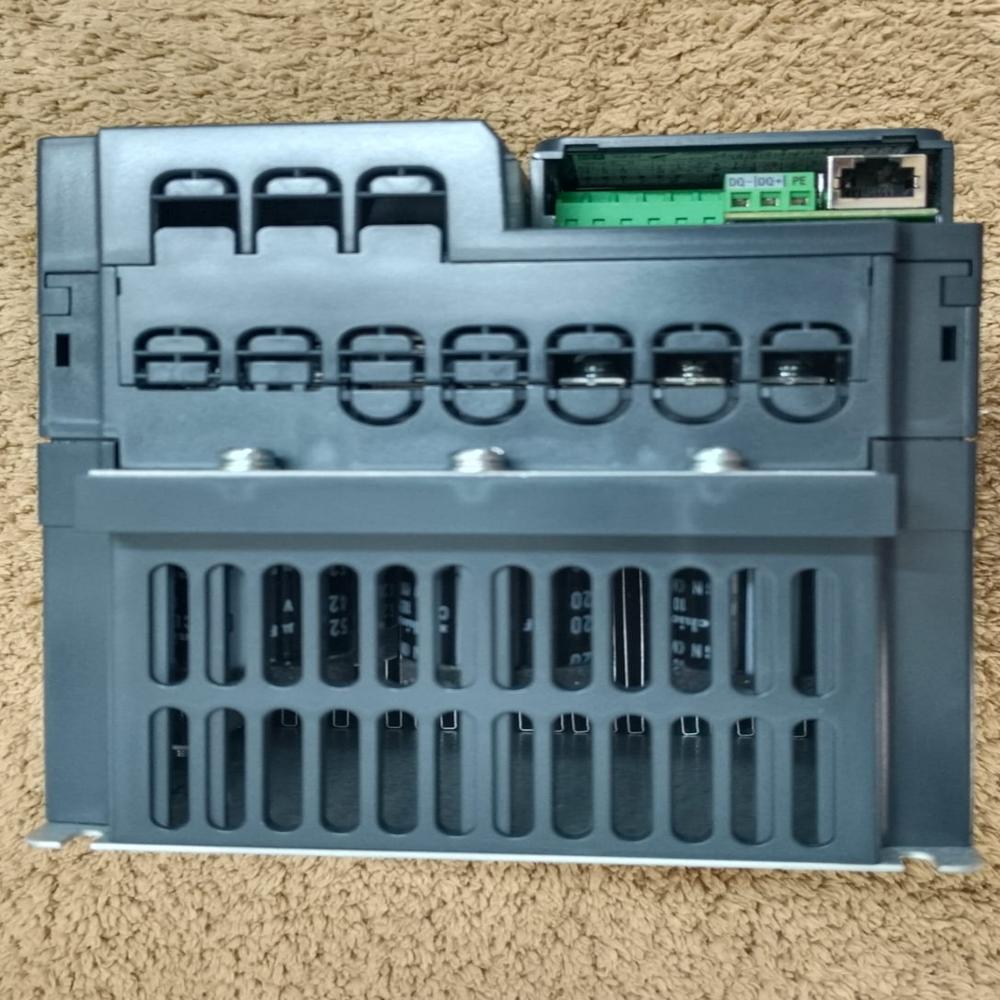

ATV610U07N4 - VFD, Easy Altivar 610, 0.75kW, 1hp, 380 to 460V, IP20

Name: ATV610U07N4 - VFD, Easy Altivar 610, 0.75kW, 1hp, 380 to 460V, IP20
Brand: Corbital Enterprise
Price: 30900.0 INR
Availability: InStock

Price 30900.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ATV610U07N4 - VFD, Easy Altivar 610, 0.75kW, 1hp, 380 to 460V, IP20 Specification

IP Rating
20

Mounting Type
DIN Rail And Screw Mounting

Humidity %
5% to 95%

Product Type
VFD

Power Rating
380 V to 460 V

Application
Industrial Machinery

Color
Silver-grey

Rated Voltage
380 V to 460 V Volt (V)

Weight
2.4 Kilograms (kg)

Usage & Applications
Industrial Machinery

Warranty
1 Year

Phase
3 Phase

Input Voltage
380 V to 460 V Volt (V)

Rated Current
380 V to 460 V Volt (v)

Material
Plastic

ATV610U07N4 - VFD, Easy Altivar 610, 0.75kW, 1hp, 380 to 460V, IP20 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ATV610U07N4 - VFD, Easy Altivar 610, 0.75kW, 1hp, 380 to 460V, IP20

The

ATV610U07N4

is a 0.75 kW (1 HP) variable speed drive (VFD) from the Schneider Electric Easy Altivar 610 series. It is designed as a robust and efficient motor controller for 3-phase asynchronous motors in standard industrial applications, particularly within the water, wastewater, and oil & gas segments.

Key Specifications

Power Rating: 0.75 kW (1 HP) for normal duty and 0.37 kW (0.5 HP) for heavy duty.
Voltage: 3-phase, 380V to 460V AC.
Output Current: Continuous output current of 2.2 A at 4 kHz for normal duty.
Communication: Integrated Modbus serial line via a 2-wire RS 485 port.
Dimensions: 145 mm (W) x 297 mm (H) x 203 mm (D).
Weight: Approximately 2.4 kg.

Core Functions & Features

Application Specific: Specifically designed for pumps, fans, compressors, and conveyors.
Motor Control Profiles: Supports Constant Torque Standard, Optimized Torque Mode, and Variable Torque Standard profiles for asynchronous motors.
Integrated Safety: Standard embedded safety functions including short-circuit protection, overheating protection, and overcurrent protection.
EMC Filter: Includes an integrated Class C3 EMC filter to reduce electromagnetic interference.
Plug & Play: Factory-preset parameters help save time during installation and commissioning.
Durability: Features electronic cards with protective coating and busbar plating to resist chemical gas corrosion.
