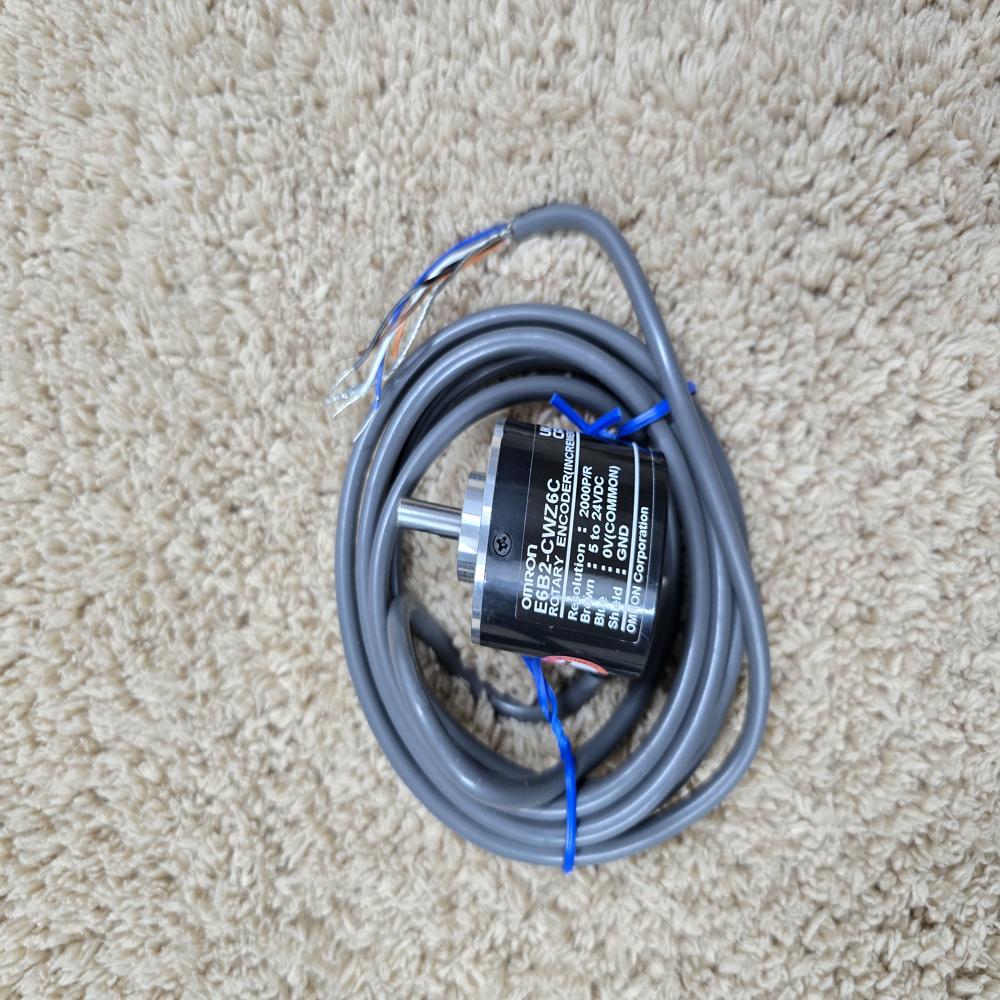

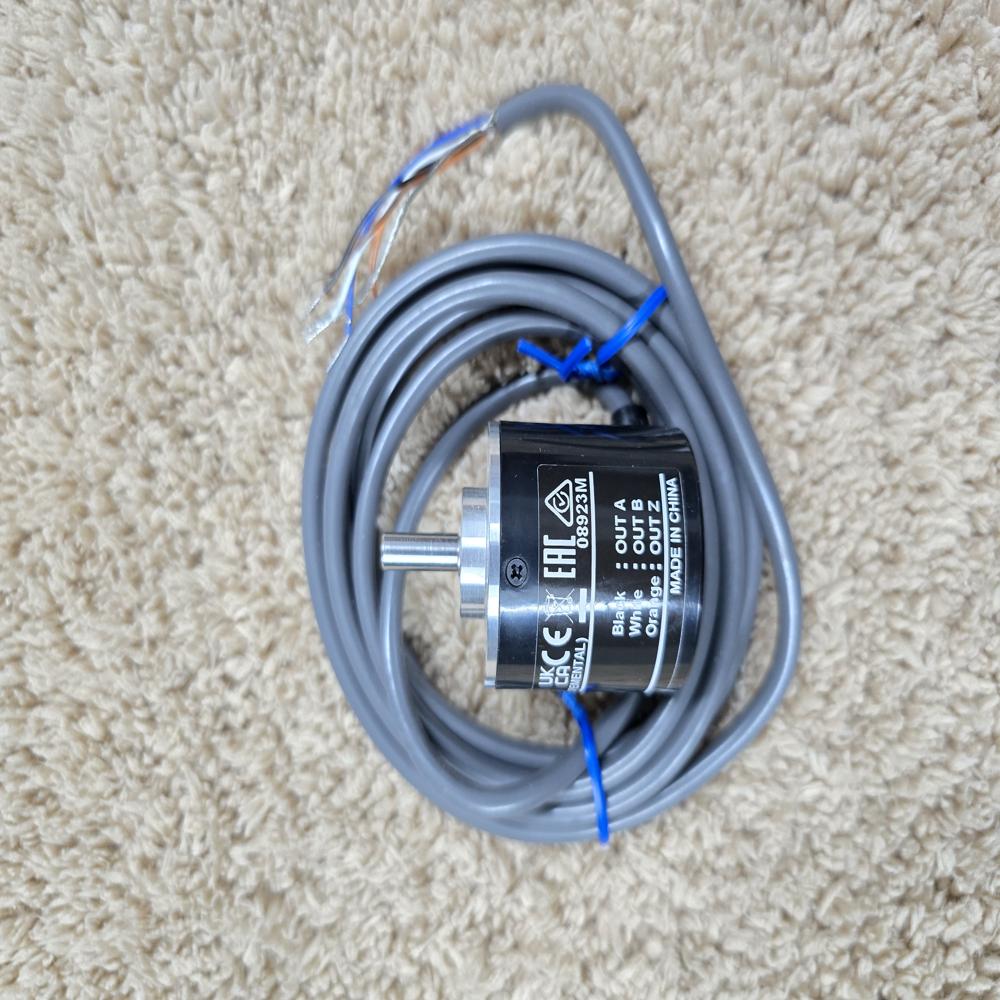

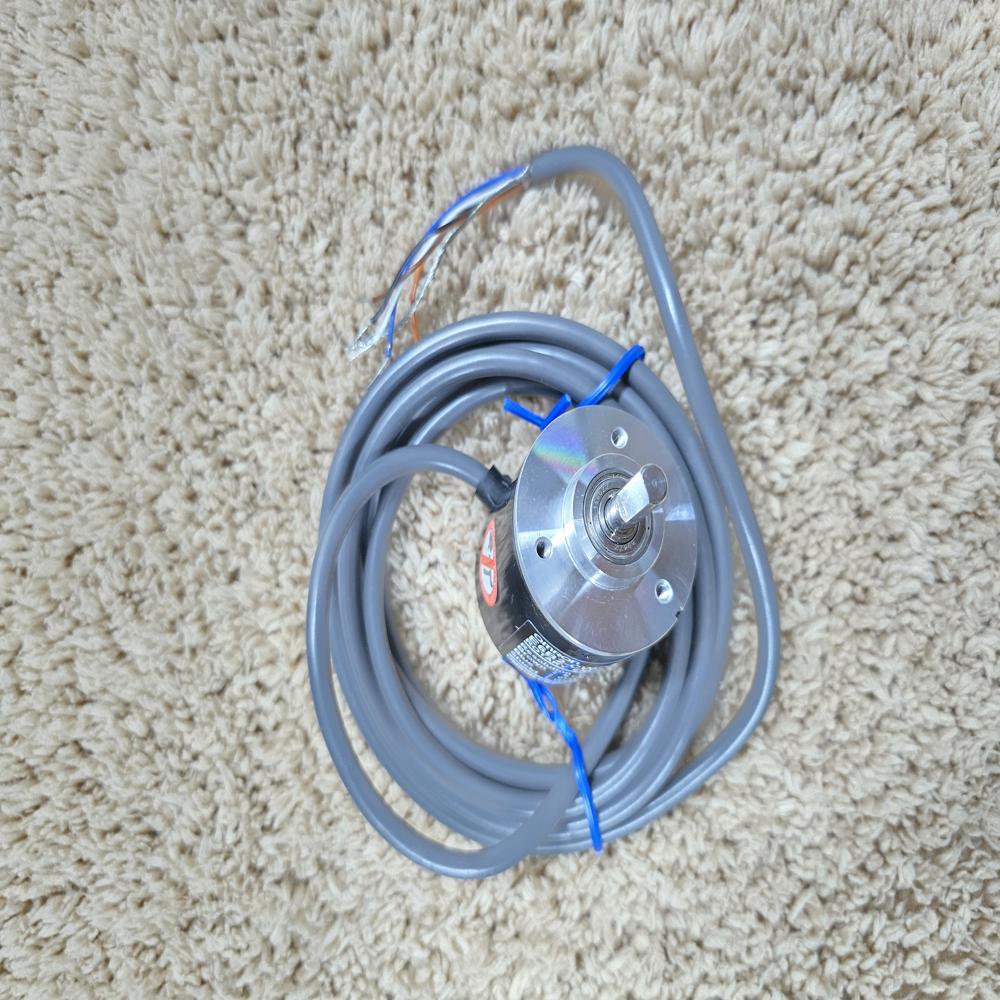

Black E6B2-CWZ6C-2000 PPR - Omron Encoder

Name: Black E6B2-CWZ6C-2000 PPR - Omron Encoder
Brand: Corbital Enterprise
Price: 9900.0 INR
Availability: InStock

Price 9900.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Black E6B2-CWZ6C-2000 PPR - Omron Encoder Specification

IP Rating
65

Usage
Industrial Machinerry

Product Type
Encoder

Application
Industrial Machinerry

Function
Precision Speed Monitoring

Color
Black

Weight
100 Grams (g)

Warranty
1 Year

Usage & Applications
Industrial Machinerry

Material
Aluminum - ABS Plastic

Black E6B2-CWZ6C-2000 PPR - Omron Encoder Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About Black E6B2-CWZ6C-2000 PPR - Omron Encoder

The Omron E6B2-CWZ6C-2000 PPR is the highest-resolution model in the E6B2-C series, providing 2,000 pulses per revolution. It is designed for applications requiring extremely fine rotational feedback, such as precision CNC spindles or high-accuracy labeling machines. [1, 2, 3]

Dimensions and Weight

This high-resolution model maintains the standard compact housing of the series. [1, 2, 3]

Dimension [1, 2, 3, 5]	Metric (mm)	Imperial (inches)
Diameter (Width/Height)	40 mm	1.57 inches
Housing Length (Depth)	39 mm	1.54 inches
Shaft Diameter	6 mm	0.24 inches
Shaft Length	15 mm	0.59 inches
Overall Length	54 mm	2.13 inches
Weight	100 g (packed 200 g)	0.22 lbs (packed 0.44 lbs)

Core Specifications

Resolution: 2,000 Pulses Per Revolution (PPR).
Output Type: NPN Open Collector (Phases A, B, and Z).
Power Supply: 5 to 24 VDC.
Max Response Frequency: 100 kHz.
Protection Rating: IP50 (Dust-protected). [, 2, 3, 4, 5, 6, 8, 9]

Functionality at 2,000 PPR [, 2]

With 2,000 pulses per rotation, each pulse represents 0.18 degrees. This ultra-fine precision is critical for: [1, 2]

Precision Speed Monitoring: Detecting minute speed fluctuations even at very low RPMs.
Micro-positioning: Driving high-precision actuators that require sub-degree accuracy.
Spindle Feedback: Common in mini-lathes and CNC setups where real-time spindle feedback is essential for threading and electronic gearing. [1, 2]
