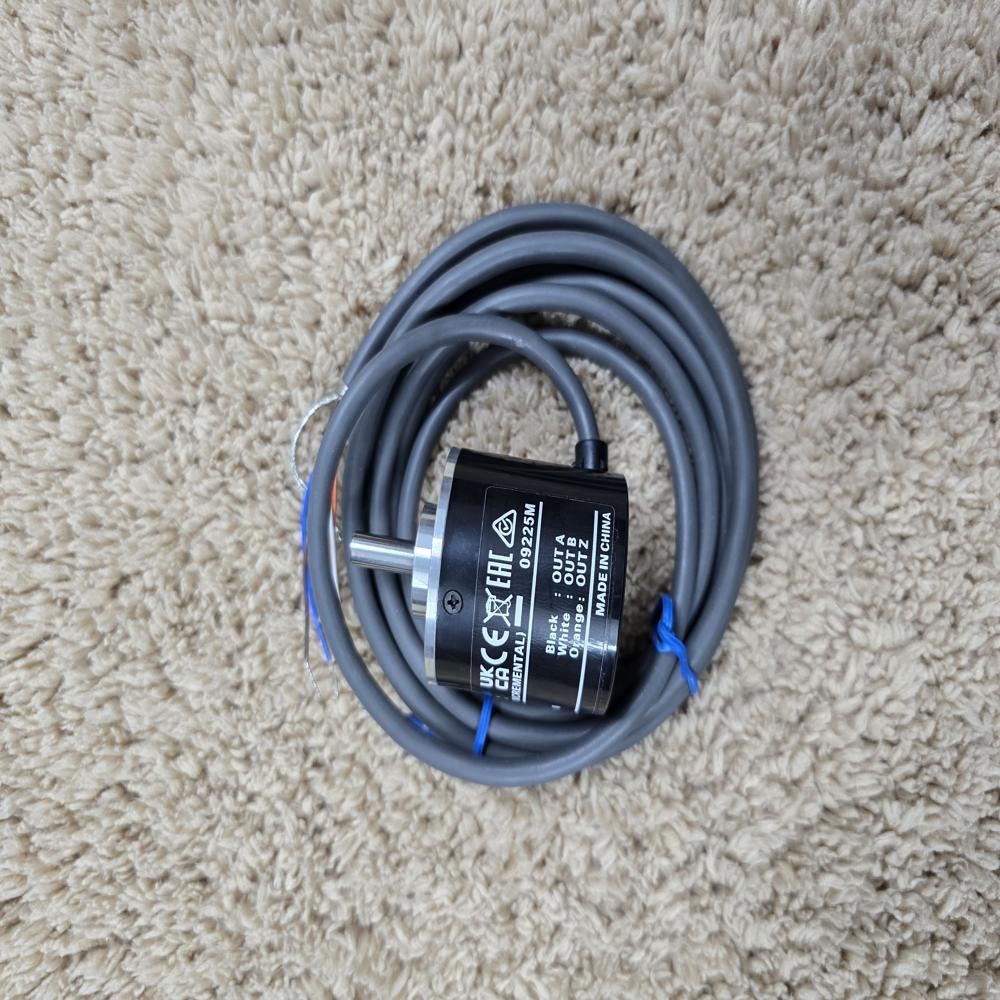

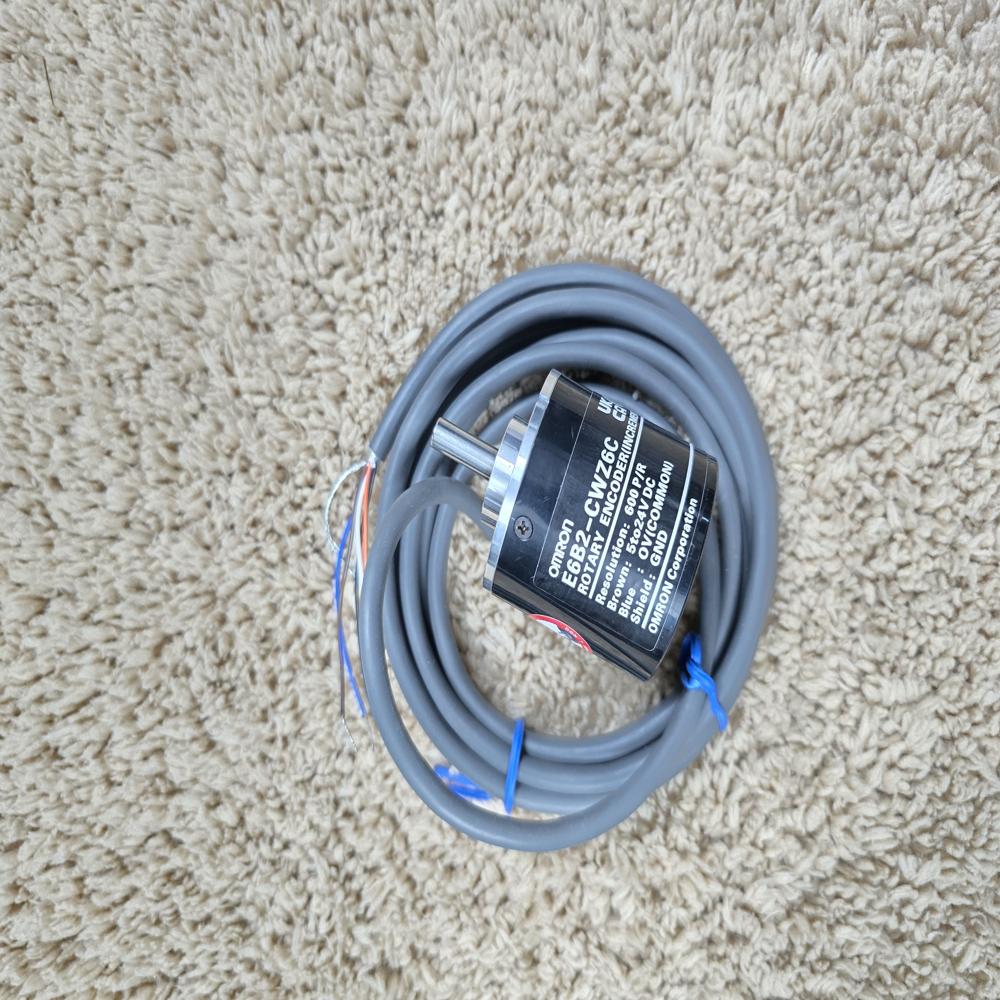

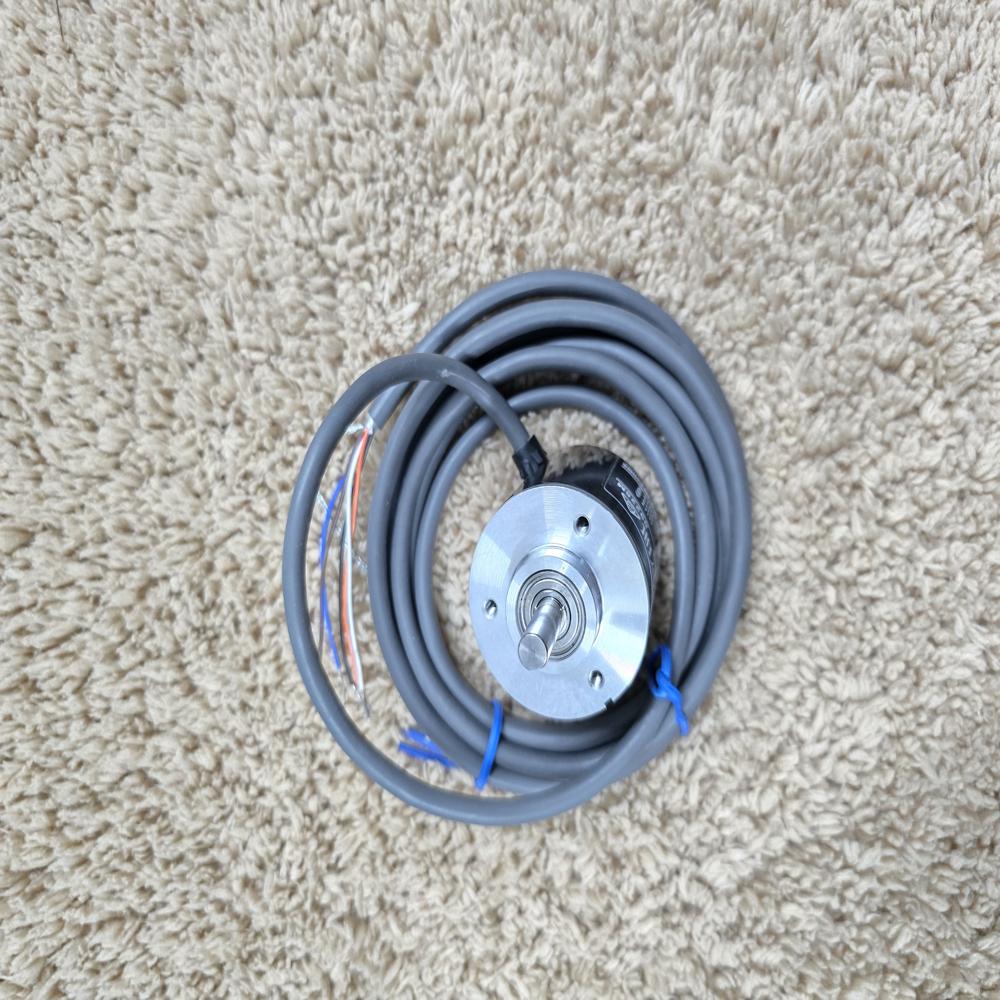

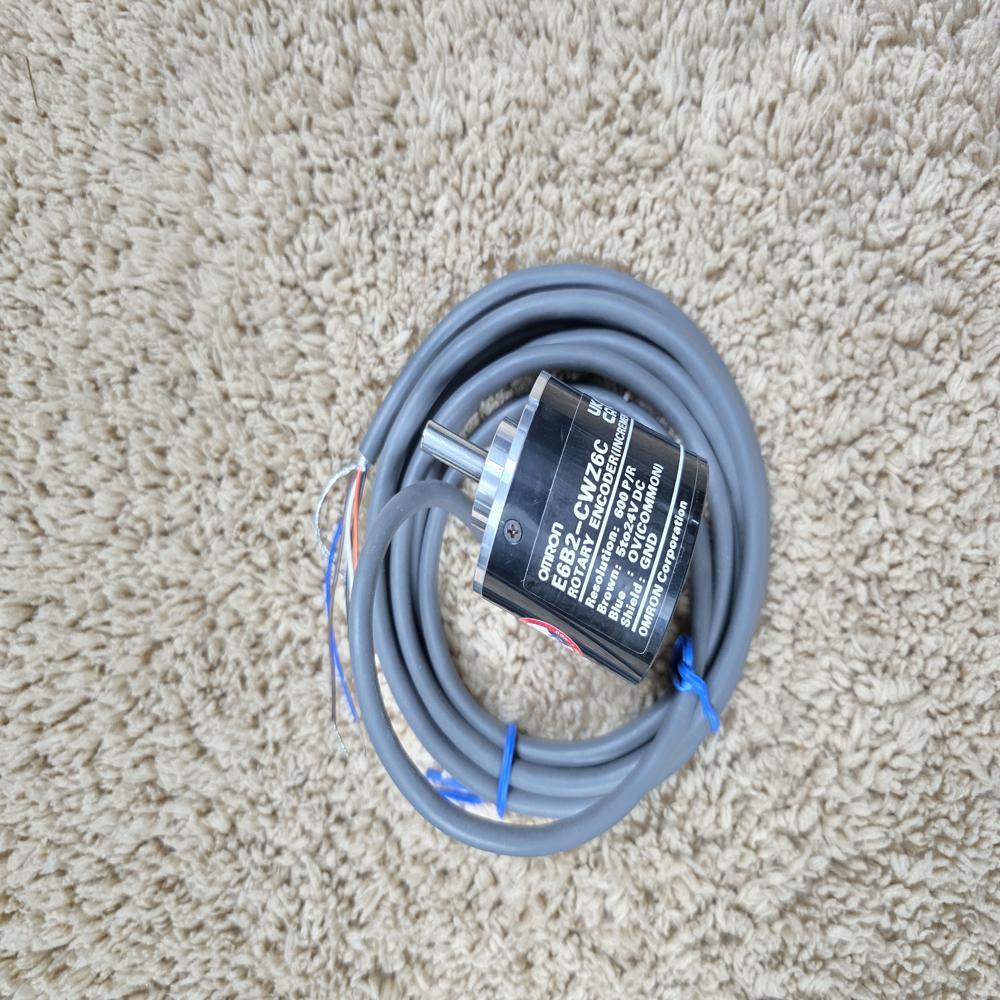

Black E6B2-CWZ6C-600 PPR - Omron Encoder

Name: Black E6B2-CWZ6C-600 PPR - Omron Encoder
Brand: Corbital Enterprise
Price: 9200.0 INR
Availability: InStock

Price 9200.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Black E6B2-CWZ6C-600 PPR - Omron Encoder Specification

Components
Aluminum - ABS Plastic

Usage
Industrial Machinerry

Product Type
Encoder

Application
Industrial Machinerry

Function
. RPM and Speed Measurement

Color
Black

Weight
100 Grams (g)

Usage & Applications
Industrial Machinerry

Warranty
1 Year

Material
Aluminum - ABS Plastic

Black E6B2-CWZ6C-600 PPR - Omron Encoder Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About Black E6B2-CWZ6C-600 PPR - Omron Encoder

The Omron E6B2-CWZ6C-600 PPR is an incremental rotary encoder that provides 600 pulses per revolution. It is ideal for industrial feedback where moderate precision is required for speed and position tracking. [1, 2]

Core Specifications

Resolution: 600 Pulses Per Revolution (PPR).
Output Type: NPN Open Collector with Phase A, B, and Z signals.
Voltage Supply: 5 to 24 VDC.
Max Speed: Up to 6,000 RPM.
Protection: IP50 (Dust-protected). [1, 2, 3, 4, 5]

Dimensions and Weight

This model uses the standard 40mm diameter housing found across the E6B2-C series. [1, 2, 3]

Dimension [1, 2, 3, 4]	Metric (mm)	Imperial (inches)
Diameter (Width/Height)	40 mm	1.57 inches
Housing Length (Depth)	39 mm	1.54 inches
Shaft Diameter	6 mm	0.24 inches
Shaft Length	15 mm	0.59 inches
Overall Length	54 mm	2.13 inches
Weight	100 g	0.22 lbs

The Omron E6B2-CWZ6C-600 PPR serves as the "eyes" of a control system, converting the physical spinning of a shaft into electrical pulses. At 600 PPR, it provides a balanced resolution for standard industrial automation.

1. Accurate Positioning (0.6 Precision)

The encoder divides one full 360 circle into 600 pulses. This means each pulse represents 0.6 degrees of rotation.

Use Case: Precise enough for conveyor belt indexing or labeling machines where you need to stop a motor at a specific spot.

2. Direction Sensing (Quadrature Output)

It outputs two main signals, Phase A and Phase B, which are offset from each other.

If Phase A leads B, the shaft is turning Clockwise.
If Phase B leads A, it is turning Counter-clockwise.
Use Case: Essential for machines that must reverse, such as automated gates or elevators.

3. "Home" Position Referencing (Phase Z)

The encoder generates a third signal, Phase Z, exactly once per revolution.

Use Case: This acts as a "Zero" or "Home" marker. If the system loses power or drifts, it can rotate the shaft until it hits the Z-pulse to recalibrate its starting position.

4. RPM and Speed Measurement

By counting how many pulses occur within one second, a PLC (Programmable Logic Controller) can calculate the motor's exact speed.
