CIMR-JT4A0001BAA - Yaskawa Ac Drive J1000

Price 8000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

CIMR-JT4A0001BAA - Yaskawa Ac Drive J1000 Specification

Input Current
3.0 A

Operating Temperature
-10C to +50C

Efficiency
96%

Frequency
50/60 Hz

Humidity
Below 95% (non-condensing)

Output Voltage
Three-phase 200-240V AC

Mounting Type
Panel Mount

Rated Voltage
200-240V

Phase
Single Phase (Input), Three Phase (Output)

Protection Level
IP20

Main Material
Plastic, Metal

Processing Type
Electrical Drive

Condition
New

Function
Variable Frequency Drive (VFD)

Application
General Purpose Motor Control

Dimension (L*W*H)
68 x 128 x 109 mm

Power Mode
AC Powered

Voltage
200-240V AC

Power Consumption
0.2 kW

Accessories
User Manual, Mounting Screws

Communication
Analog Input, Digital Input

Braking
Built-in Dynamic Braking Transistor

Environmental Protection
RoHS Compliant

Motor Capacity
0.1 kW (1/8 HP)

Series
J1000

Control Method
V/f Control

Model
CIMR-JT4A0001BAA

Cooling Method
Forced Air Cooling

Display
LED Status Display

Overload Capacity
150% for 60 Seconds

Weight
0.8 kg

Output Current
0.8 A

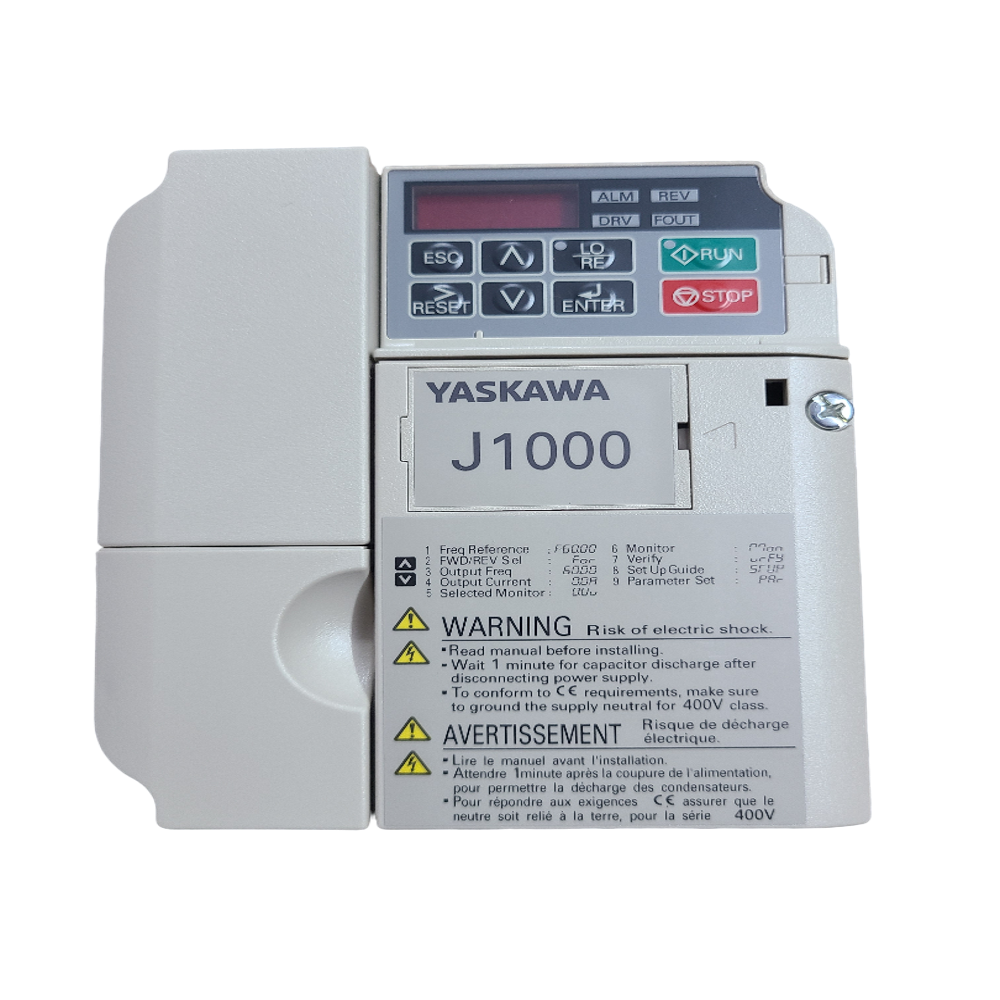

About CIMR-JT4A0001BAA - Yaskawa Ac Drive J1000

The

CIMR-JT4A0001BAA

is a compact Variable Frequency Drive (VFD) from the Yaskawa J1000 series, designed for basic, low-power industrial applications like conveyors, fans, and small pumps. It is a legacy 400V class microdrive known for its small footprint and "plug-and-play" ease of use.

1/8 - 7.5 HPThe J1000 was a world-class compact variable frequency drive that met the demands for efficient production and better maintainability.The J1000 meets all automation requirements for compact applications with variablespeed operation and energy saving characteristics. A wide range of useful functionsupgrade your machine and offer greatpotentials.The concept of small size and easy handlingwith the famous YASKAWA reliability makesthe J1000 an alternative in the drive marketnot only cost wise.

Compact, Reliable Motor Control

The Yaskawa J1000 AC Drive is a compact and efficient variable frequency drive (VFD) ideal for space-constrained applications. With panel mount design and user-friendly analog/digital input options, it ensures seamless integration and reliable motor performance for diverse industrial needs. Its robust plastic and metal build combines durability with lightweight construction.

Energy-Efficient and Environmentally Responsible

Featuring a high efficiency of 96% and low power consumption (0.2 kW), the J1000 VFD is engineered for energy-conscious operations. Compliance with RoHS environmental standards and an IP20 protection level ensure safety and sustainability. Forced air cooling maintains optimal performance, even in demanding environments.

Simple Setup and Flexible Applications

Setup and mounting are straightforward with included user manual and screws. Suitable for general-purpose motor control, it operates across 50/60 Hz frequencies, withstands temperatures from -10C to +50C, and maintains steady performance in humidity up to 95%. Its built-in dynamic braking and LED display further enhance usability and control precision.

FAQ's of CIMR-JT4A0001BAA - Yaskawa Ac Drive J1000:

Q: How do I install the Yaskawa J1000 AC Drive (CIMR-JT4A0001BAA)?

A: The drive is designed for easy panel mounting. Use the included mounting screws and reference the user manual for step-by-step installation instructions, ensuring all power is disconnected before wiring.

Q: What are the primary benefits of using this AC drive for motor control?

A: The J1000 provides efficient, reliable V/f control, built-in dynamic braking, high efficiency (96%), and is suitable for applications requiring precise speed regulation and protection of general-purpose motors.

Q: Where can this drive be used in industrial applications?

A: This model is ideal for environments requiring compact, variable-frequency motor control such as manufacturing lines, conveyors, small machines, and fan or pump systems.

Q: When should I use the built-in dynamic braking feature?

A: The dynamic braking transistor is beneficial when rapid motor deceleration is required, such as in applications needing frequent starts, stops, or high-speed braking cycles.

Q: What process should I follow to connect the drive to a motor?

A: Connect input power (single-phase, 200-240V AC) and motor output (three-phase, 200-240V AC) according to the wiring diagrams in the manual. Ensure proper grounding and follow all safety procedures outlined.

Q: How is operational status displayed or monitored?

A: The drive includes an LED status display, providing immediate visual feedback on operational status, error codes, and parameter settings for quick diagnostics and maintenance.

Q: What environmental protections does the drive offer?

A: The J1000 is RoHS compliant, has an IP20 protection rating, operates between -10C and +50C, and works reliably in humidity below 95% (non-condensing), making it suitable for demanding industrial environments.
