CIPR-GA70D4296ABMA - Yaskawa Ac Drive GA700

Name: CIPR-GA70D4296ABMA - Yaskawa Ac Drive GA700
Brand: Corbital Enterprise
Price: 260000.0 INR
Availability: InStock

Price 260000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

CIPR-GA70D4296ABMA - Yaskawa Ac Drive GA700 Specification

Input Current
96A

Phase
Three Phase

Mounting Type
Panel Mount

Humidity
Below 95% RH (non-condensing)

Rated Voltage
400V AC

Efficiency
98%

Operating Temperature
-10C to +50C

Output Voltage
Three Phase 0-480V AC

Frequency
50/60 Hz

Protection Level
IP20

Main Material
High-Grade Plastic, Metal

Processing Type
Automatic

Condition
New

Function
Variable Frequency Drive for Motor Control

Application
Industrial Automation, Motor Speed Control

Dimension (L*W*H)
168 x 260 x 170 mm

Power Mode
AC Powered

Voltage
Three Phase 380-480V AC

Power Consumption
As per load

Accessories
Standard User Manual, Mounting Screws

Display
LCD Digital Keypad

Start Up Torque
200% at 0.3 Hz

Overload Capacity
150% for 60 seconds

Ambient Storage Temperature
-20C to +60C

Control Method
V/f, Open/Closed Loop Vector Control

Communication Interface
Modbus RTU, EtherNet/IP, PROFINET (optional)

Output Frequency
0.01 to 590 Hz

Enclosure Type
IP20

Cooling Method
Fan Cooled

Input Phase
Three Phase

Braking Unit
Built-in

Model Number
CIPR-GA70D4296ABMA

Weight
6.6 kg

Series
GA700

CIPR-GA70D4296ABMA - Yaskawa Ac Drive GA700 Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About CIPR-GA70D4296ABMA - Yaskawa Ac Drive GA700

GA700 - Limitless possibilitiesShow all downloadsSimplified system integration

GA700 drives are designed to be easily integrated into systems and machinery. Combining network support, application-focused features, and excellent customization options along with unparalleled ease of use, the GA700 minimizes the effort required to get your automation jobs done.

Fast installation and setup

GA700 drives incorporate a variety of features which eliminate the need for peripherals. Together with easy wiring plus smart functions for completing a basic setup in only in 5 minutes, this greatly reduces the time and expenses involved in having a running system.

Superior machine performance

By incorporating the latest motor control technologies for induction, permanent magnet, and synchronous reluctance motors, the GA700 drives provide superior control performance with minimized energy consumption.

Secure operation

GA700 drives are built to perform reliably. The robust design featuring coated PCBs allows operation in 50C without derating, while machine monitoring functions and an integrated service life time prediction prevent sudden failures. The GA700 thus effectively secures operation and prevents production losses.

Advanced Motor Control Capabilities

The Yaskawa GA700 AC Drive supports both V/f and open/closed loop vector control, enabling precise adjustment of motor speed and torque. It features a start-up torque of 200% at 0.3 Hz, making it suitable for applications requiring high starting power and fine-tuned performance in industrial automation.

Versatile Communication and Easy Operation

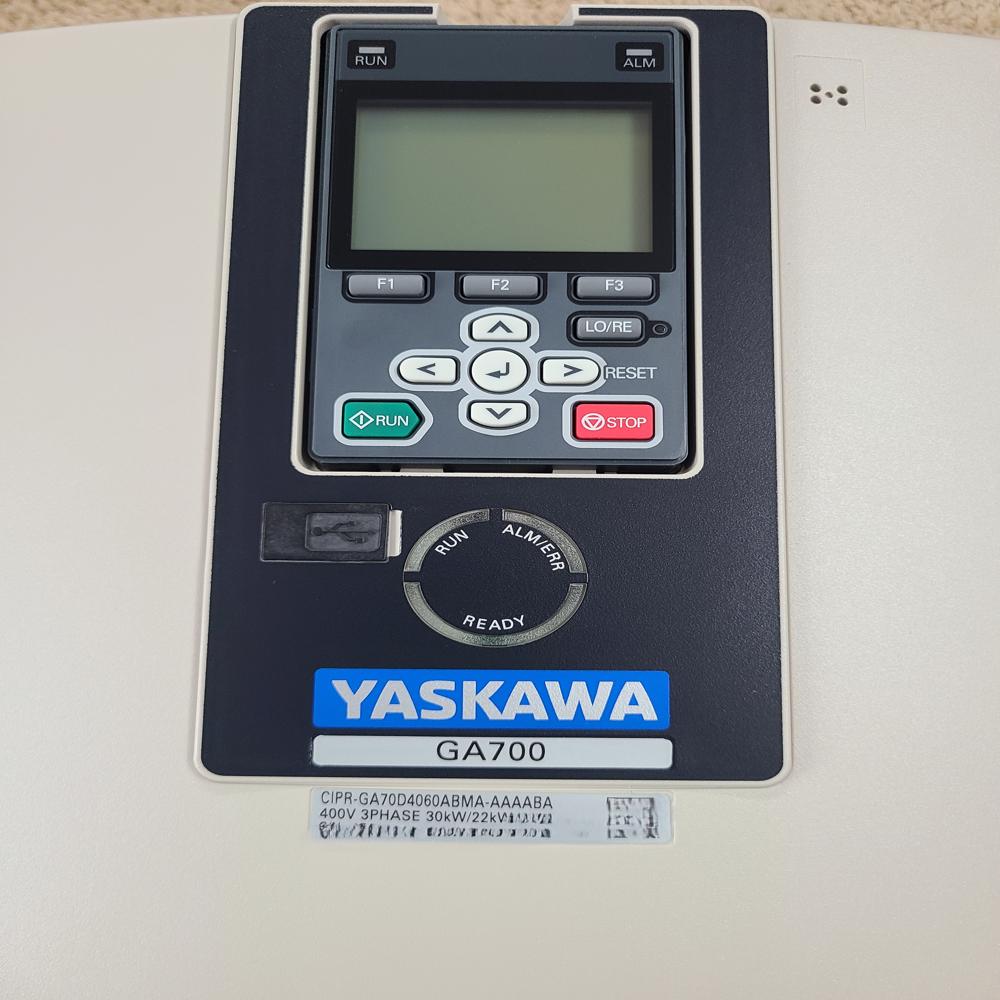

This model includes Modbus RTU, with optional EtherNet/IP and PROFINET interfaces, promoting seamless integration within complex industrial networks. The LCD digital keypad allows for user-friendly operation, quick setup, real-time monitoring, and easy troubleshooting.

Robust Design for Demanding Environments

Constructed from high-grade plastic and metal, the GA700 drive is housed in an IP20 enclosure, making it suitable for panel mounting in protected environments. It operates efficiently within a wide temperature range and supports up to 98% efficiency, ensuring energy savings and long-term reliability.

FAQ's of CIPR-GA70D4296ABMA - Yaskawa Ac Drive GA700:

Q: How do I install the Yaskawa GA700 AC Drive (CIPR-GA70D4296ABMA)?

A: Installation requires panel mounting the drive using the supplied screws and following the standard user manual. Make sure to connect the drive to a three-phase 380-480V AC power supply, and ensure your setup follows the recommended wiring and grounding procedures outlined in the manual.

Q: What communication interfaces are supported by this drive?

A: The GA700 comes standard with Modbus RTU interface and offers optional EtherNet/IP and PROFINET communication modules, allowing the drive to integrate with a variety of industrial automation systems and network configurations.

Q: When is the built-in braking unit engaged during operation?

A: The built-in braking unit activates to manage energy during rapid deceleration or sudden stops, ensuring the motor and system slow down safely without causing voltage surges or excessive wear on mechanical components.

Q: Where can this AC drive be used?

A: Ideal for industrial automation, this AC drive is suitable for motor speed control applications in factories, processing plants, conveyors, and machinery requiring precise motor regulation. It is designed for use in protected environments due to its IP20 enclosure rating.

Q: What are the main benefits of using the GA700 drive in my operation?

A: Key benefits include high efficiency (up to 98%), versatile motor control, strong overload capacity, and extensive communication options, resulting in energy savings, improved process control, and seamless system integration.

Q: How do I control and monitor the drive's performance?

A: The GA700's LCD digital keypad provides an intuitive interface for setting parameters, monitoring real-time operation, and performing diagnostics. Remote control and monitoring are possible via supported communication protocols such as Modbus RTU.
