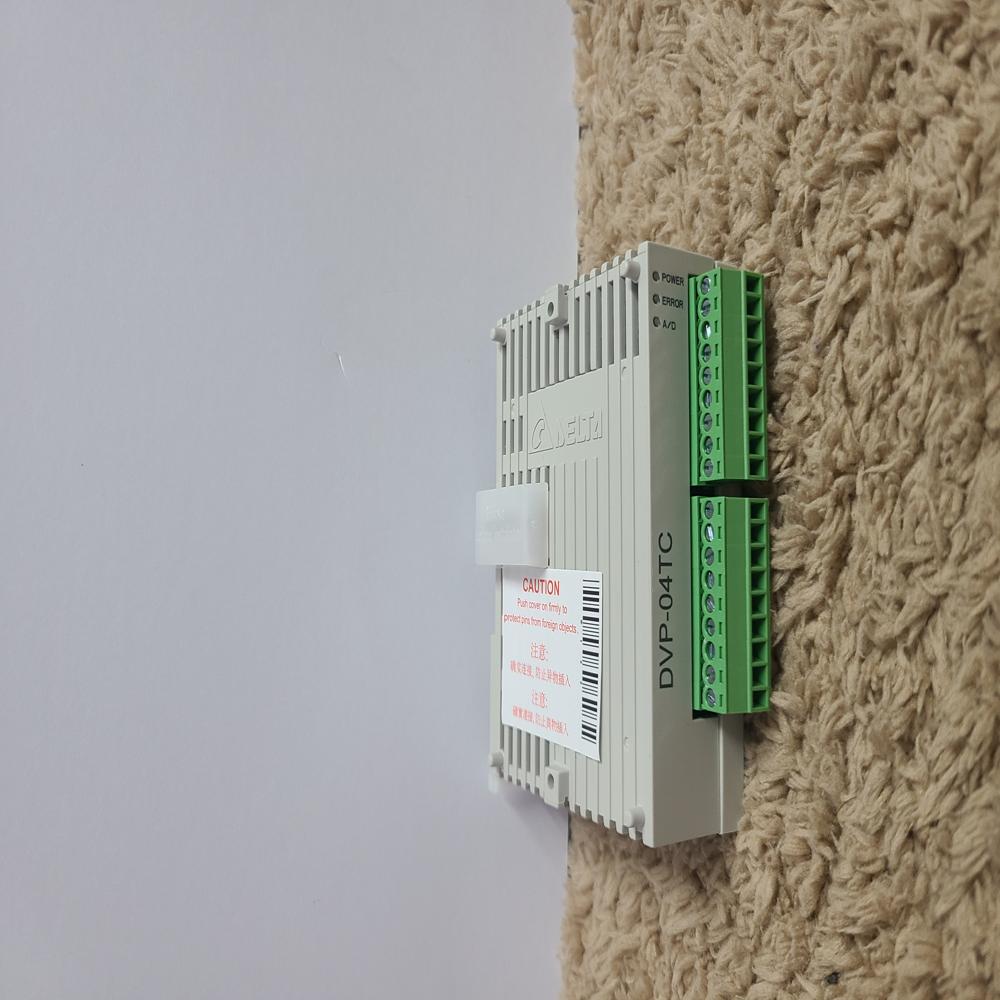

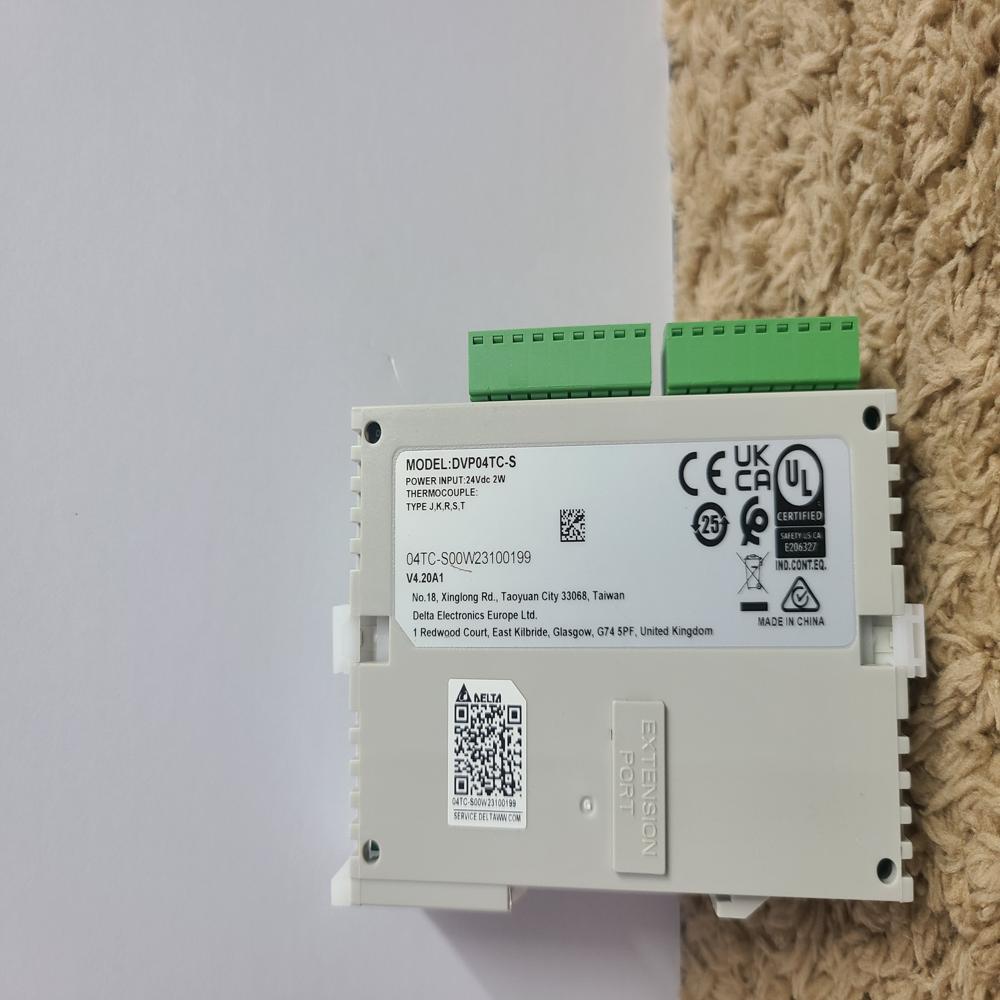

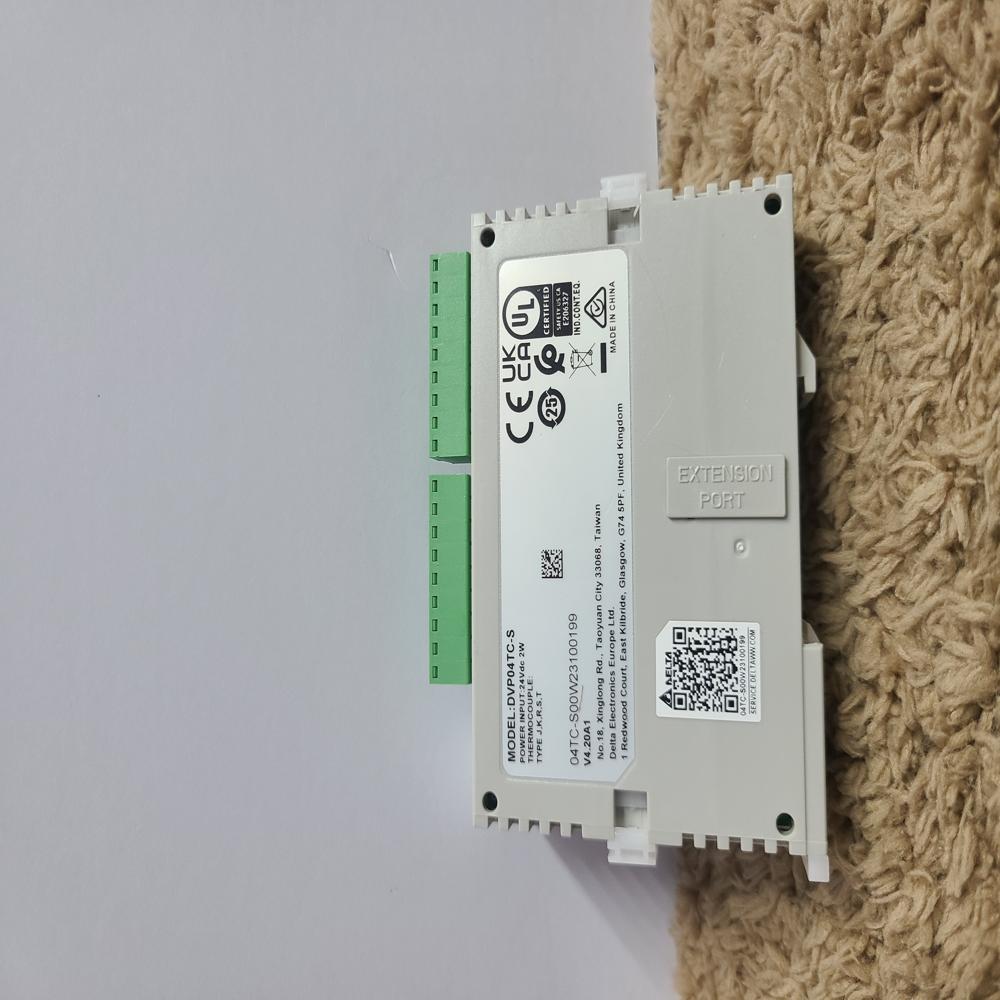

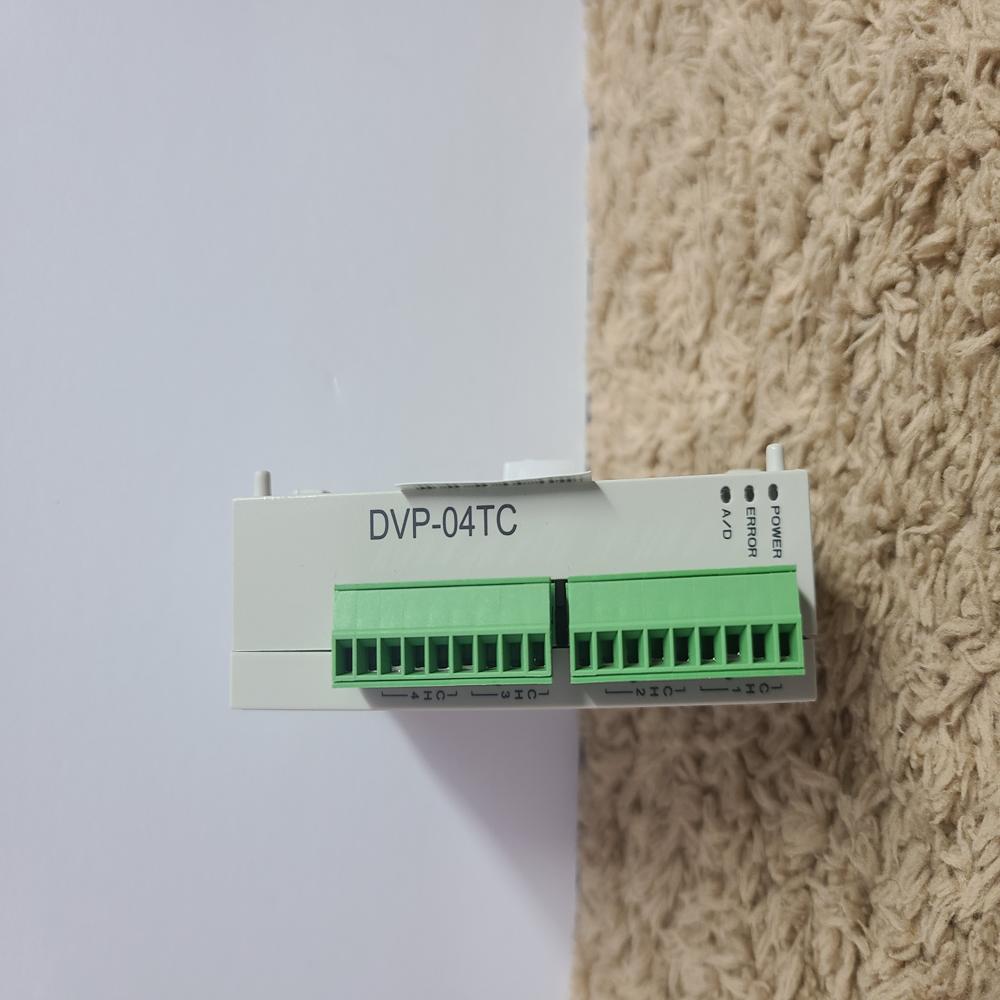

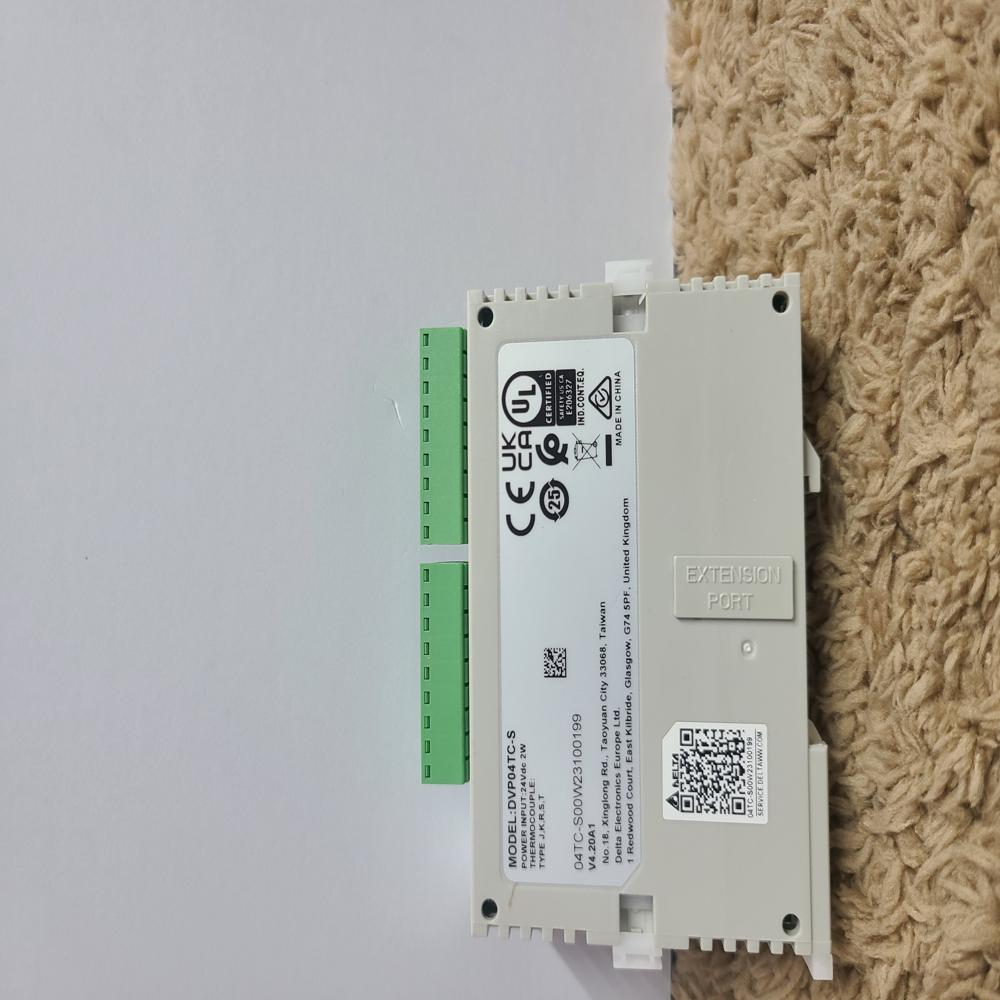

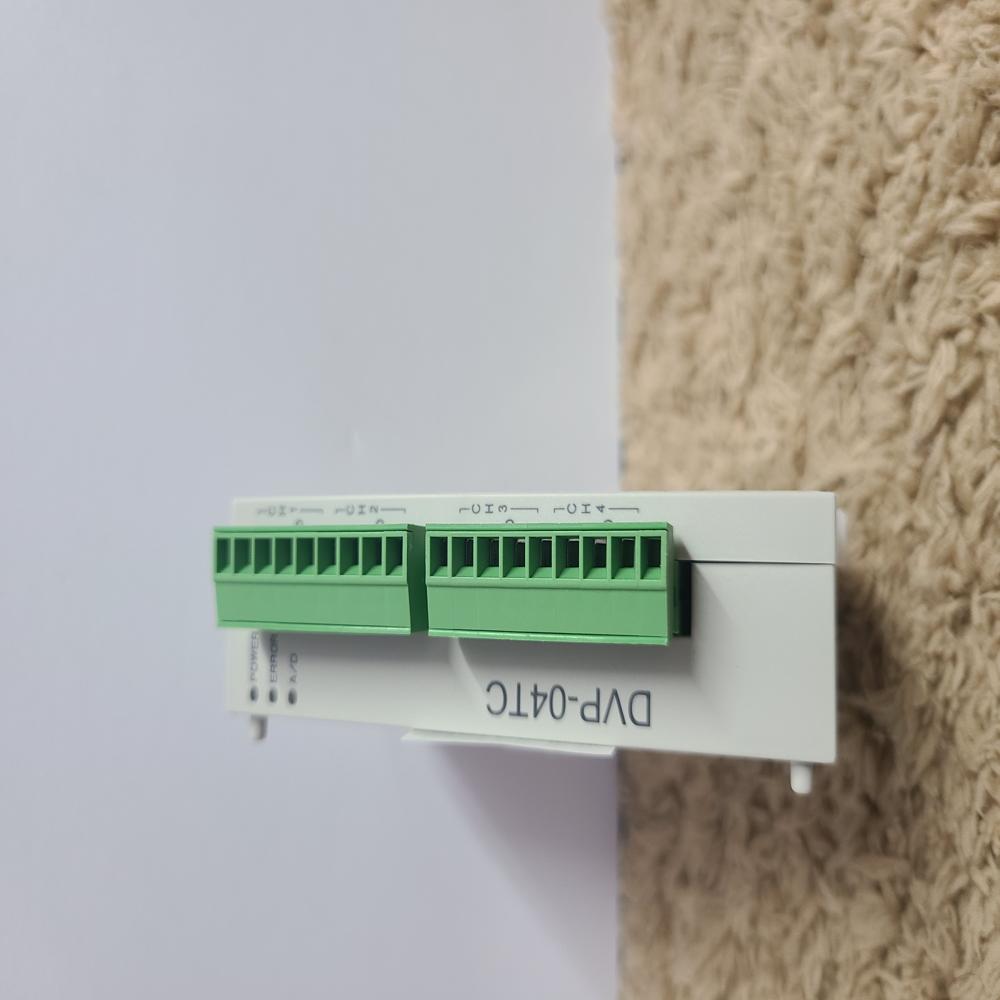

DVP04TC-H2 - Delta PLC

Name: DVP04TC-H2 - Delta PLC
Brand: Corbital Enterprise
Price: 24500.0 INR
Availability: InStock

Price 24500.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Number

DVP04TC-H2 - Delta PLC Specification

Humidity
5% to 95%

Input Current
24V DC

Mounting Type
DIN Rail

Rated Voltage
24V DC Volt (V)

Phase
DC power

Output Voltage
24V DC Volt (V)

Usage
Industrial Machinery

Processing Type
Standard

Condition
New

Height
90 Millimeter (mm)

Function
Supported Sensors

Application
Industrial Machinery

Product Type
PLC

Weight
450 Grams (g)

Color
White

Power Mode
Electric

Width
25.2 Millimeter (mm)

Length
60 Millimeter (mm)

Voltage
24V DC Volt (v)

Warranty
1 Year

DVP04TC-H2 - Delta PLC Trade Information

Minimum Order Quantity
1 Number

Delivery Time
365 Days

About DVP04TC-H2 - Delta PLC

The

DVP04TC-H2

is a 4-channel thermocouple temperature measurement module for the high-end Delta DVP-EH2 and EH3 Series PLCs. It is used to receive low-voltage signals from thermocouples and convert them into digital data for precise thermal process control.

DVP04TC-H2

Analog Module

4 points of thermocouple (J, K, R, S, T, E, N Type) sensor input *1 / 0 150mV voltage input

Resolution: 0.1C

Built-in RS-485 interface

Product category
PLC
sub-category
DVP-Standard Series
Partner name
Delta
Series name
DVP-EH3 Expansion

Attributes

PLC Module
Expansion Module
I/O Selection
Separate AI/AO
Supply
24VDC
Output Type
N.A.
In Built
NO

Key Specifications & Functions

Function: Specifically receives 4 thermocouple inputs and converts them into 14-bit digital signals.
Supported Sensors: Compatible with J, K, R, S, T, E, and N-type thermocouples.
Temperature Range: Measures from -100C to +1,700C depending on the thermocouple type (e.g., K-type up to 1,000C).
Resolution: Provides high-precision readings with a resolution of 0.1C or 0.18F.
Power Supply: Operates on 24V DC (20.4V to 28.8V DC).
Communication: Includes a built-in RS-485 port supporting MODBUS ASCII/RTU protocols.
Protection: Features digital-to-analog circuit isolation and upper/lower bound detection per channel.
