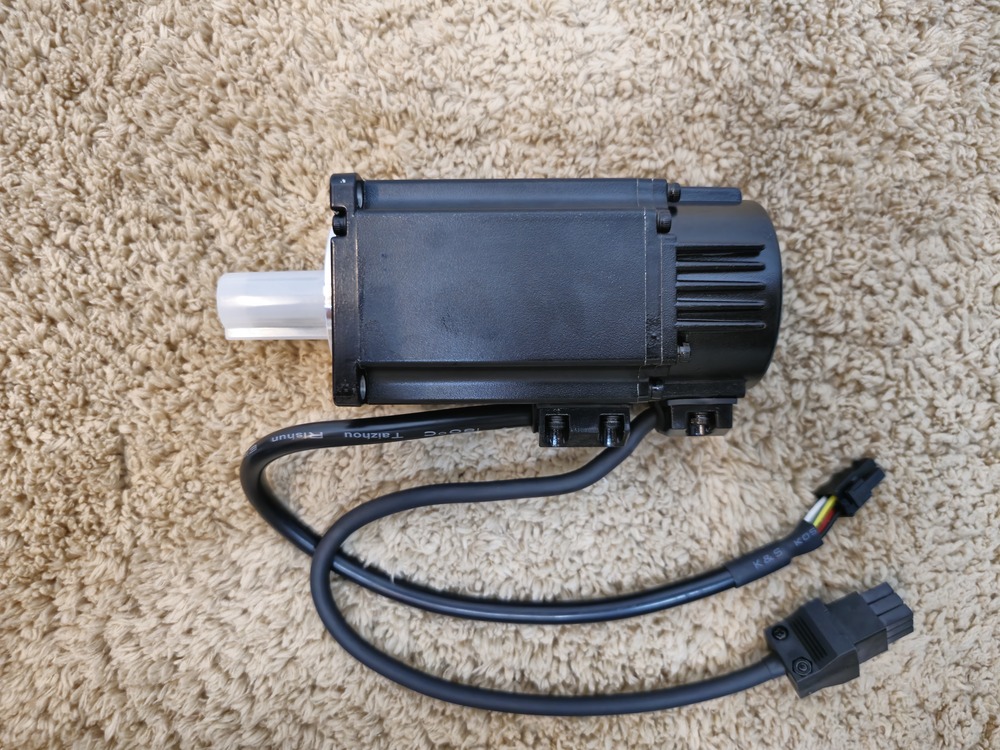

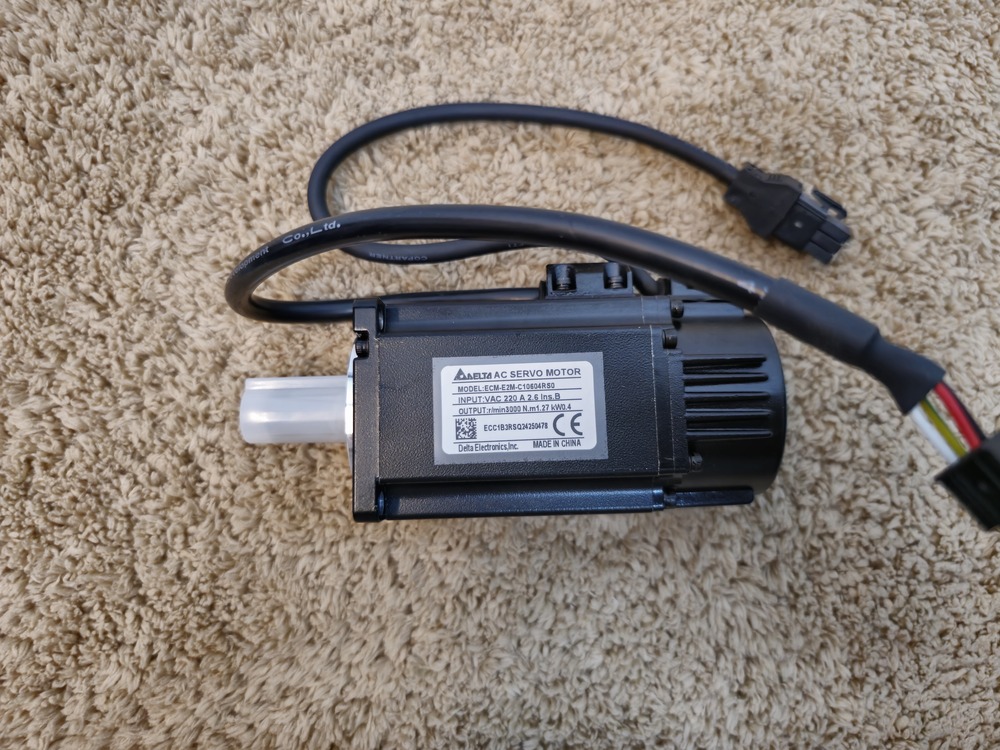

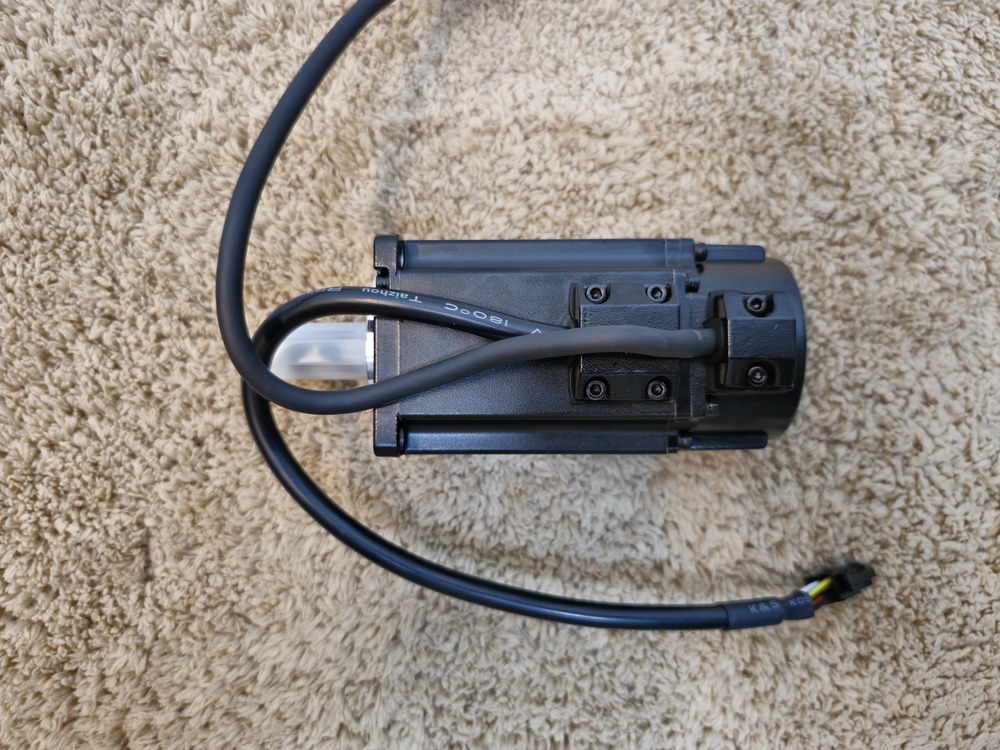

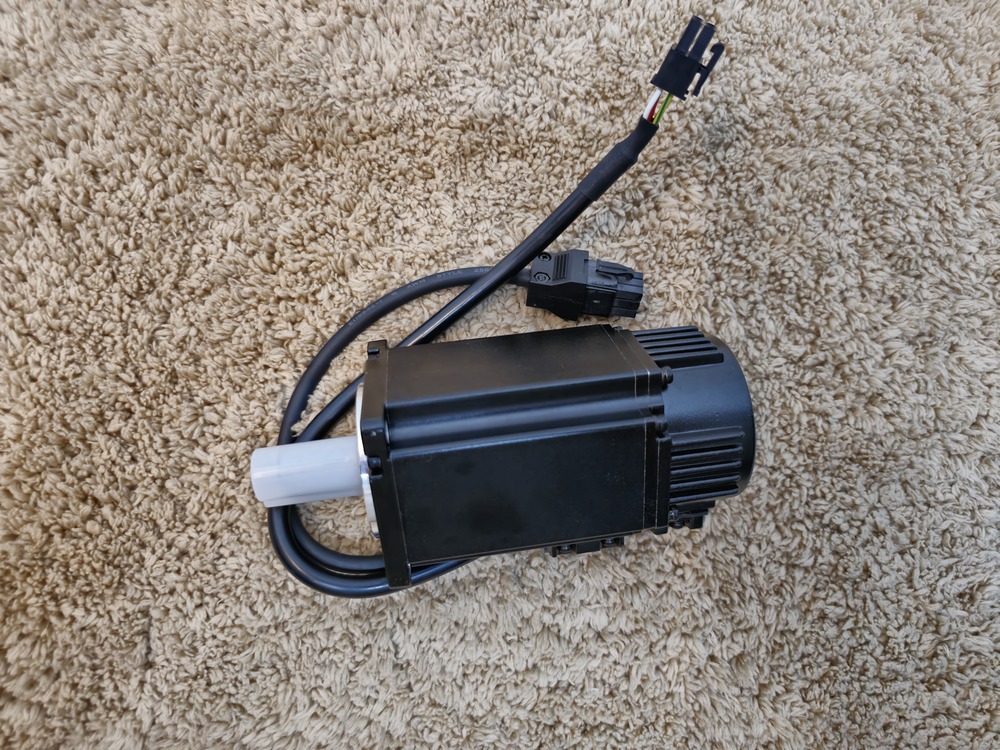

ECM-B3H-C20604RS1 Delta Servo Motor 400W H , Torque Nm - 1.27 , RPM - 3000

Name: ECM-B3H-C20604RS1 Delta Servo Motor 400W H , Torque Nm - 1.27 , RPM - 3000
Brand: Corbital Enterprise
Price: 31000.0 INR
Availability: InStock

Price 31000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ECM-B3H-C20604RS1 Delta Servo Motor 400W H , Torque Nm - 1.27 , RPM - 3000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
1.2 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ECM-B3H-C20604RS1 Delta Servo Motor 400W H , Torque Nm - 1.27 , RPM - 3000 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
24 Hours

About ECM-B3H-C20604RS1 Delta Servo Motor 400W H , Torque Nm - 1.27 , RPM - 3000

The ECM-B3H-C20604RS1 is the 400W version within the same Delta ASDA-B3 series. It maintains the same compact 60 mm frame width but is longer and heavier than the 200W model to provide double the torque.

Dimensions (Approximate)

Width & Height: 2.36 inches (60 mm) The frame size is identical to the 200W model.
Total Body Length: Approximately 4.76 inches (121 mm).
- Note: This model is about 0.55 inches longer than the 200W version to accommodate the larger internal motor components.
Shaft Length: 1.18 inches (30 mm).
Shaft Diameter: 0.55 inches (14 mm). [1, 2, 4]

Weight

Net Weight: Approximately 1.2 kg (2.65 lbs).
Shipping Weight: 2 kg including protective packaging. [1]

Performance vs. 200W Model

Torque: 1.27 Nm (compared to 0.64 Nm on the 200W unit).
Resolution: Features the same 24-bit high-resolution optical encoder for extreme precision.
Speed: Rated for 3000 RPM, with a maximum speed of 6000 RPM.

The primary function of the ECM-B3H-C20604RS1 is to provide precise, medium-power motion control (400W) in industrial automated systems. It functions as the "muscle" of a servo system, translating electrical commands from a servo drive into highly accurate physical rotation

Key Functional Capabilities

High-Resolution Feedback: Equipped with a 24-bit encoder that provides over 16 million pulses per revolution. This allows the motor to maintain extreme positioning accuracy and smooth operation at very low speeds.
Torque & Speed Delivery: Specifically engineered to maintain a rated torque of 1.27 Nm at a rated speed of 3000 RPM. It can reach a peak speed of 6000 RPM for rapid positioning tasks.
Dynamic Response: Part of the ASDA-B3 series, which features a 3.1 kHz response bandwidth. This function allows the motor to settle into position 40% faster than previous models, significantly boosting machine productivity.
Vibration Control: When paired with a Delta B3 Drive, it utilizes advanced notch filters to automatically suppress mechanical resonance and vibrations, ensuring stable operation even in flexible machine structures. [1, 2, 3, 4, 5, 6]

Industrial Functions

Pick-and-Place: Its fast acceleration makes it ideal for high-speed assembly lines.
CNC & Machining: Its low cogging torque (50% less than previous versions) ensures the smooth motion required for high-quality surface finishes.
Packaging: Its ability to handle high torque overloads (up to 3.5 times rated torque) makes it suitable for demanding start-stop packaging cycles.

Reliable Power and Efficiency

The ECM-B3H-C20604RS1 Delta Servo Motor is engineered for high-efficiency performance, delivering consistent torque and speed for demanding industrial machinery. Its advanced build aids in reducing maintenance needs while ensuring smooth operation over long hours.

Quality Construction for Industrial Use

Made with high-grade aluminum and a sealed packing design, this servo motor stands up to harsh environments typical of industrial settings. The sealed construction helps prevent dust and moisture ingress, safeguarding internal components and extending service life.

FAQ's of ECM-B3H-C20604RS1 Delta Servo Motor 400W H , Torque Nm - 1.27 , RPM - 3000:

Q: How is the ECM-B3H-C20604RS1 servo motor installed in industrial machinery?

A: This servo motor is typically installed by mounting it securely using the provided flange and brackets, then connecting it to a compatible servo drive and power supply. Proper alignment and secure electrical connections are essential for optimal function.

Q: What are the benefits of using a sealed type motor with packing seal?

A: The sealed packing design effectively protects the internal components from dust, debris, and moisture, which extends the life of the motor and reduces the likelihood of downtime and maintenance.

Q: When should I consider replacing or servicing my Delta ECM-B3H-C20604RS1 servo motor?

A: Regular servicing is recommended as outlined in the manufacturer's manual, but replacement may be needed if you notice significant loss of performance, unusual noises, or overheating despite routine maintenance.

Q: Where can I purchase the ECM-B3H-C20604RS1 Delta Servo Motor?

A: This servo motor can be sourced from authorized suppliers, traders, and wholesalers who specialize in industrial automation components. Always verify the seller's authenticity before purchasing to ensure warranty coverage.

Q: What is the process for claiming warranty service for this motor?

A: To claim warranty service, contact the distributor or supplier where you purchased the motor within the one-year warranty period, providing the purchase invoice and details about the issue. They will guide you through inspection, repair, or replacement as needed.

Q: How can this servo motor be used effectively in industrial applications?

A: The motor is ideal for applications requiring precise control, such as CNC machinery, automation systems, and robotics. Its high speed and stable torque output enhance productivity and operational accuracy.

Q: What advantages does the aluminum construction provide for this servo motor?

A: Aluminum offers lightweight strength along with excellent heat dissipation, contributing to the motor's durability, energy efficiency, and resistance to industrial wear and tear.
