ECM-E2M-C10604SS0 400W motor + B

Name: ECM-E2M-C10604SS0 400W motor + B
Brand: Corbital Enterprise
Price: 19800.0 INR
Availability: InStock

Price 19800.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECM-E2M-C10604SS0 400W motor + B Specification

Sealed Type
Packing seal

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
2.36 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

ECM-E2M-C10604SS0 400W motor + B Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ECM-E2M-C10604SS0 400W motor + B

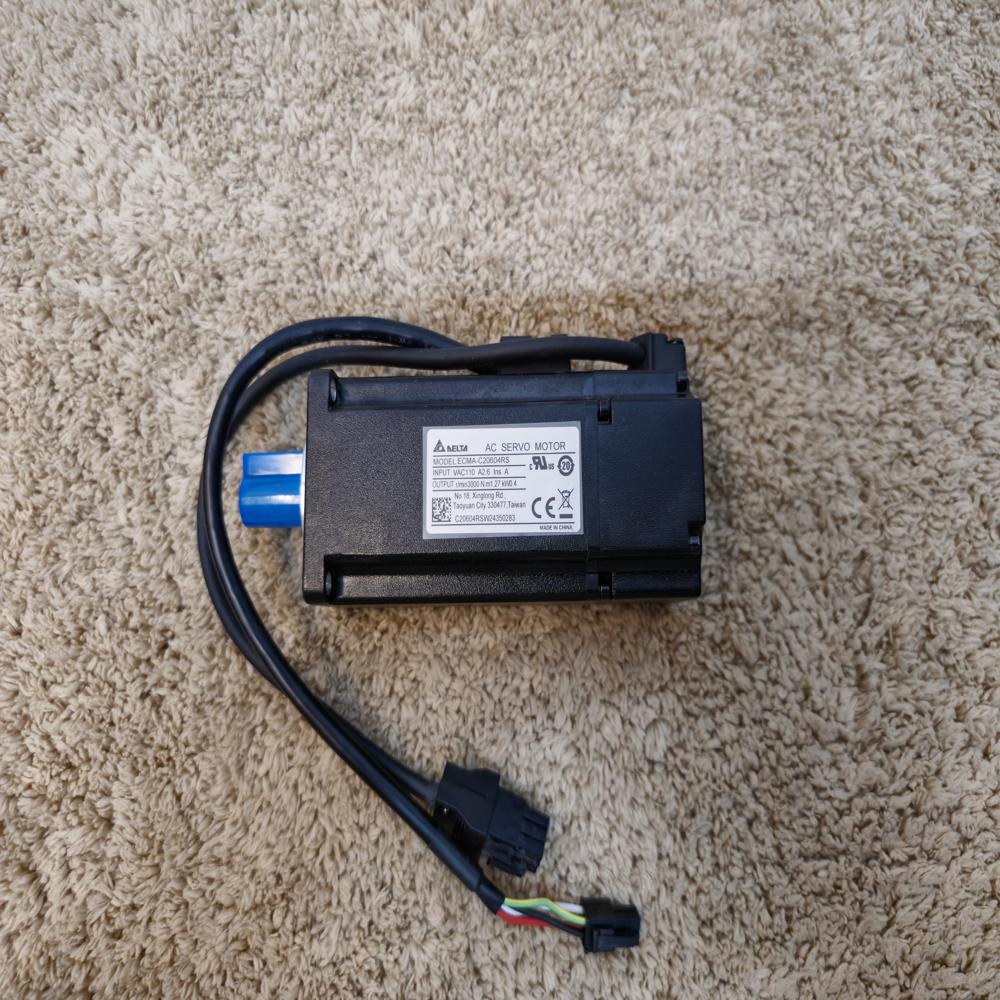

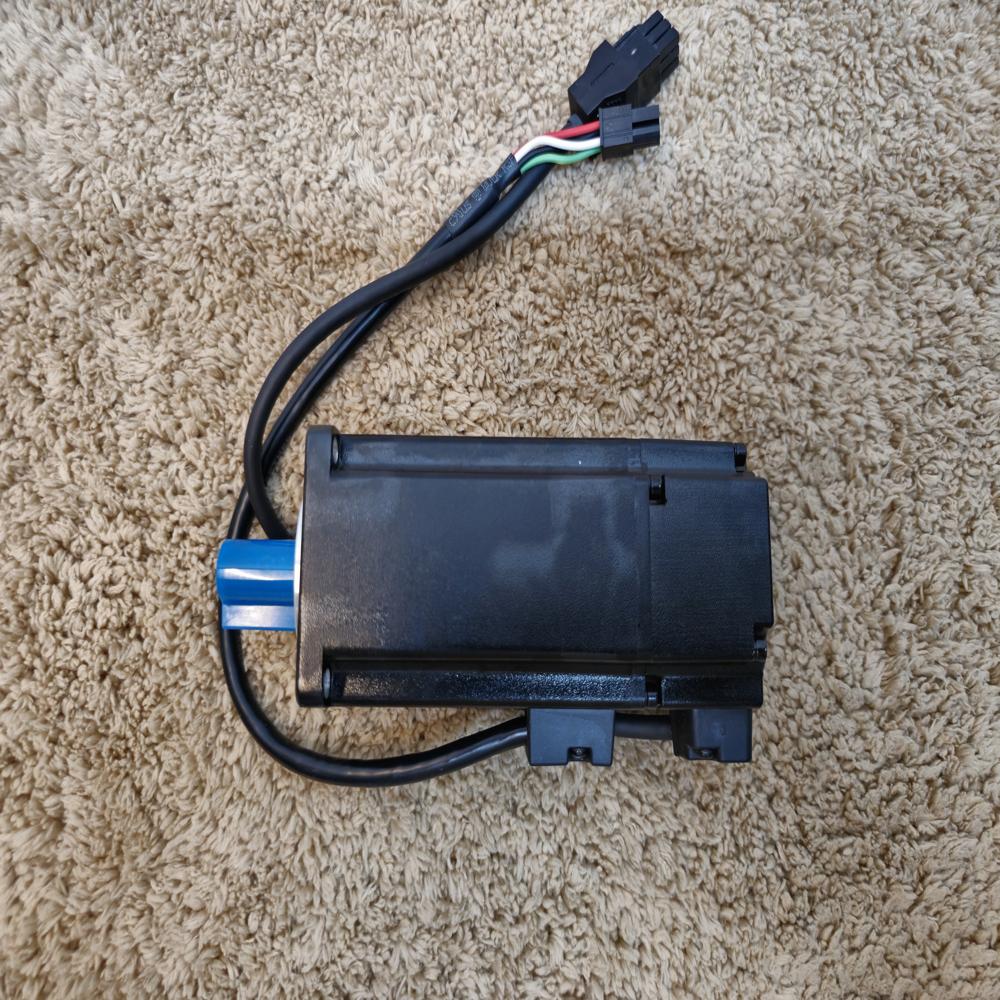

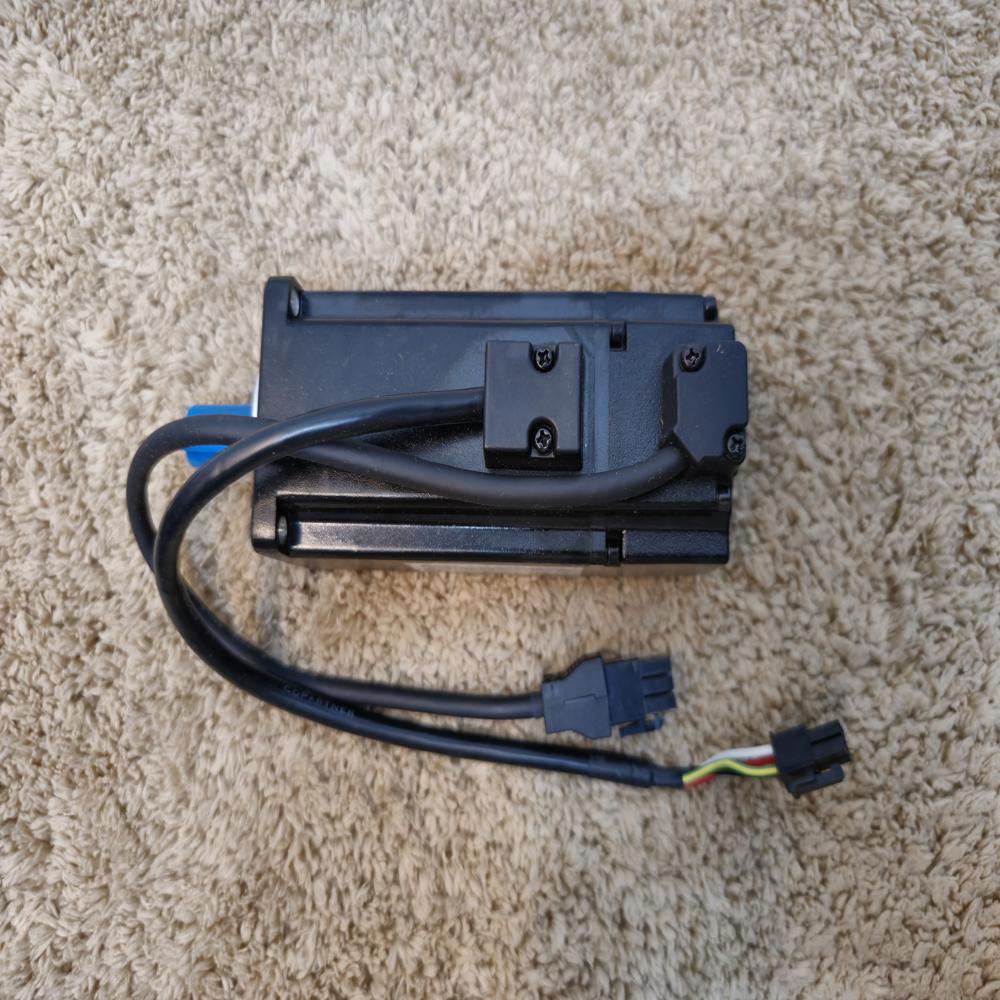

The ECMA-C10604SS (often referred to as ECM-E2M-C10604SS0 in newer Delta catalogues) is a 400W AC servo motor from Delta's high-performance ASDA-A2 Series. Unlike the "RS" models discussed earlier, the "SS" suffix indicates this motor includes a built-in electromagnetic brake and an oil seal, making it ideal for vertical axes where the load must be held in place during power loss. [1, 2, 3, 4, 5]

Key Specifications

Rated Power Output: 400W (0.4 kW).
Rated Torque: 1.27 N-m (with a peak of 3.82 N-m).
Rated Speed: 3000 RPM (Maximum capable of 5000 RPM).
Encoder: High-precision 20-bit incremental encoder (1,280,000 pulses per revolution).
Shaft & Features: 14mm diameter shaft with a keyway, oil seal, and an integrated brake.

Physical Dimensions (Inches)

Frame Size (Width x Height): 2.362" x 2.362" (60 mm x 60 mm).
Total Body Length: Approximately 6.57" (166.8 mm), which is longer than non-brake models to accommodate the internal brake unit.
Shaft Length: 1.181" (30 mm).
Shaft Diameter: 0.551" (14 mm).
Weight: Approximately 4.41 lbs to 5.2 lbs (2.0 kg to 2.36 kg). [1, 3, 4, 5]

Function and Compatibility

The primary function of this motor is to provide high-precision motion control with an added safety layer.

Safety Brake: The "SS" model is specifically used for Z-axis (vertical) applications to prevent the tool or machine head from falling when the drive is disabled or power is cut.

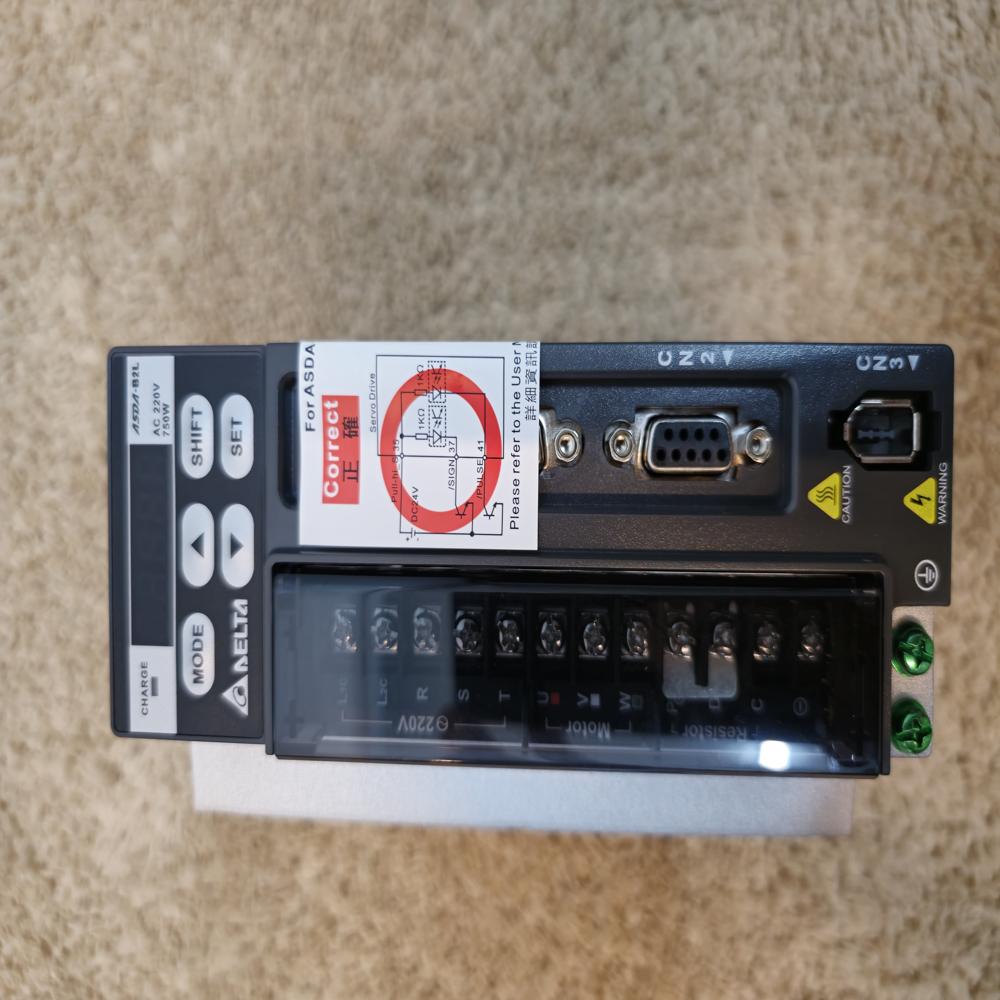

Drive Pairing: It is designed to be paired with the ASD-A2-0421-M drive, though it can also work with certain B2 series drives depending on the encoder interface.
Environment: Rated IP65 (except for the connector), protecting it against dust and low-pressure water jets. [1, 3]
