ECMA-CA0604RS Delta Servo Motor 400W L , Torque Nm - 1.27 , RPM - 3000

Name: ECMA-CA0604RS Delta Servo Motor 400W L , Torque Nm - 1.27 , RPM - 3000
Brand: Corbital Enterprise
Price: 31000.0 INR
Availability: InStock

Price 31000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECMA-CA0604RS Delta Servo Motor 400W L , Torque Nm - 1.27 , RPM - 3000 Specification

Humidity %
5 To 95

Product Type
Servo Motor

Application
Industrial Machinery

Color
Black

Usage & Applications
Industrial Machinery

Warranty
1 Year

Phase
3 Phase

Material
Aluminum

ECMA-CA0604RS Delta Servo Motor 400W L , Torque Nm - 1.27 , RPM - 3000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ECMA-CA0604RS Delta Servo Motor 400W L , Torque Nm - 1.27 , RPM - 3000

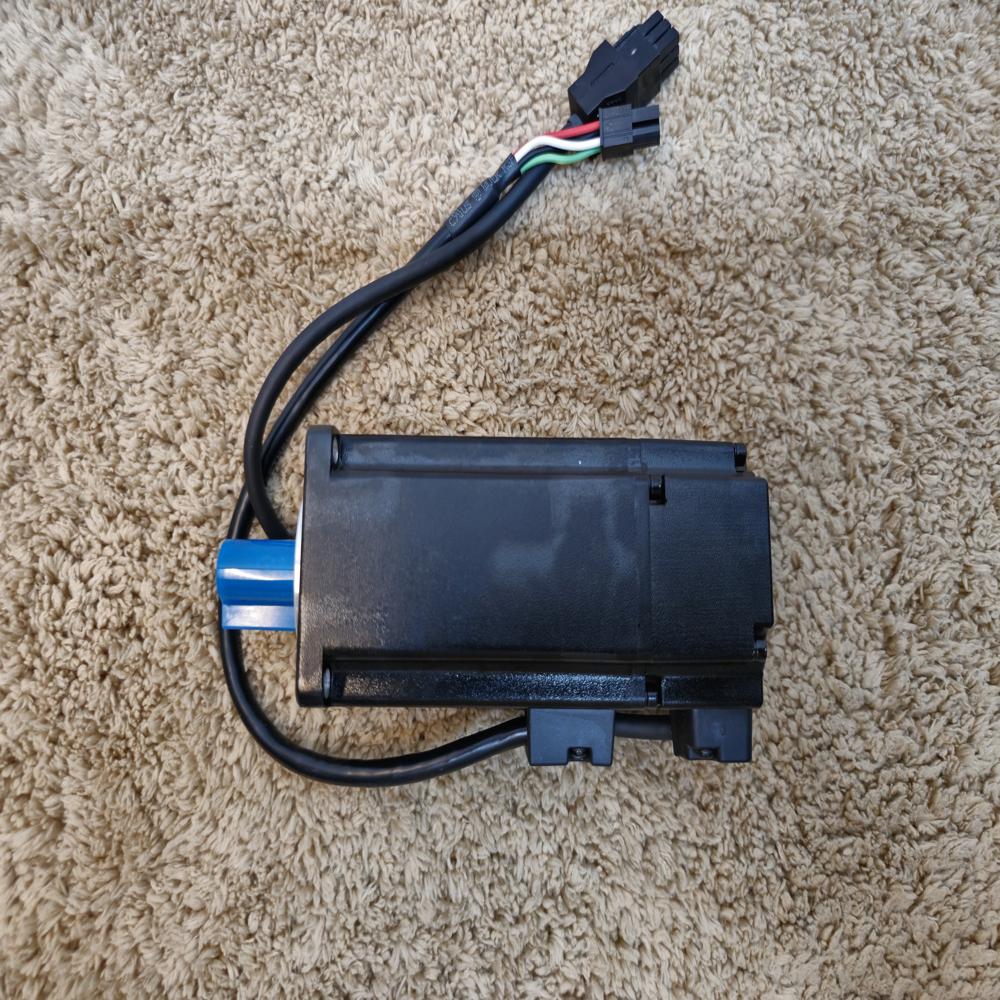

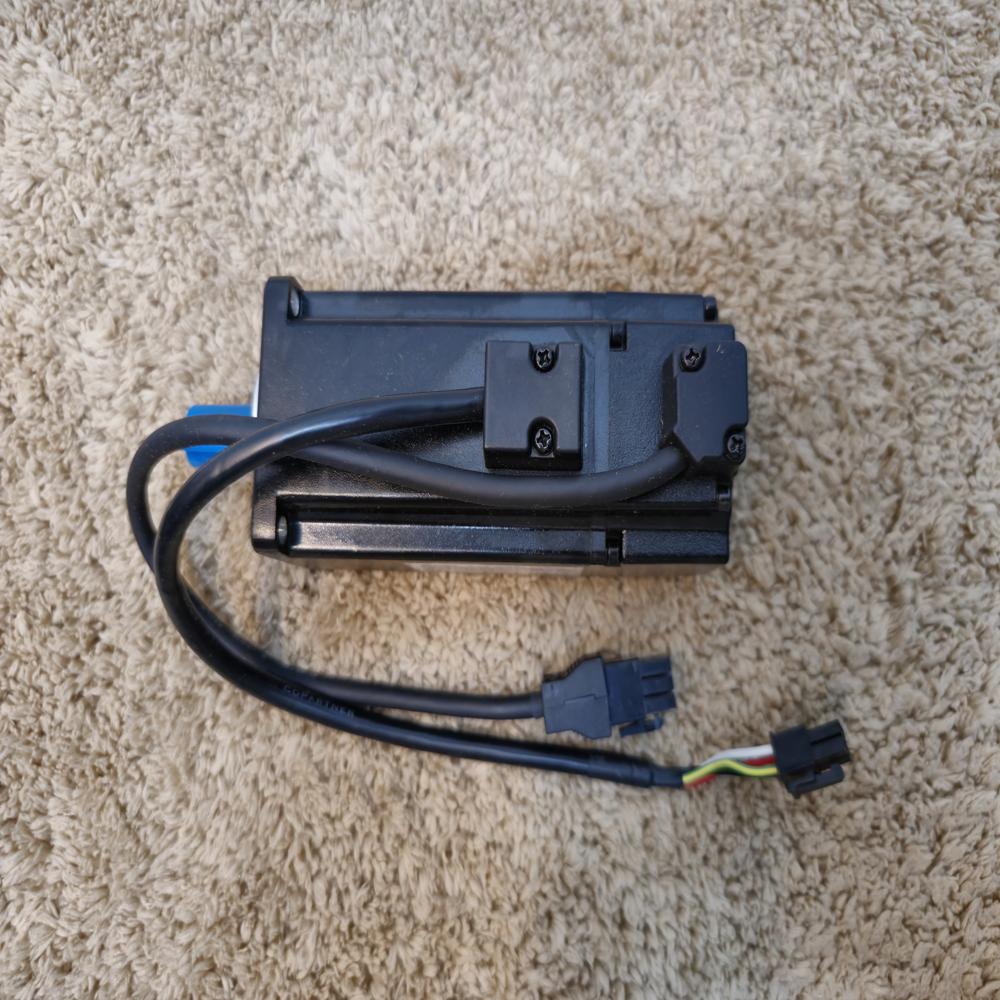

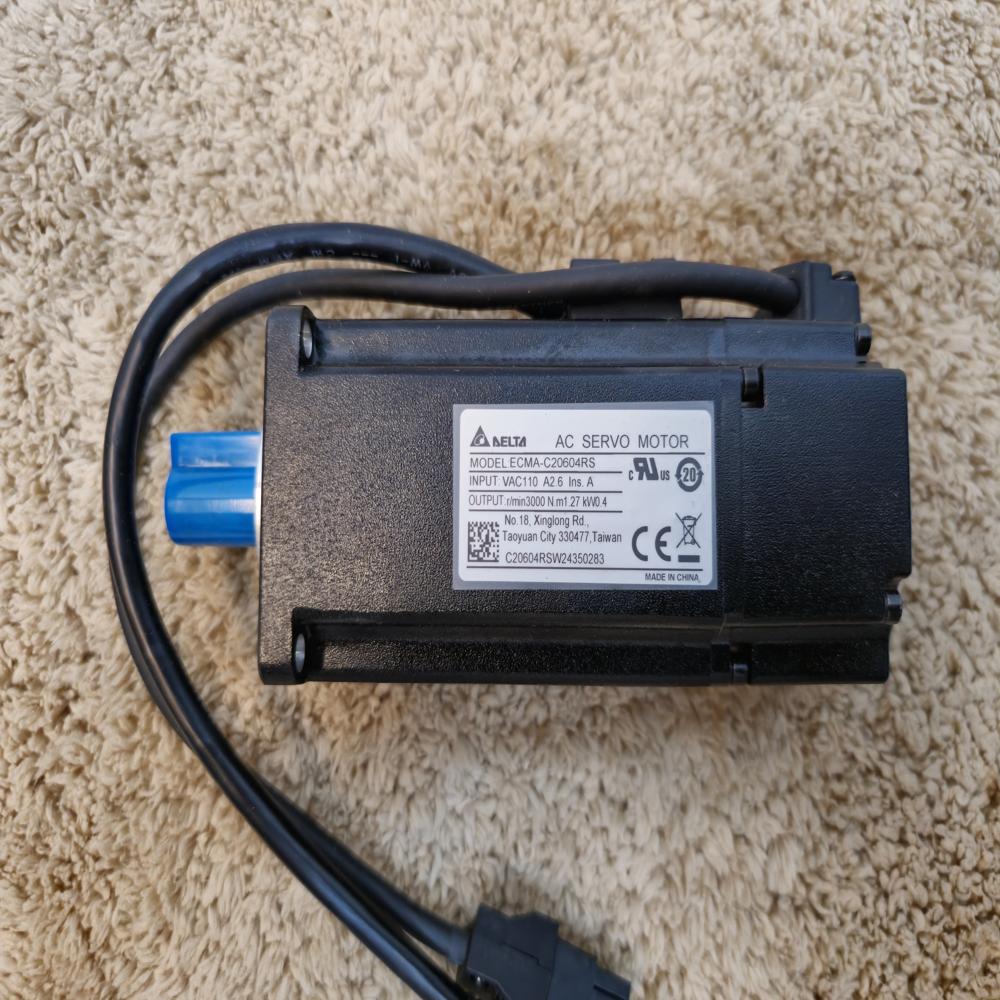

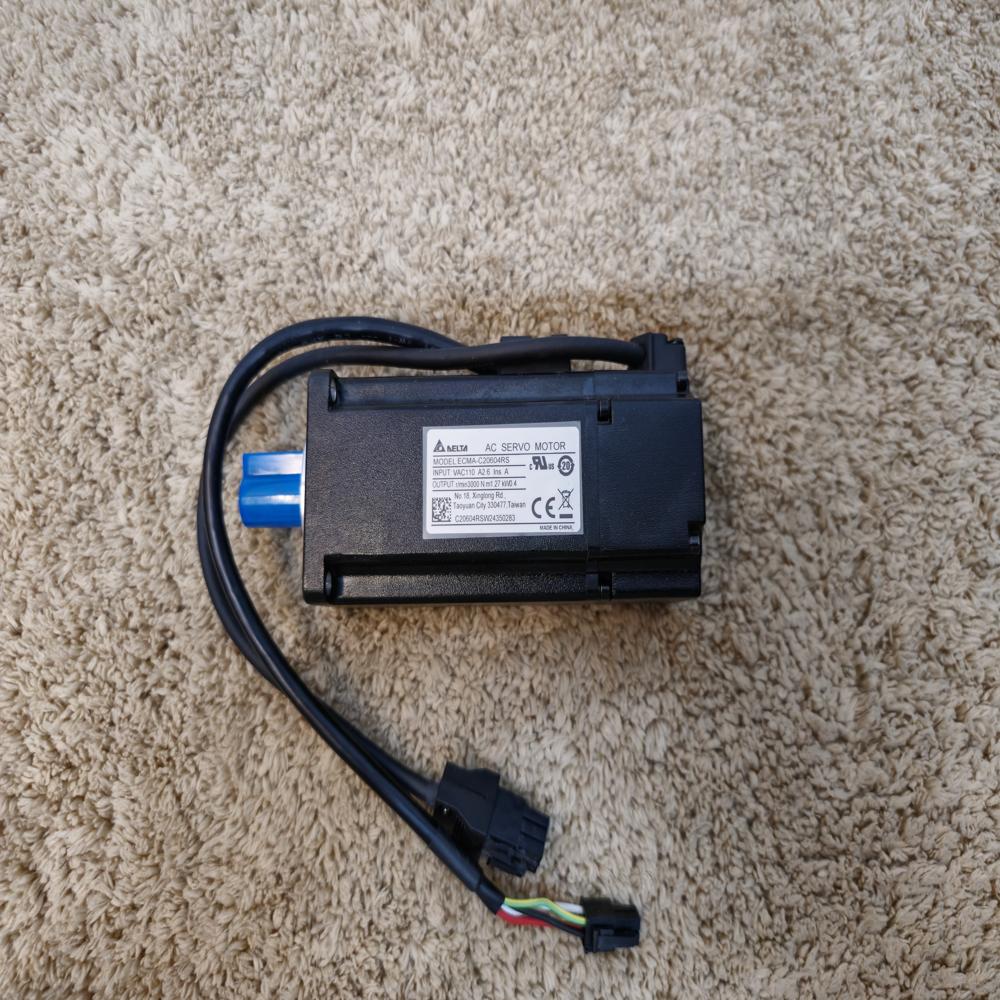

The Delta ECMA-CA0604RS is a 400W low-inertia AC servo motor from the ASDA-A2 series. Its primary function is to provide highly precise motion control for industrial applications like pick-and-place systems, packaging, and CNC auxiliary axes. [1, 2, 3]

Unlike the "SS" models you previously asked about, the "RS" suffix indicates this motor does not include a brake, making it better suited for horizontal movements where gravity won't cause the axis to drop when power is removed. [1, 2]

Physical Specifications

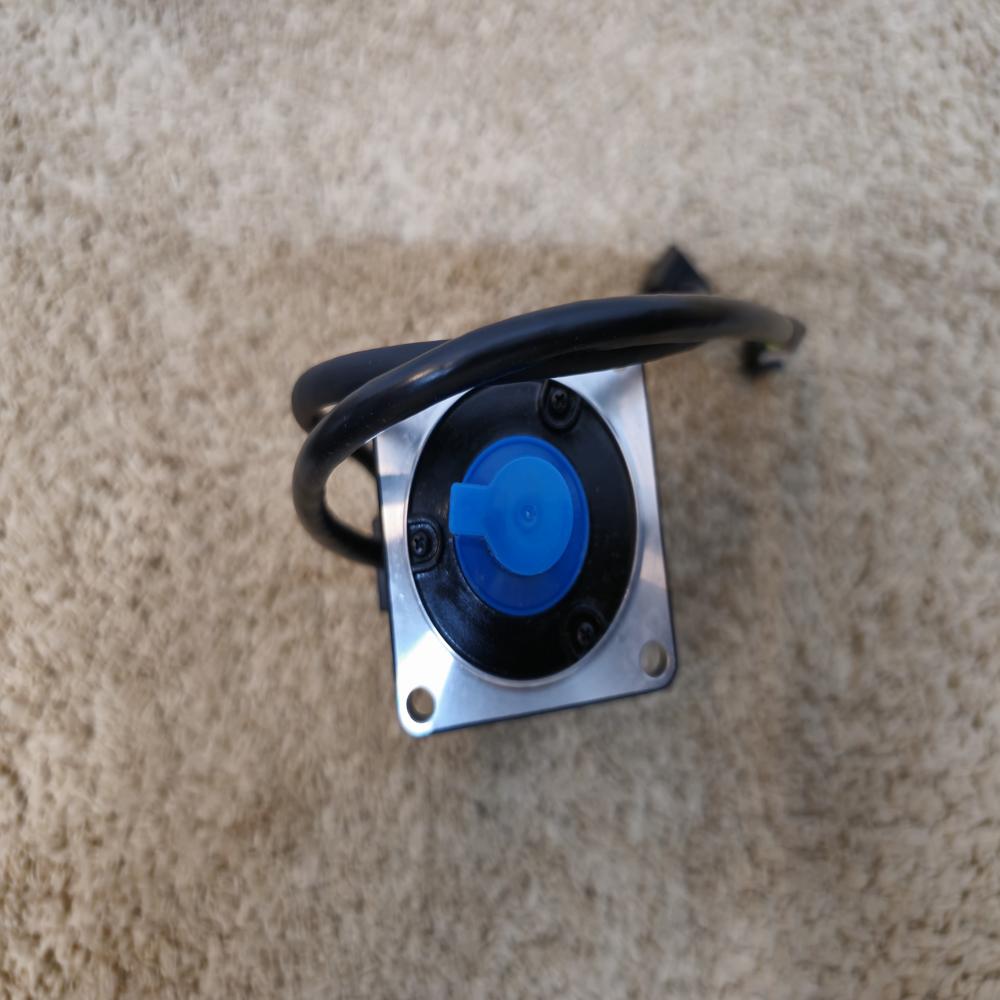

The motor utilizes a compact 60 mm frame size. [1]

Attribute [1, 2, 4, 5]	Metric Value	Inches / US Units
Height (Frame)	60 mm	2.362 in
Width (Frame)	60 mm	2.362 in
Length (Total Body)	130.7 mm	5.145 in
Weight	1.6 kg	3.53 lbs

Note: The shaft extends an additional 1.181 inches (30 mm) from the body.

Key Technical Features

Precision Control: Features a 17-bit absolute encoder. This allows the motor to "remember" its exact position even after a power outage, eliminating the need for a homing sequence.
Torque & Speed: Delivers a rated torque of 1.27 Nm (Peak 3.82 Nm) at a rated speed of 3000 RPM.
Durability: Rated IP65 for dust and water resistance, and includes a standard oil seal.
Shaft Detail: Features a 14 mm (0.551 in) diameter shaft with a keyway and screw hole for secure mechanical coupling.
