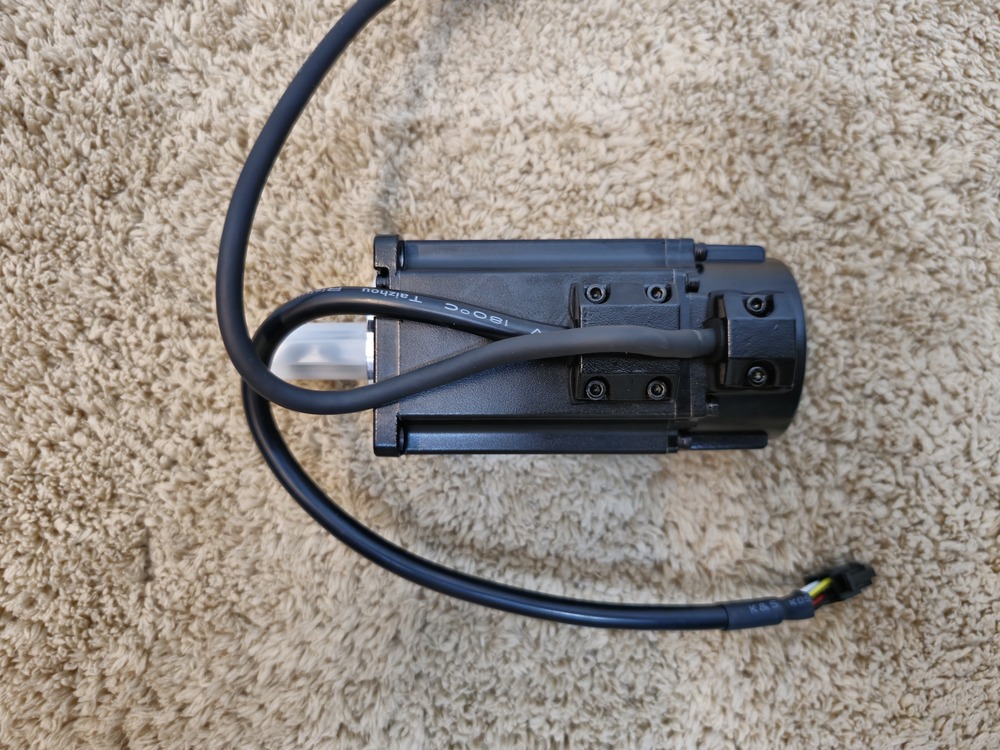

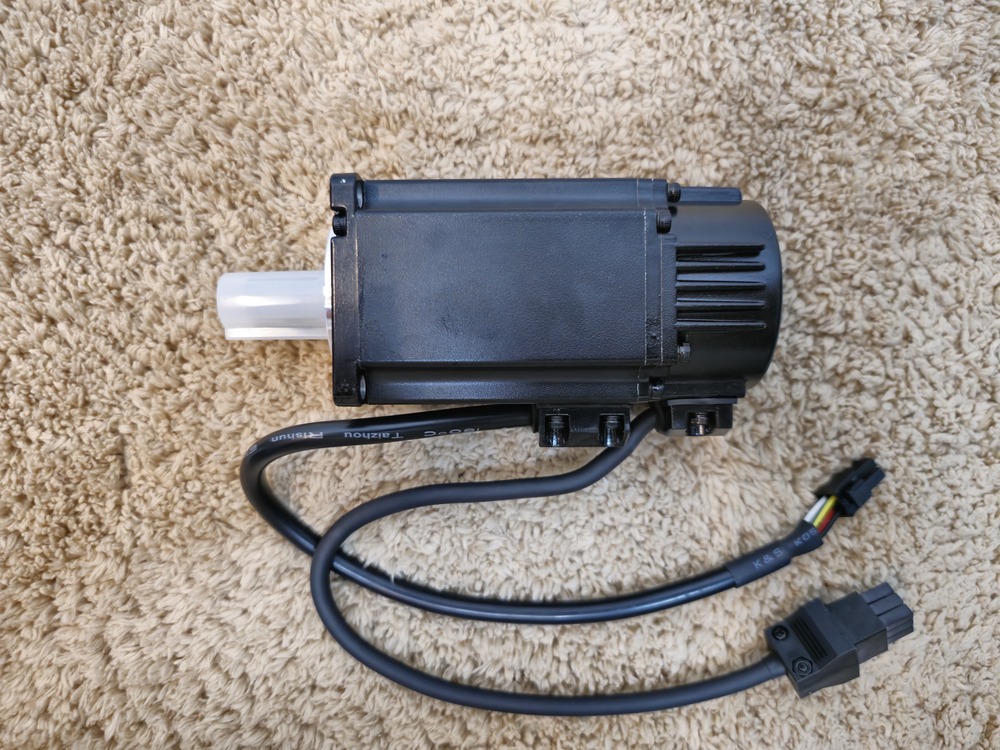

ECMA-JA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000
ECMA-JA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000
ECMA-JA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000
ECMA-JA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000
ECMA-JA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000
ECMA-JA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000
ECMA-JA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000
ECMA-JA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000
ECMA-JA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000
ECMA-JA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000
ECMA-JA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000
ECMA-JA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000

ECMA-JA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000

Price 82000.0 INR/ Number

MOQ : 1 Number

ECMA-JA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000 Specification

  • Sealed Type
  • Packing seal
  • Product Type
  • Servo Motor
  • Color
  • Black and Silver
  • Usage & Applications
  • Industrial Machinerry
  • Weight
  • 12.7 Kilograms (kg)
  • Phase
  • Three Phase
  • Warranty
  • 1 Year
  • Material
  • Aluminum


ECMA-JA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000 Trade Information

  • Minimum Order Quantity
  • 1 Number
  • Delivery Time
  • 24 Hours


About ECMA-JA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000

The Delta ECMA-JA1330S4 is a high-power 3000W (3 kW) AC servo motor from the ASDA-A2 Series, featuring an integrated brake and a high-resolution absolute encoder. [1, 2]

The Delta ECMA-JA1330S4 functions as a high-precision actuator that converts electrical commands into controlled mechanical motion. Its primary "function" is to provide closed-loop motion control, ensuring that the motor's actual position, speed, or torque exactly matches the command from a controller like a PLC.
Primary Functions
  • Precise Positioning: Using its 17-bit absolute encoder, it can reach specific angular positions with extreme accuracy (up to 131,072 pulses per revolution). The "absolute" nature means it remembers its position even after a power loss.
  • Torque Control: It can maintain a constant force of 9.55 Nm, which is essential for applications like tension control in winding machines or clamping in injection molding.
  • Speed Regulation: It maintains a steady 3000 RPM even under varying loads, preventing the "stalling" common in traditional motors.
  • Safety Holding: The integrated electromagnetic brake (signified by the "S4" suffix) automatically locks the shaft when power is removed, preventing the load from falling or moving unexpectedly in vertical Z-axis applications. [1, 2, 4, 5, 6]
Advanced Operational Capabilities
  • Vibration Suppression: Built-in filters automatically minimize "shaking" at the machine's edges, which is critical for long robotic arms or high-speed cutting tools.
  • High Responsiveness: It can accelerate from -3000 RPM to 3000 RPM in milliseconds, allowing for rapid-fire "stop-and-go" movements required in packaging or labeling.
  • Electronic Cam (E-CAM): When paired with its drive, it can follow complex motion profiles for tasks like rotary cutting or flying shears. [1, 2, 3, 4]
Typical Industrial Roles
  • CNC Machinery: Driving the X, Y, or Z axes for precise milling or lathes.
  • Robotic Arms: Providing the high-torque joint movement needed for heavy lifting.
  • Automated Packaging: Ensuring labels and seals are applied at exactly the right millisecond. [1, 2, 3]


Dimensions & Weight
  • Weight: ~27.99 lbs (12.7 kg).
  • Length: ~10.4 inches (263.3 mm total, including brake and shaft).
  • Width (Frame Size): ~5.12 inches (130 mm).
  • Height (Frame Size): ~5.12 inches (130 mm). [, 2, 4]
Core Specifications
  • Rated Torque: 9.55 Nm (Peak torque up to 28.65 Nm).
  • Rated Speed: 3000 RPM (Maximum speed up to 4500 RPM).
  • Voltage: 400V AC.
  • Encoder: 17-bit Absolute encoder.
  • Brake: Included (Integrated for safety and holding).
  • Protection: IP65 rating for harsh industrial environments. []
Shaft Details
  • Shaft Diameter: ~0.94 inches (24 mm).
  • Shaft Type: Keyway with tap and oil seal. [1, 2]
