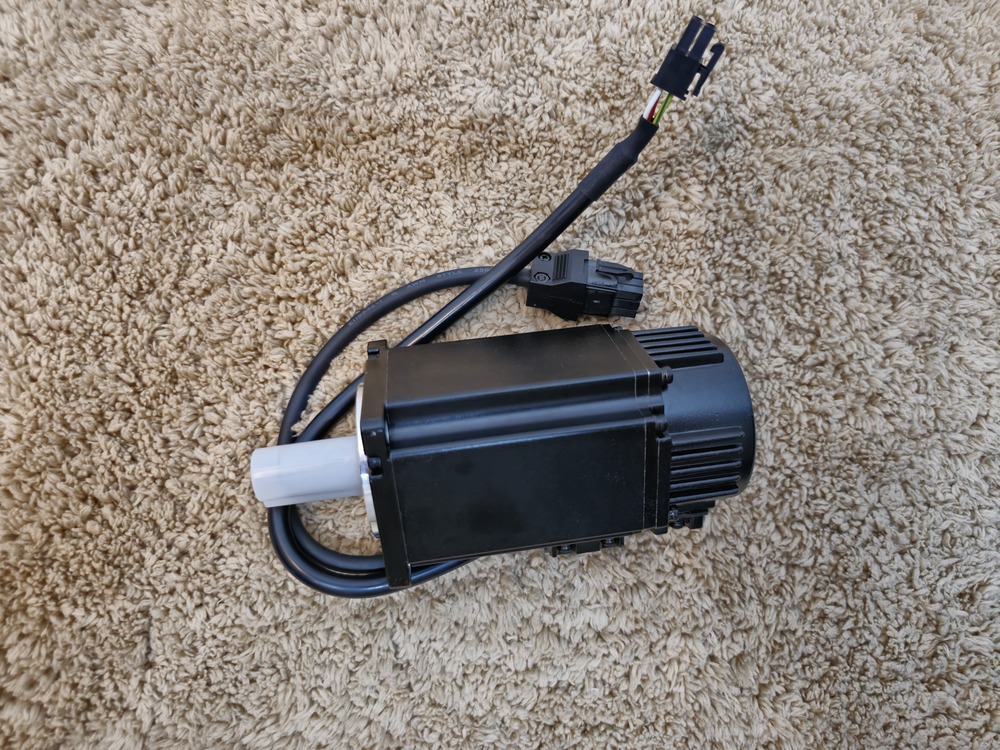

ECMA-LA1875S3 Delta Servo Motor 7500W H , Torque Nm - 47.74 , RPM - 1500

Name: ECMA-LA1875S3 Delta Servo Motor 7500W H , Torque Nm - 47.74 , RPM - 1500
Brand: Corbital Enterprise
Price: 247000.0 INR
Availability: InStock

Price 247000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECMA-LA1875S3 Delta Servo Motor 7500W H , Torque Nm - 47.74 , RPM - 1500 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
35 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ECMA-LA1875S3 Delta Servo Motor 7500W H , Torque Nm - 47.74 , RPM - 1500 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ECMA-LA1875S3 Delta Servo Motor 7500W H , Torque Nm - 47.74 , RPM - 1500

The Delta ECMA-LA1875S3 is a heavy-duty 7500W (7.5 kW) high-inertia AC servo motor designed for extreme industrial applications that demand massive torque and precise, stable motion. [1]

Dimensions & Weight

Weight: 77.16 lbs (35.0 kg).
Length: 14.81 inches (376.1 mm).
Width (Frame Size): 7.09 inches (180 mm).
Height (Frame Size): 7.09 inches (180 mm). [1, 3, 4, 5]

Core Specifications

Rated Output Power: 7.5 kW (7500W).
Rated Torque: 47.74 Nm (Max torque up to 119.36 Nm).
Rated Speed: 1500 RPM (Maximum speed up to 3000 RPM).
Input Voltage: 400V AC.
Encoder Type: 17-bit Absolute encoder.
Brake: Included (Signified by the "S3" configuration). [1, 3, 4, 5, 6]

Shaft Specifications

Shaft Diameter: 1.65 inches (42 mm).
Shaft Type: Keyway with oil seal for high-durability transmission. [, 2, 3]

Functionality

This motor is the "heavy lifter" of the ASDA-A2 line. Its High Inertia rotor allows it to handle the massive reflected inertia of large-scale mechanical systemslike industrial press feeders, large crane controls, or massive CNC gantrieswithout losing control or suffering from mechanical resonance. The absolute encoder provides 131,072 pulses per revolution, ensuring that even under these massive loads, every movement is micro-precise. [1, 2, 3]
