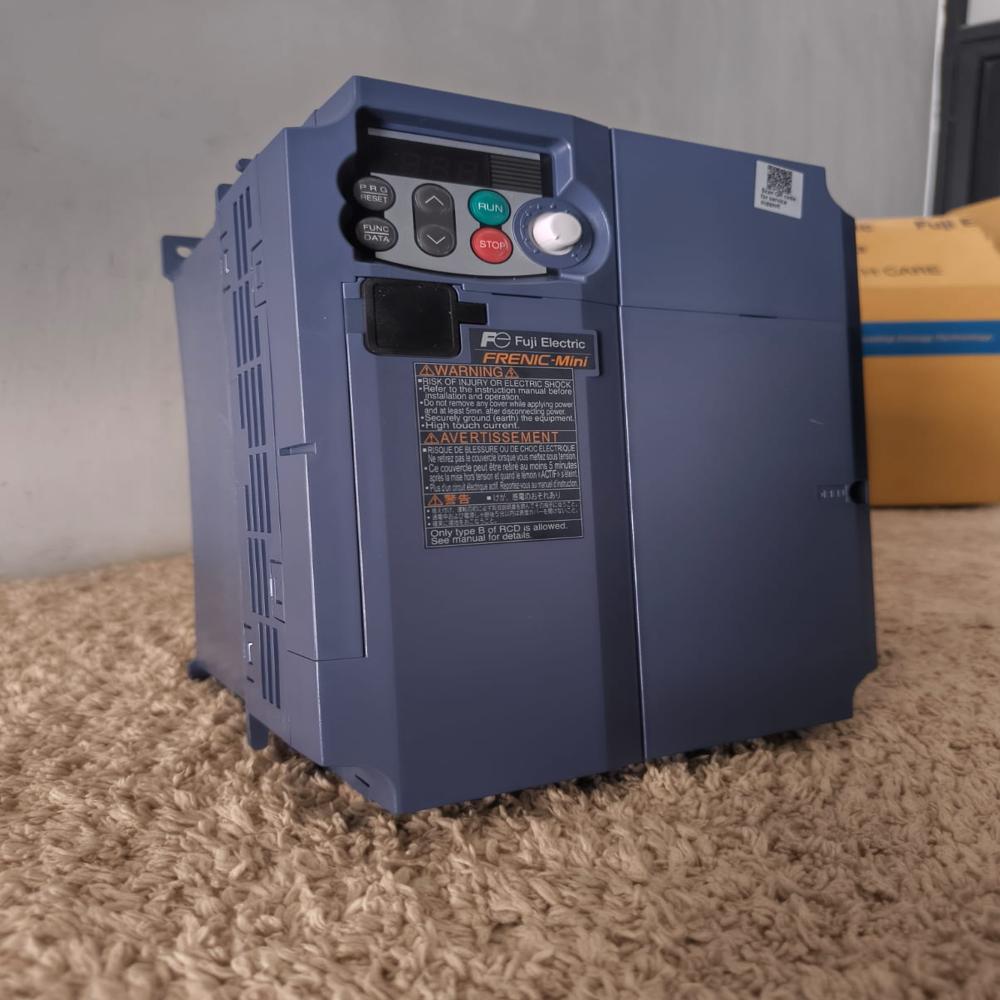

FRN0012E2S-4GALM3X - Fuji ACE Lift 3.7kw 5HP 440V

Price 21100.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

FRN0012E2S-4GALM3X - Fuji ACE Lift 3.7kw 5HP 440V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About FRN0012E2S-4GALM3X - Fuji ACE Lift 3.7kw 5HP 440V

The Fuji Electric FRN0012E2S-4GALM3X is a high-performance Variable Frequency Drive (VFD) from the FRENIC-Ace (E2) series, specifically optimized for Lift, Elevator, and Hoisting applications.

As an "Ace" model, it is much more advanced than the standard "Mini" series, offering built-in PLC logic and superior safety features for vertical transport systems.

Technical Specifications

Feature	High Heavy Duty (HHD)	High Normal Duty (HND)
Applicable Motor	3.7 kW (5.0 HP)	5.5 kW (7.5 HP)
Rated Output Current	9.0 Amps	11.0 Amps
Input Voltage	3-Phase 380V to 480V AC	3-Phase 380V to 480V AC
Overload Capacity	150% (1 min) / 200% (0.5s)	120% (1 min)

Manufacturer:	Fuji Electric
Series:	Frenic Ace
Model:	FRN0012E2S-4GA
Application:	pumps / fans / general purpose
Capacity, kW:	3.7 / 5.5 / 5.5 / 5.5
Current, :	9 / 11.1 / 11.1 / 12
Main power supply, V:	380-480
Phase:	3
Output frequency, Hz:	25-500
Enclosure:	IP20
Overload capacity, % per 1 min.:	150 / 120 / 150 / 120
Acceleration time, sec:	0-6000
Deceleration time, sec:	0-6000
EMC filter:	-
Braking unit:	optional
Analog input:	1
Digital input:	5
Analog output:	2
Digital output:	2 - transistor
Relay output:	1
RS485 (Modbus RTU):	+
Starting torque:	150%
PID:	PID-Regulation
V/f control mode:	-
Vector control with feedback:	+
Sensorless vector control:	+
Operation temperature, :	-10.....+40
Storage temperature, :	-25.....+65
Dimensions (W x H x D), mm:	140140199
Weight, kg:	1,9

Physical Dimensions & Weight

Measurement	Metric	Imperial (Inches/Lbs)
Width	110 mm	4.33 in
Height	140 mm	5.51 in
Depth (Length)	143 mm	5.63 in
Weight	1.9 kg	4.19 lbs

Core Lift Features

Specialised Lift Software (LM3X): This specific version includes dedicated logic for passenger elevators and industrial hoists, ensuring smooth "S-curve" acceleration and accurate floor leveling.
Safe Torque Off (STO): Features a built-in safety input (SIL3/PLe) that physically disables motor torque. This allows for safer maintenance and can often eliminate the need for an external safety contactor.
Built-in Logic (Mini-PLC): Features a customizable logic controller with up to 200 steps. You can program the drive to handle the elevator's sequence logic (doors, floor signals, etc.) without an external PLC.
PM Motor Support: Fully compatible with high-efficiency Permanent Magnet (PM) Synchronous Motors, which are standard in modern gearless elevator systems.

The Fuji Electric FRN0012E2S-4GALM3X (FRENIC-Ace) is a "next-generation" intelligent drive. While basic drives only control speed, the -4GALM3X version is a dedicated Lift and Elevator Controller that combines a motor drive, a safety module, and a mini-PLC into one unit.

Primary Control Functions

Built-in PLC Logic (Customizable): This is the drive's standout feature. It contains an internal logic controller (up to 200 steps) that allows you to program elevator sequencessuch as door control, floor signals, and brake timingwithout needing an external PLC.
Precision Brake Management: It coordinates the timing between the motor's torque production and the external mechanical brake. It ensures the motor is "holding" the load firmly before the brake is released, which is vital for preventing rollback in lift cars.
Safe Torque Off (STO): Features a hardware-based safety input (SIL3/PLe). This physically disables the motor's ability to produce torque during an emergency stop, allowing you to meet strict elevator safety codes without using bulky external magnetic contactors.

Operational Capabilities for Lifts

Universal Motor Control: It is designed to run standard Induction Motors as well as high-efficiency Permanent Magnet (PM) Synchronous Motors. PM motors are the industry standard for modern "gearless" elevator systems because they are quieter and save significant energy.
Ultra-Smooth Ride (S-Curves): It features advanced S-curve acceleration and deceleration profiles. This eliminates the "jerk" sensation when the lift starts moving or comes to a stop, providing a high-quality experience for passengers.
Rescue Operation: The drive is compatible with single-phase UPS power. During a blackout, it can move the car to the nearest floor at a low speed to evacuate passengers safely.
High Starting Torque: It provides 200% torque at 0.5Hz, ensuring a smooth start even if the elevator car is fully loaded to its maximum capacity.

Safety & Maintenance

Removable Control Terminals: The wiring terminal block is detachable. If you ever need to replace a drive, you can just unplug the block and plug it into the new unitno re-wiring required, which prevents wiring errors and saves hours of downtime.
Life Diagnostics: It monitors the health of its own cooling fans and internal capacitors, giving you a maintenance warning before the drive reaches the end of its 10-year design life.
Fault Logging: Records the exact conditions (Current, Voltage, Frequency) of the last several trip events to help technicians quickly diagnose if a problem is mechanical or electrical.

Connectivity

Dual RS-485 Ports: Features two communication ports as standard, so you can connect a Touchscreen (HMI) and a PC for programming simultaneously.
Standard Modbus RTU & CANopen: Built-in for easy communication with the main elevator controller.
