FRN0013C2S-4LM - Fuji Mini LIFT 5.5 KW 7.5 hp 440V

Price 19700.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

FRN0013C2S-4LM - Fuji Mini LIFT 5.5 KW 7.5 hp 440V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About FRN0013C2S-4LM - Fuji Mini LIFT 5.5 KW 7.5 hp 440V

The

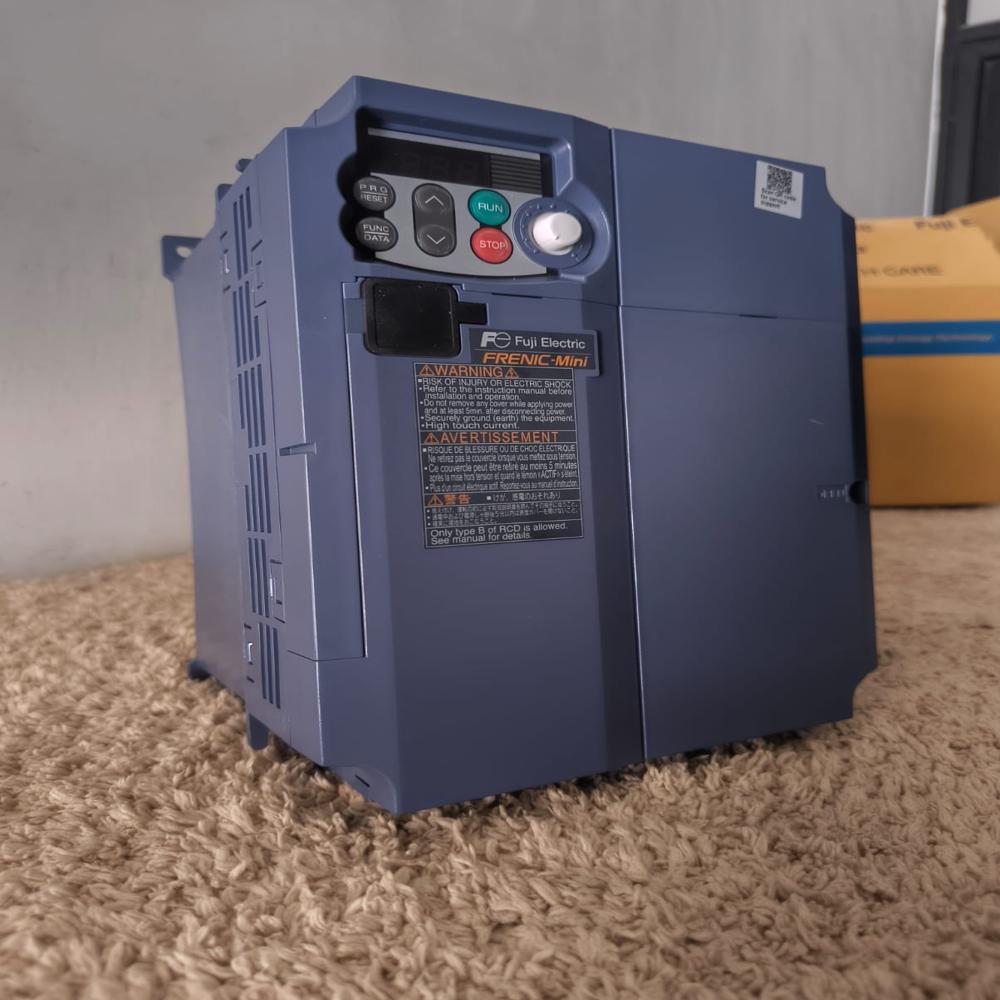

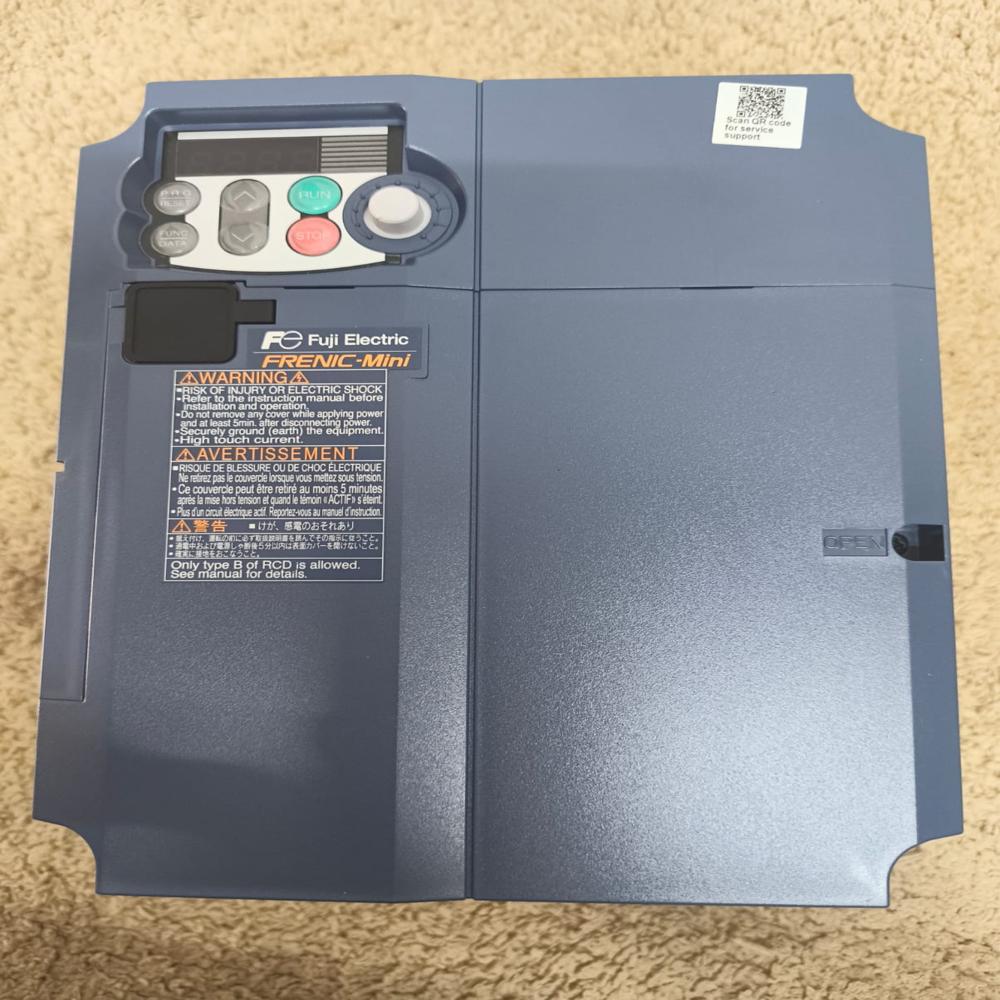

Fuji Electric FRN0013C2S-4LM

is a high-performance variable frequency drive (VFD) from the FRENIC-Mini (C2) series, specifically designed for Lift and Hoisting applications. It is rated for 5.5 kW (7.5 HP) with a typical output current of 13.0 Amps.

Manufacturer:	Fuji Electric
Series:	Frenic Mini (FRN-C2)
Model:	FRN0013C2S-4E
Application:	pumps / fans / general purpose
Capacity, kW:	5.5
Current, :	13
Main power supply, V:	380-480
Phase:	3
Output frequency, Hz:	25-400
Enclosure:	IP 20
Overload capacity, % per 1 min.:	150
Acceleration time, sec:	0-3600
Deceleration time, sec:	0-3600
EMC filter:	-
Braking unit:	+
Analog input:	2
Digital input:	5
Analog output:	1
Digital output:	1
Relay output:	3
RS485 (Modbus RTU):	RS485, Modbus
Starting torque:	150%
PID:	PID - regulation
V/f control mode:	+
Vector control with feedback:	+
Sensorless vector control:	+
Operation temperature, :	-10.....+50
Storage temperature, :	-25......+70
Dimensions (W x H x D), mm:	180x220x158
Weight, kg:	3,1

Physical Dimensions & Weight

This model is housed in a compact frame designed for efficient panel mounting.

Measurement	Metric (Standard)	Imperial (Inches/Lbs)
Width	180 mm	7.09 in
Height	220 mm	8.66 in
Depth (Length)	158 mm	6.22 in
Weight	3.1 kg	6.8 lbs

Primary Functions

Specialized Lift Control: Optimized for geared open-loop lift systems, featuring dedicated software to ensure smooth starts and accurate leveling.
Dynamic Torque Vector Control: Delivers high torque150% at 1Hzwhich is critical for preventing rollback in hoisting and lift applications.
Built-in Brake Logic: Includes integrated functions to manage the timing of external mechanical brakes and output contactors.
Auto-Rescue Mode: Supports UPS operation (1-phase 240V) for emergency lift evacuation during power failures.
Multi-Step Speed: Features six independently settable S-curves to eliminate "jerk" and provide a comfortable ride.

The Fuji Electric FRN0013C2S-4LM (FRENIC-Mini C2) is a specialized drive designed specifically for Lifts, Elevators, and Hoisting systems. Rated at 5.5kW (7.5 HP) with a 13.0 Amp output, its functions focus on safety, passenger comfort, and precise mechanical brake management.

Primary Control Functions

Mechanical Brake Logic: This is the most critical lift function. The drive coordinates with the external motor brake to ensure the motor is producing enough torque before the brake is released. This prevents "rollback" (the elevator slipping backward when starting).
High Starting Torque: Uses Dynamic Torque Vector Control to deliver 200% torque at 0.5Hz. This ensures that even a fully loaded lift car can start moving smoothly from a complete stop.
Slip Compensation: Monitors the load in real-time and automatically adjusts the output frequency. This ensures the lift maintains the exact same speed whether it is carrying one person or a full load.

Operational Capabilities for Lifts

Emergency Rescue Mode: The "-4LM" series is designed to operate on a single-phase UPS during a power failure. This allows the drive to move the lift car to the nearest floor at a low speed for passenger evacuation.
Ultra-Smooth S-Curves: Features advanced S-curve acceleration and deceleration profiles. You can program up to 6 independent segments to eliminate the "jerk" sensation during starts, speed transitions, and stops.
Multi-Step Speed Control: Supports multiple preset speeds (e.g., High Speed for travel, Leveling Speed for floor approach, and Inspection Speed for maintenance).
Built-in Braking Chopper: Includes a dedicated braking transistor. When the lift is going down, the motor generates electricity; the drive burns this energy off through a resistor to maintain control and prevent overvoltage trips.

Safety & Maintenance

Output Contactor Control: Includes logic to manage the timing of the main output contactor, ensuring it opens and closes only when there is no current flowing, which extends the life of the contactor.
Stall Prevention: Protects the motor and hoist cables by stopping operation if it detects a mechanical jam or snag.
Life-Cycle Diagnostics: Tracks the wear and tear of its own cooling fans and capacitors, giving a maintenance warning before the drive reaches the end of its life.

Connectivity

Standard RS-485: Allows the drive to communicate directly with the main elevator control board via Modbus RTU.
Built-in Potentiometer: Useful for maintenance technicians to manually "jog" the lift at slow speeds for inspection.
