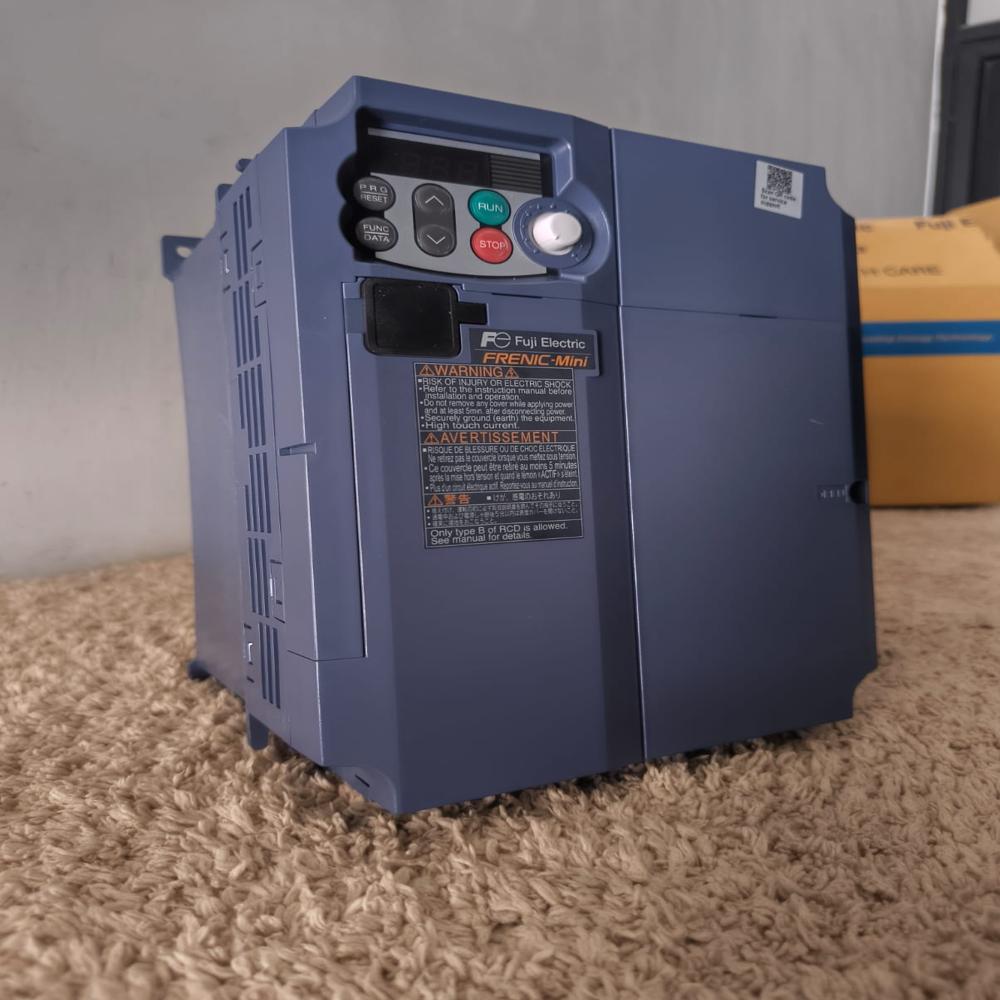

FRN0022E2S-4GALM3X - Fuji ACE Lift 5.5 KW 7.5 hp 440V

Price 25800.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

FRN0022E2S-4GALM3X - Fuji ACE Lift 5.5 KW 7.5 hp 440V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About FRN0022E2S-4GALM3X - Fuji ACE Lift 5.5 KW 7.5 hp 440V

The

FRN0022E2S-4GALM3X

is a high-performance Variable Frequency Drive (VFD) from Fuji Electric, specifically part of the FRENIC-Ace (E2) series.

This particular model is highly specialized for elevator and lift applications, often marketed as the "FRENIC-Ace Lift" or "LIFT-Ace" version. It is designed to handle the precise control and safety requirements of moving people or heavy goods vertically.

Manufacturer Part Number	FRN0022E2S-4GB
Manufacturer	Fuji
Product Series	Ace
Family Series	Fuji Drives, Ace Series
Description	Drive, AC, 7.5HP, 480V, 13.0A, CT,OP 480Vin 3PH 10HP 17.5A VT W/DB Trans 9.1in.Hx7.1in.Wx6.2in.D Ace
Input Phase	3
HP (Constant Torque Rating)	7.5 hp
HP (Variable Torque Rating)	10 hp
Amps (Constant Torque Rating)	13 A
Amps (Variable Torque Rating)	17.5 A
Braking Type	DC Injection, Dynamic Braking Transistor Included
Closed Loop	Optional
AC Line Regenerative	No
Operator Controls	Keypad Included
Motor Control-Max Level	Open Loop Vector (Sensorless Vector)
Mounting	Panel
Nominal Input Voltage	380 VAC, 415 VAC, 480 VAC
AC Voltage	380-480 VAC
Frequency	500 Hz
Protection Rating	IP20
Dynamic Braking Trans	Included
Height	9.05 "
Width	7.09 "
Depth	6.22 "
Comments	Safe Torque Off, permanent magnet motor control, customizable logic, built in dual RS485 ports.
Net Weight	7.89 lbs
Gross Weight	8.25 lbs

Key Technical Specifications

Motor Power: 5.5 kW / 7.5 HP.
Input Voltage: 3-Phase 380V to 480V AC (Standard 415V/440V in many regions).
Overload Capability: Supports 200% overload for 0.5 seconds and 150% for 60 seconds.
Control Modes: Features advanced vector control suitable for both open-loop and closed-loop elevator systems.
Safety: Includes STO (Safe Torque Off) functionality, which can eliminate the need for an output contactor in some installations.

Lift-Specific Features

Smooth Motion: Built-in "S-curves" (up to 6) to ensure smooth acceleration and deceleration of elevators.
Rescue Operation: Supports 240V single-phase Automatic Rescue Device (ARD) operation as a standard feature, allowing the lift to reach the nearest floor during power outages.
Brake Control: External brake logic and output contactor control are integrated into the drives logic.
Communications: Standard CANopen compatibility for seamless integration with lift controllers.

The

FRN0022E2S-4GALM3X

functions as a dedicated motor controller for elevator and lift systems. Its primary role is to provide precise vertical motion control by regulating the frequency and voltage of the power supplied to the lift motor.

Primary Operational Functions

Variable Speed Control: Manages smooth acceleration and deceleration using up to 6 built-in S-curves, which prevent sudden jolts for passengers.
Safety Integration (STO): Features Safe Torque Off (STO) compliance (SIL 3), allowing the drive to safely stop motor torque without needing external mechanical contactors.
Automatic Rescue Operation: Supports 240V single-phase ARD (Automatic Rescue Device) mode as a standard feature, enabling the lift to reach the nearest floor during a power failure.
Brake & Contactor Logic: Integrated logic for managing the external brake and output contactors, which simplifies the wiring between the lift controller and the motor.
Customizable Logic: Includes a built-in PLC-like function with up to 200 steps of customizable logic for tailored automation.

Core Function Code Groups

The drive organises its operations into specific "Function Codes" accessible via the keypad:

F Codes (Fundamental): Basic settings like frequency and start/stop commands.
E Codes (Extension): Configuration for terminal inputs and outputs.
P Codes (Motor 1): Parameters specific to the main lift motor (rating, speed, etc.).
J & d Codes (Application): Specialized lift functions, such as leveling and rescue operations.

Control Methods

The unit supports several advanced control modes to ensure stability under varying loads:

Dynamic Torque Vector Control: Adjusts torque in real-time without sensors.
Closed-Loop Vector Control: Requires an optional PG (Encoder) interface card for high-precision positioning.
PM Motor Control: Capable of driving both standard induction motors and Permanent Magnet (PM) synchronous motors.
