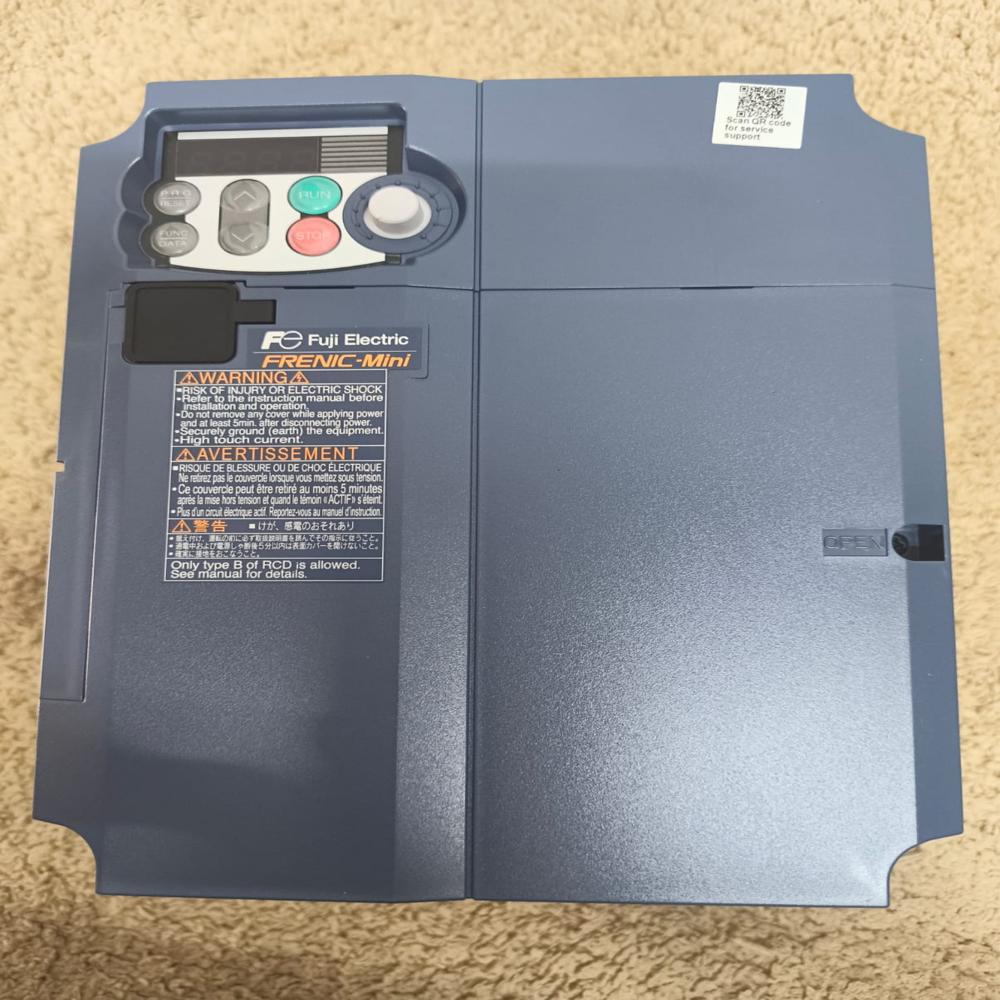

FRN0022E2S-4GBX - Fuji ACE 5.5 KW 7.5 hp 440V

Price 34100.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

FRN0022E2S-4GBX - Fuji ACE 5.5 KW 7.5 hp 440V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About FRN0022E2S-4GBX - Fuji ACE 5.5 KW 7.5 hp 440V

The

Fuji Electric FRN0022E2S-4GBX

is a 3-phase, 400V class Variable Frequency Drive (VFD) from the high-performance FRENIC-Ace (E2) series. This model is extremely versatile, with "quadruple" ratings that allow it to handle different motor capacities from 7.5 HP to 15 HP based on the load type.

Product Series: FRENIC-Ace (E2)
Family Series: Fuji Drives, Ace Series
HP Ratings
- HND: 10
- HHD: 8
Output Volt Range: 0 480V, 3-Phase
Amps, 3-Phase
- HND: 17.5
- HHD: 13
Amps, Single Phase Input
- HND: Check Instruction Book
- HHD: Check Instruction Book
Overload capability
- HND: 120%-1 min
- HHD: 150%-1 min, 200%-0.5 s
Watt loss @ Running
- HND: 190
- HHD: 150
DCR
- DCR PN#:
- DCR Watt Loss:
Nominal Input Voltage, frequency: 460, 50/60Hz
Input Volt Range: 380-480, +10 to -15%
Max output Frequency: 500 Hz
Digital Input: 5 (7)
Analog Inputs: 2
- Transistor outputs: 2
- General purpose relay output: 1
- Alarm relay output: 1
- Braking Unit and Braking Resistor
  - Braking Unit Type:
  - Braking Unit QTY.:
  - Braking Resistor Type: DB5.5-4
  - Braking Resistor QTY.: 1
- Enclosure
  - Standard: IP20, UL open type
  - Cooling: Fan cooling
  - Weight/Mass [lbs.(kg)]: 11(5.0)
  - Drawing Open Chassis: ROA701509
  - Dimensions H x W x D (inches): 9.05 x 7.09 x 6.22
- NEMA Kit
  - NEMA/UL Type 1: NEMA1-40E2-24
- Option Cards, Communication Card
  - Modbus RTU: OPC-E2-RS
  - DeviceNet: OPC-DEV
  - Profibus: OPC-PDP3
  - Profinet: OPC-PRT3
  - CC-Link: OPC-CCL
  - CANOpen: OPC-COP2
  - Multiprotocol Ethernet Interface: OPC-PRT3
- Option Card, Input/Output
  - Digital Output interface card: OPC-DIO
  - Analog Input / Output Interface Card: OPC-AIO
  - PG Interface Card (5V): OPC-E2-PG
  - PG Interface Card (12V): OPC-E2-PG3

Key Technical Specifications

Feature	High Heavy Duty (HHD)	High Normal Duty (HND)	Normal Duty (ND)
Applicable Motor	5.5 kW (7.5 HP)	7.5 kW (10 HP)	11 kW (15 HP)
Rated Output Current	13.0 Amps	17.5 Amps	21.5 Amps
Overload Capacity	150% (1m) / 200% (0.5s)	120% (1 min)	120% (1 min)
Input Voltage	3-Phase 380V480V AC

Dimensions & Weight (Inches)

Measurement	Metric	Imperial (Inches/Lbs)
Width	180 mm	7.09 in
Height	220 mm	8.66 in
Depth (Length)	158 mm	6.22 in
Weight	5.0 kg	11.0 lbs

Core Functions

Customizable Logic: Features built-in logic functions with up to 200 customizable steps, enabling the drive to perform complex automation tasks without an external PLC.
Superior Motor Control: Supports various modes including Sensorless Vector Control and PM Synchronous Motor Control for high energy efficiency.
Functional Safety: Includes Safe Torque Off (STO) as standard, meeting global safety requirements for machinery.
Connectivity: Equipped with dual RS-485 ports (Modbus RTU/CANopen) and expandable options for Profibus and Ethernet/IP.

The Fuji Electric FRN0022E2S-4GBX (FRENIC-Ace) is a sophisticated, "all-round" high-performance drive. While the Micro and Mini series are for simple speed control, the Ace series is designed for complex automation, offering built-in logic and safety features that can often replace external controllers.

Primary Control Functions

Built-in PLC Logic (Customizable): This is the "brain" of the Ace series. It features a built-in logic controller (up to 200 steps). You can program it to handle digital inputs/outputs, timers, and counters to manage machine sequences without an external PLC.
Triple/Quadruple Ratings: A single drive can be optimized for different motor sizes and load types:
- Normal Duty (ND): Best for fans/pumps, allowing a 15 HP motor at 21.5A.
- High Heavy Duty (HHD): Best for mixers/crushers, providing 200% overload protection for a 7.5 HP motor at 13.0A.
Safe Torque Off (STO): A built-in hardware safety feature (SIL3/PLe). It ensures the motor cannot generate torque during an emergency stop, allowing you to meet global safety standards without using bulky external safety contactors.

Operational Capabilities

Universal Motor Support: It can control standard Induction Motors as well as high-efficiency Permanent Magnet (PM) Synchronous Motors, making it a future-proof choice for energy-saving initiatives.
High-Speed & Precision: It can output up to 500 Hz, necessary for high-speed spindles. Its Sensorless Vector Control maintains extremely stable speed even if the load changes suddenly.
Dynamic PID Control: Includes advanced PID for maintaining constant pressure or flow, featuring "anti-windup" logic to prevent system surges during startup.
Multi-Frequency Control: It can follow multiple speed references simultaneously, which is ideal for complex winding or tension-control machinery.

Safety & Maintenance

Removable Control Terminals: The entire control wiring block is detachable. If you need to swap a drive, you can simply unplug the terminal block and plug it into the new unitno re-wiring required.
Predictive Life Diagnostics: It monitors the "health" of its own cooling fans and internal capacitors, giving you a warning signal when they reach 90% of their life so you can avoid unplanned downtime.
Dual RS-485 Ports: It features two communication ports as standard, allowing you to connect an HMI (Touchscreen) and a PC for programming at the same time.

Connectivity

Standard Modbus RTU & CANopen: Built-in for networking.
Expandable: Unlike the Mini/Micro, the Ace can accept optional cards for Profibus, DeviceNet, Ethernet/IP, and Profinet to fit into any modern factory network.
