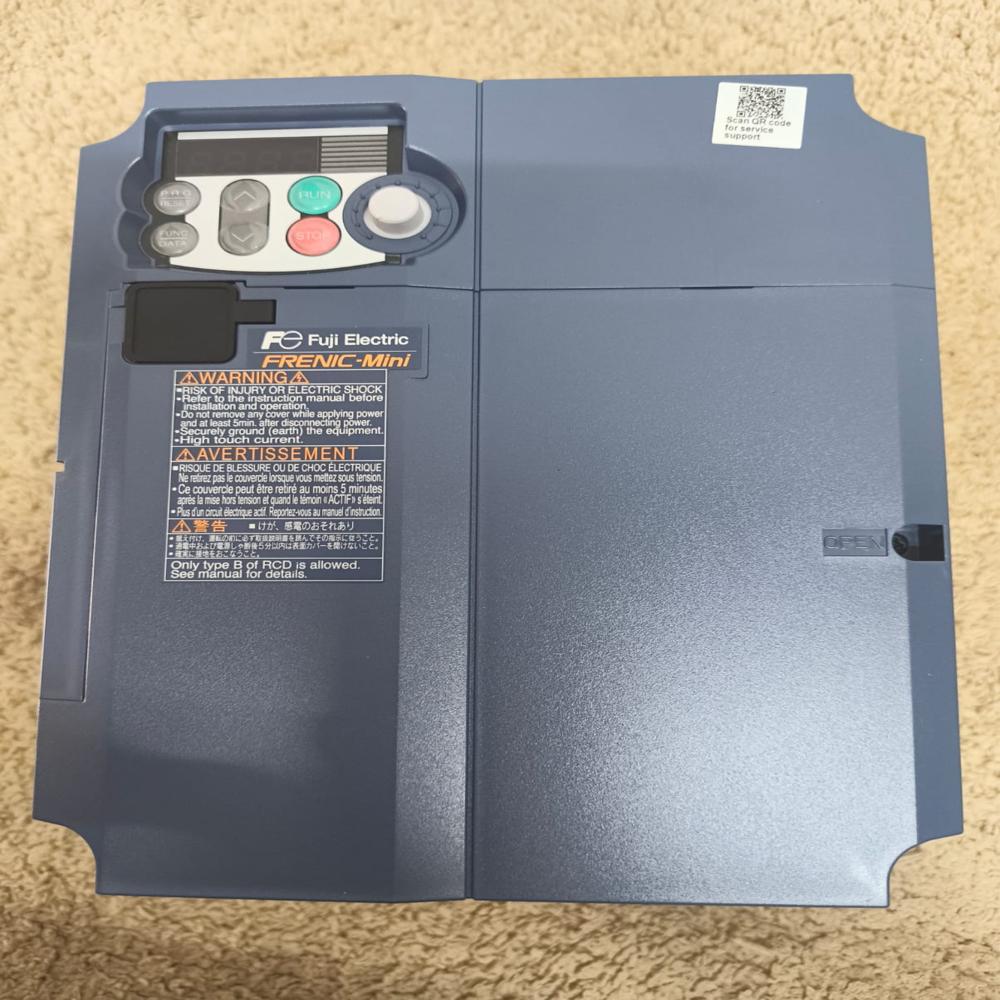

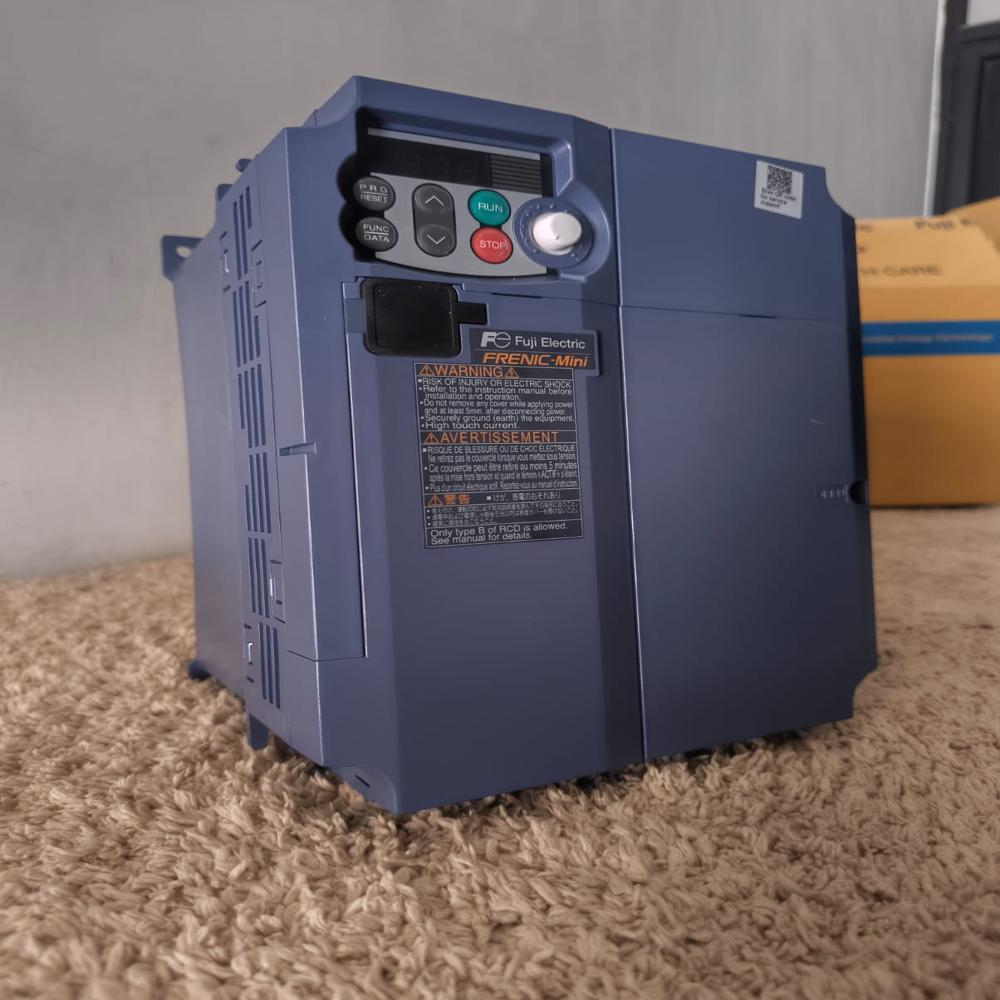

FRN0024C2S-4SL1 Fuji Mini Solar 11 KW 10 hp 440V

Price 28000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

FRN0024C2S-4SL1 Fuji Mini Solar 11 KW 10 hp 440V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About FRN0024C2S-4SL1 Fuji Mini Solar 11 KW 10 hp 440V

The

FRN0024C2S-4SL1

is an 11 kW (15 HP) Solar Water Pump VFD from Fuji Electric's FRENIC-Mini (C2) series. This is the most powerful model in the solar-optimized "Mini" lineup we have discussed so far, designed to handle large-scale irrigation and deep-well pumps.

Product Series: FRENIC-Mini (C2)
Family Series: Fuji Drives, Mini Series
HP Ratings: 15
Output Rated Current, 3-Phase: 380-480
Output Rated Current, 3-Phase: 24
Amps, 1-Phase: Check Instruction Book
Overload capability: 150% for 1 min, 200% for 0.5 sec.
Watt loss at Running: 300
Watt loss at stop: 19
Inverter Efficiency at rated(Hz), rated(A):0.961
Nominal Input Voltage, frequency: 460, 50/60Hz
Input Volt Range: 380-480VAC-3Ph, +10 to -15%
Rated output voltage: 0 480V, 3-Phase
Range Max output Frequency: 400Hz
Digital Input: 3(5)*
Analog Inputs: 2
Transistor outputs: 1
General purpose relay output: 1
Alarm relay output: 0
Braking
- Max. Torque [%]: 1.5
- Duty Cycle, : 5
Braking Unit and Braking Resistor
- Braking Unit Type: Built-in
- Braking Resistor Type: DB11-4
Enclosure
- Standard:IP20
- Cooling: Fan cooling
- Weight/Mass [lbs(kg)]: 9.8
- Drawing Open Chassis: ROA701240
- Dimensions H x W x D (inches): 10.24 x 8.66 x 7.48
NEMA Kit
- NEMA/UL Type 1: NEMA1-69E2-24
- Drawing NEMA1: N/A
Communication Option Card: N/A
Option Card, Input/Output: OPC-115V

Physical Dimensions & Weight

This 15 HP solar drive is built on the largest "Mini" chassis (Frame 5), which is noticeably bigger and heavier than the 7.5 HP or 10 HP models.

Specification	Metric Value	Imperial (Inches)
Height	260 mm	10.24 inches
Width	220 mm	8.66 inches
Depth (Length)	190 mm	7.48 inches
Net Weight	4.5 kg	9.8 lbs

Core Functions

Solar Extraction (MPPT): Features advanced Maximum Power Point Tracking to ensure the motor speed is always optimized for the current sunlight intensity.
Automatic Operation: Operates autonomously by starting the pump at sunrise once the DC bus voltage is sufficient and performing a soft-stop at sunset.
Dry Run & Tank Protection: Monitors motor torque to detect a "dry" well and supports float switch inputs to stop pumping when a storage tank is full.
High Torque Start: Provides 200% starting torque for 0.5 seconds, which is essential for lifting heavy water columns in 15 HP pump applications.

Electrical Ratings

Motor Capacity: 11 kW / 15 HP.
Rated Output Current: 24.0 Amps.
Voltage Range: Supports high-voltage DC from solar arrays (up to 800V DC) and 3-phase AC input (380V480V).

The FRN0024C2S-4SL1 functions as a high-power Solar Pump Controller for 11 kW (15 HP) motors. It is the "brain" of a solar pumping system, specifically designed to run large motors without a battery or electrical grid by using the direct DC power from solar panels.

Primary Solar Functions

Intelligent MPPT (Maximum Power Point Tracking): This is the drive's most important job. Because sunlight changes throughout the day, the MPPT function continuously adjusts the pump's speed to match the available energy. This ensures you get water flow even during early mornings or slightly cloudy weather.
Fully Autonomous Operation: The drive is "set and forget." It automatically "wakes up" and starts the pump when it detects enough sunlight and safely shuts it down at sunset.
"Deliverance" Startup Logic: Before the motor actually starts spinning, the drive performs a check to see if the solar panels have enough sustained power. This prevents the pump from "hunting" (constantly starting and stopping) which can wear out 15 HP motor bearings.

Pump & Safety Management

Dry Run Protection: If your borewell or water source runs dry, the motor's torque will drop. The drive senses this change and stops the pump immediately to prevent the mechanical seals and motor from burning out.
Water Hammer Prevention: It uses a controlled "Soft Start" and "Soft Stop" to slowly ramp the motor speed. This prevents sudden pressure surges (water hammer) that can burst pipes in large 15 HP irrigation systems.
Tank Level Control: You can wire float switches directly to the drive. It will stop the pump when the storage tank is full and restart it automatically when the level drops.

Technical Performance

High Starting Torque: It provides up to 200% torque at very low speeds. This is crucial for 15 HP submersible pumps that must push a heavy column of water up from a deep borehole.
Dual Power Input: While optimized for solar (up to 800V DC), it also accepts standard 3-phase AC power. This allows you to use a generator or grid power at night if there is an emergency need for water.
PID Control: Built-in logic allows you to maintain a constant pressure or flow rate if you have a pressure sensor connected to the system.
