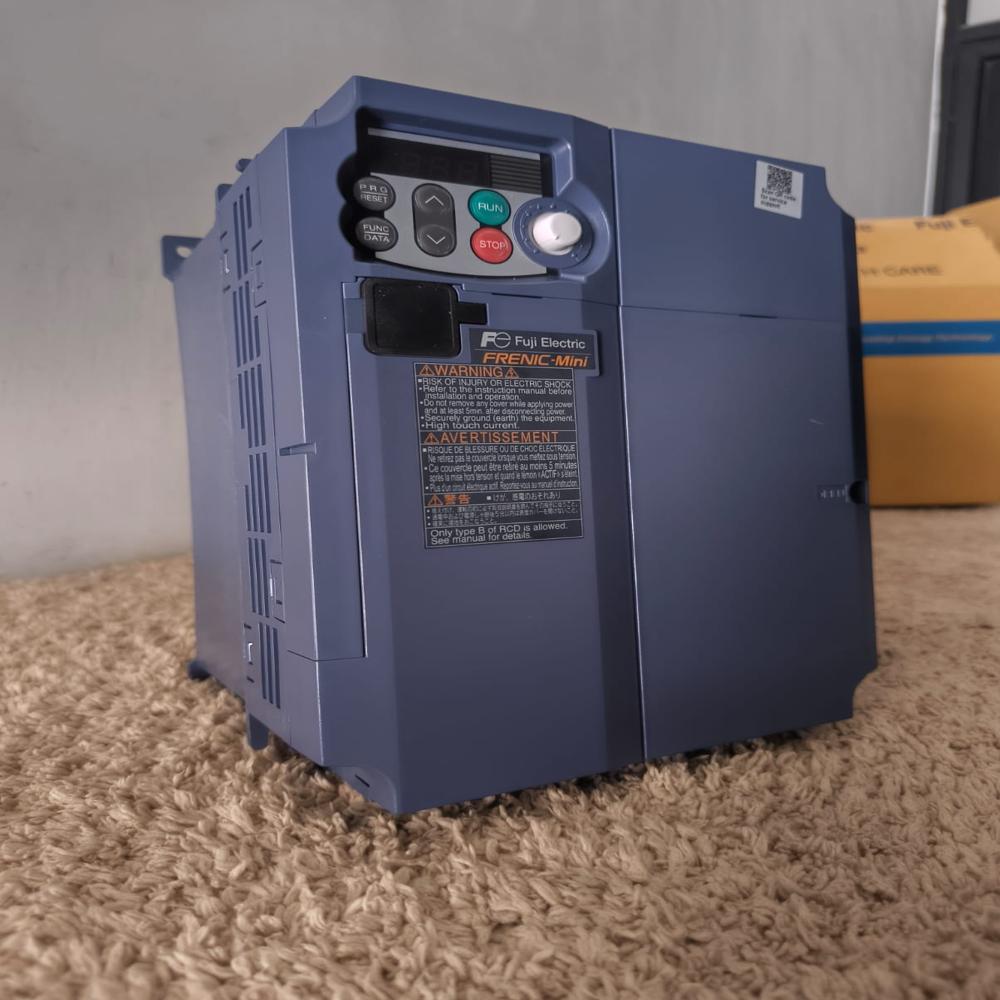

FRN0029E2S-4GALM3X - Fuji ACE Lift 7.5 KW 10 hp 440V

Price 27100.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

FRN0029E2S-4GALM3X - Fuji ACE Lift 7.5 KW 10 hp 440V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About FRN0029E2S-4GALM3X - Fuji ACE Lift 7.5 KW 10 hp 440V

The

FRN0029E2S-4GALM3X

is a higher-capacity 7.5 kW (10 HP) Variable Frequency Drive from Fuji Electric's FRENIC-Ace lift series.

Brand	Fuji Electric
Model Name/Number	FRN0029E2S-4GALM3X
Motor Power	7.5 KW
Input Voltage	415 V
Input Phase	3 - Phase
Input Frequency	50 HZ
Output Current	18 AMPS

While it is more powerful than the 0022 model, it shares the same physical "Frame 4" chassis, meaning its external dimensions are identical.

Physical Specifications (Inches)

Height: 9.05 inches (230 mm)
Width: 7.09 inches (180 mm)
Depth (Length): 6.22 inches (158 mm)

Weight

Net Weight: ~11.0 lbs (5.0 kg)
Gross Weight: ~14.8 lbs (6.7 kg)

Electrical Ratings

Compared to the previous model, this drive offers a higher output current to handle larger lift motors:

Motor Power: 7.5 kW (10 HP) for Heavy Duty (HHD) applications.
Rated Output Current: 18 Amps (HHD) / 23 Amps (HND).
Input Voltage: 3-Phase 380V to 480V AC.

The

FRN0029E2S-4GALM3X

functions as a high-performance Variable Frequency Drive (VFD) specifically tailored for elevator and lifting machinery. It manages the speed and torque of a 7.5 kW (10 HP) motor to ensure safe and comfortable passenger transport.

Specialized Elevator Functions

Smooth Ride Control: Uses 6 customizable S-curves to eliminate jerks during start-up, acceleration, and stopping.
Safety Integration (STO): Complies with SIL 3 Safe Torque Off standards, which can remove the need for output contactors in the elevator control panel.
Advanced Brake & Contactor Control: Features built-in logic to sequence the motor brake and output contactors automatically based on internal timers.
Automatic Rescue Mode (ARD): Supports 240V single-phase input during power outages. It includes "Deliverance Operation," which automatically moves the lift in the direction requiring the least power to reach a floor.
