FRN0029E2S-4GBX - Fuji ACE 7.5 KW 10 hp 440V

Price 36000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

FRN0029E2S-4GBX - Fuji ACE 7.5 KW 10 hp 440V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About FRN0029E2S-4GBX - Fuji ACE 7.5 KW 10 hp 440V

The

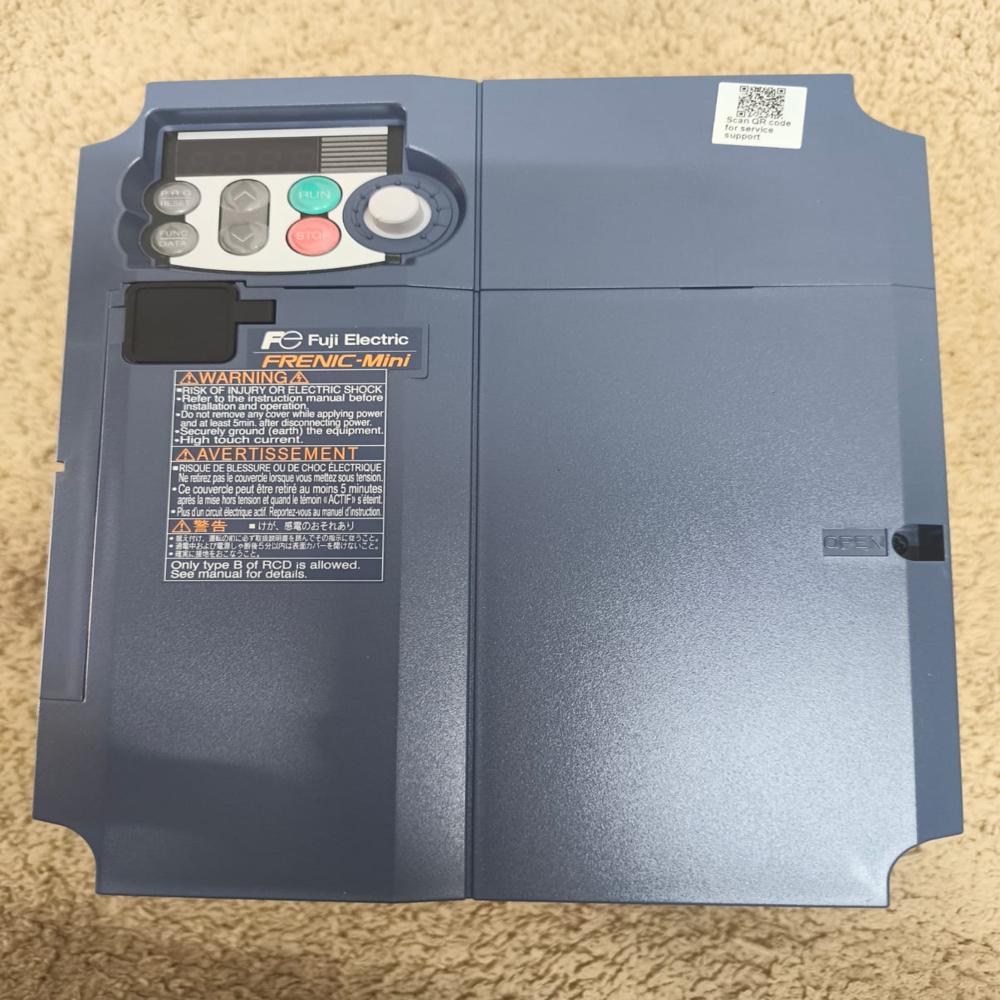

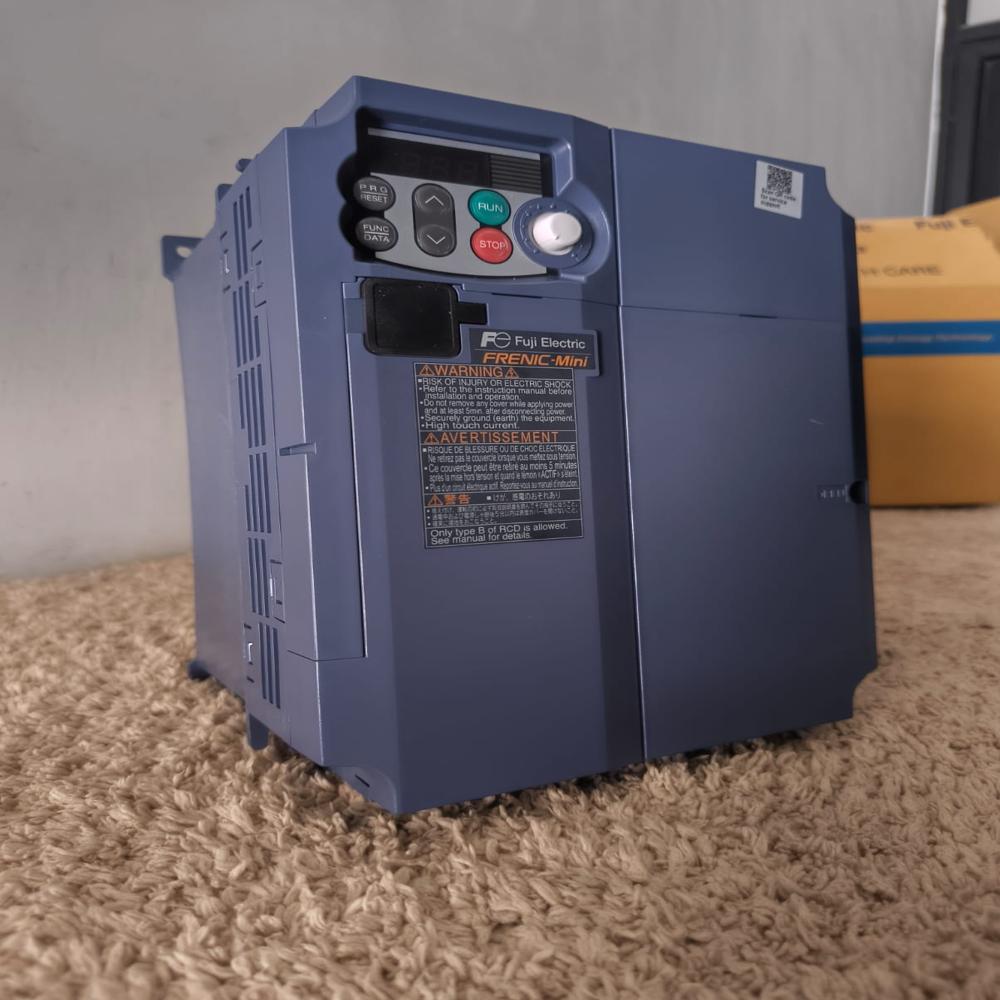

Fuji Electric FRN0029E2S-4GBX

is a high-performance 3-phase Variable Frequency Drive (VFD) from the FRENIC-Ace (E2) series. This model is exceptionally versatile, offering multiple ratings that allow it to handle motors from 10 HP up to 20 HP, depending on the load type and performance requirements.

Manufacturer:	Fuji Electric
Series:	Frenic Ace
Model:	FRN0029E2S-4E
Application:	pumps / fans / general purpose
Capacity, kW:	7.5 / 11 / 11 / 15
Current, :	18 / 23 / 23 / 28.5
Main power supply, V:	380-480
Phase:	3
Output frequency, Hz:	25-500
Enclosure:	IP20
Overload capacity, % per 1 min.:	150 / 120 / 150 / 120
Acceleration time, sec:	0-6000
Deceleration time, sec:	0-6000
EMC filter:	-
Braking unit:	optional
Analog input:	1
Digital input:	5
Analog output:	2
Digital output:	2 - transistor
Relay output:	1
RS485 (Modbus RTU):	+
Starting torque:	150%
PID:	PID-Regulation
V/f control mode:	-
Vector control with feedback:	+
Sensorless vector control:	+
Operation temperature, :	-10.....+40
Storage temperature, :	-25.....+65
Dimensions (W x H x D), mm:	180230158
Weight, kg:	5

Key Technical Specifications

Duty Rating	Motor Capacity	Rated Current	Overload Capacity
High Heavy Duty (HHD)	7.5 kW (10 HP)	18.0 Amps	150% (1m) / 200% (0.5s)
High Normal Duty (HND)	11 kW (15 HP)	23.0 Amps	120% (1 min)
Normal Duty (ND)	15 kW (20 HP)	28.5 Amps	120% (1 min)

Input Voltage: 3-Phase 380V to 480V AC (+10% / -15%).
Output Frequency: 0.1 to 500 Hz.
Functional Safety: Includes Safe Torque Off (STO) as standard for industrial machinery safety compliance.

Physical Dimensions & Weight

Measurement	Metric	Imperial (Inches/Lbs)
Width	180 mm	7.09 in
Height	230 mm	9.05 in
Depth (Length)	158 mm	6.22 in
Weight	5.0 kg	11.0 lbs

The Fuji Electric FRN0029E2S-4GBX (FRENIC-Ace) is a sophisticated, "all-round" high-performance drive. While the Micro and Mini series are for simple speed control, the Ace series is designed for complex automation, offering built-in logic and safety features that can often replace external controllers.

Primary Control Functions

Built-in PLC Logic (Customizable): This is the "brain" of the Ace series. It features a built-in logic controller (up to 200 steps). You can program it to handle digital inputs/outputs, timers, and counters to manage machine sequences without an external PLC.
Triple/Quadruple Ratings: A single drive can be optimized for different motor sizes and load types:
- Normal Duty (ND): Best for fans/pumps, allowing a 200 HP motor at 28.5A.
- High Heavy Duty (HHD): Best for mixers/crushers, providing 200% overload protection for a 10 HP motor at 18.0A.
Safe Torque Off (STO): A built-in hardware safety feature (SIL3/PLe). It ensures the motor cannot generate torque during an emergency stop, allowing you to meet global safety standards without using bulky external safety contactors.

Operational Capabilities

Universal Motor Support: It can control standard Induction Motors as well as high-efficiency Permanent Magnet (PM) Synchronous Motors, making it a future-proof choice for energy-saving initiatives.
High-Speed & Precision: It can output up to 500 Hz, necessary for high-speed spindles. Its Sensorless Vector Control maintains extremely stable speed even if the load changes suddenly.
Dynamic PID Control: Includes advanced PID for maintaining constant pressure or flow, featuring "anti-windup" logic to prevent system surges during startup.
Multi-Frequency Control: It can follow multiple speed references simultaneously, which is ideal for complex winding or tension-control machinery.

Safety & Maintenance

Removable Control Terminals: The entire control wiring block is detachable. If you need to swap a drive, you can simply unplug the terminal block and plug it into the new unitno re-wiring required.
Predictive Life Diagnostics: It monitors the "health" of its own cooling fans and internal capacitors, giving you a warning signal when they reach 90% of their life so you can avoid unplanned downtime.
Dual RS-485 Ports: It features two communication ports as standard, allowing you to connect an HMI (Touchscreen) and a PC for programming at the same time.

Connectivity

Standard Modbus RTU & CANopen: Built-in for networking.
Expandable: Unlike the Mini/Micro, the Ace can accept optional cards for Profibus, DeviceNet, Ethernet/IP, and Profinet to fit into any modern factory network.
