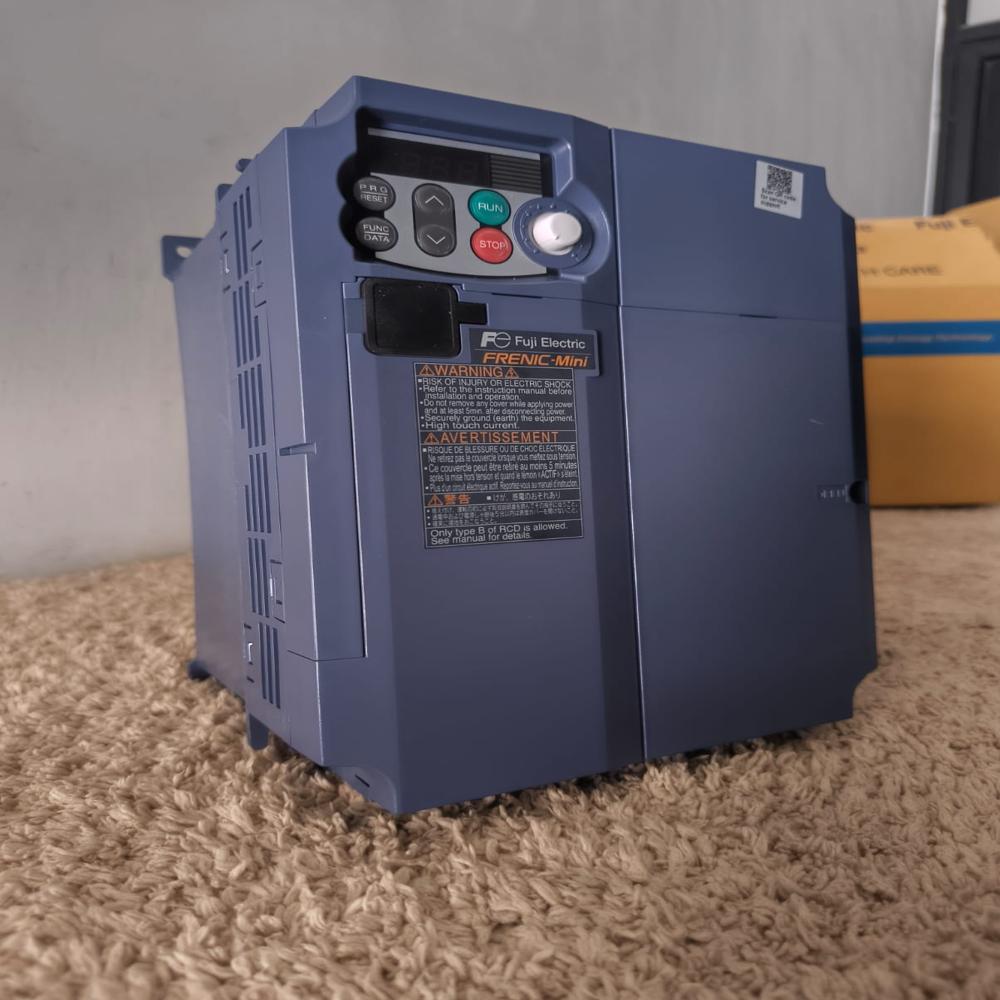

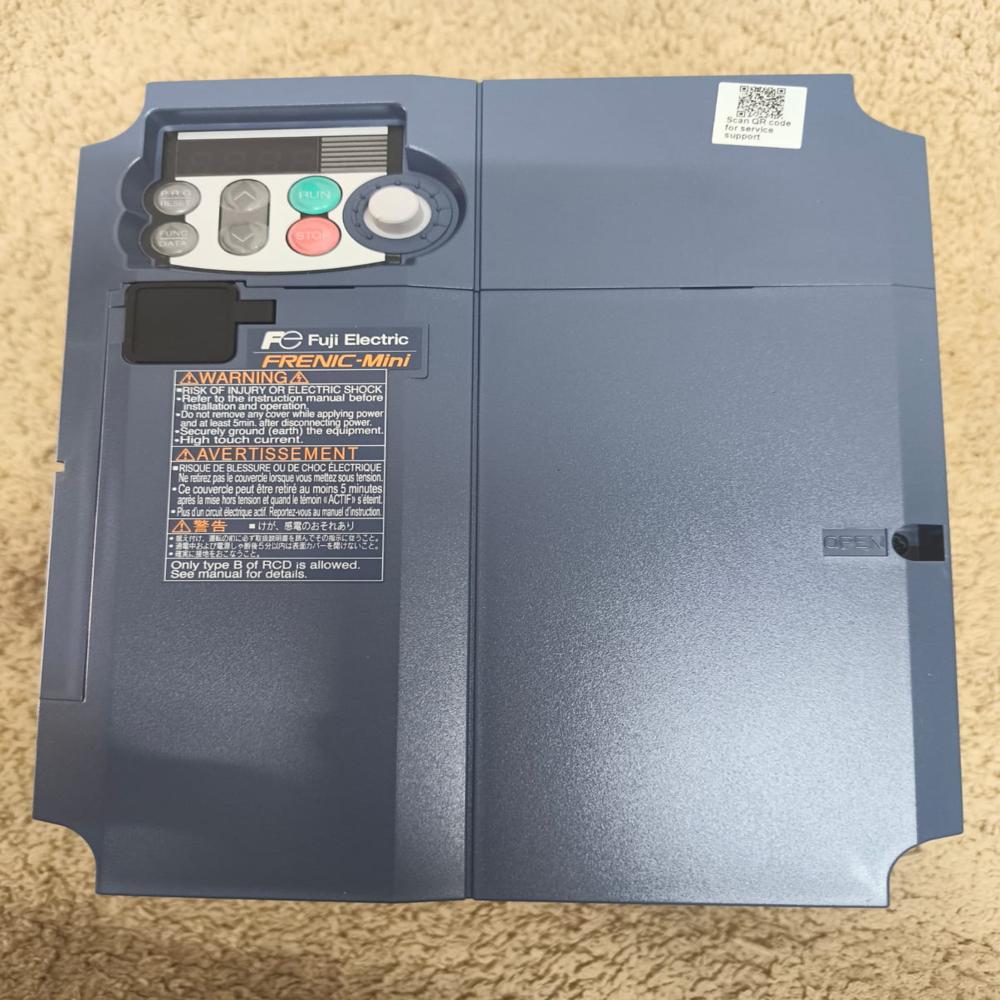

FRN0030C2S-4SL1 Fuji Mini Solar 15 KW 20 hp 440V

Price 29000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

FRN0030C2S-4SL1 Fuji Mini Solar 15 KW 20 hp 440V Specification

Humidity %
5% to 95%

Mounting Type
Panel mounting

IP Rating
20

Power Rating
380 480

Product Type
VFD

Application
Industrial Machinery

Color
Blue

Rated Voltage
380 480 Volt (V)

Usage & Applications
Industrial Machinery

Weight
4.5 Kilograms (kg)

Warranty
1 Year

Input Voltage
380 480 Volt (V)

Phase
3 Phase

Material
Plastic

Rated Current
380 480 Volt (v)

FRN0030C2S-4SL1 Fuji Mini Solar 15 KW 20 hp 440V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About FRN0030C2S-4SL1 Fuji Mini Solar 15 KW 20 hp 440V

The

FRN0030C2S-4SL1

is a high-performance Variable Frequency Drive (VFD) from Fuji Electrics FRENIC-Mini (C2) series. It is specifically designed for industrial applications requiring precise motor speed and torque control, such as pumps, fans, conveyors, and food processing machinery.

Product Series: FRENIC-Mini (C2)
Family Series: Fuji Drives, Mini Series
HP Ratings: 20
Output Rated Current, 3-Phase: 380-480
Output Rated Current, 3-Phase: 30
Amps, 1-Phase: Check Instruction Book
Overload capability: 150% for 1 min, 200% for 0.5 sec.
Watt loss at Running: 330
Watt loss at stop: 21
Inverter Efficiency at rated(Hz), rated(A):0.963
Nominal Input Voltage, frequency: 460, 50/60Hz
Input Volt Range: 380-480VAC-3Ph, +10 to -15%
Rated output voltage: 0 480V, 3-Phase
Range Max output Frequency: 400Hz
Digital Input: 3(5)*
Analog Inputs: 2
Transistor outputs: 1
General purpose relay output: 1
Alarm relay output: 0
Braking
- Max. Torque 1.5
- Duty Cycle, : 5
Braking Unit and Braking Resistor
- Braking Unit Type: Built-in
- Braking Resistor Type: DB15-4
Enclosure
- Standard:IP20
- Cooling: Fan cooling
- Weight/Mass [lbs(kg) 9.8
- Drawing Open Chassis: ROA701240
- Dimensions H x W x D (inches): 10.24 x 8.66 x 7.48
NEMA Kit
- NEMA/UL Type 1: NEMA1-69E2-24
- Drawing NEMA1: N/A
Communication Option Card: N/A
Option Card, Input/Output: OPC-115V

Key Technical Specifications

This model is built to handle significant industrial loads with the following core ratings:

Motor Power: 15 kW (approximately 20 HP).
Rated Voltage: 3-Phase 400V (Range: 380480 VAC).
Rated Current: 30A maximum output current.
Overload Capacity: 150% for 1 minute and up to 200% for 0.5 seconds.
Frequency Range: 50/60 Hz input, with an output range of up to 400 Hz.
Control Method: Utilizes Dynamic Torque Vector Control for stable torque even at low speeds.

Features & Capabilities

Compact Design: Designed to save space in control panels while delivering high functionality.
Connectivity: Includes a built-in RS-485 communication port (Modbus RTU) for network integration.
Energy Efficiency: Features an energy optimizer system and PID control to reduce power consumption.
Motor Support: Compatible with both standard induction motors and Permanent Magnet (PM) synchronous motors.
Protection: Rated IP20 (UL Open Type) for indoor installation.

The

Fuji Electric FRN0030C2S-4SL1

performs several high-level functions categorized by motor control, energy optimization, and system protection. Its primary role is to convert fixed-frequency AC power into variable frequency/voltage to precisely control the speed and torque of industrial motors.

Core Control Functions

Dynamic Torque Vector Control: This original Fuji Electric system provides stable torque output even at very low speeds (e.g., 1 Hz), making it ideal for high-inertia loads like conveyors or heavy machinery.
Slip Compensation: Automatically adjusts the output frequency to account for motor "slip," ensuring more accurate speed control and stable "creep speed" for precise stopping.
Dual Motor Parameter Sets: Allows you to switch between two different sets of motor parameters, useful if the drive needs to control two different motors at different times.
Adjustable Accel/Decel: Supports acceleration and deceleration times ranging from 0 to 3,600 seconds, allowing for smooth starts and stops.

Energy & Application Functions

Energy Consumption Optimizer: A specialized control system that minimizes power loss by tuning the motor's performance in real-time.
PID Control: Enables the drive to regulate temperature, pressure, or flow rate directly using feedback from a sensor, eliminating the need for an external PLC or temperature controller.
Cooling Fan ON/OFF Control: Extends the life of the internal fan and saves energy by turning it off when the motor is not running.
Multi-Motor Compatibility: Specifically designed to run both standard induction motors and Synchronous (Permanent Magnet) motors.

Protection & Monitoring Functions

Thermal Overload Protection: Built-in electronic thermal features protect both the motor and the drive from overheating.
Retry and Stall Prevention: Automatically attempts to restart after certain trips (if enabled) and prevents the motor from stalling by limiting current during heavy loads.
Maintenance Alerts: Tracks cumulative run time, number of startups, and total power consumption to help schedule maintenance before a failure occurs.
Safe-Stop Function: The keypad's STOP key can be prioritised for emergency halts via function code settings (F02)

Function Code Categories

For detailed programming, the drive uses a series of "Function Codes":

F codes (Fundamental): Basic settings like frequency commands and accel/decel times.
E codes (Extension): Configuration for digital and analog input/output terminals.
P codes (Parameters): Specific electrical data for the primary motor.
H codes (High Performance): Advanced settings for retry modes and protective functions.
