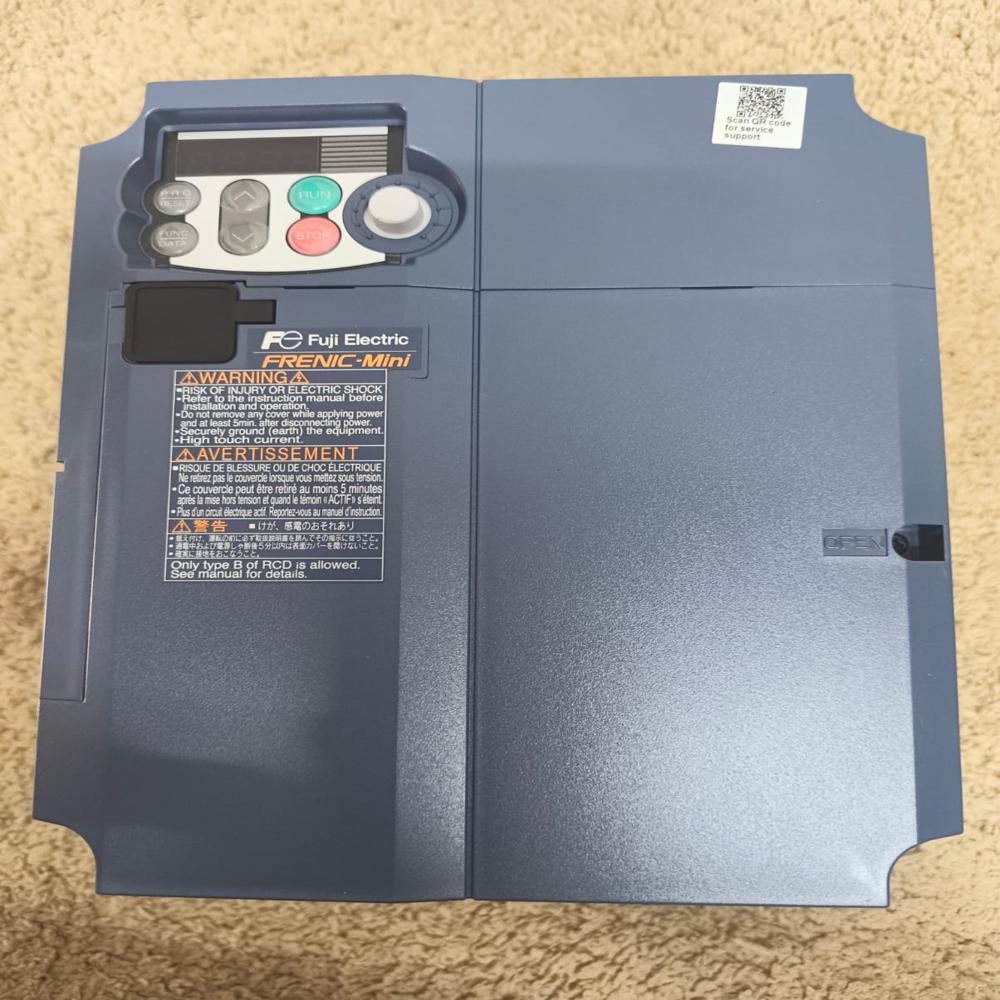

FRN0037E2S-4GALM3X - Fuji ACE Lift 11 KW 15 hp 440V

Price 31600.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

FRN0037E2S-4GALM3X - Fuji ACE Lift 11 KW 15 hp 440V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About FRN0037E2S-4GALM3X - Fuji ACE Lift 11 KW 15 hp 440V

FRN0037E2S-4GALM3X

The

FRN0037E2S-4GALM3X

is a 11 kW (15 HP) Variable Frequency Drive from Fuji Electric's FRENIC-Ace series, specifically engineered for elevator and high-performance lift applications.

Product Series: FRENIC-Ace (E2)
Family Series: Fuji Drives, Ace Series
HP Ratings
- HND: 20
- HHD: 15
Output Volt Range: 0 480V, 3-Phase
Amps, 3-Phase
- HND: 31
- HHD: 24
Amps, Single Phase Input
- HND: Check Instruction Book
- HHD: Check Instruction Book
Overload capability
- HND: 120%-1 min
- HHD: 150%-1 min, 200%-0.5 s
Watt loss @ Running
- HND: 390
- HHD: 300
DCR
- DCR PN#:
- DCR Watt Loss:
Nominal Input Voltage, frequency: 460, 50/60Hz
Input Volt Range: 380-480, +10 to -15%
Max output Frequency: 500 Hz
Digital Input: 5 (7)
Analog Inputs: 2
Transistor outputs: 2
General purpose relay output: 1
Alarm relay output: 1
Braking Unit and Braking Resistor
- Braking Unit Type:
- Braking Unit QTY.:
- Braking Resistor Type: DB11-4
- Braking Resistor QTY.: 1
Enclosure
- Standard: IP20, UL open type
- Cooling: Fan cooling
- Weight/Mass [lbs.(kg)]: 18(8.0)
- Drawing Open Chassis: ROA701510
- Dimensions H x W x D (inches): 10.63 x 8.66 x 7.48
NEMA Kit
- NEMA/UL Type 1: NEMA1-69E2-24
Option Cards, Communication Card
- Modbus RTU: OPC-E2-RS
- DeviceNet: OPC-DEV
- Profibus: OPC-PDP3
- Profinet: OPC-PRT3
- CC-Link: OPC-CCL
- CANOpen: OPC-COP2
- Multiprotocol Ethernet Interface: OPC-PRT3
Option Card, Input/Output

Digital Output interface card: OPC-DIO
Analog Input / Output Interface Card: OPC-AIO
PG Interface Card (5V): OPC-E2-PG
PG Interface Card (12V): OPC-E2-PG3

This model utilizes "Frame 5" housing, which is physically larger than the 0022 and 0029 models to accommodate higher current demands.

Physical Dimensions & Weight

Specification	Metric Value	Inches (Approx.)
Height	260 mm	10.24 inches
Width	220 mm	8.66 inches
Depth (Length)	190 mm	7.48 inches
Net Weight	8.0 kg	17.6 lbs

Electrical Ratings

Motor Power: 11 kW / 15 HP (High Heavy Duty - HHD).
Rated Output Current: 24 Amps (HHD).
Input Voltage: 3-Phase 380V to 480V AC (50/60 Hz).
Overload: 200% for 0.5s and 150% for 60s, essential for lifting heavy passenger loads.

Specialized Lift Functions

Safety First: Features Safe Torque Off (STO) compliance, eliminating the need for bulky output contactors.
Rescue Support: Includes 240V single-phase ARD (Automatic Rescue Device) mode as standard.
Deliverance Operation: Automatically detects the direction of least power consumption during rescue to reach the nearest floor efficiently.
Integrated Logic: Built-in PLC-like function with 200 customizable steps for tailored lift sequence

The FRN0037E2S-4GALM3X functions as a high-capacity motor controller designed specifically for elevators and lifting systems with 11 kW (15 HP) motors. It converts incoming AC power into a variable frequency/voltage output to control the lift's speed, torque, and passenger comfort.

Core Elevator-Specific Functions

Precision Motion Control: Uses advanced vector control to manage the lift's acceleration and deceleration. It uses 6 independent S-curve settings to ensure that passengers don't feel a "jerk" when the lift starts or stops.
Load-Dependent Rescue (ARD Support): In the event of a power failure, it can run on a single-phase 240V UPS/battery. Its "Deliverance" function automatically identifies which direction (up or down) requires the least power to move the car to the nearest floor.
Brake Logic Management: The drive has built-in timers and logic to control the mechanical brake. It ensures the motor is producing enough torque to "hold" the load before the brake is released, preventing the lift from slipping backwards (roll-back).
Safe Torque Off (STO): A safety function that cuts power to the motor at a hardware level. This often allows installers to meet safety codes without using two redundant motor contactors, saving space in the control panel.

Operational Performance

High Torque at Start: Provides high starting torque (200% or more) to move a fully loaded elevator car from a complete standstill.
Multi-Step Speed Control: Allows the lift controller to switch between "Inspection Speed," "Leveling Speed," and "High Speed" seamlessly.
PM & Induction Motor Support: It can operate standard induction motors or the newer, quieter Permanent Magnet (PM) synchronous motors used in modern "Room-less" (MRL) elevators.

Integrated "Mini-PLC" Function

The drive includes Customizable Logic (up to 200 steps). This allows it to handle complex sequenceslike light curtain signals or door-open commandsdirectly within the drive, sometimes eliminating the need for an external elevator controller for simple hoist applications.
