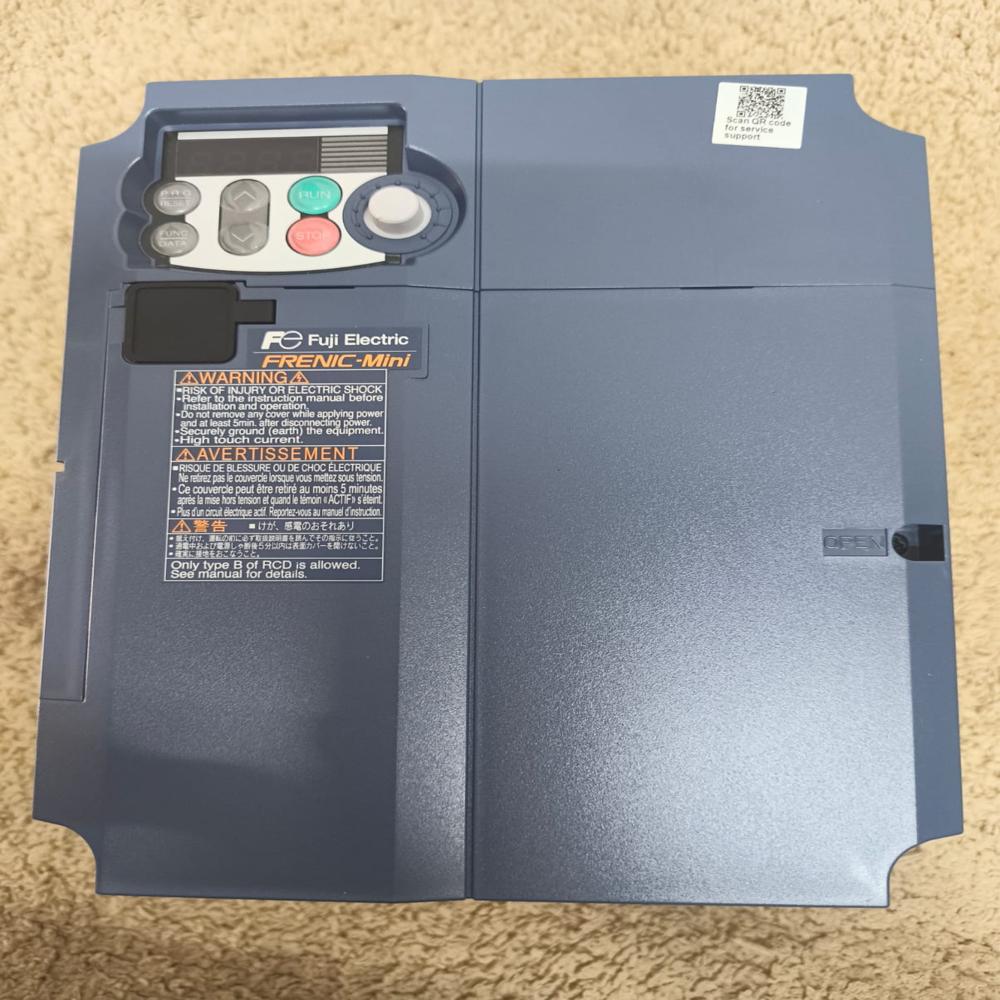

FRN0037E2S-4GBX - Fuji ACE 11 KW 15 hp 440V

Price 37200.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

FRN0037E2S-4GBX - Fuji ACE 11 KW 15 hp 440V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About FRN0037E2S-4GBX - Fuji ACE 11 KW 15 hp 440V

Manufacturer:	Fuji Electric
Series:	Frenic Ace
Model:	FRN0037E2S-4E
Application:	pumps / fans / general purpose
Capacity, kW:	11 / 15 / 15 / 18.5
Current, :	24 / 31 / 31 / 37
Main power supply, V:	380-480
Phase:	3
Output frequency, Hz:	25-500
Enclosure:	IP20
Overload capacity, % per 1 min.:	150 / 120 / 150 / 120
Acceleration time, sec:	0-6000
Deceleration time, sec:	0-6000
EMC filter:	-
Braking unit:	optional
Analog input:	1
Digital input:	5
Analog output:	2
Digital output:	2 - transistor
Relay output:	1
RS485 (Modbus RTU):	+
Starting torque:	150%
PID:	PID-Regulation
V/f control mode:	-
Vector control with feedback:	+
Sensorless vector control:	+
Operation temperature, :	-10.....+40
Storage temperature, :	-25.....+65
Dimensions (W x H x D), mm:	220270190
Weight, kg:	8

Key Technical Specifications

Feature	Normal Duty (ND)	High Heavy Duty (HHD)
Applicable Motor	18.5 kW (25 HP)	11 kW (15 HP)
Rated Output Current	37.0 Amps	24.0 Amps
Overload Capacity	120% for 1 min	150% for 1 min; 200% for 0.5s
Input Voltage	3-Phase 380V to 480V AC
Max Output Freq.	Up to 500 Hz

Physical Dimensions & Weight

Measurement	Metric	Imperial (Inches/Lbs)
Width	220 mm	8.66 in
Height	260 mm	10.23 in
Depth (Length)	190 mm	7.48 in
Weight	8.0 kg	17.6 lbs

Core Functions

Built-in Logic (Mini-PLC): Features a customizable logic controller with up to 200 programmable steps, allowing it to handle machine sequences without an external PLC.
Functional Safety: Equipped with Safe Torque Off (STO) as standard, meeting global safety requirements for machine design.
Versatile Motor Control: Supports various modes including Sensorless Vector Control for permanent magnet (PM) motors and dynamic torque vector control for high starting torque.
Networking: Includes dual RS-485 ports (Modbus RTU) as standard, with options for Profibus, DeviceNet, and Profinet.

The Fuji Electric FRN0037E2S-4GBX (FRENIC-Ace) is a sophisticated, "all-round" high-performance drive. While the Micro and Mini series are for simple speed control, the Ace series is designed for complex automation, offering built-in logic and safety features that can often replace external controllers.

Primary Control Functions

Built-in PLC Logic (Customizable): This is the "brain" of the Ace series. It features a built-in logic controller (up to 200 steps). You can program it to handle digital inputs/outputs, timers, and counters to manage machine sequences without an external PLC.
Triple/Quadruple Ratings: A single drive can be optimized for different motor sizes and load types:
- Normal Duty (ND): Best for fans/pumps, allowing a 25 HP motor at 37.0A.
- High Heavy Duty (HHD): Best for mixers/crushers, providing 200% overload protection for a 15 HP motor at 24.0A.
Safe Torque Off (STO): A built-in hardware safety feature (SIL3/PLe). It ensures the motor cannot generate torque during an emergency stop, allowing you to meet global safety standards without using bulky external safety contactors.

Operational Capabilities

Universal Motor Support: It can control standard Induction Motors as well as high-efficiency Permanent Magnet (PM) Synchronous Motors, making it a future-proof choice for energy-saving initiatives.
High-Speed & Precision: It can output up to 500 Hz, necessary for high-speed spindles. Its Sensorless Vector Control maintains extremely stable speed even if the load changes suddenly.
Dynamic PID Control: Includes advanced PID for maintaining constant pressure or flow, featuring "anti-windup" logic to prevent system surges during startup.
Multi-Frequency Control: It can follow multiple speed references simultaneously, which is ideal for complex winding or tension-control machinery.

Safety & Maintenance

Removable Control Terminals: The entire control wiring block is detachable. If you need to swap a drive, you can simply unplug the terminal block and plug it into the new unitno re-wiring required.
Predictive Life Diagnostics: It monitors the "health" of its own cooling fans and internal capacitors, giving you a warning signal when they reach 90% of their life so you can avoid unplanned downtime.
Dual RS-485 Ports: It features two communication ports as standard, allowing you to connect an HMI (Touchscreen) and a PC for programming at the same time.

Connectivity

Standard Modbus RTU & CANopen: Built-in for networking.
Expandable: Unlike the Mini/Micro, the Ace can accept optional cards for Profibus, DeviceNet, Ethernet/IP, and Profinet to fit into any modern factory network.
