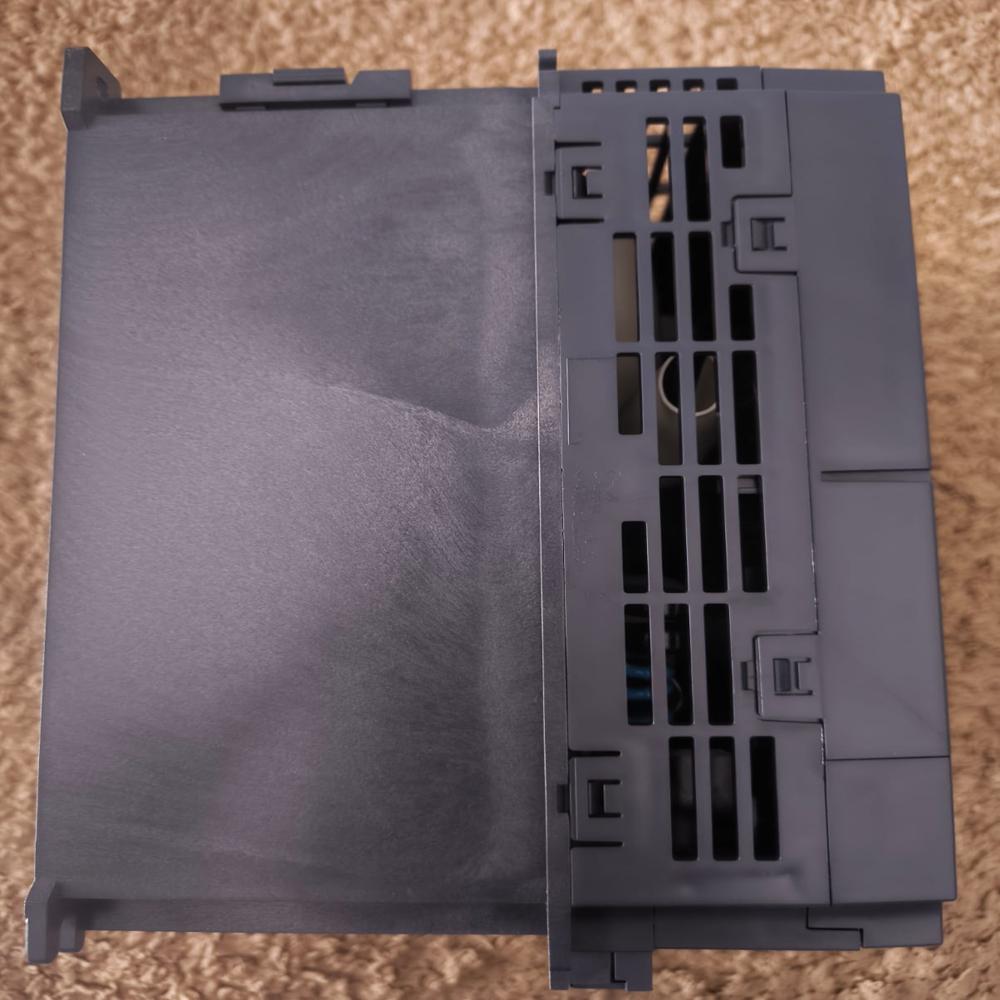

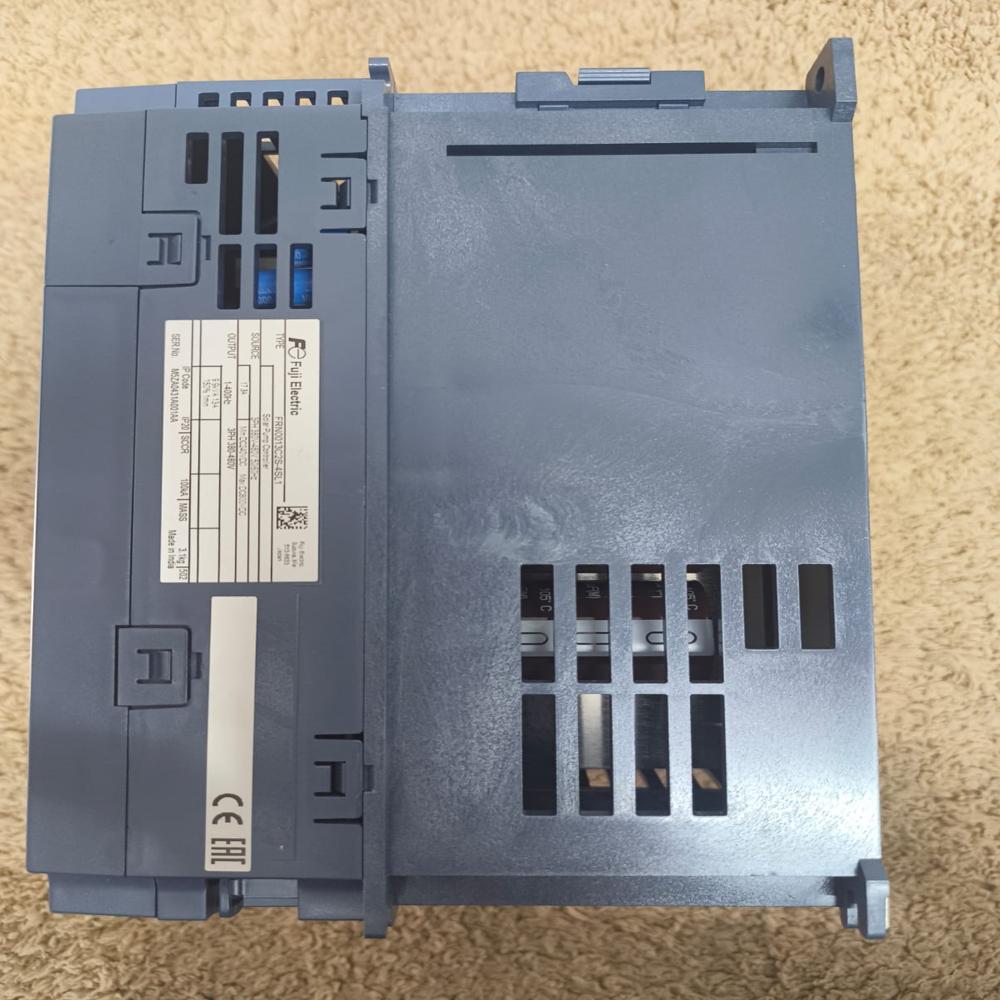

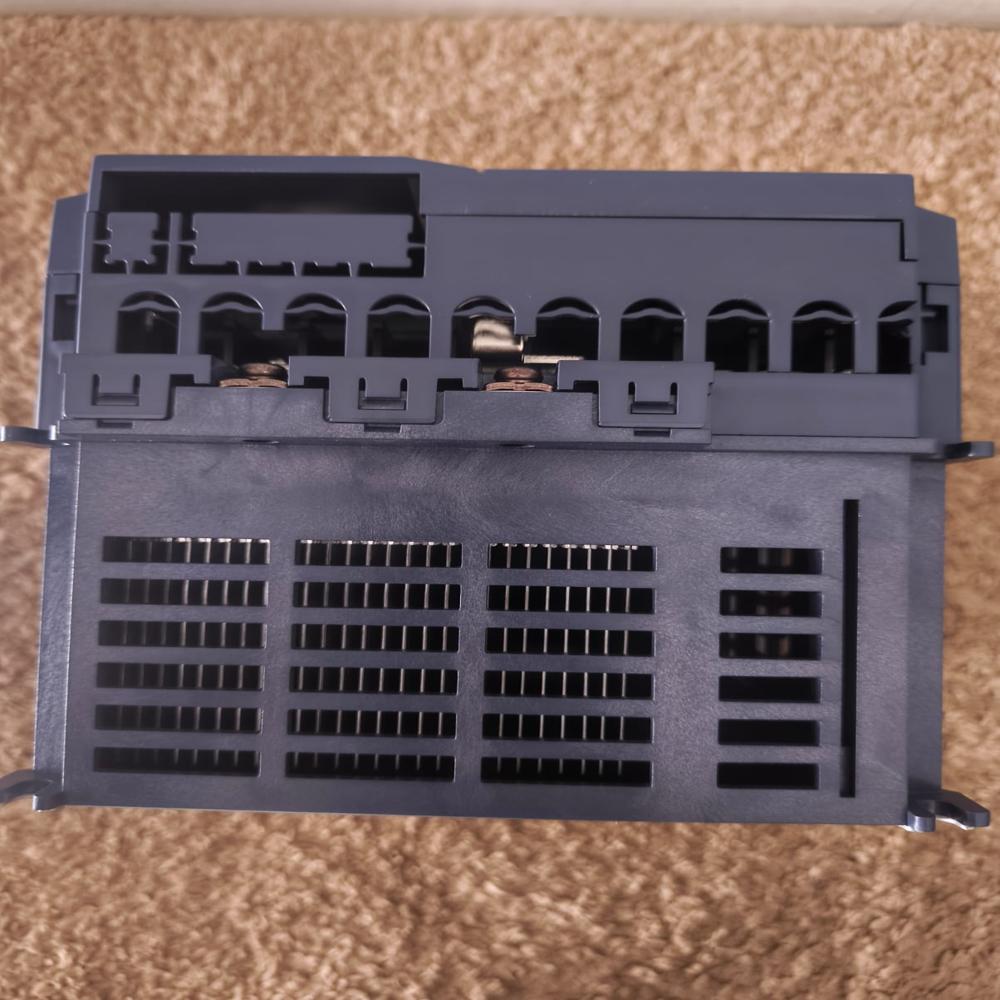

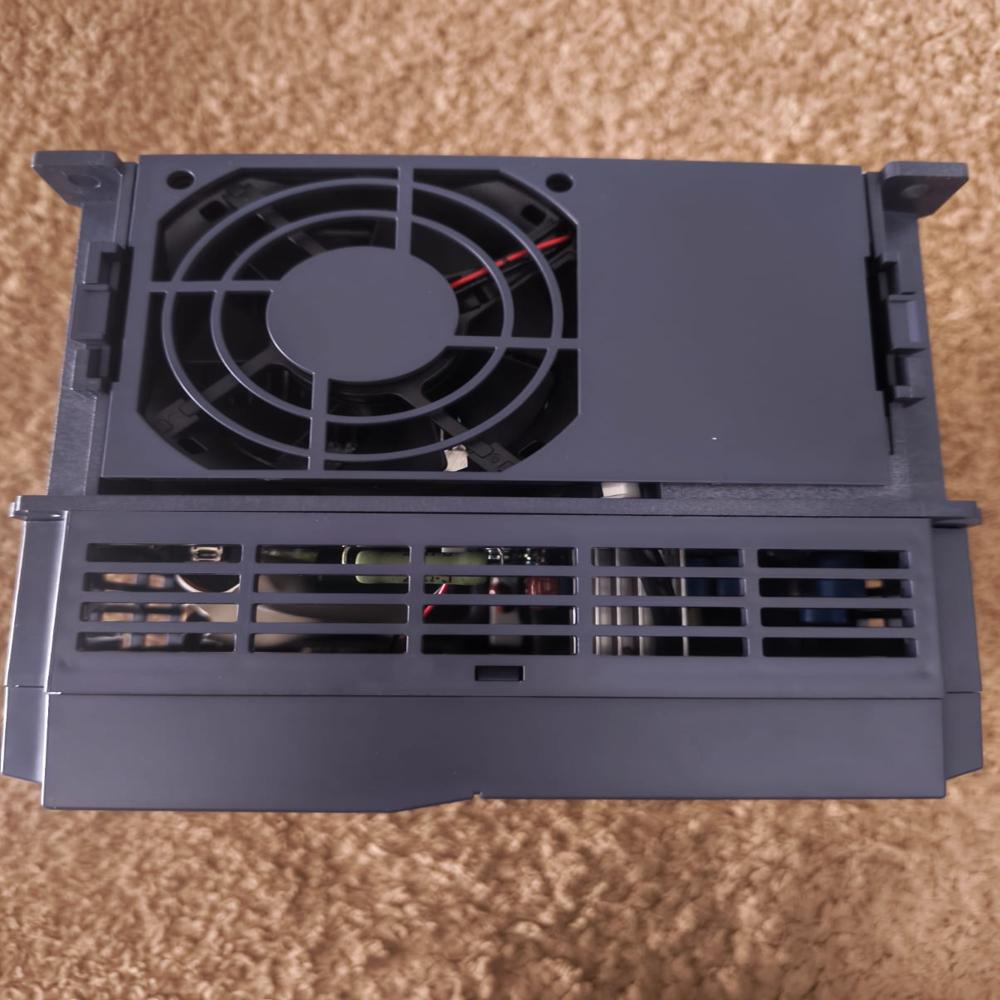

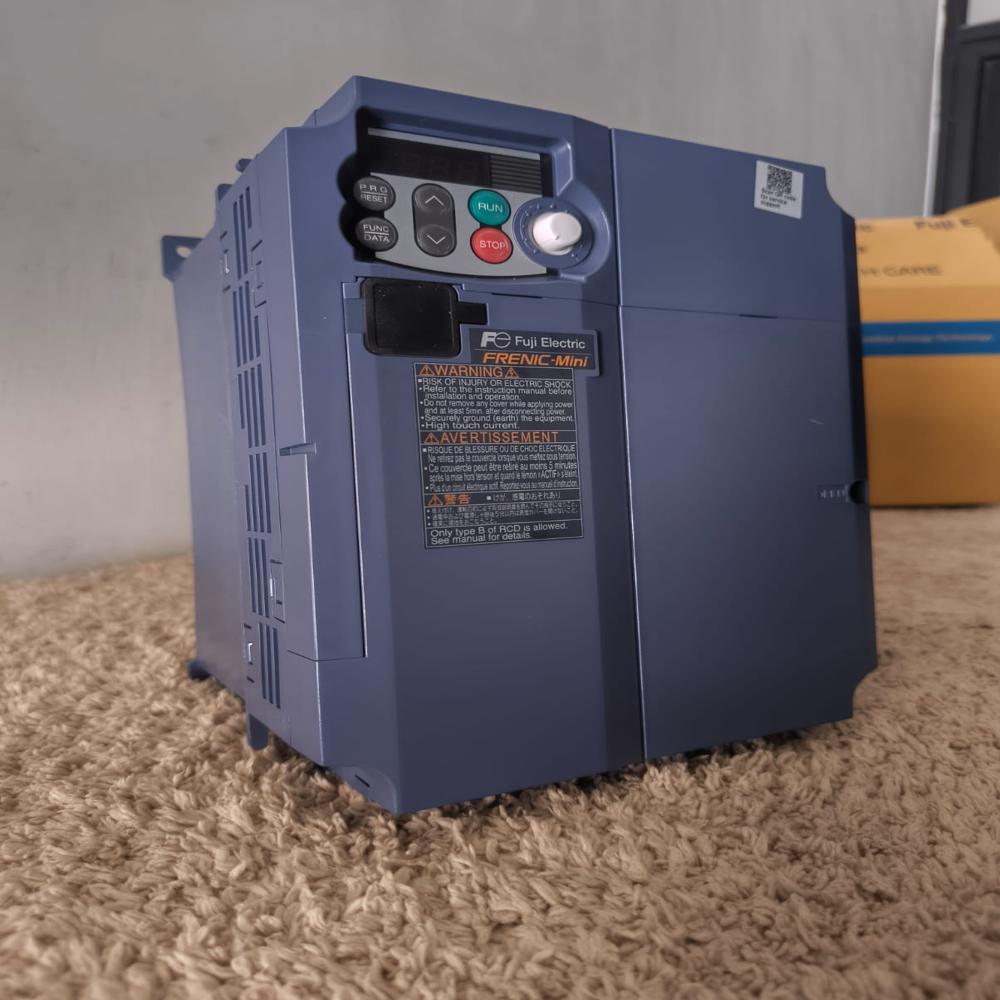

FRN0203E2S-4GB - Fuji ACE 75 KW 100 hp 440V

Name: FRN0203E2S-4GB - Fuji ACE 75 KW 100 hp 440V
Brand: Corbital Enterprise
Price: 53400.0 INR
Availability: InStock

Price 53400.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

FRN0203E2S-4GB - Fuji ACE 75 KW 100 hp 440V Specification

Mounting Type
Panel mounting

IP Rating
20

Humidity %
5% to 95%

Power Rating
380 480

Product Type
VFD

Application
Industrial Machinery

Color
Blue

Usage & Applications
Industrial Machinery

Rated Voltage
380 480 Volt (V)

Weight
40 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Input Voltage
380 480 Volt (V)

Material
Plastic

Rated Current
380 480 Volt (v)

FRN0203E2S-4GB - Fuji ACE 75 KW 100 hp 440V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About FRN0203E2S-4GB - Fuji ACE 75 KW 100 hp 440V

The

Fuji Electric FRN0203E2S-4GB

is a high-power variable frequency drive (VFD) from the FRENIC-Ace (E2) series. It is a massive industrial-grade unit designed for motors up to 110 kW (150 HP), depending on the duty cycle.

Rating Type	Motor Capacity	Rated Current	Overload Capacity
Normal Duty (ND)	110 kW (150 HP)	203.0 A	120% for 1 min
High Normal Duty (HND)	90 kW (125 HP)	176.0 A	120% for 1 min
High Heavy Duty (HHD)	75 kW (100 HP)	150.0 A	150% (1m) / 200% (0.5s)

Input Voltage: 3-Phase 380V to 480V AC (+10% / -15%).
Max Output Frequency: 0.1 to 500 Hz.
Safety Features: Built-in Safe Torque Off (STO) as standard for high-level safety compliance.

Physical Dimensions & Weight (Inches)

As a high-capacity drive handling over 200A, it uses a large, heavy-duty industrial chassis for heat management:

Measurement	Metric (Standard)	Imperial (Inches/Lbs)
Width	361.2 mm	14.2 in
Height	740 mm	29.13 in
Depth (Length)	276 mm	10.87 in
Weight	40 kg	88.0 lbs

Core Functions

Customizable Logic (Built-in PLC): Contains an internal logic controller (up to 200 steps) that can handle machine sequences, timers, and counters, often eliminating the need for an external PLC.
Universal Motor Support: Controls both standard Induction Motors and high-efficiency Permanent Magnet (PM) Synchronous Motors.
Enhanced Connectivity: Equipped with dual RS-485 ports (Modbus RTU/CANopen) and optional cards for Profibus, DeviceNet, and Profinet.
