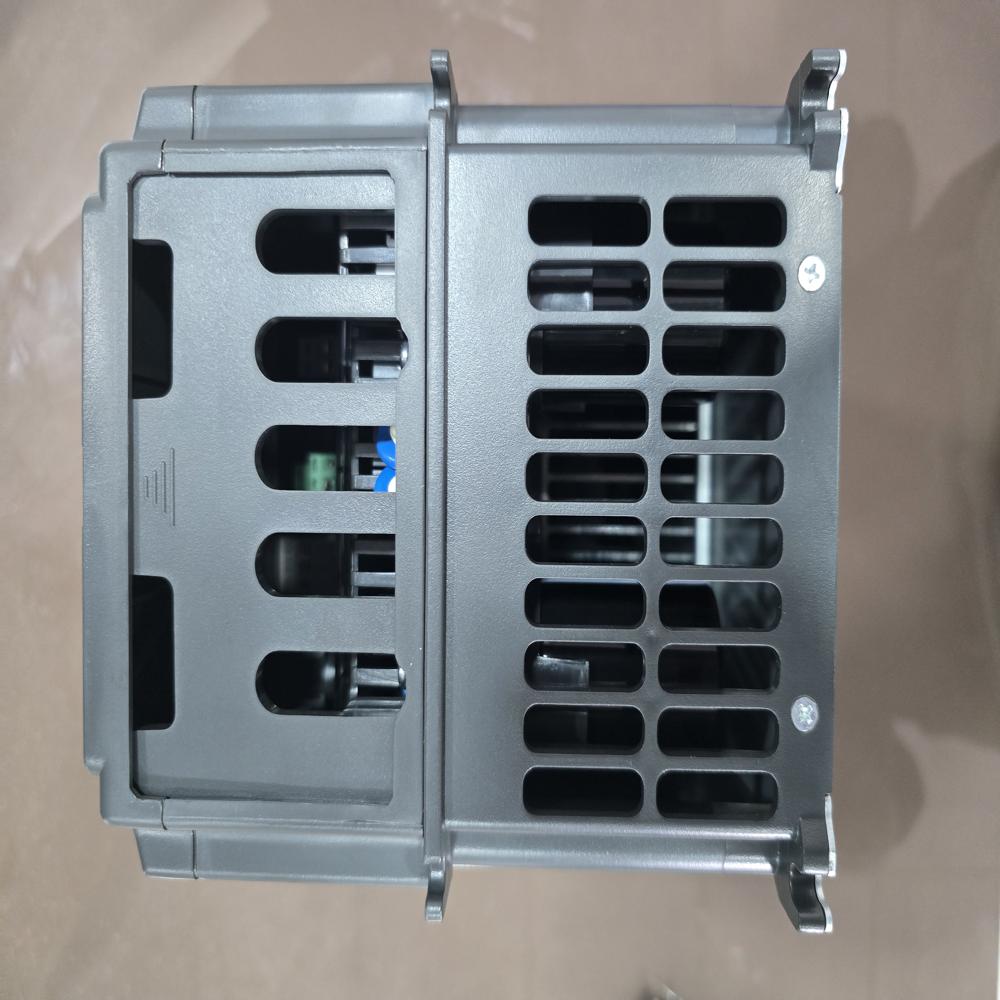

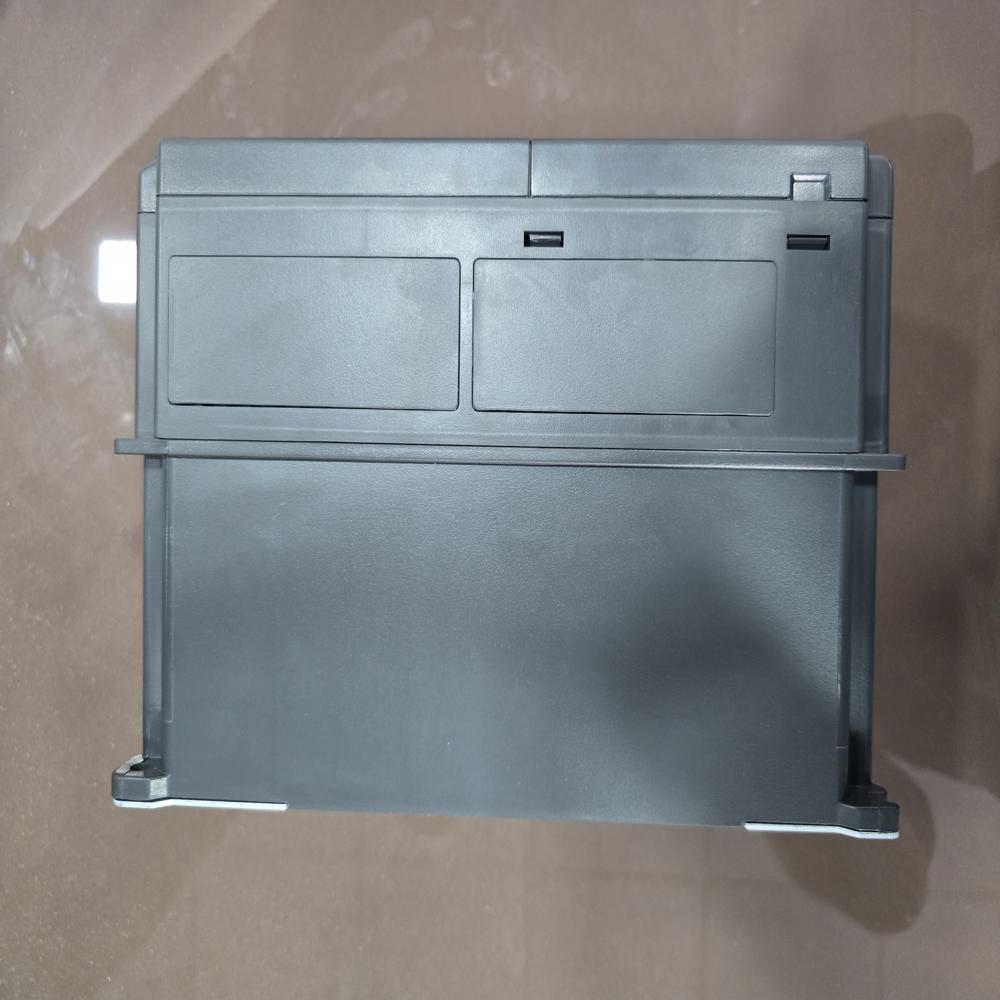

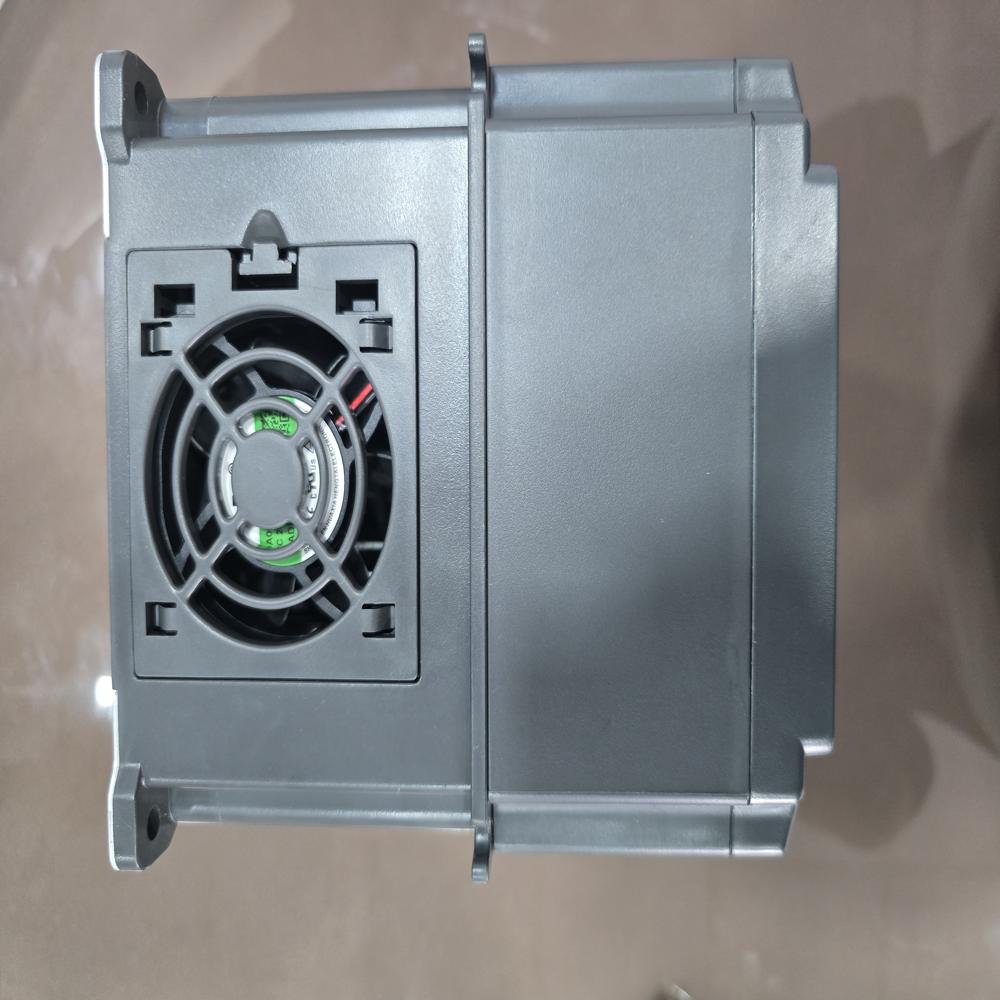

GD10-0R4G-S2-B - INVT VFD 0.4 kW / 0.5HP 230V

Function

Specification

Input voltage (V)

Single phase 220(-15%)-240(+10%) Three phase 220(-15%)-240(-r10%) Three phase 380(-15%)-440(-r10%)

Input frequency (Hz)

50Hz or 60Hz

Allowed range: 47-63Hz

Output voltage (V)

Equal to input voltage with the deviation of less than 5%

Output frequency (Hz)

50Hz/60Hz, Fluctuation range:  +5%

Control mode

V/f

Maximum output frequency

400Hz

Adjustable-speed ratio

1:100

Overload capability

150% of rated current: 1 minute, 180% of rated current: 10 seconds,

200% of rated current: 1 second

Terminal analog input resolution

s20mV

Terminal switch input resolution

2ms

Analog input/output

1 input 0-10V/0-20mA; 1 output 0-10V/0-20mA

Digital input/output

5 common input, 1 Y output (commonly used with digital output) and 1 rogrammable relay output

Communication

485 communication

Mountable method

Wall mountable

Temperature of the rU

environment

' l "

i

gl

-10-50"C , derate above 40"C

Cooling

Single/three-phase 220V 0.2-0.75kW natural cooling

Single/three-phase 220V 1.5-2.2kW, three-phase 380V 0.75-2.2kW

Fault protections

Overcurrent, overvoltage, undervoltage, overtemperature, overload and other protections

Braking unit

Only standard for GD10-B
