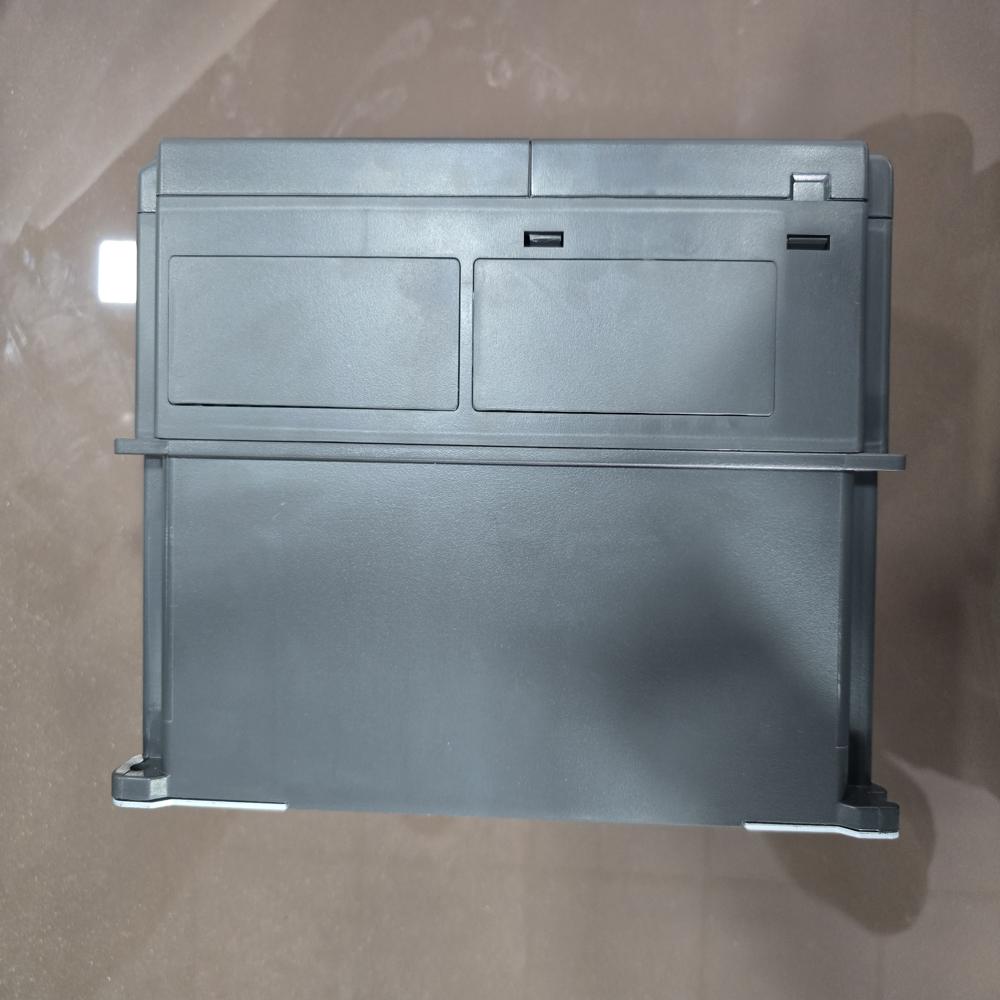

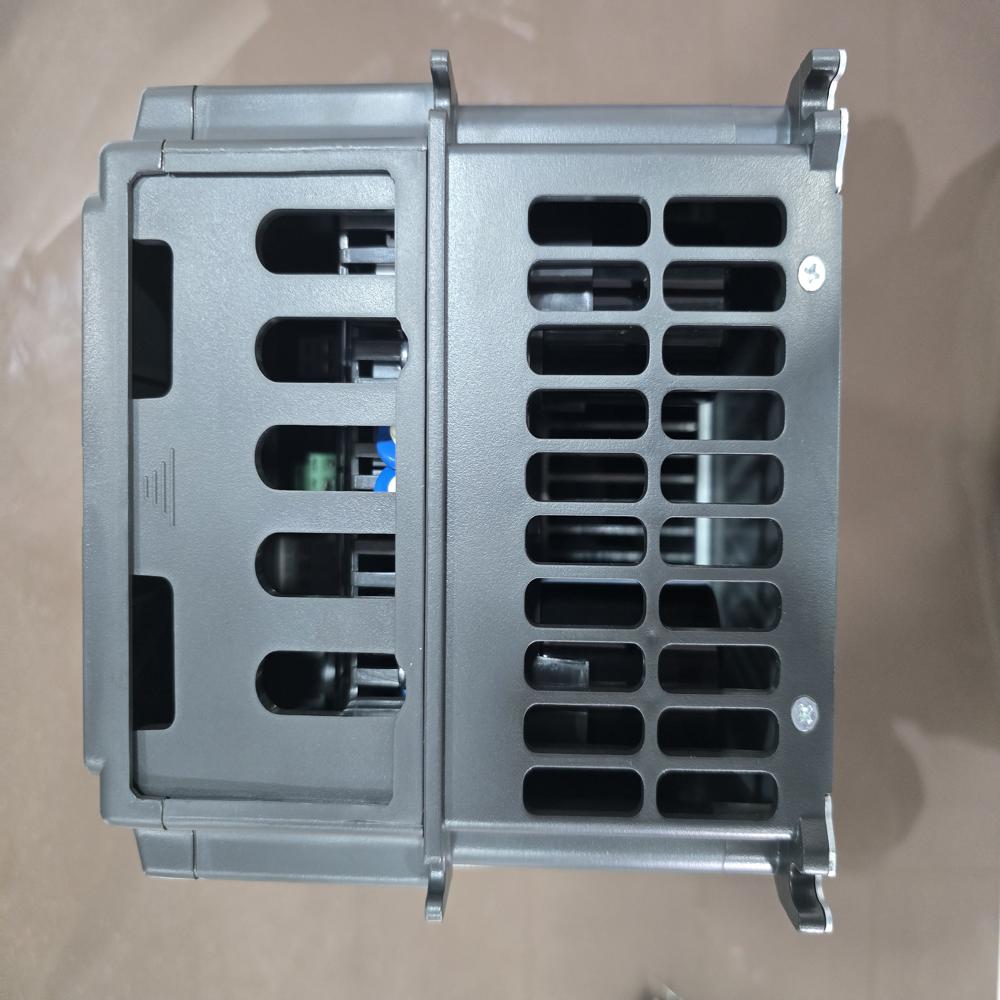

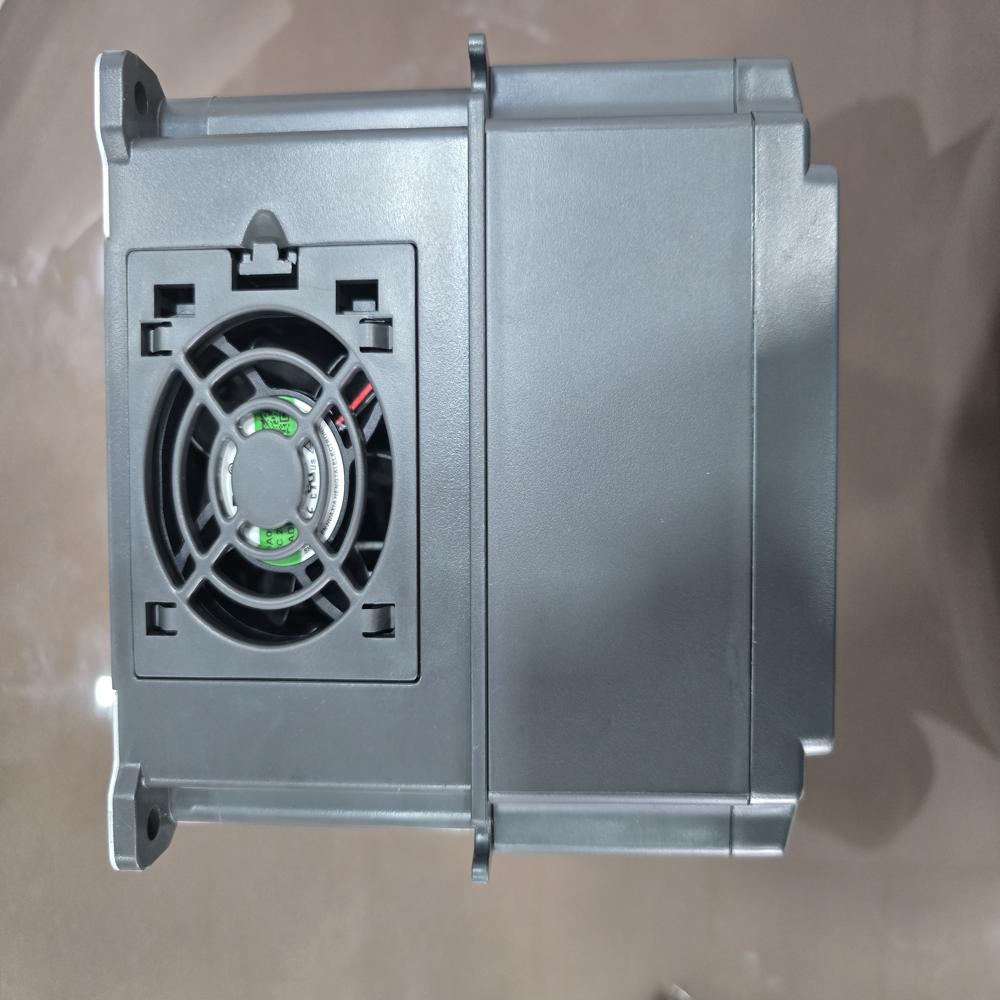

GD10-1R5G-S2-B - INVT VFD 1.5 kW / 2HP 230V

Name: GD10-1R5G-S2-B - INVT VFD 1.5 kW / 2HP 230V
Brand: Corbital Enterprise
Price: 6600.0 INR
Availability: InStock

Price 6600.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

GD10-1R5G-S2-B - INVT VFD 1.5 kW / 2HP 230V Specification

Mounting Type
DIN-rail mounting

Feature
Motor Control

Humidity %
5% to 95%

IP Rating
20

Power Rating
220V (-15%) to 240V (+10%)

Product Type
VFD

Application
Industrial Machinery

Color
Black

Rated Voltage
220V (-15%) to 240V (+10%) Volt (V)

Weight
2.86 Kilograms (kg)

Usage & Applications
Industrial Machinery

Warranty
1 Year

Input Voltage
220V (-15%) to 240V (+10%) Volt (V)

Phase
1 Phase

Features
Integrated Features

Material
Plastic

GD10-1R5G-S2-B - INVT VFD 1.5 kW / 2HP 230V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About GD10-1R5G-S2-B - INVT VFD 1.5 kW / 2HP 230V

The

INVT GD10-1R5G-S2-B

is a 1.5 kW (2 HP) mini-economic variable frequency drive designed for standard 220V single-phase power systems. It is primarily used for small-power applications like centrifugal pumps, fans, and textile machinery where space-saving and efficient motor control are key.

Voltage	415V
Power	2 HP
Usage	For Industrial Machinery
Brand	INVT
Phase	3 Phase
Phases	Three phase
Model Name/Number	GD200A-1R5G-4
Motor Power	1.5Kw
Input Voltage	AC 3PH 380V(-15%)-440V(+10%)
Input Frequency	50Hz or 60Hz
Output Current	Refer to the product rated value
Warranty	1 YEAR

Function

Motor Control: Provides precise speed and torque control for 3-phase AC motors using SVPWM (Space Vector Pulse Width Modulation).
Integrated Features: Includes a built-in PID controller, multi-step speed control (up to 16 steps), and DC braking for rapid stops.
Communication: Equipped with a Modbus RTU (RS485) interface for seamless integration into PLC-based automation systems.
