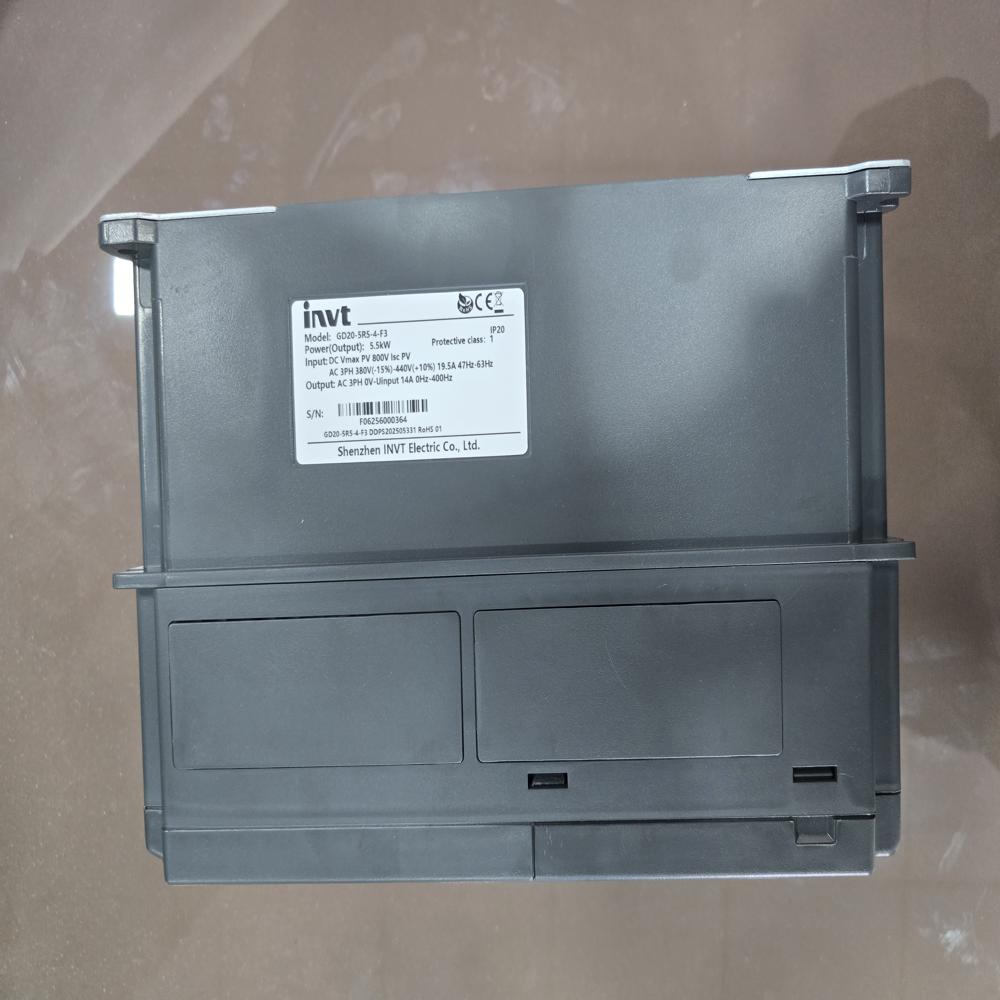

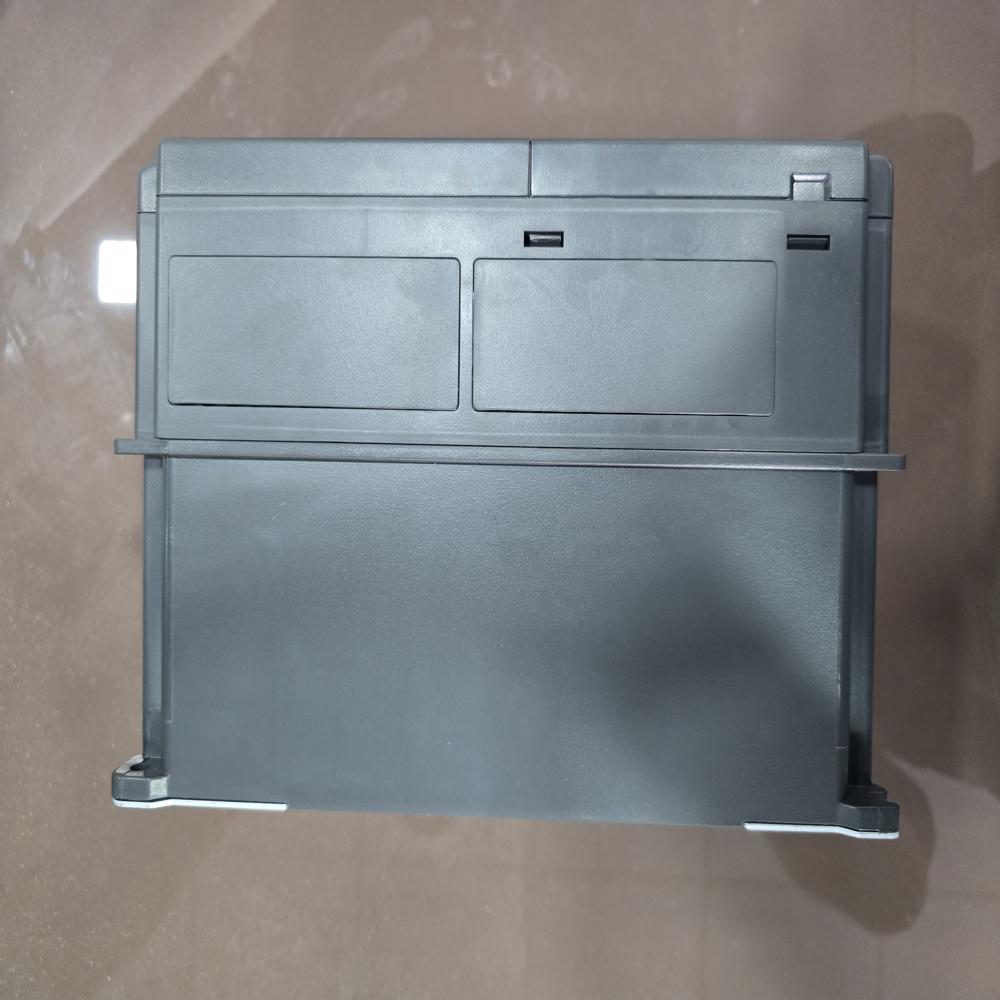

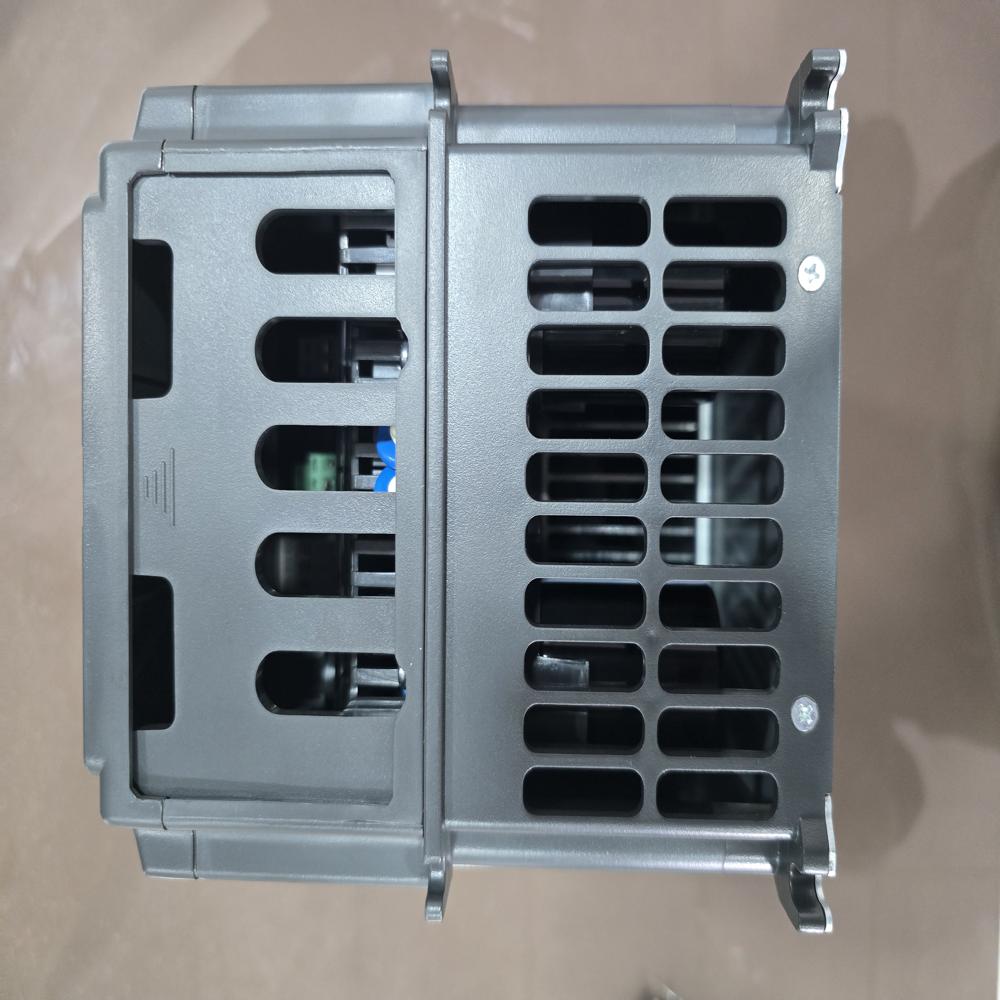

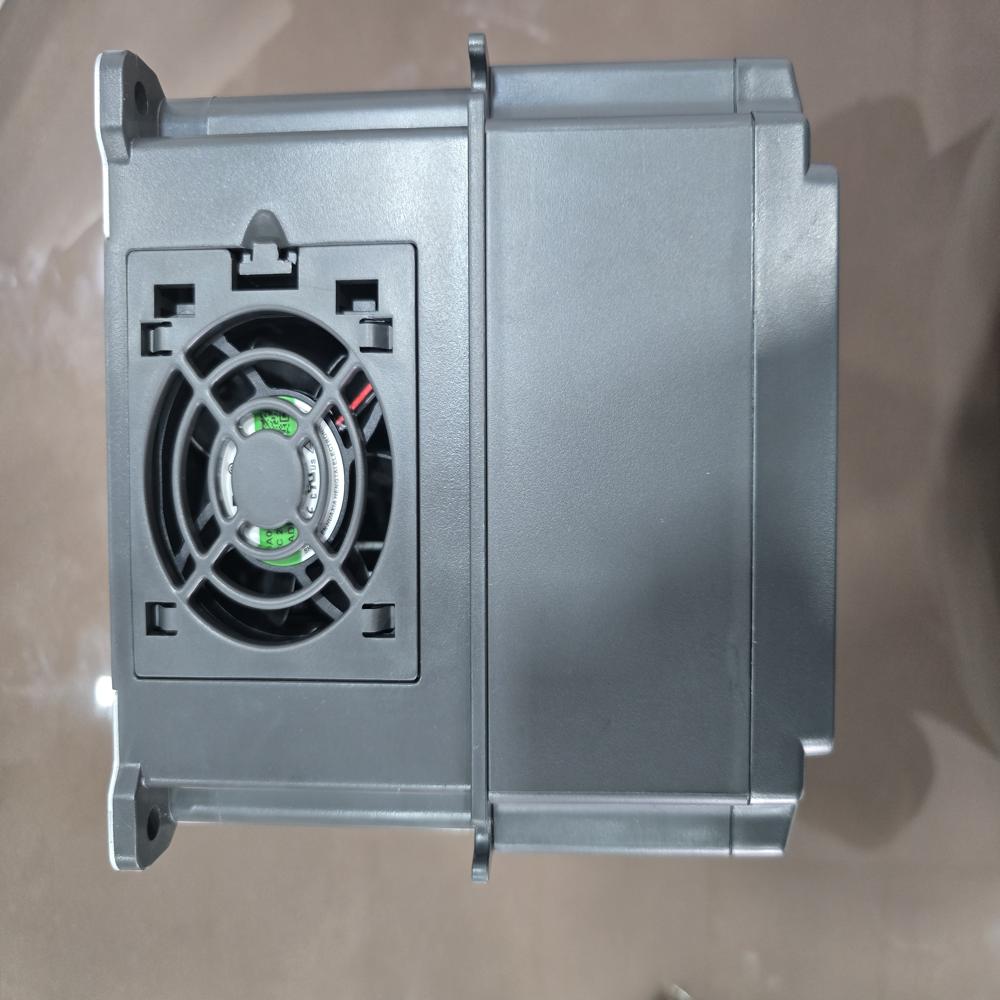

Send InquiryGD20-011G-4-F3 - INVT VFD 11 kW / 15HP 415V
Price 20200.0 INR/ Number
MOQ : 1 Number
GD20-011G-4-F3 - INVT VFD 11 kW / 15HP 415V Specification
- IP Rating
- 20
- Humidity %
- 5% to 95%
- Mounting Type
- DIN-rail mounting
- Feature
- Smart Features
- Power Rating
- 220V (-15%) to 240V (+10%)
- Product Type
- VFD
- Application
- Industrial Machinery
- Color
- Black
- Weight
- 12.30 Grams (g)
- Usage & Applications
- Industrial Machinery
- Rated Voltage
- 220V (-15%) to 240V (+10%) Volt (V)
- Warranty
- 1 Year
- Phase
- 3 Phase
- Input Voltage
- 220V (-15%) to 240V (+10%) Volt (V)
- Rated Current
- 220V (-15%) to 240V (+10%) Volt (v)
- Material
- Plastic
- Features
- Advanced Control
GD20-011G-4-F3 - INVT VFD 11 kW / 15HP 415V Trade Information
- Minimum Order Quantity
- 1 Number
- Delivery Time
- 24 Hours
About GD20-011G-4-F3 - INVT VFD 11 kW / 15HP 415V
The is a 11 kW (15 HP) general-purpose variable frequency drive from the Goodrive20 series, designed for industrial 3-phase 380V440V AC power. This model is built on a larger Frame D chassis compared to the lower-power models to manage the increased power dissipation and current requirements.| Brand | INVT |
| Model Name/Number | GD20-011G-4 |
| Motor Power | 11KW/15HP |
| Input Voltage | 440V |
| Input Phase | 3 - Phase |
| Running Environment Temperature | -10-50C |
| Adjustable Speed Ratio | 1:100 |
Physical Dimensions & Weight (Inches)
Converted from the manufacturer's technical specifications for Frame D
- Height: 12.60 inches (320 mm)
- Width: 6.69 inches (170 mm)
- Depth (Length): 7.73 inches (196.3 mm)
- Weight: Approximately 12.30 lbs (5.58 kg)
Key Technical Specifications
- Power Rating: 11 kW / 15.0 HP.
- Output Current: 25.0 Amps.
- Input Voltage: 3-phase 380V440V AC.
- Rated Input Current: 32.0 Amps.
- Control Modes: Sensorless Vector Control (SVC) and V/f Control.
- Overload Capacity: 150% for 60 seconds; 180% for 10 seconds.
