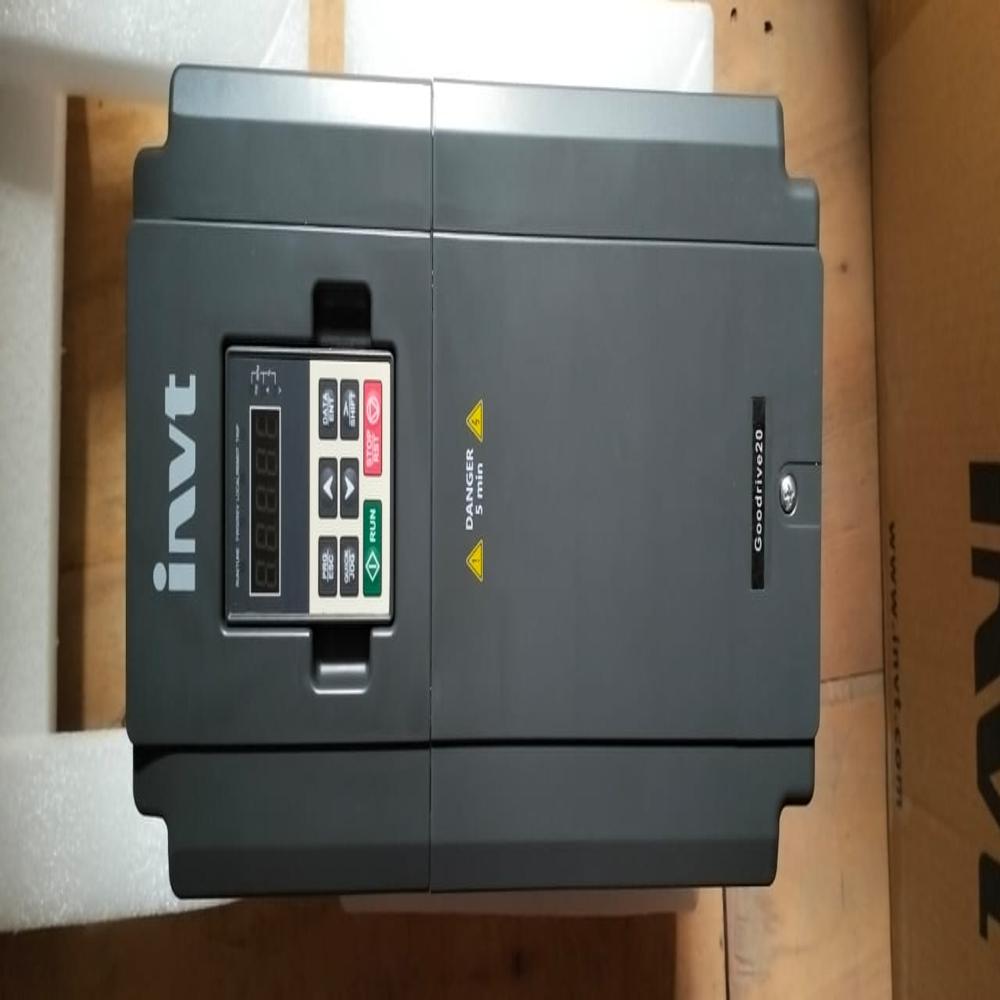

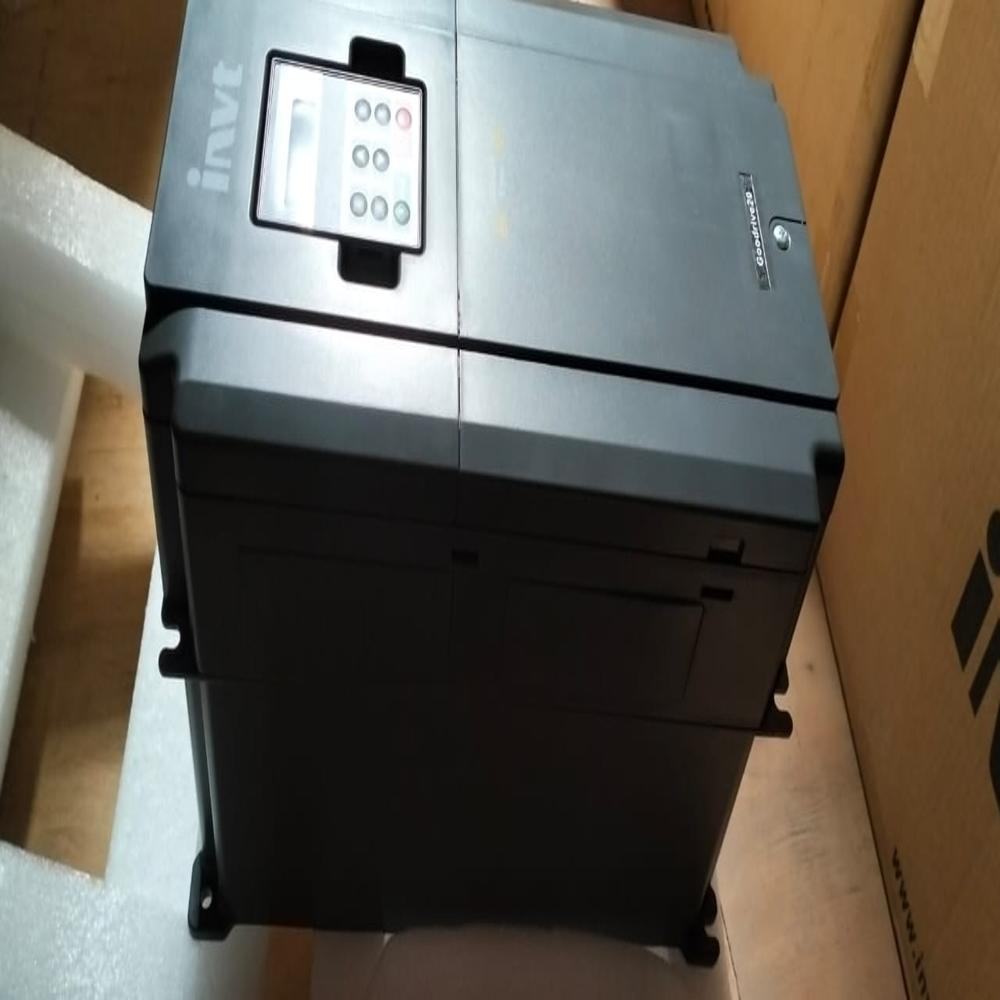

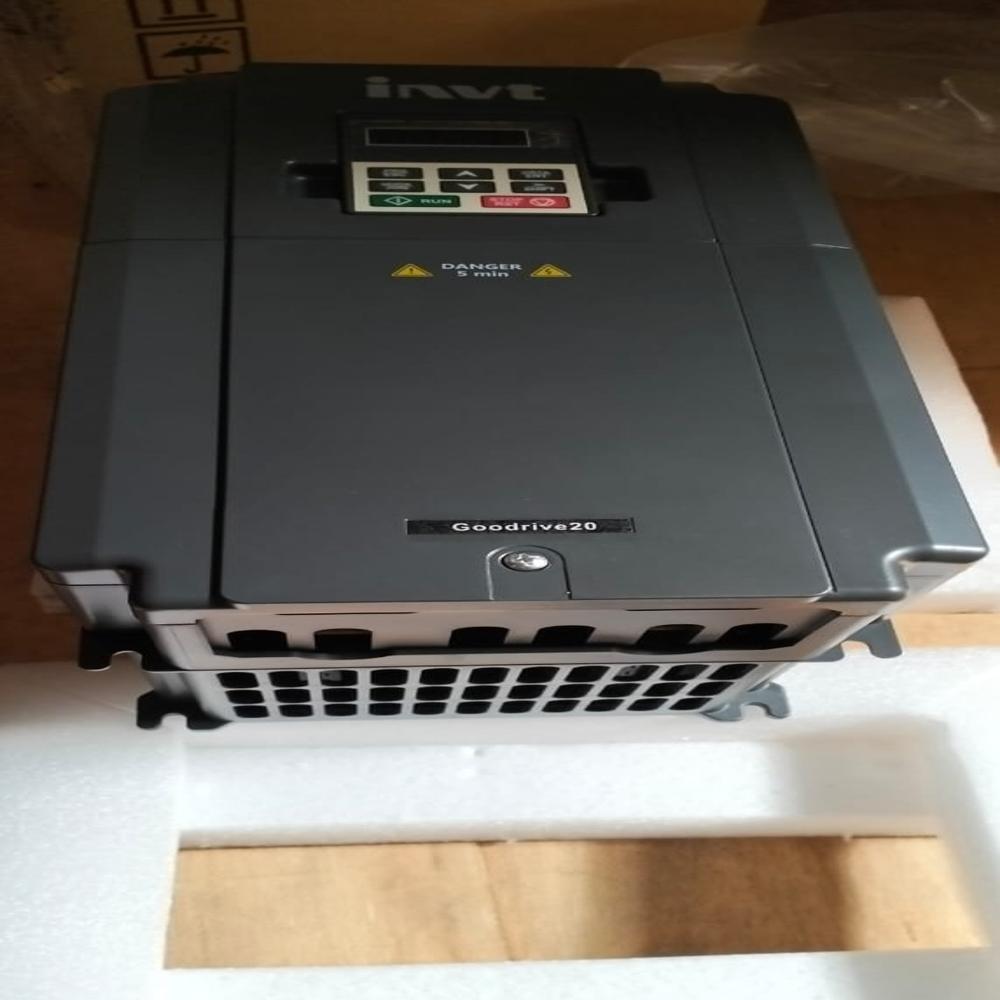

GD20-011G-4-F3 - INVT VFD 11 kW / 15HP 415V

Price 20400.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

GD20-011G-4-F3 - INVT VFD 11 kW / 15HP 415V Specification

IP Rating
20

Feature
Safety & Protection

Mounting Type
DIN-rail mounting

Humidity %
5% to 95%

Power Rating
220V (-15%) to 240V (+10%)

Product Type
VFD

Application
Industrial Machinery

Output Type

Color
Black

Rated Voltage
220V (-15%) to 240V (+10%) Volt (V)

Usage & Applications
Industrial Machinery

Warranty
1 Year

Phase
3 Phase

Input Voltage
220V (-15%) to 240V (+10%) Volt (V)

Material
Plastic

Rated Current
220V (-15%) to 240V (+10%) Volt (v)

Features
Voltage Support

GD20-011G-4-F3 - INVT VFD 11 kW / 15HP 415V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About GD20-011G-4-F3 - INVT VFD 11 kW / 15HP 415V

The

INVT GD20-011G-4-F3

is an 11 kW (15 HP) Variable Frequency Drive (VFD) from the Goodrive20 series. As an "-F3" model, it is specifically optimized for solar pumping applications, featuring specialized algorithms like Maximum Power Point Tracking (MPPT) to maximize water output from solar power.

Brand	INVT
Model Name/Number	GD20-011G-4
Motor Power	11KW/15HP
Input Voltage	440V
Input Phase	3 - Phase
Running Environment Temperature	-10-50C
Adjustable Speed Ratio	1:100

Physical Dimensions & Weight

This model uses a larger chassis to handle the higher 11 kW power rating compared to smaller units in the series.

Height: 12.60 inches (320.0 mm)
Width: 6.69 inches (170.0 mm)
Depth: 7.73 inches (196.3 mm)
Net Weight: Approximately 5.58 kg (12.30 lbs)

Key Specifications

Power Rating: 11 kW / 15 HP.
Input Current: 32 A.
Output Current: 25 A.
Voltage Support: 3-Phase 380V 440V AC; also supports DC input from solar arrays.
Control Modes: Features Sensorless Vector Control (SVC) for high starting torque and precise speed accuracy (

).
Safety & Protection: Integrated STO (Safe Torque Off) function, dry-run protection, and comprehensive safeguards against overvoltage/overcurrent.
