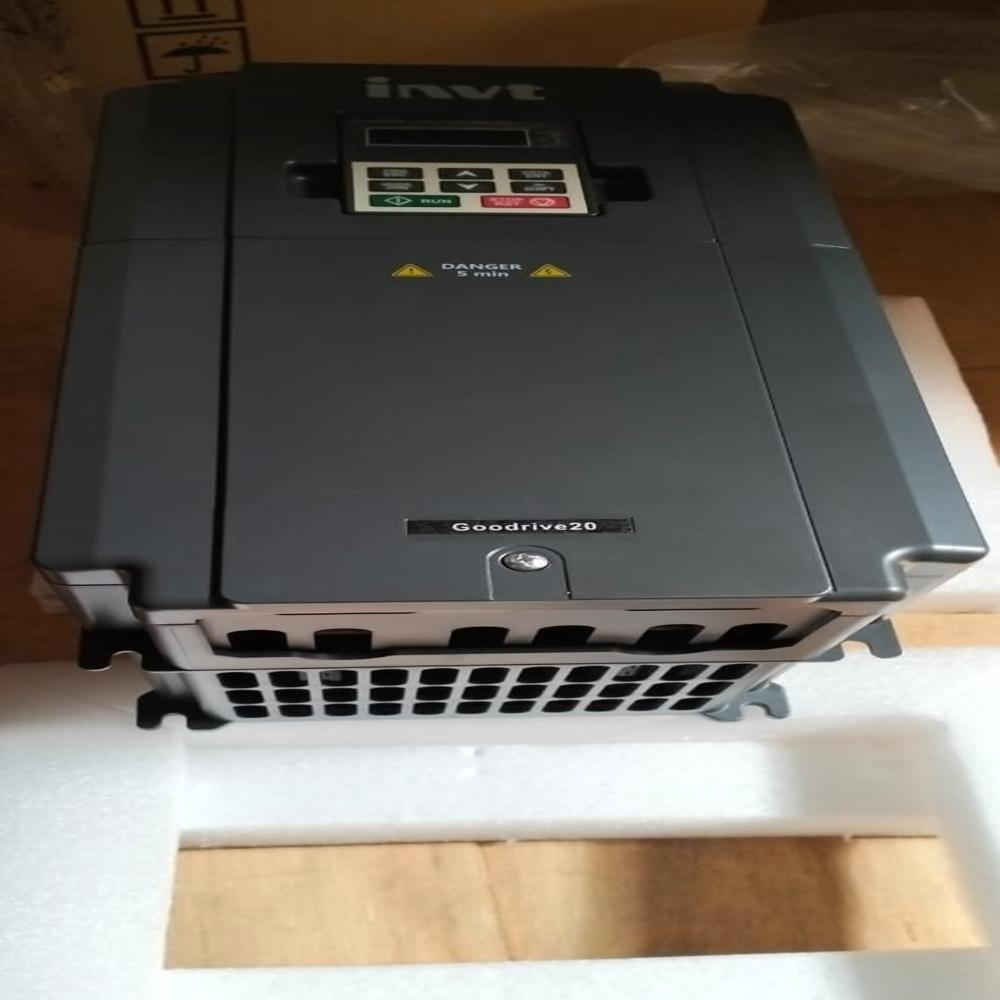

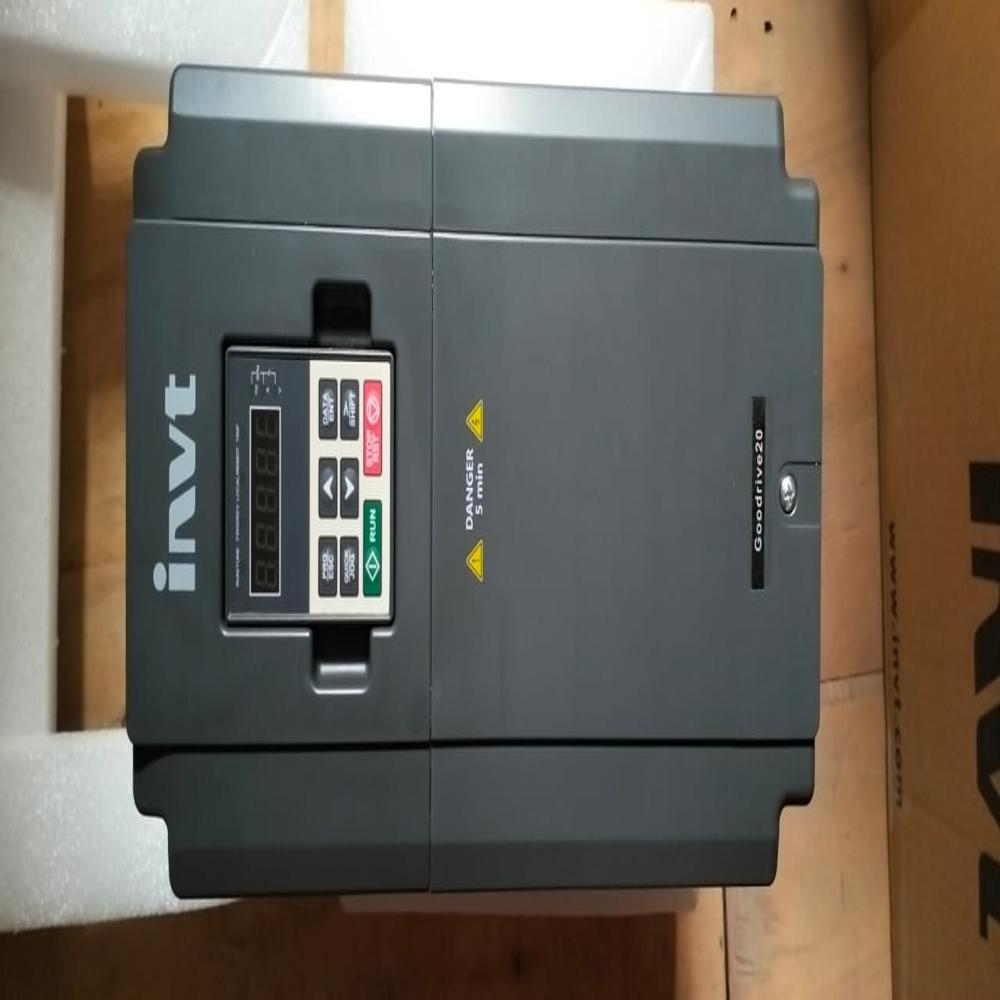

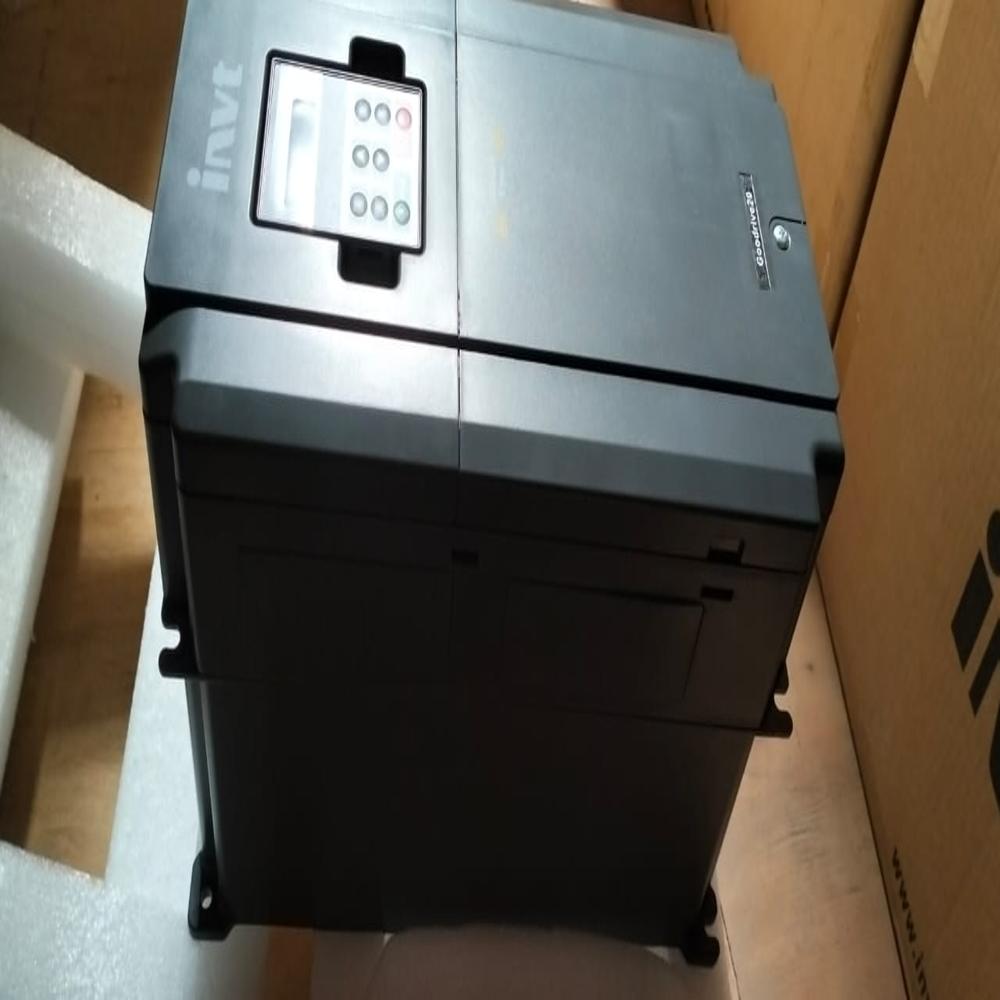

GD20-018G-4-F3 - INVT VFD 18.5 kW / 25HP 415V

Price 26000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

GD20-018G-4-F3 - INVT VFD 18.5 kW / 25HP 415V Specification

Humidity %
5% to 95%

IP Rating
20

Feature
Built-in MPPT Logic

Mounting Type
DIN-rail mounting

Power Rating
220V (-15%) to 240V (+10%)

Product Type
VFD

Application
Industrial Machinery

Color
Black

Usage & Applications
Industrial Machinery

Rated Voltage
220V (-15%) to 240V (+10%) Volt (V)

Weight
6.5 Kilograms (kg)

Warranty
1 Year

Input Voltage
220V (-15%) to 240V (+10%) Volt (V)

Phase
3 Phase

Material
Plastic

Features
Dry-Run Protection

Rated Current
220V (-15%) to 240V (+10%) Volt (v)

GD20-018G-4-F3 - INVT VFD 18.5 kW / 25HP 415V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About GD20-018G-4-F3 - INVT VFD 18.5 kW / 25HP 415V

The

INVT GD20-018G-4-F3

is an 18.5 kW (25 HP) Variable Frequency Drive. As an "-F3" model, it is specifically configured as a Solar Pump Controller, using advanced MPPT (Maximum Power Point Tracking) technology to run 3-phase AC pumps from solar DC power.

Brand	INVT
Model Name/Number	GD20-018G-4
Motor Power	18.5 kW
Input Voltage	380V AC
Input Phase	3 - Phase
Input Frequency	50 Hz
Output Current	38 AMP
Degree of Protection	IP20

Height: 12.60 inches (320 mm)
Width: 6.69 inches (170 mm)
Depth: 7.73 inches (196.3 mm)
Net Weight: Approximately 14.33 lbs (6.5 kg).

Key Specifications

Power Rating: 18.5 kW / 25 HP.

Rated Output Current: 38 Amps.
Voltage Support: 3-Phase 380V 440V AC; also supports DC input from solar arrays (Max DC 800V).
Solar Features: Optimized with MPPT to handle varying sunlight and includes Dry-Run Protection to prevent pump damage if water is unavailable.
Performance: Features Sensorless Vector Control (SVC) for high starting torque and precise motor speed regulation.

The INVT GD20-018G-4-F3 (18.5 kW / 25 HP) is a high-performance solar pump controller that combines the heavy-duty industrial features of the Goodrive20 series with specialized solar logic.

Core Solar Features (-F3 Series)

Built-in MPPT Logic: Advanced Maximum Power Point Tracking (efficiency up to 99%) ensures the pump extracts the most water possible even during cloudy conditions or low sunlight.
Dry-Run Protection: Automatically detects when the well or water source is empty to prevent the pump from overheating or seizing.
Automatic Start/Stop: Operates autonomously based on solar radiation levelsit wakes up at sunrise and goes into sleep mode at sunset without manual intervention.
AC/DC Dual Input: Supports "Hybrid" mode, allowing you to connect solar DC power during the day and switch to 3-phase AC grid/generator power at night.
