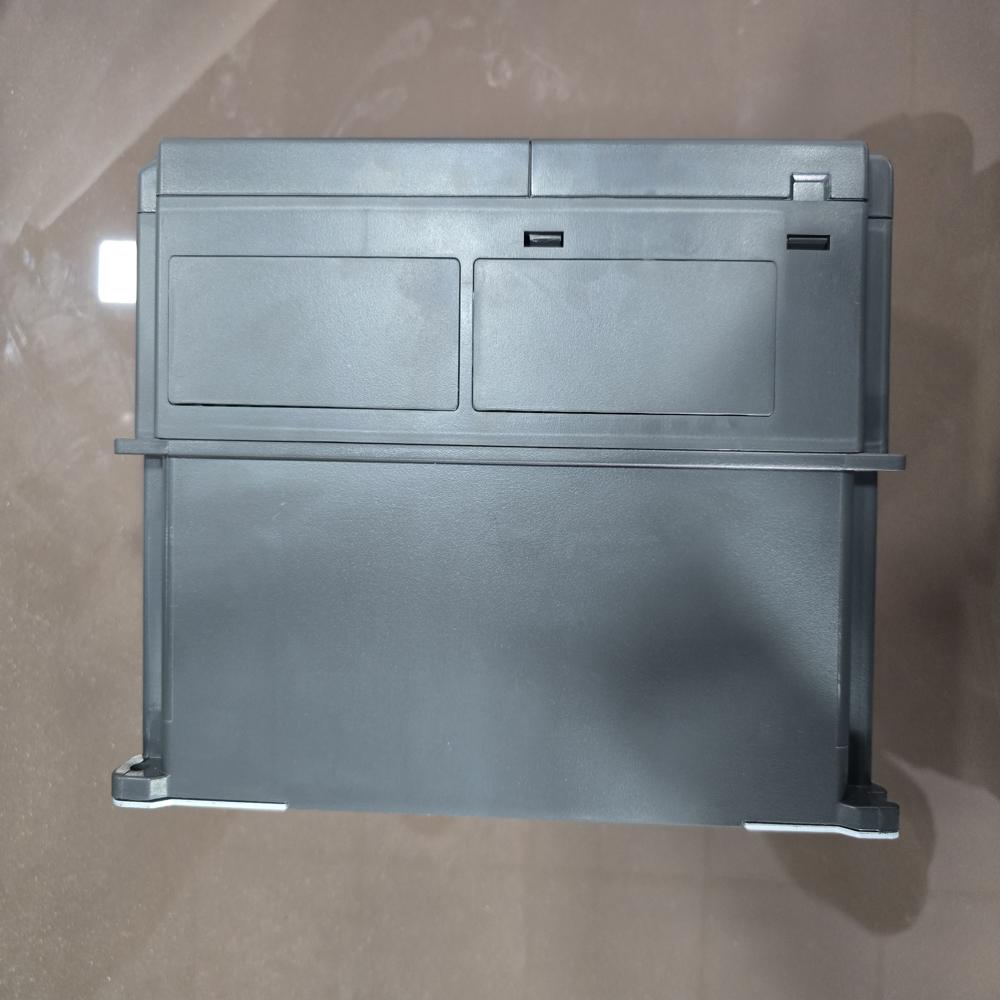

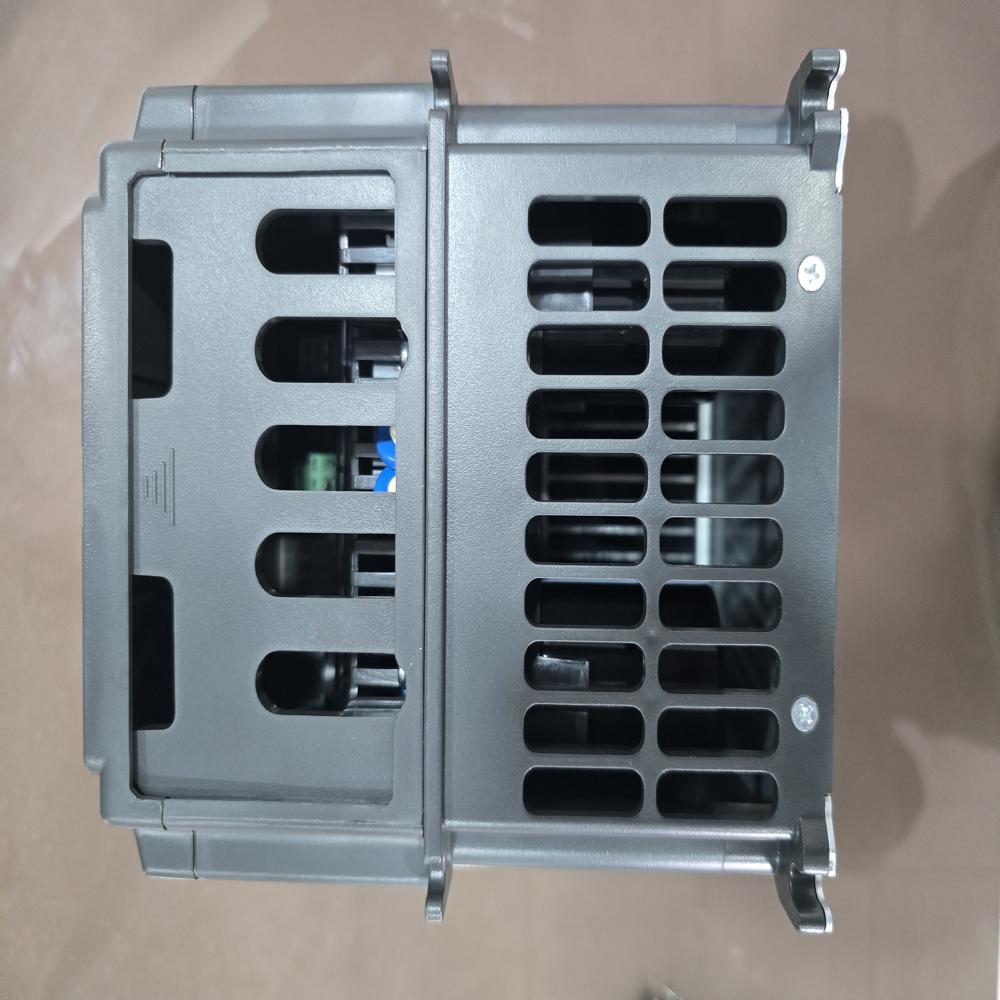

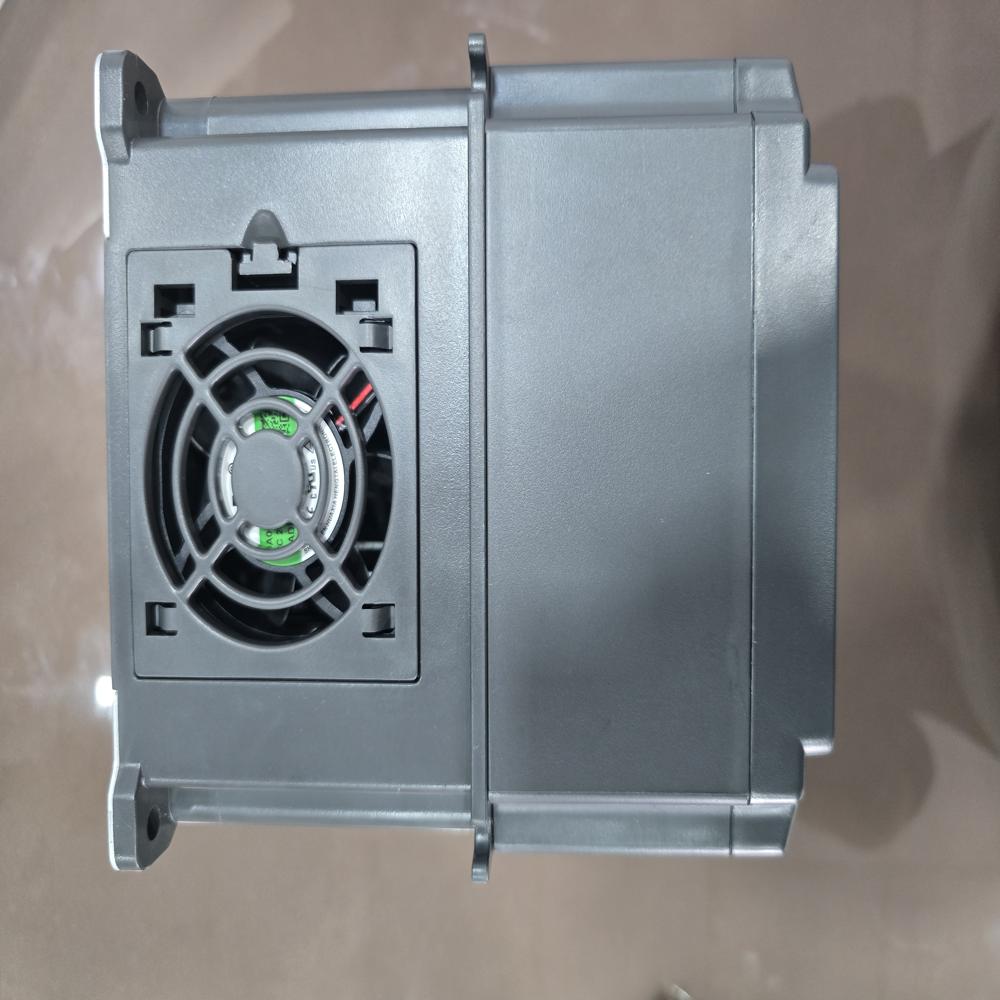

GD20-1R5G-4 - INVT VFD 1.5 kW / 2HP 415V

Name: GD20-1R5G-4 - INVT VFD 1.5 kW / 2HP 415V
Brand: Corbital Enterprise
Price: 8100.0 INR
Availability: InStock

Price 8100.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

GD20-1R5G-4 - INVT VFD 1.5 kW / 2HP 415V Specification

Humidity %
5% to 95%

IP Rating
20

Mounting Type
DIN-rail mounting

Feature
Smart Features

Product Type
VFD

Power Rating
220V (-15%) to 240V (+10%)

Application
Industrial Machinery

Color
Black

Weight
1.4 Kilograms (kg)

Rated Voltage
220V (-15%) to 240V (+10%) Volt (V)

Usage & Applications
Industrial Machinery

Warranty
1 Year

Input Voltage
220V (-15%) to 240V (+10%) Volt (V)

Phase
3 Phase

Rated Current
220V (-15%) to 240V (+10%) Volt (v)

Material
Plastic

Features
Reliability

GD20-1R5G-4 - INVT VFD 1.5 kW / 2HP 415V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
365 Days

About GD20-1R5G-4 - INVT VFD 1.5 kW / 2HP 415V

The

INVT GD20-1R5G-4

is a 1.5 kW (2 HP) general-purpose variable frequency drive from the Goodrive20 series, designed for industrial 3-phase 380V440V AC power. It is a high-performance mini vector drive that balances a compact footprint with robust motor control features.

Manufacturer:	INVT
Series:	GD 20
Model:	GD20-1R5G-4-EU
Application:	general purpose
Capacity, kW:	1,5
Current, :	4.2
Main power supply, V:	400
Phase:	3
Output frequency, Hz:	0-400
Enclosure:	IP20
Overload capacity, % per 1 min.:	150
EMC filter:	optional
Braking unit:	built in
Analog input:	1
Digital input:	5
Analog output:	2
Digital output:	1
Relay output:	2
RS485 (Modbus RTU):	RS485 communication
Starting torque:	150%
PID:	+
Operation temperature, :	-10.....+50

Physical Dimensions (Inches)

This model is built to be compact, supporting both wall and DIN rail mounting for easy integration into control panels.

Height: 7.28 inches (185 mm)
Width: 3.15 inches (80 mm)
Depth (Length): 5.53 inches (140.5 mm)
Weight: Approximately 3.1 lbs (1.4 kg)

Key Technical Specifications

Power Rating: 1.5 kW / 2.0 HP.
Input Voltage: 3-phase 380V (-15%) to 440V (+10%).
Output Current: 4.2 Amps (Rated input current is approx. 5.0A).
Efficiency: High energy efficiency (>96%) with a power factor greater than 0.98.
Control Modes: SVPWM and Sensorless Vector Control (SVC).
