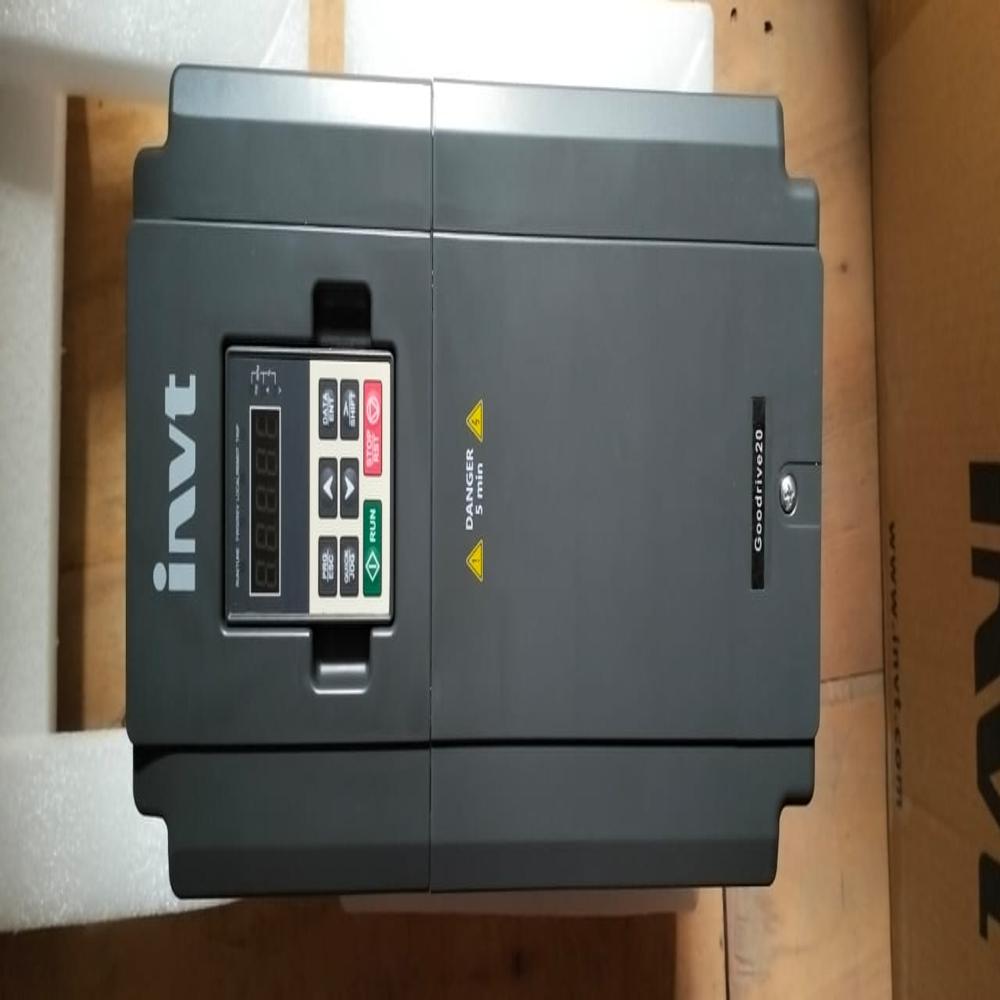

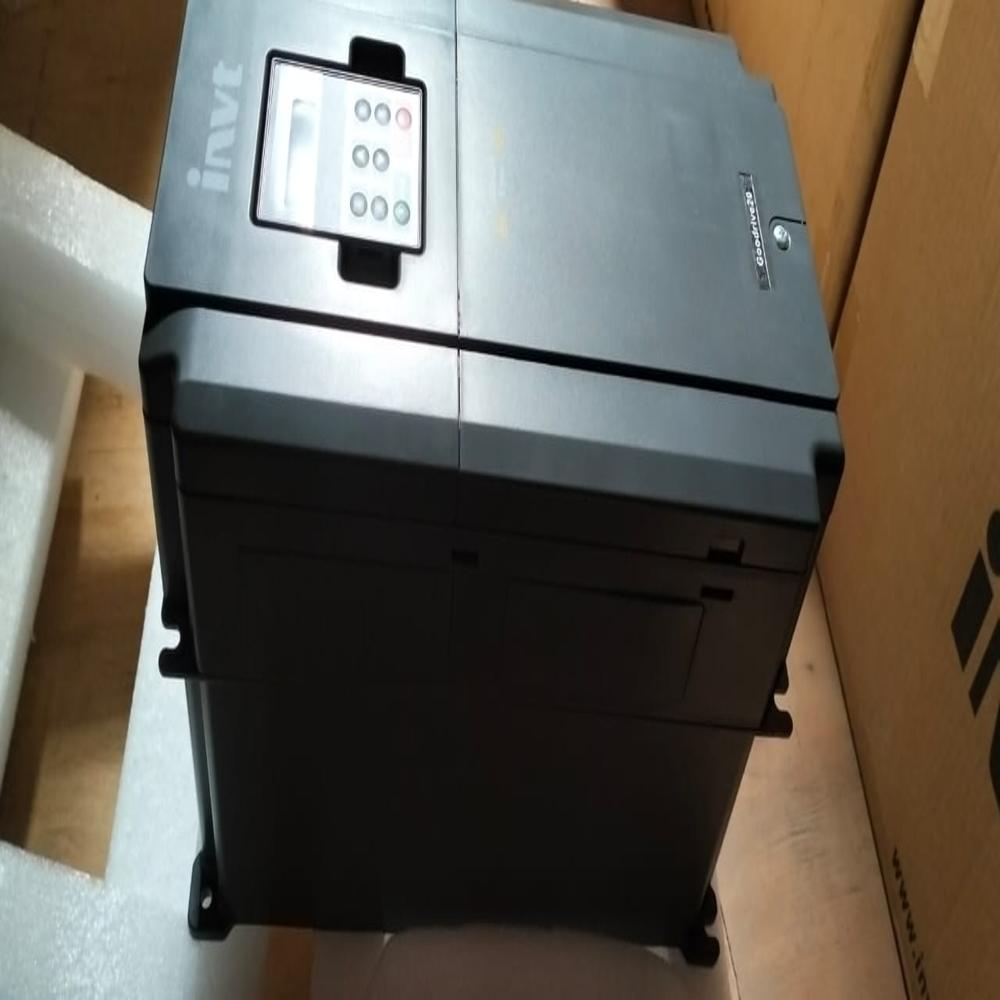

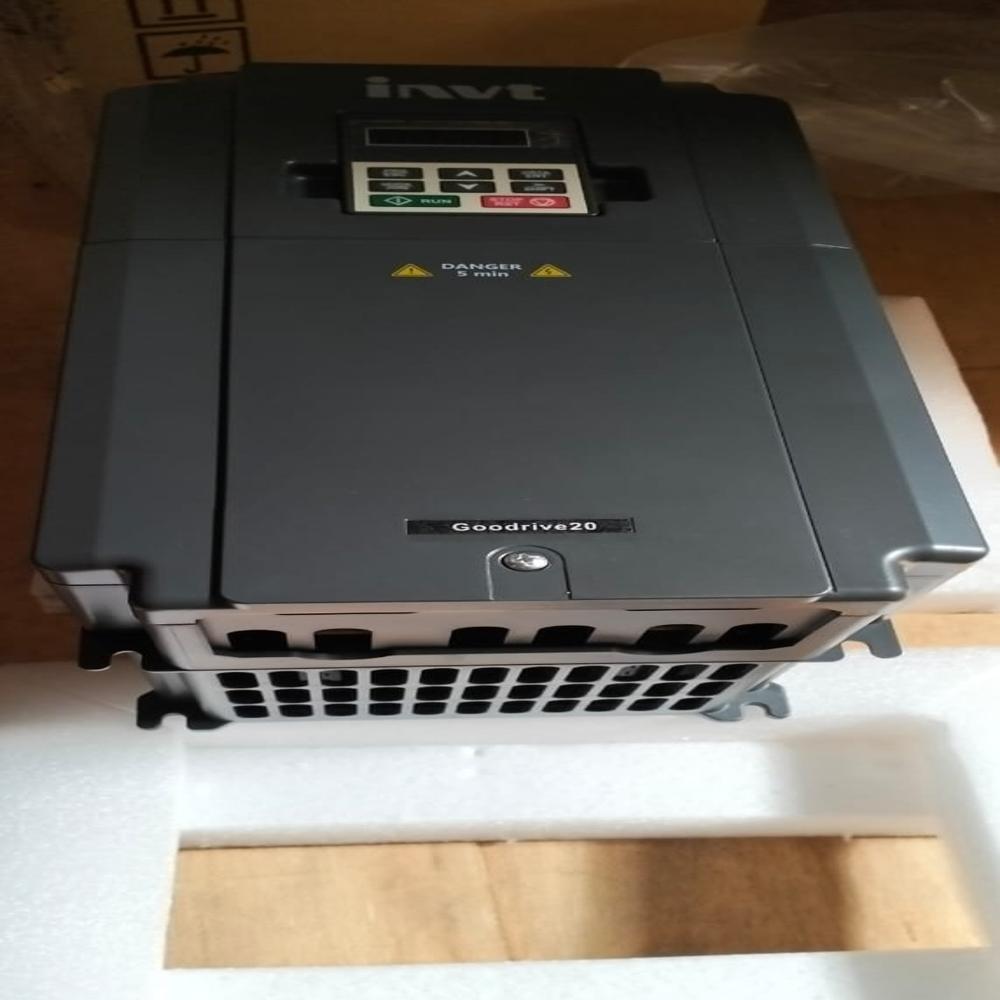

GD20-2R2G-4-F3 - INVT VFD 2.2 kW / 3HP 415V

Name: GD20-2R2G-4-F3 - INVT VFD 2.2 kW / 3HP 415V
Brand: Corbital Enterprise
Price: 7300.0 INR
Availability: InStock

Price 7300.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

GD20-2R2G-4-F3 - INVT VFD 2.2 kW / 3HP 415V Specification

Humidity %
5% to 95%

Feature
STO (Safe Torque Off)

IP Rating
20

Mounting Type
DIN-rail mounting

Power Rating
220V (-15%) to 240V (+10%)

Product Type
VFD

Application
Industrial Machinery

Color
Black

Weight
2.1 Kilograms (kg)

Usage & Applications
Industrial Machinery

Rated Voltage
220V (-15%) to 240V (+10%) Volt (V)

Warranty
1 Year

Phase
3 Phase

Input Voltage
220V (-15%) to 240V (+10%) Volt (V)

Rated Current
220V (-15%) to 240V (+10%) Volt (v)

Features
Modbus RTU

Material
Plastic

GD20-2R2G-4-F3 - INVT VFD 2.2 kW / 3HP 415V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About GD20-2R2G-4-F3 - INVT VFD 2.2 kW / 3HP 415V

The

GD20-2R2G-4-F3

is a 2.2 kW (3 HP) general-purpose Variable Frequency Drive (VFD) from INVT's Goodrive20 series. It is designed for industrial applications requiring precise motor speed control, such as pumps, fans, and conveyor systems.

Power	3 HP
Usage	for Industrial Machinery
Brand	invt
Model Name/Number	GD20-2R2G-4
Motor Power	3 HP
Input Phase	3 - Phase

Manufacturer:	INVT
Series:	GD 20
Model:	GD20-2R2G-S2-EU
Application:	general purpose
Capacity, kW:	2,2
Current, :	11
Main power supply, V:	230
Phase:	1
Output frequency, Hz:	0-400
Enclosure:	IP20
Overload capacity, % per 1 min.:	150
EMC filter:	optional
Braking unit:	built in
Analog input:	1
Digital input:	5
Analog output:	2
Digital output:	1
Relay output:	2
RS485 (Modbus RTU):	RS485 communication
Starting torque:	150%
PID:	+
Operation temperature, :	-10.....+50
Dimensions (W x H x D), mm:	-
Weight, kg:	-

Key Specifications

Power Rating: 2.2 kW / 3 HP.
Input Voltage: 3-Phase 380V 440V AC.
Output Current: Approximately 5.0 A to 5.5 A.
Control Modes: Supports Sensorless Vector Control (SVC) and V/F control for accurate speed regulation.
Protection Level: Standard IP20 enclosure, suitable for indoor industrial environments.
