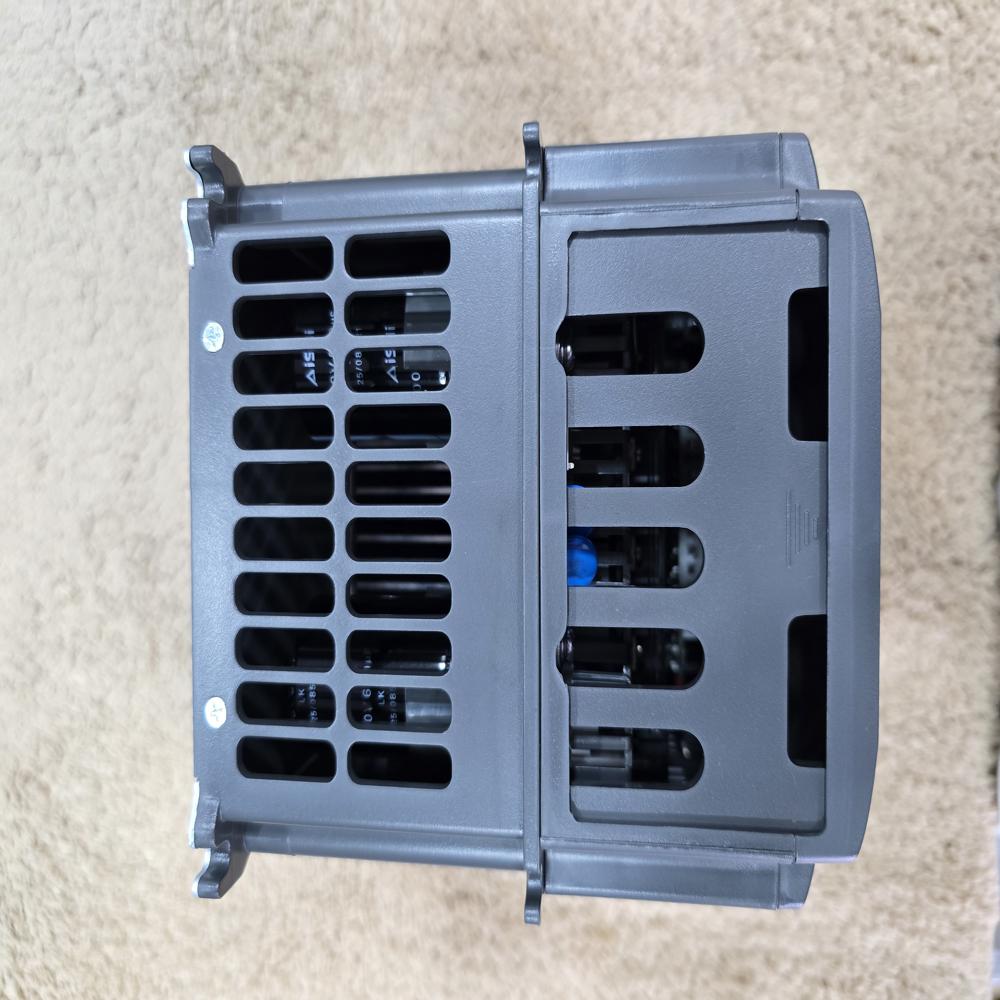

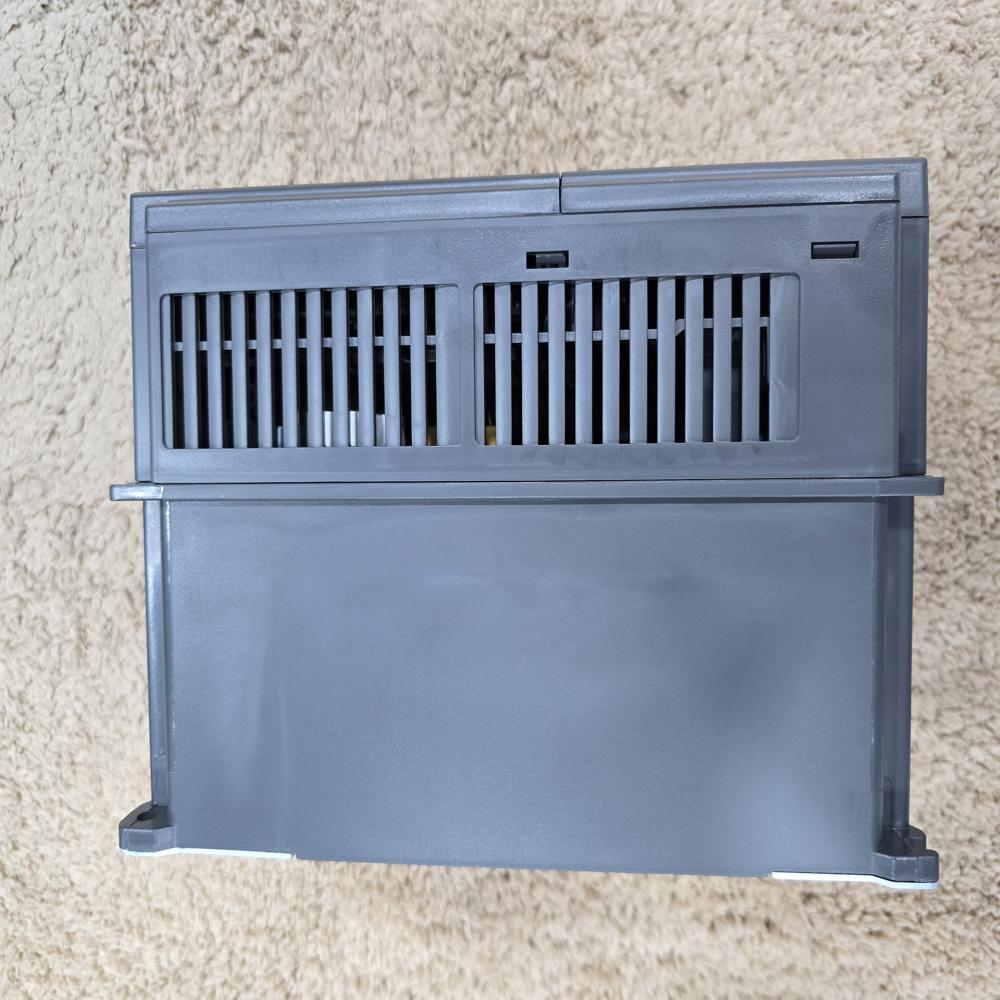

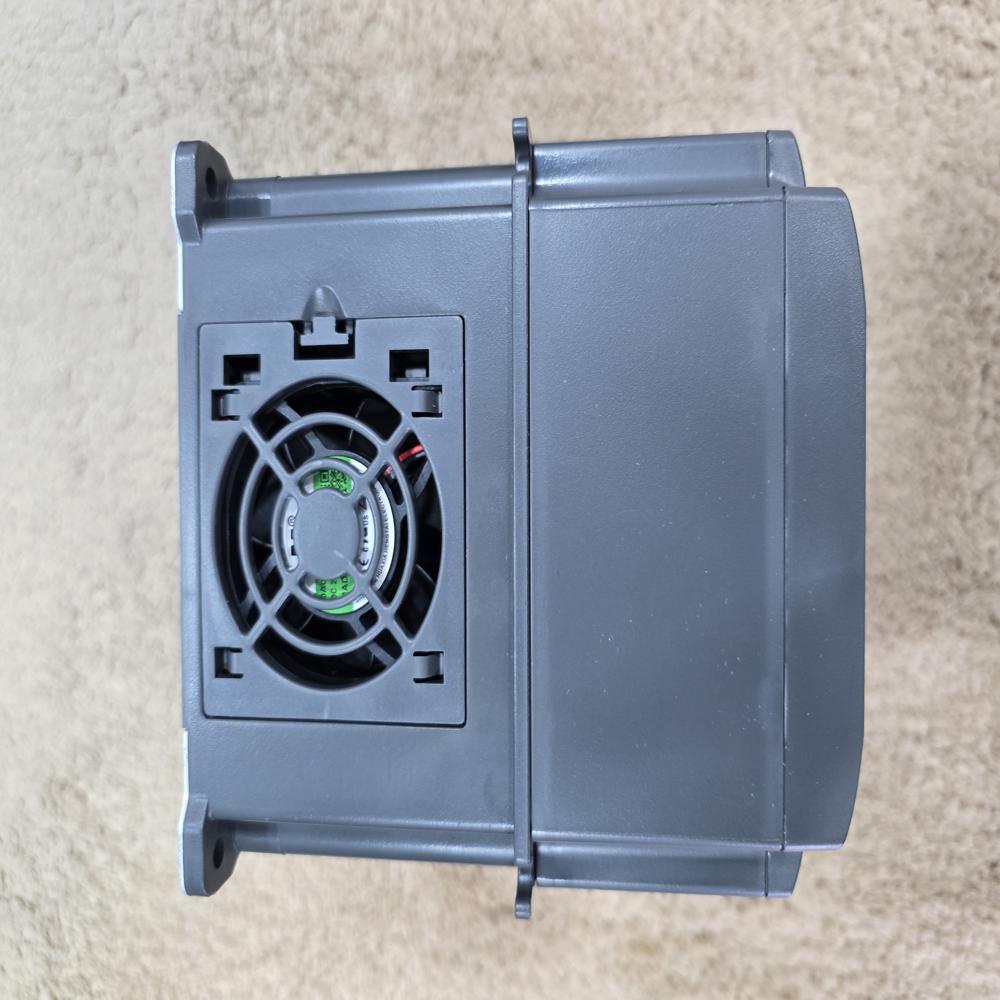

GD200A-022G/030P-4 INVT VFD 22 kW / 30HP 415V

Price 34700.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

GD200A-022G/030P-4 INVT VFD 22 kW / 30HP 415V Specification

Humidity %
5% to 95%

Feature
Sensorless Vector Control (SVC)

Mounting Type
DIN-rail mounting

IP Rating
20

Power Rating
220V (-15%) to 240V (+10%)

Product Type
VFD

Application
Industrial Machinery

Color
Black

Rated Voltage
220V (-15%) to 240V (+10%) Volt (V)

Usage & Applications
Industrial Machinery

Warranty
1 Year

Phase
3 Phase

Input Voltage
220V (-15%) to 240V (+10%) Volt (V)

Features
V/f control

Rated Current
220V (-15%) to 240V (+10%) Volt (v)

Material
Plastic

GD200A-022G/030P-4 INVT VFD 22 kW / 30HP 415V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About GD200A-022G/030P-4 INVT VFD 22 kW / 30HP 415V

The

INVT GD200A-022G/030P-4

is a high-performance, general-purpose Variable Frequency Drive (VFD) featuring a dual-power rating for 22 kW (30 HP) and 30 kW (40 HP) industrial applications. It is designed for precise motor control in demanding environments such as air compressors, water pumps, and fans.

Dual Power Ratings

G (Heavy Duty / Constant Torque): 22 kW / 30 HP with a rated output current of 45 Amps.
P (Normal Duty / Variable Torque): 30 kW / 40 HP with a rated output current of 60 Amps

Manufacturer:	INVT
Series:	GD 200A
Model:	GD200A-022G/030P-4
Application:	general purpose
Capacity, kW:	22/30
Current, :	45/60
Main power supply, V:	400
Phase:	3
Output frequency, Hz:	0-400
Enclosure:	IP20
Overload capacity, % per 1 min.:	150
EMC filter:	Built-in C3 filter

Key Specifications

Input Voltage: 3-Phase 380V 440V AC (415V standard).

Control Modes: Advanced Sensorless Vector Control (SVC) and V/f control for accurate motor auto-tuning.

Hardware:

Standard built-in C3 EMC filter to minimize electromagnetic interference.
External braking unit support for rapid stopping of high-inertia loads.
Equipped with 9 digital inputs, 2 analog inputs, and 2 relay outputs for flexible automation.

Protection: Comprehensive safeguards against overcurrent, overvoltage, and overheating, with an independent air duct design for better environment adaptability.
