GD27-0R4G-S2-B - INVT VFD 0.4 kW / 0.5HP 230V

Price 4600.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

GD27-0R4G-S2-B - INVT VFD 0.4 kW / 0.5HP 230V Specification

IP Rating
20

Mounting Type
DIN-rail mounting

Feature
Safe Torque Off

Humidity %
5% to 95%

Power Rating
220V (-15%) to 240V (+10%)

Product Type
VFD

Application
Industrial Machinery

Color
Black

Weight
1 Kilograms (kg)

Usage & Applications
Industrial Machinery

Rated Voltage
220V (-15%) to 240V (+10%) Volt (V)

Warranty
1 Year

Phase
1 Phase

Input Voltage
220V (-15%) to 240V (+10%) Volt (V)

Rated Current
220V (-15%) to 240V (+10%) Volt (v)

Material
Plastic

Features
Braking Unit

GD27-0R4G-S2-B - INVT VFD 0.4 kW / 0.5HP 230V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

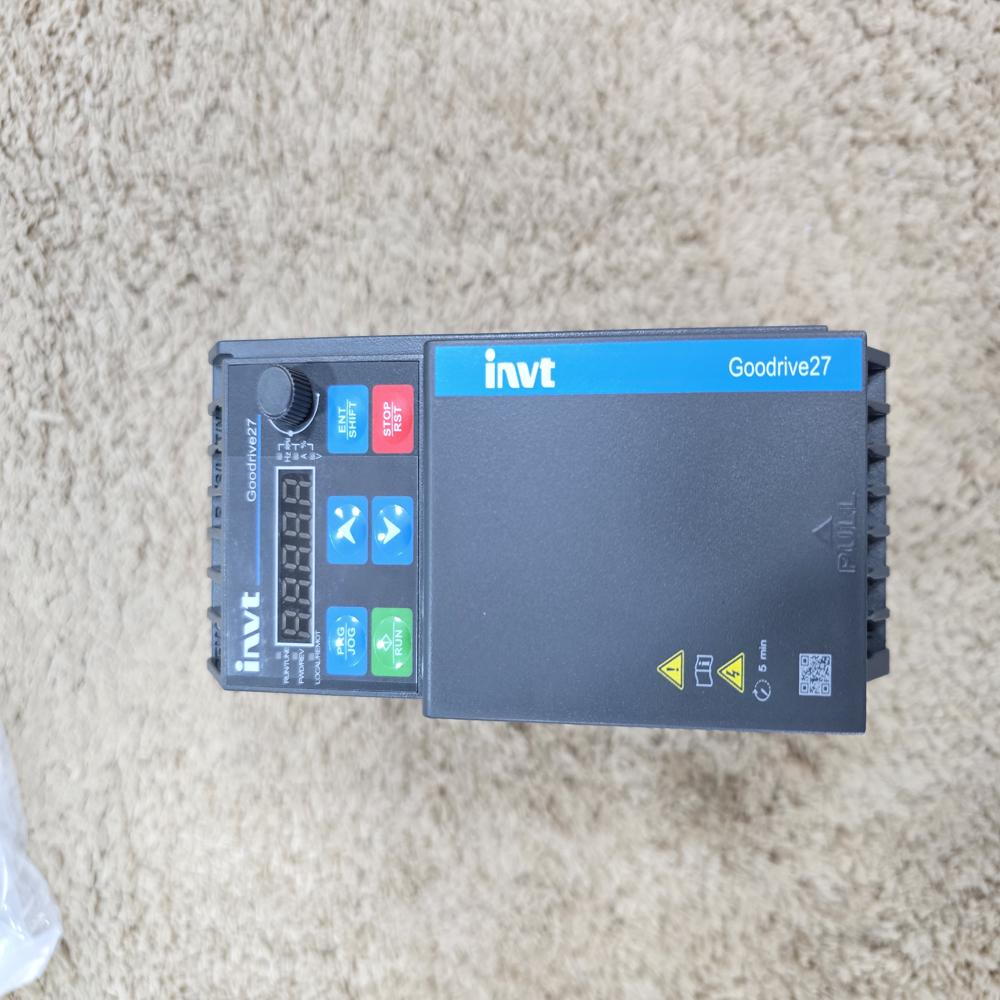

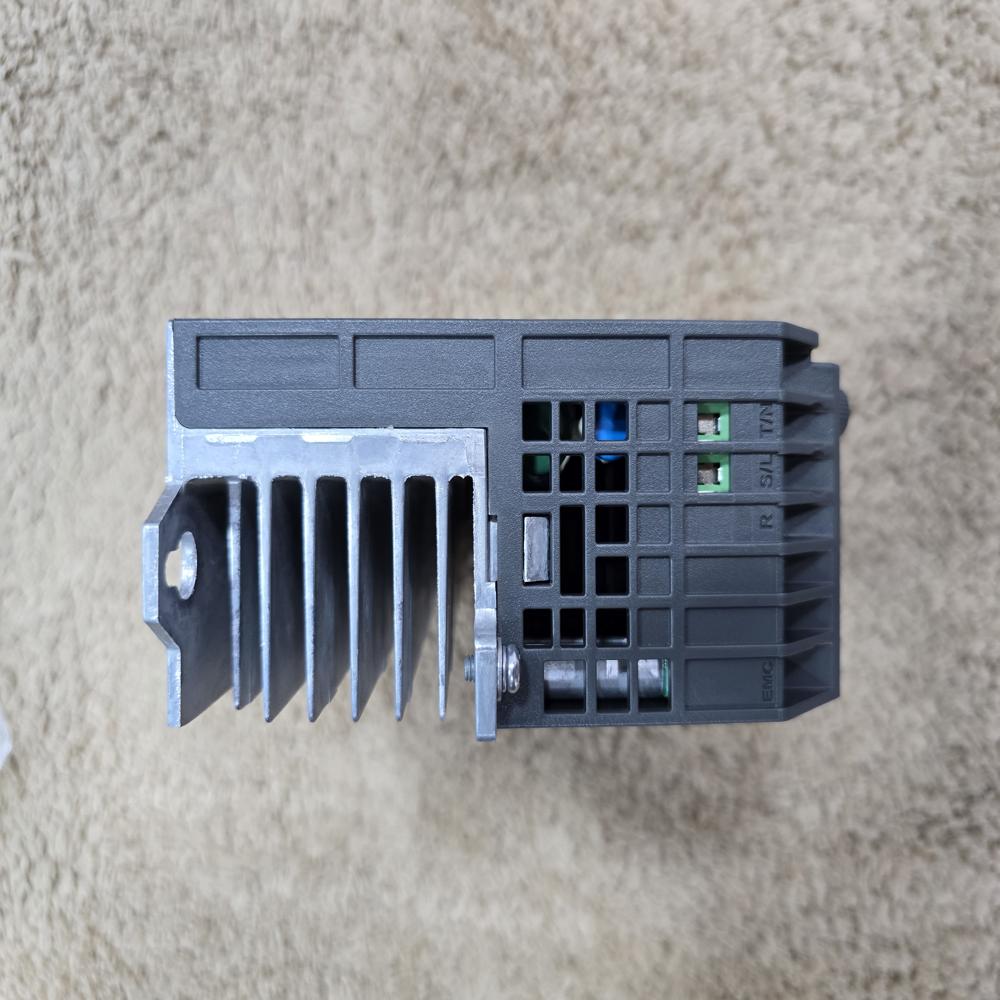

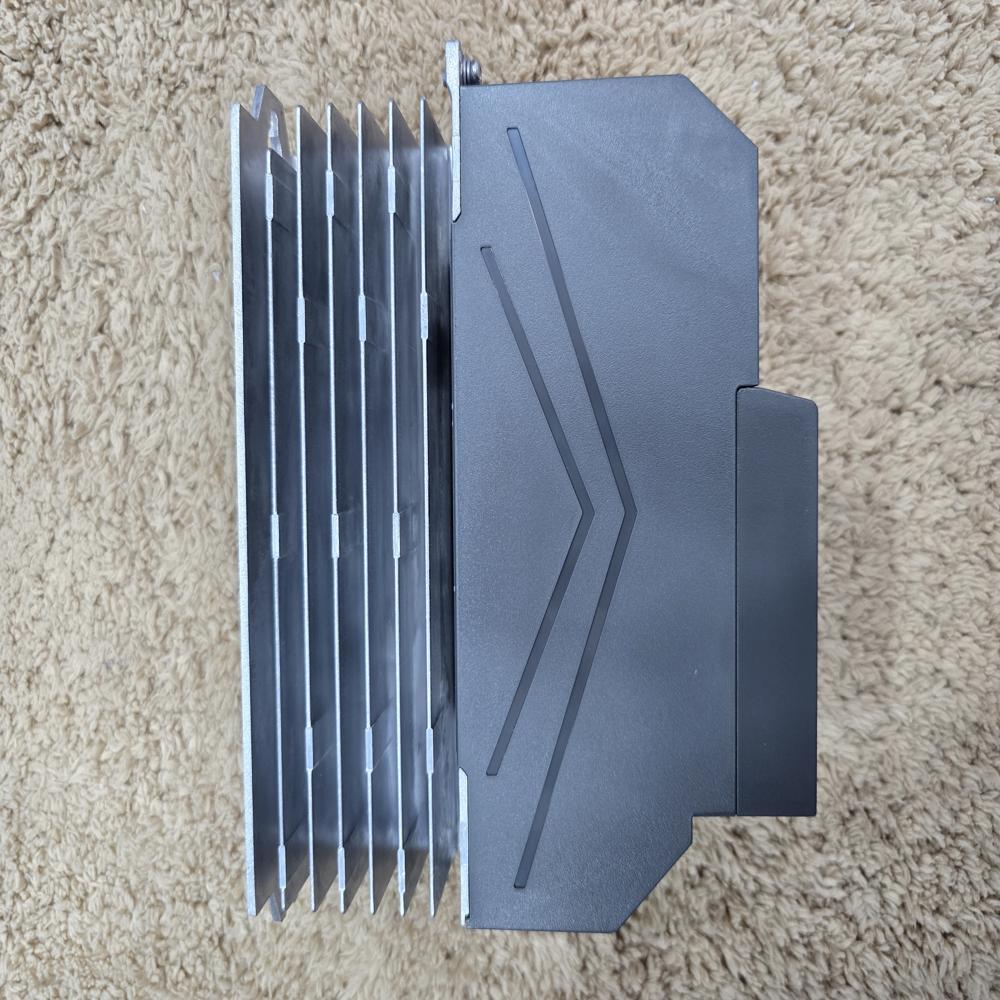

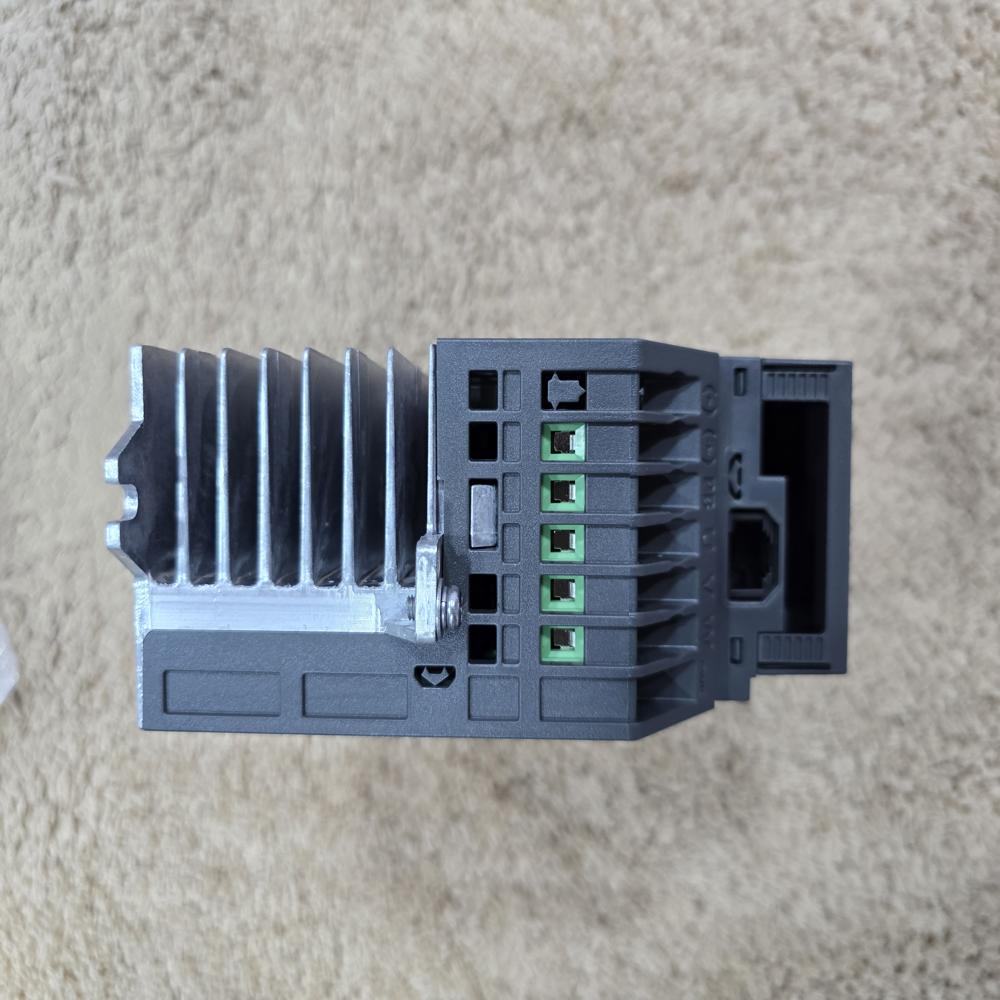

About GD27-0R4G-S2-B - INVT VFD 0.4 kW / 0.5HP 230V

The

INVT GD27-0R4G-S2-B

is a 0.4 kW (0.5 HP) Variable Frequency Drive (VFD) from the Goodrive27 series, designed for single-phase 230V input. It is a compact, smart AC drive featuring a "book-type" design that supports side-by-side installation to save cabinet space.

Voltage	220V
Brand	INVT
Phase	1 Phase
Phases	Single Phase
Input Voltage	AC 1PH 200V ~ 240V 0.4kW~2.2kW AC 3PH 200V ~ 240V 0.4kW~4kW AC 3PH 380V ~ 480V 0.75kW~7.5kW

Key Specifications

Power Rating: 0.4 kW / 0.5 HP.
Input Voltage: Single-phase 200V240V AC.
Output Voltage: 3-phase, 0V to input voltage.
Control Mode: Supports V/f control and Sensorless Vector Control (SVC).
Protection Rating: IP20 (basic dust protection, no water protection).
Frequency Range: 0400 Hz output frequency.
Features: Includes a built-in STO (Safe Torque Off) function and an optional EMC filter.

The GD27 series is widely used in light industrial machinery, including:

Woodworking and Textile machinery.
Food packaging and printing equipment.
Logistics conveyors, HVAC systems, and pumps/fans
Primary Control Functions
- Motor Control Modes: Supports both Space Voltage Vector Control (V/F) and Sensorless Vector Control (SVC). It can drive both Asynchronous Motors (AM) and Permanent Magnet Synchronous Motors (SM).
- Torque Performance: Delivers high starting torqueup to 150% at 0.5 Hzwhich is essential for heavy-start applications like conveyors.
- Speed Regulation: Offers an output frequency range of 0599 Hz, allowing for precise high-speed or low-speed operations.

Advanced Operational Functions

Transient Power Loss Ride-Through: When the power grid drops suddenly, the VFD uses feedback energy to keep the motor running for a short duration, ensuring equipment continuity.
Simple PLC & Multi-Step Speed: Features built-in logic for automated multi-step speed control and basic PLC tasks without requiring external controllers.
Communication: Standard built-in Modbus RS485 allows it to integrate seamlessly into industrial automation systems for remote monitoring and control.
