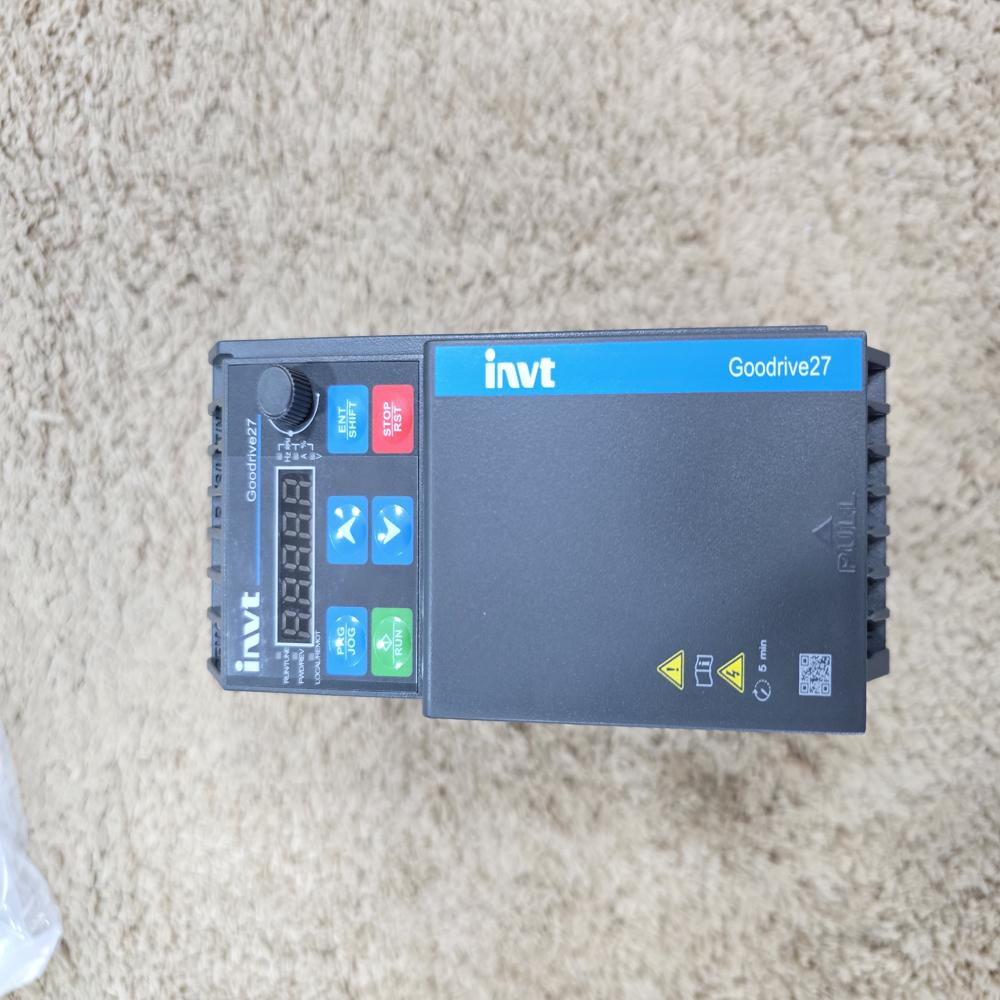

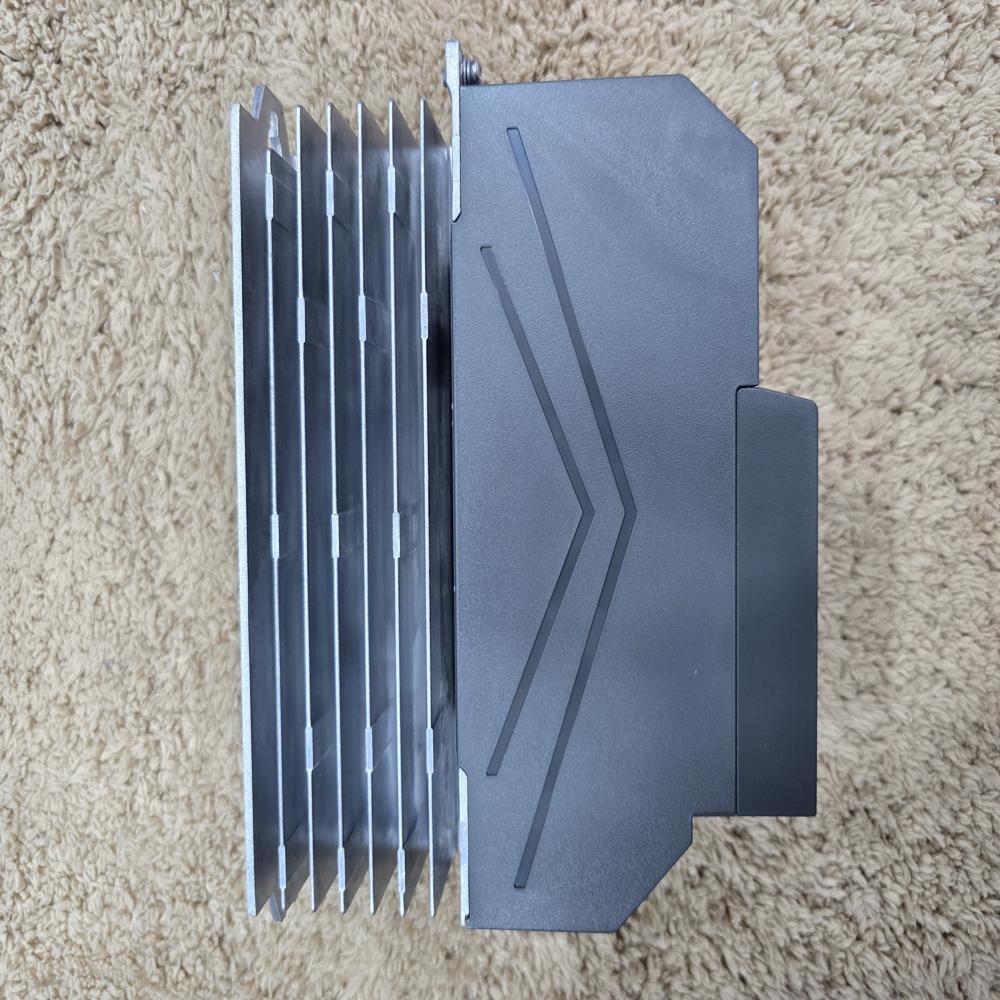

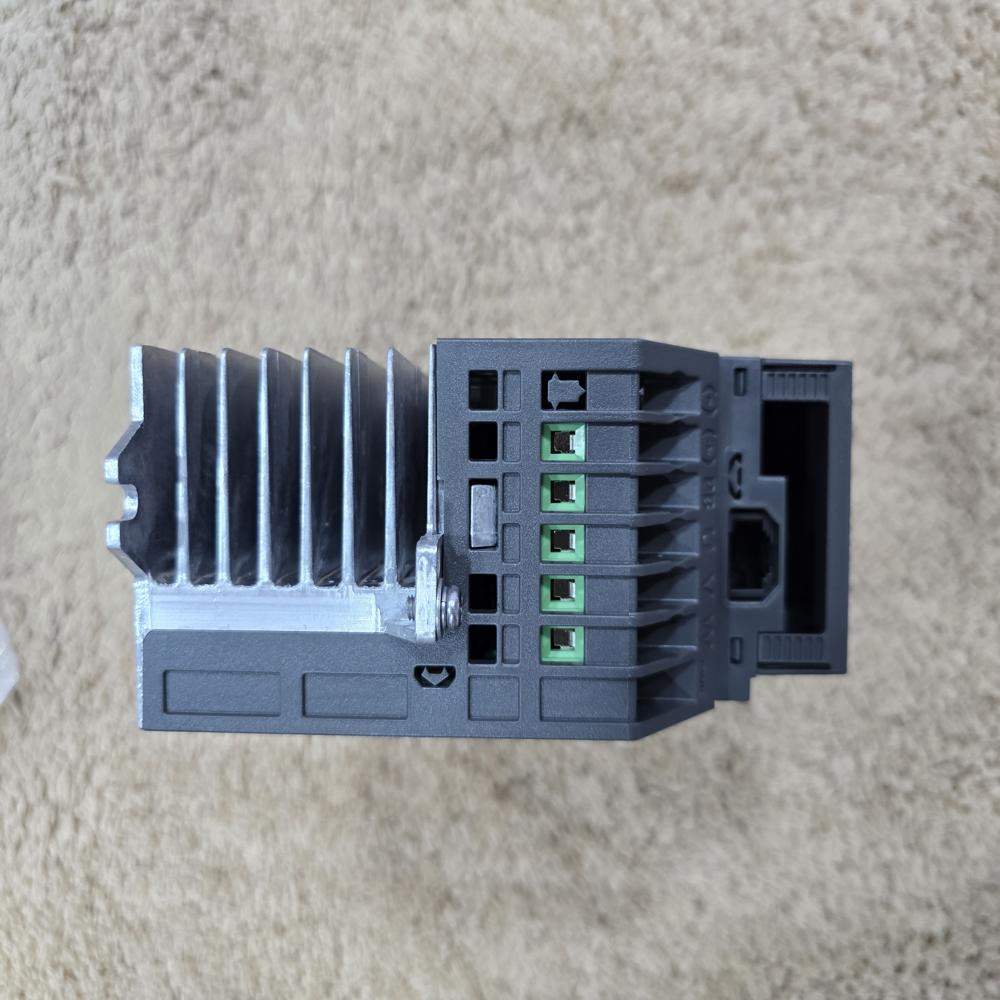

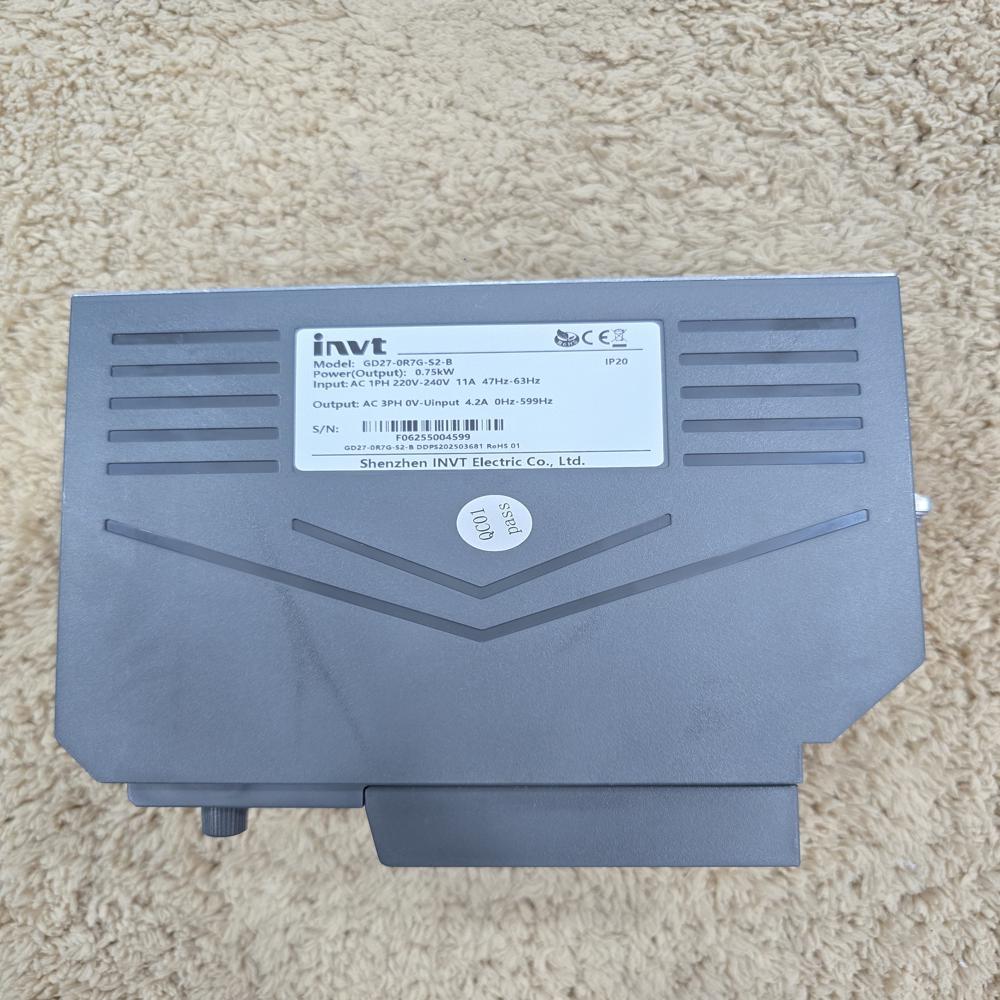

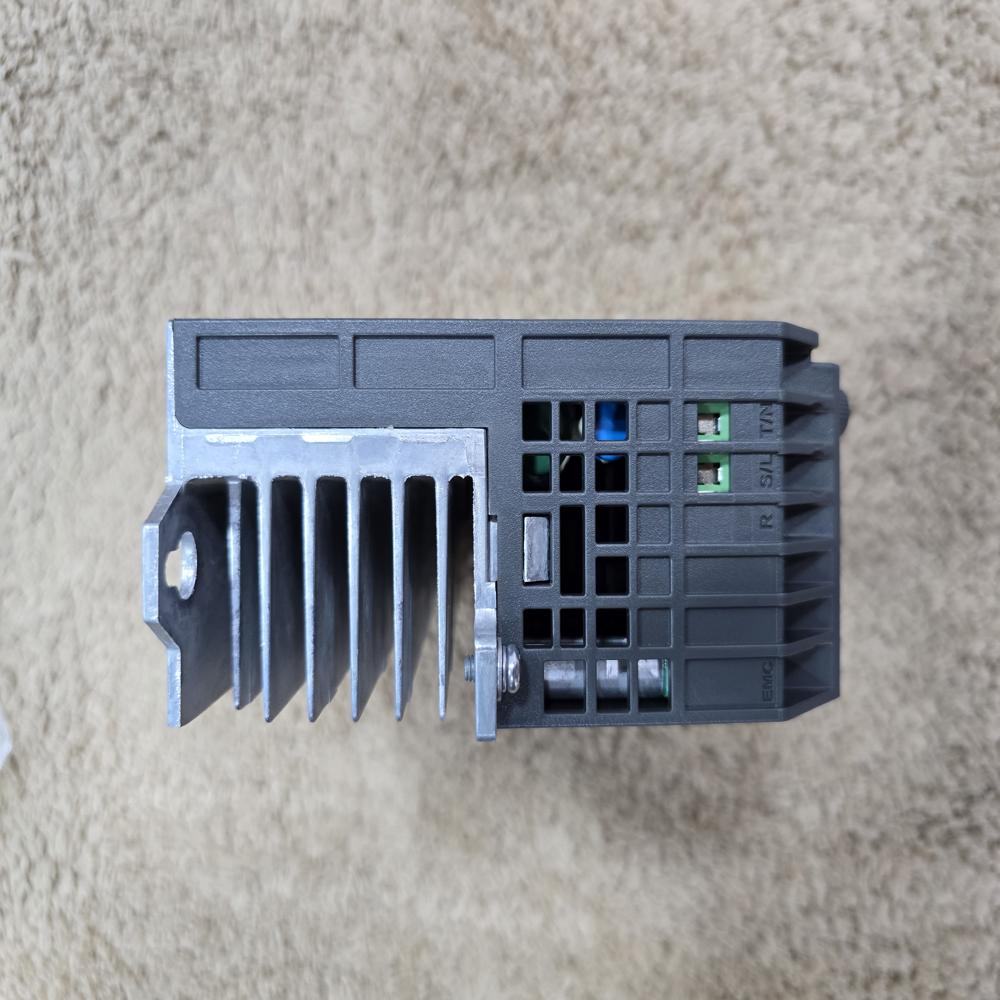

GD27-0R7G-S2-B - INVT VFD 0.75 kW / 1HP 230V

Send Inquiry

Request To Call Back

GD27-0R7G-S2-B - INVT VFD 0.75 kW / 1HP 230V

Name: GD27-0R7G-S2-B - INVT VFD 0.75 kW / 1HP 230V
Brand: Corbital Enterprise
Price: 5300.0 INR
Availability: InStock

Price 5300.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

GD27-0R7G-S2-B - INVT VFD 0.75 kW / 1HP 230V Specification

Mounting Type
DIN-rail mounting

Feature
High Performance Vector Control

IP Rating
20

Humidity %
5% to 95%

Product Type
VFD

Power Rating
220V (-15%) to 240V (+10%)

Application
Industrial Machinery

Protection Level
Other

Color
Black

Rated Voltage
220V (-15%) to 240V (+10%) Volt (V)

Weight
1 Kilograms (kg)

Usage & Applications
Industrial Machinery

Warranty
1 Year

Input Voltage
220V (-15%) to 240V (+10%) Volt (V)

Phase
1 Phase

Features
Dual Motor Support

Material
Plastic

Rated Current
220V (-15%) to 240V (+10%) Volt (v)

GD27-0R7G-S2-B - INVT VFD 0.75 kW / 1HP 230V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About GD27-0R7G-S2-B - INVT VFD 0.75 kW / 1HP 230V

The

INVT GD27-0R7G-S2-B

is the 0.75 kW (1 HP) version of the Goodrive27 series. It shares the same ultra-compact physical frame and features as the 0.4 kW model but offers a higher power output for slightly larger motors.

Voltage	230V
Brand	INVT
Phase	1 Phase
Phases	Single Phase
Input Voltage	AC 1PH 200V 240V 0.4kW2.2kW AC 3PH 200V 240V 0.4kW4kW AC 3PH 380V 480V 0.75kW7.5kW

Key Specifications

Power Rating: 0.75 kW / 1.0 HP.
Input Voltage: Single-phase 200V240V AC.
Output Current: 4.2 A.
Frequency Range: 0400 Hz output frequency (Standard).
Control Modes: Supports both V/f control and Sensorless Vector Control (SVC).

This model uses the Frame A housing, which is identical in size to the 0.4 kW model.

Height: 7.48 inches (190 mm).
Width: 2.36 inches (60 mm).
Depth (Length): 6.10 inches (155 mm).
Weight: Approximately 2.2 lbs (1.0 kg).
