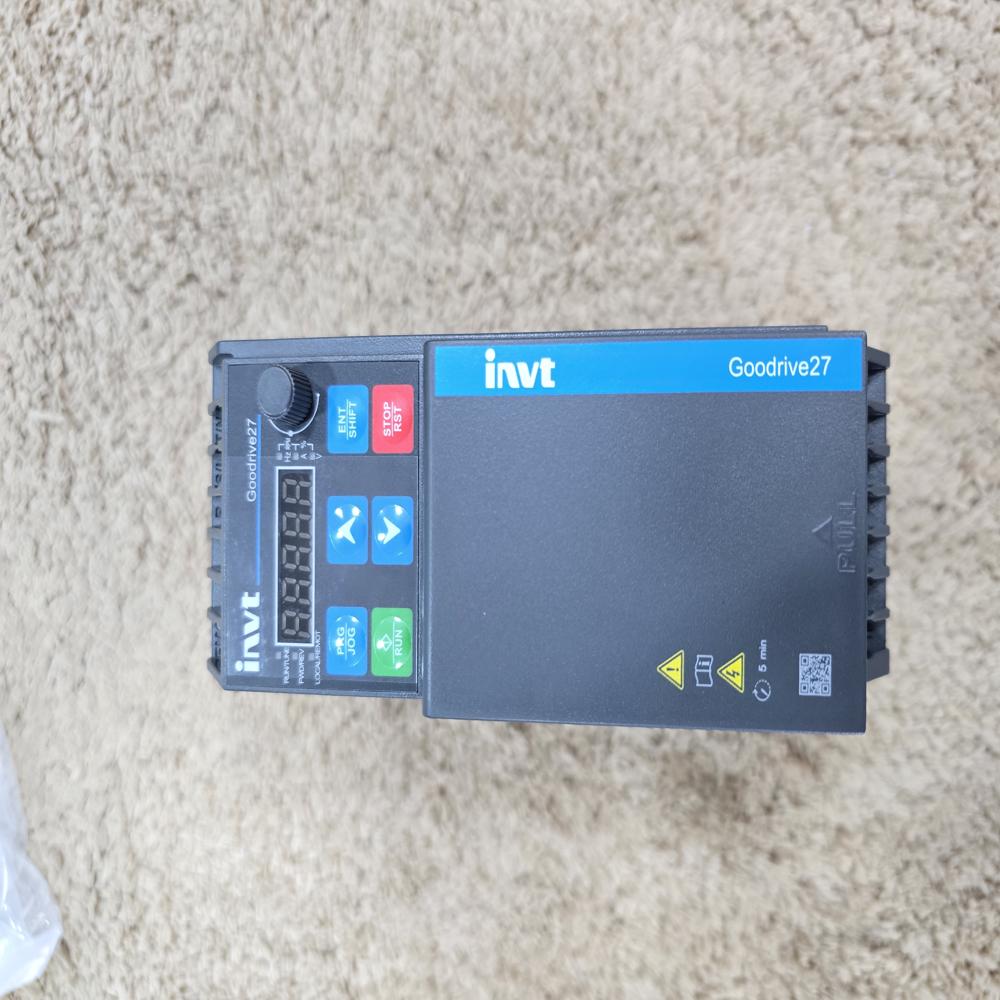

GD27-1R5G-S2-B - INVT VFD 1.5 kW / 2HP 230V

Name: GD27-1R5G-S2-B - INVT VFD 1.5 kW / 2HP 230V
Brand: Corbital Enterprise
Price: 6000.0 INR
Availability: InStock

Price 6000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

GD27-1R5G-S2-B - INVT VFD 1.5 kW / 2HP 230V Specification

Humidity %
5% to 95%

Mounting Type
DIN-rail mounting

IP Rating
20

Feature
Modbus RS485

Power Rating
220V (-15%) to 240V (+10%)

Product Type
VFD

Application
Industrial Machinery

Color
Black

Rated Voltage
220V (-15%) to 240V (+10%) Volt (V)

Usage & Applications
Industrial Machinery

Weight
1.2 Kilograms (kg)

Warranty
1 Year

Phase
1 Phase

Input Voltage
220V (-15%) to 240V (+10%) Volt (V)

Material
Plastic

Features
Sensorless Vector Control

Rated Current
220V (-15%) to 240V (+10%) Volt (v)

GD27-1R5G-S2-B - INVT VFD 1.5 kW / 2HP 230V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About GD27-1R5G-S2-B - INVT VFD 1.5 kW / 2HP 230V

The

INVT GD27-1R5G-S2-B

is a 1.5 kW (2 HP) Variable Frequency Drive from the Goodrive27 series. It transitions to the slightly wider Frame B size compared to the lower-power models while maintaining the same compact "book-style" height and depth.

Voltage	220V
Brand	INVT
Phase	1 Phase
Model Name/Number	GD27-1R5G-S2-B
Motor Power	2 HP
Output Current	7.5 A

Physical Specifications (Inches)

Height: 7.48 inches (190 mm)
Width: 2.76 inches (70 mm) Note: This is 0.4" wider than the 1 HP model
Depth (Length): 6.10 inches (155 mm)
Weight: Approximately 2.6 lbs (1.2 kg)

Key Technical Specs

Power Rating: 1.5 kW / 2.0 HP.
Input Voltage: Single-phase 200V240V AC.
Output Current: 7.5 A.
Overload Capacity: 150% for 60s; 180% for 10s.

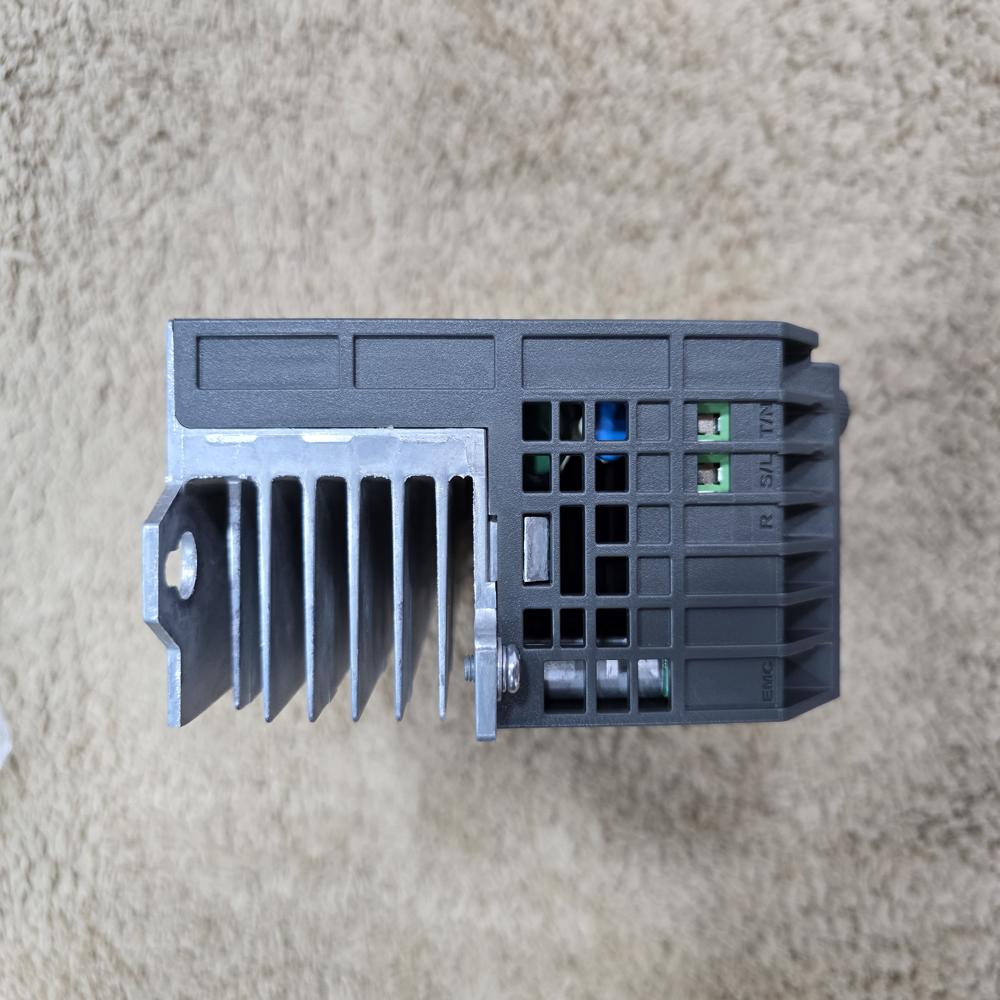

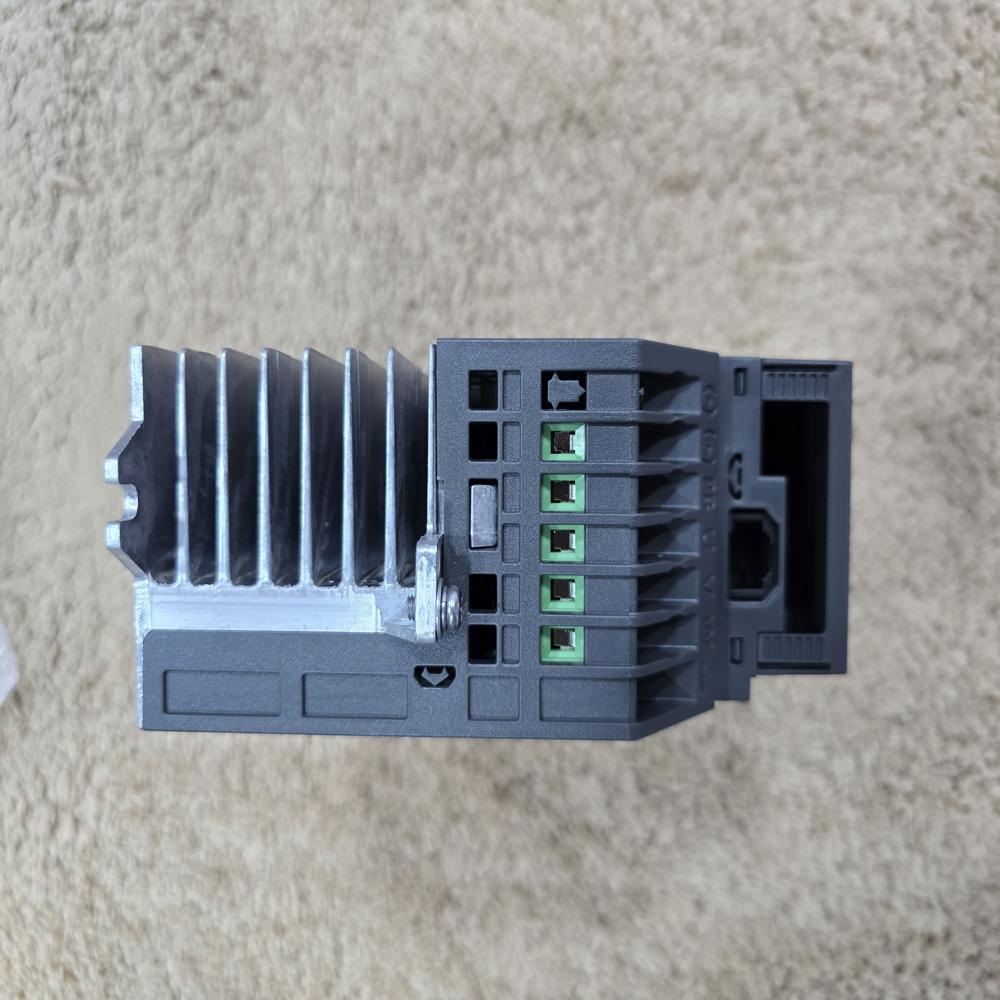

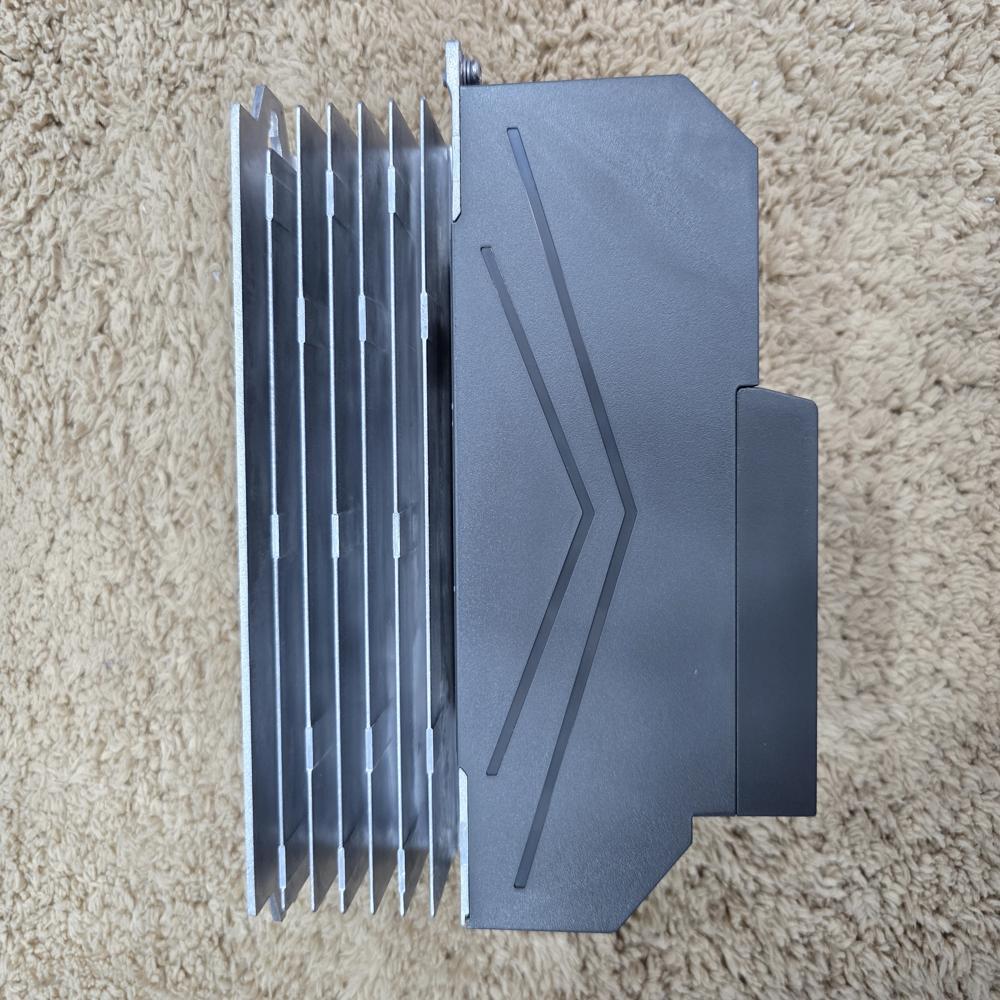

Cooling: Forced air cooling (unlike the natural cooling found in the smaller Frame A models).
