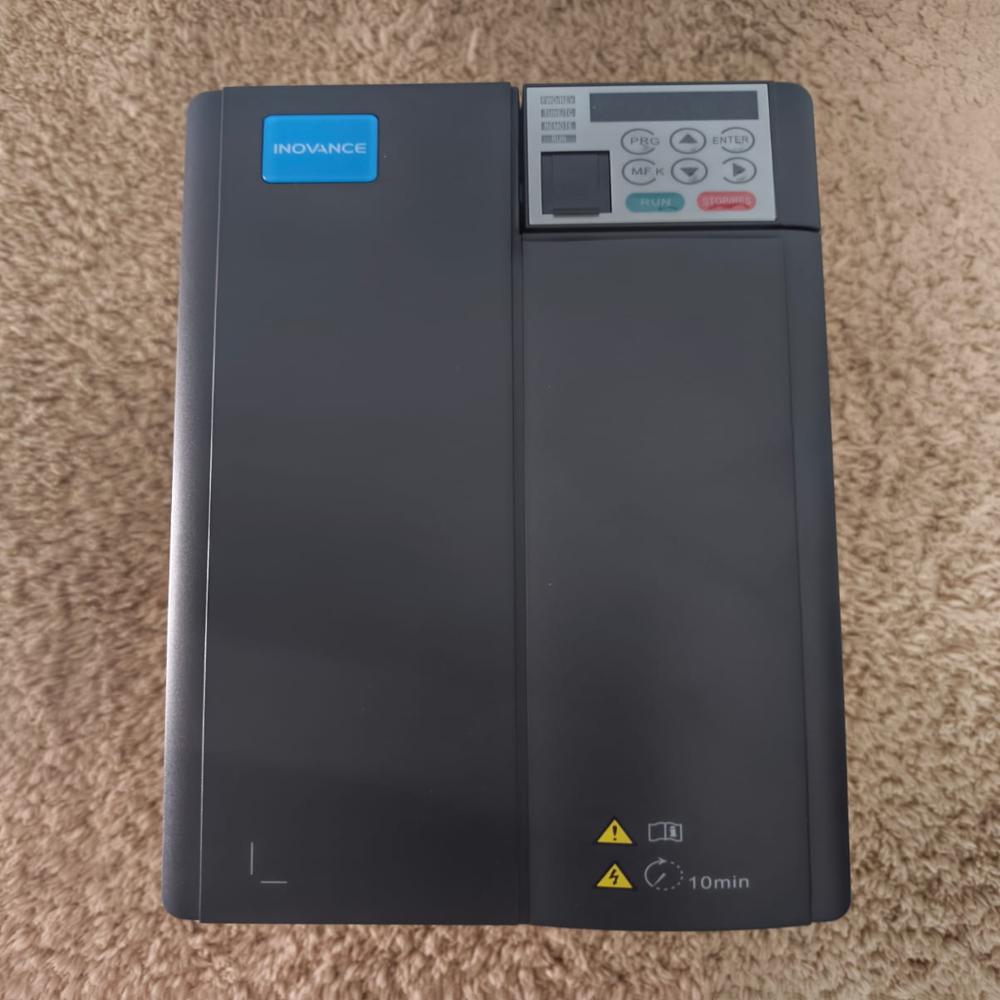

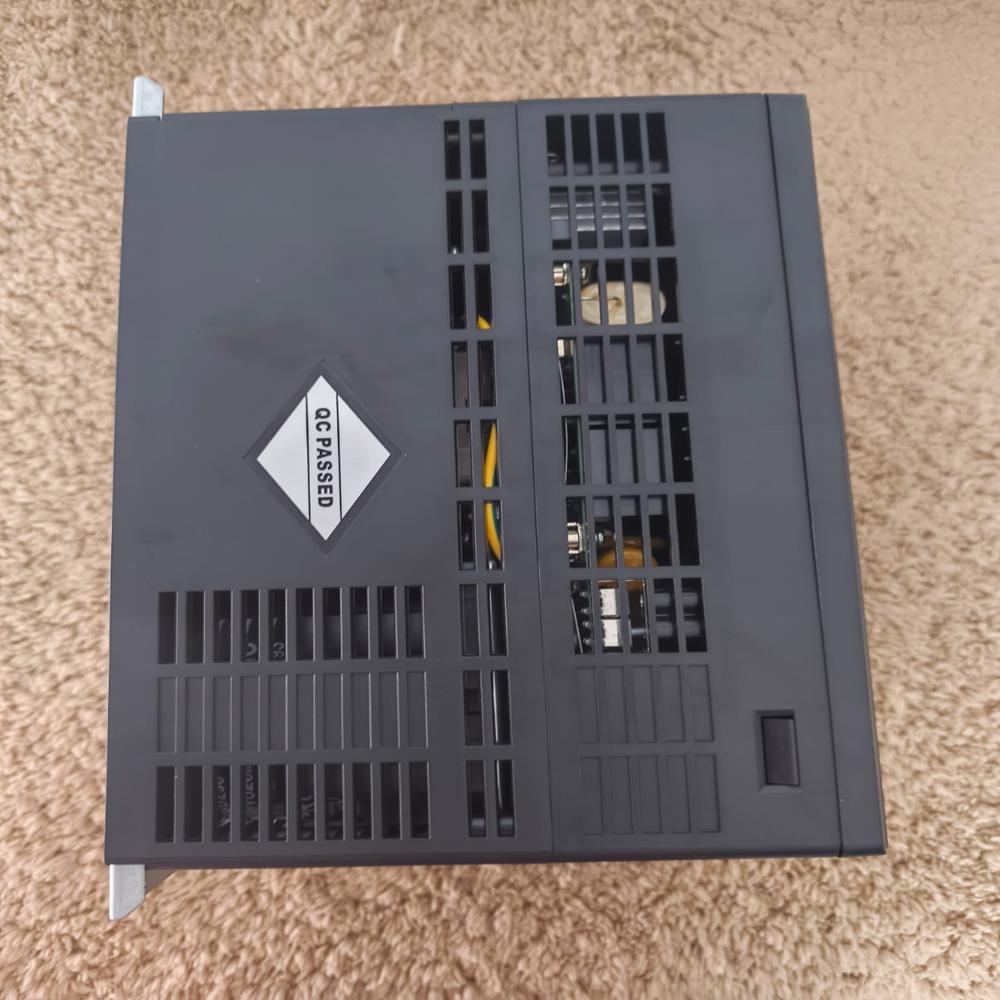

MD290T110G/132P-INT AC Drive, Three Phase, 380 to 480V, 110/132kw - Inovance Ac Drive

About MD290T110G/132P-INT AC Drive, Three Phase, 380 to 480V, 110/132kw - Inovance Ac Drive

• Dual-Rating Performance: Automatically optimizes its internal electrical thresholds based on the attached machinery load type.
• Heavy Duty Rating (G): Drives continuous, constant-torque machinery up to 110 kW (150 HP) with a 150% overload capacity for 60 seconds.
• Normal Duty Rating (P): Powers variable-torque loads (such as large industrial ventilation fans or centrifugal pumps) up to 132 kW (180 HP) with a 110% overload protection threshold for 60 seconds.
• Control Algorithms: Features general-purpose open-loop V/F control alongside automatic torque boost, automatic slip compensation, and 4 independent programmable S-ramps.
• Electrical Safety: Equipped with standard built-in DC reactor networks to suppress line harmonics and buffer internal electronics against system line surges.
• External Braking: This high-power unit requires an optional external dynamic braking unit (such as the MDBU series) if your application involves rapid deceleration of high-inertia mechanical loads. [1, 2, 3, 4, 5]

• Height: 22.05 inches (560 mm)
• Width: 10.63 inches (270 mm)
• Depth (Length): 13.31 inches (338 mm)
• Total Operational Weight: 113.54 lbs (51.5 kg)
