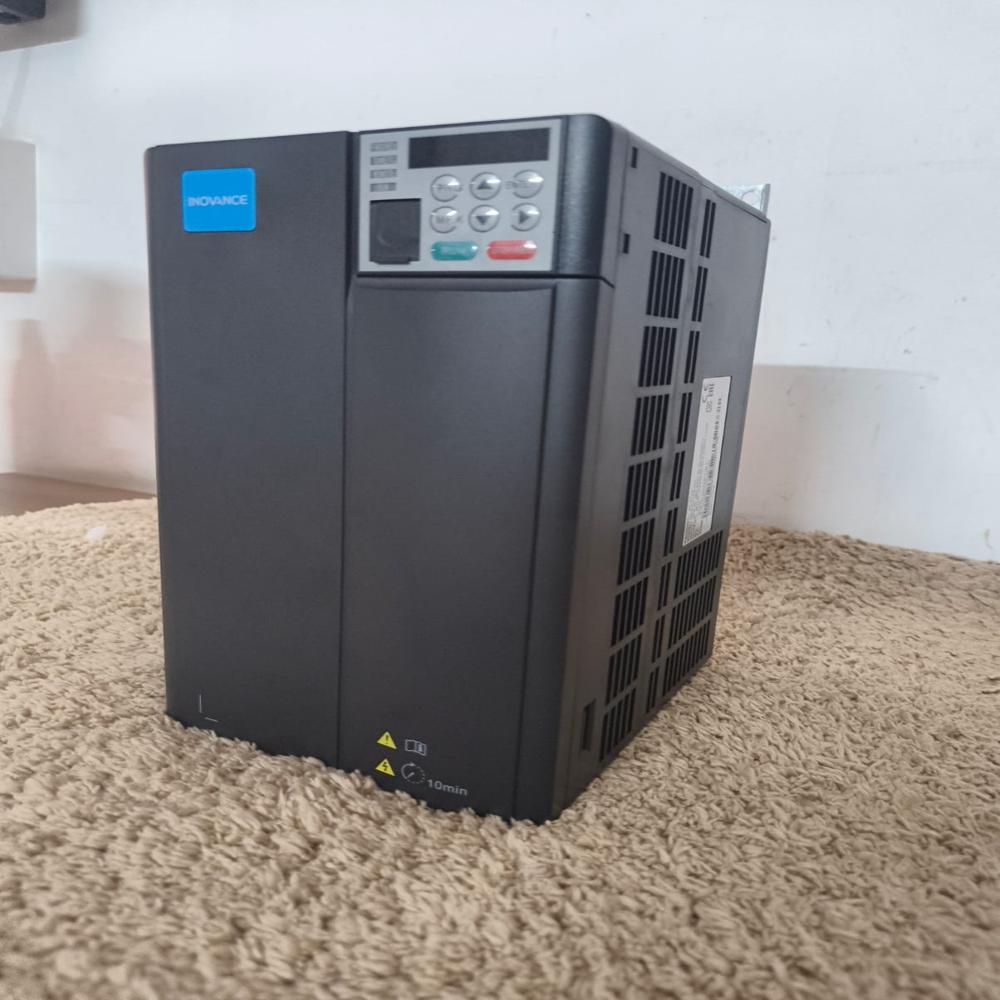

MD5204T2.2BS-INT AC Drive, Three Phase, 380V to 480V,2.2kw - Inovance Ac Drive

Name: MD5204T2.2BS-INT AC Drive, Three Phase, 380V to 480V,2.2kw - Inovance Ac Drive
Brand: Corbital Enterprise
Price: 12300.0 INR
Availability: InStock

Price 12300.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MD5204T2.2BS-INT AC Drive, Three Phase, 380V to 480V,2.2kw - Inovance Ac Drive Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Weight
1.6 Kilograms (kg)

Usage & Applications
Industrial Machinerry

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

MD5204T2.2BS-INT AC Drive, Three Phase, 380V to 480V,2.2kw - Inovance Ac Drive Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MD5204T2.2BS-INT AC Drive, Three Phase, 380V to 480V,2.2kw - Inovance Ac Drive

The Inovance MD520-4T2.2BS-INT provides expanded power handling capabilities while maintaining the same ultra-compact T1 frame size physical footprint as the smaller sub-1.5kW variants. [1]

Physical Dimensions & Weight

Height: 7.87 inches (200 mm)
Width: 5.12 inches (130 mm)
Depth (Length): 5.98 inches (152 mm)
Weight: 3.53 lbs (1.6 kg) [1]

Electrical & Operational Specifications

Parameter [1, 2, 3, 4, 5]	Heavy Duty (HD) Rating	Normal Duty (ND) Rating
Applicable Motor Power	2.2 kW (3.0 HP)	3.0 kW (4.0 HP)
Rated Output Current	5.1 Amps	7.2 Amps
Rated Input Current	6.3 Amps	9.1 Amps
Overload Capacity	150% for 60 seconds	110% for 60 seconds

Input Operating Voltage: Three-phase, 380 V to 480 V AC, 50/60 Hz.
Output Frequency Range: 0 Hz to 599 Hz. [1, 2, 3]

Integrated System Functions [1]

Dynamic Braking Unit (B): Standard internal braking chopper. Requires an external braking resistor with a minimum resistance of 24 \(\Omega \).
Functional Safety Loop (S): Dual-channel Safe Torque Off (STO) circuit rated to SIL 3 PL e.
EMC Filter (-INT): Built-in Category C3 internal noise filter.
Control Platform Compatibility: Supports standard Modbus-RTU and CANlink communications. Expansion slots support PROFINET and EtherCAT cards.
