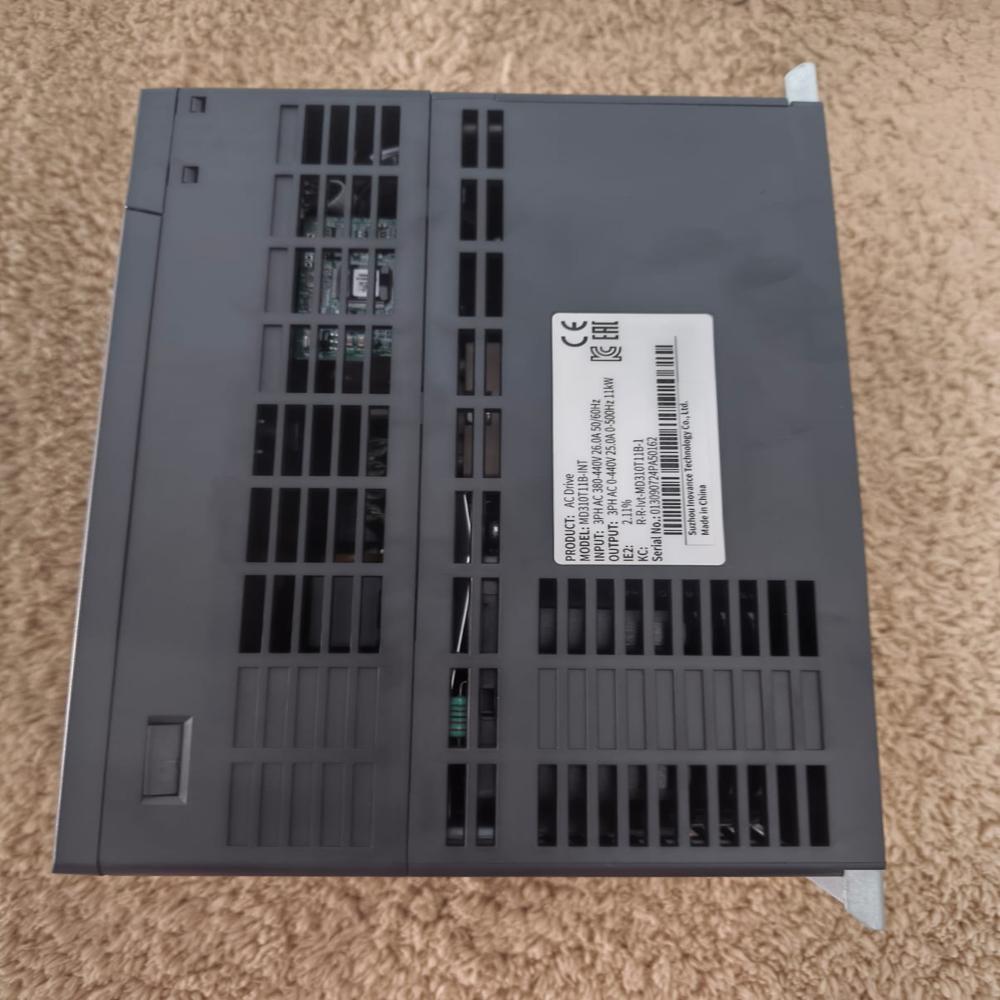

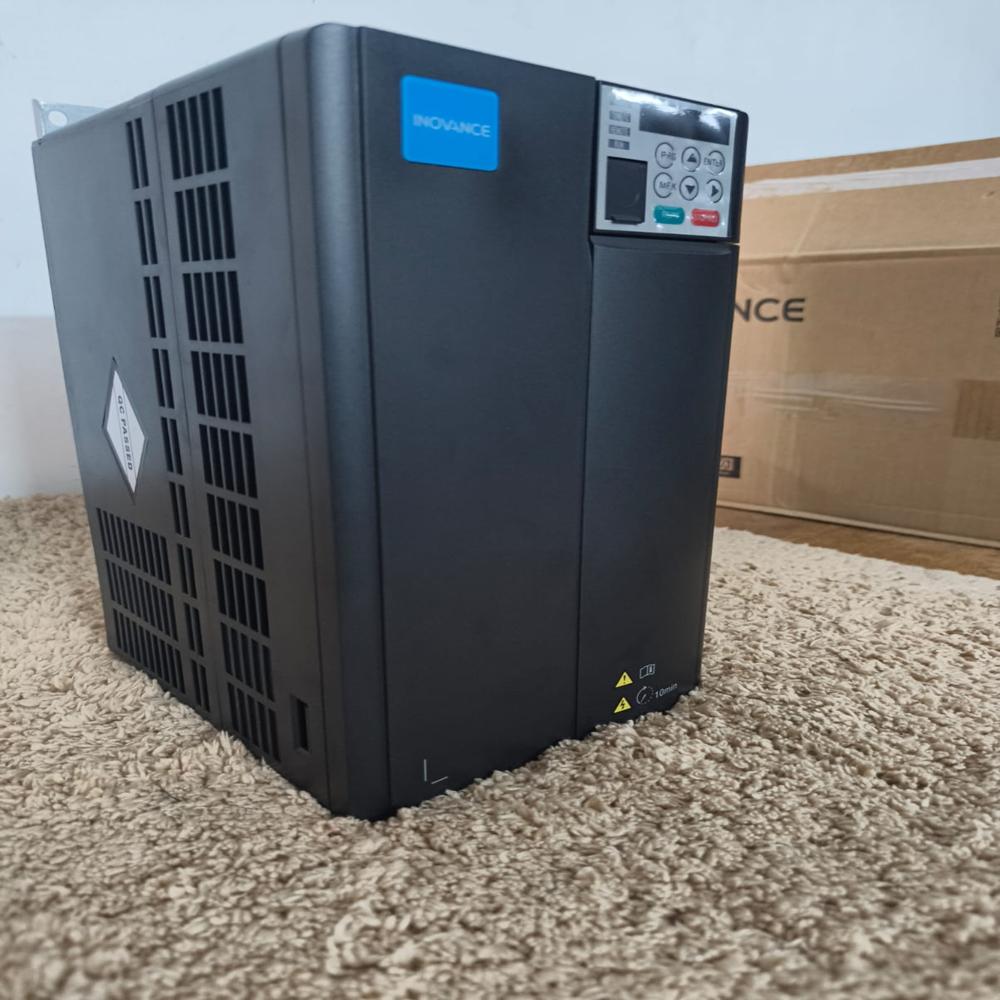

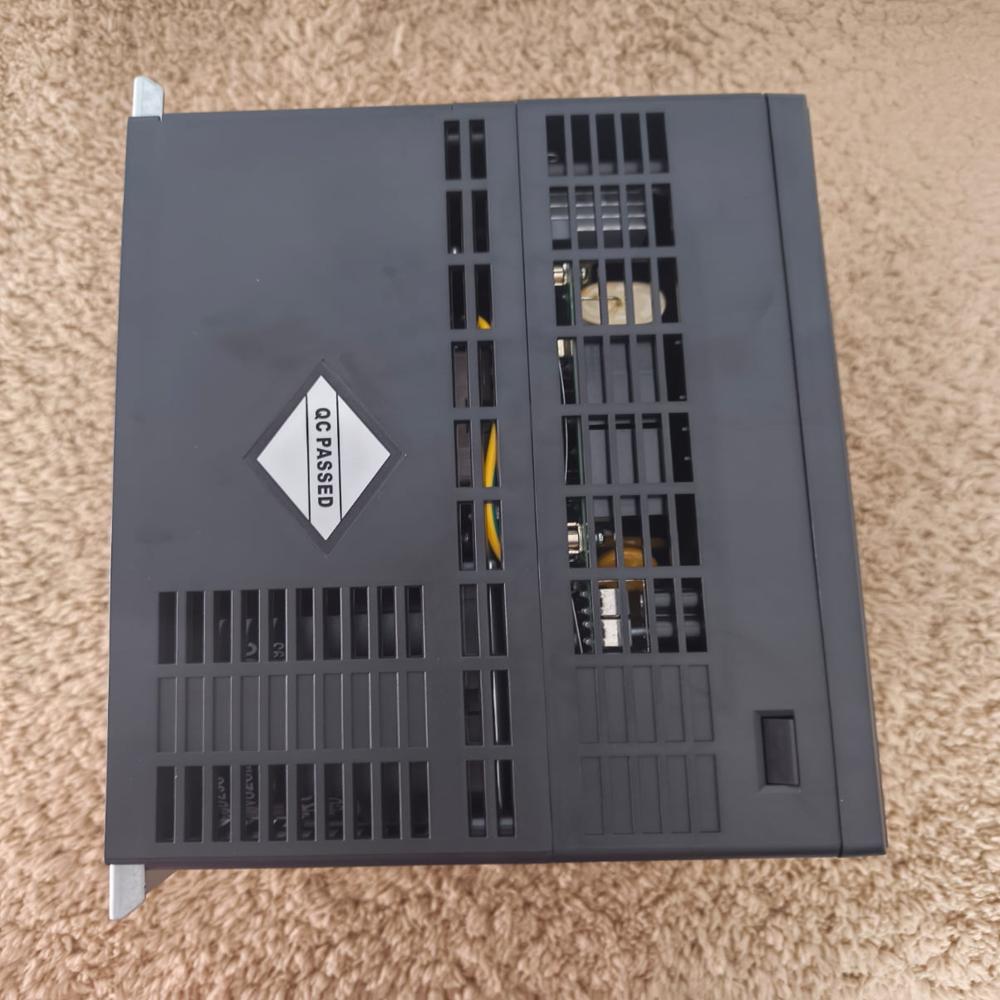

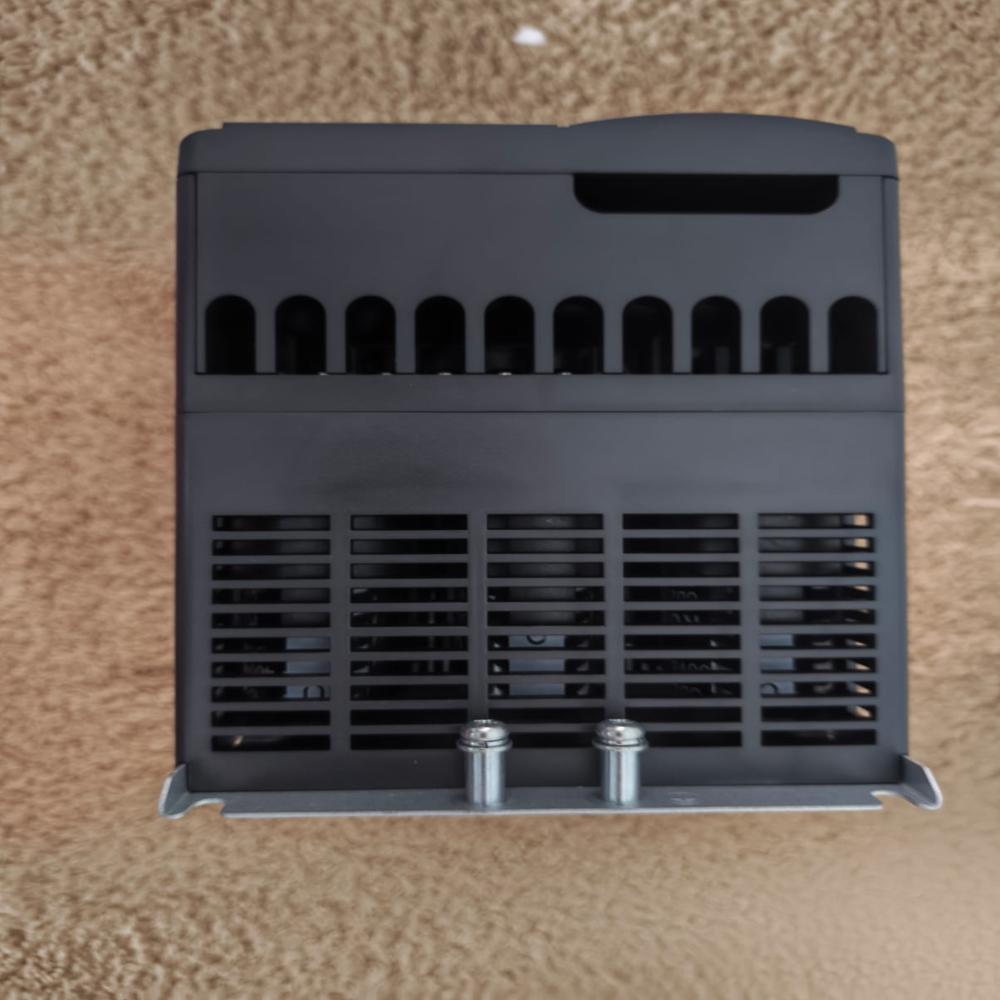

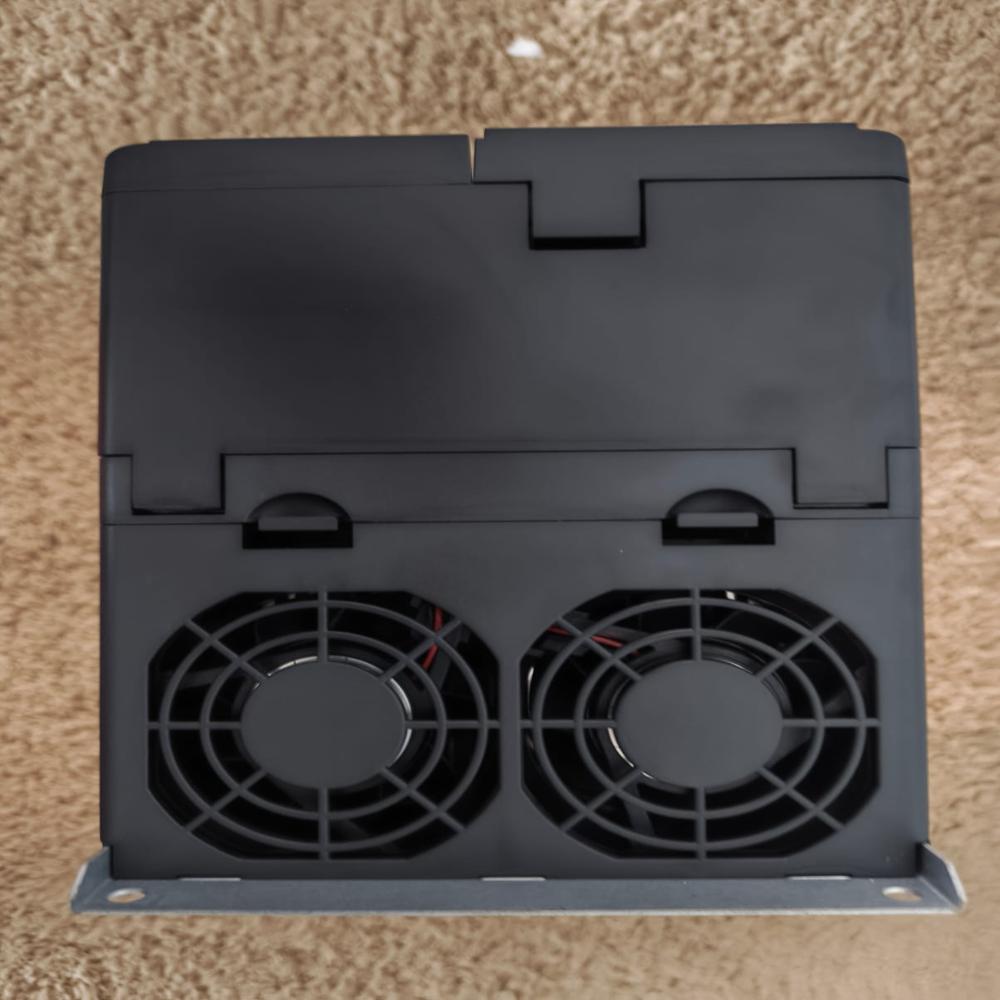

MD5204T30BS-INT AC Drive, Three Phase, 380V to 480V,30kw - Inovance Ac Drive

Price 58900.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MD5204T30BS-INT AC Drive, Three Phase, 380V to 480V,30kw - Inovance Ac Drive Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Grey And Black

Usage & Applications
Industrial Machinerry

Weight
15 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

MD5204T30BS-INT AC Drive, Three Phase, 380V to 480V,30kw - Inovance Ac Drive Trade Information

Minimum Order Quantity
1 Number

Delivery Time
27 Hours

About MD5204T30BS-INT AC Drive, Three Phase, 380V to 480V,30kw - Inovance Ac Drive

The Inovance MD520 30 kW AC Drive (Model: MD5204T30BS-INT) is a high-performance variable frequency drive (VFD). The "B" designation confirms an integrated, factory-fitted internal braking chopper unit, while the "S" denotes standard Safe Torque Off (STO) support. [1, 2, 3]

According to the Inovance MD520 Hardware Guide, this 30 kW (40 HP) capacity model transitions into the T6 frame size enclosure footprint to manage increased thermal loads. [1]

Device Measurements (T6 Frame Size)

The physical footprint dimensions and total weight converted to imperial units are:

Height (Total Length): 15.75 inches (\(400\text{ mm}\))
Width: 9.84 inches (\(250\text{ mm}\))
Depth (Thickness): 8.66 inches (\(220\text{ mm}\))
Net Weight: 33.07 lbs (\(15.0\text{ kg}\)) [1]

Cabinet Backplate Mounting Layout

If you are mapping out internal subpanels or machining cabinet backplates, use these centerline spacing parameters:

Horizontal Pitch Spacing (Hole Width): 9.06 inches (\(230\text{ mm}\))
Vertical Pitch Spacing (Hole Height): 15.16 inches (\(385\text{ mm}\))
Mounting Fixing Bolt Hole Diameter: 0.28 inches (Designed for standard M6 fixing bolts)

Electrical & Operational Specifications

Specification Metric [1, 2, 3, 4, 5]	Engineering Data Value
Manufacturer	Inovance Technology
Line Input Supply	Three Phase, 380 V AC to 480 V AC (-15% to +10%)
Heavy Duty Power (HD)	30 kW (40 HP)
Normal Duty Power (ND)	37 kW (50 HP)
Rated Output Current (HD)	60.0 A
Rated Output Current (ND)	75.0 A
Overload Capacity Profile	Heavy Duty: 150% for 60s / Normal Duty: 110% for 60s
Output Frequency Spectrum	0 Hz to 599 Hz
Braking Unit Hardware	Built-in internal chopper circuit (Requires an external resistor only)
Enclosure Protection	IP20

System Integration & Environment

Unified Control Algorithms: Supports high-accuracy open-loop V/F, Sensorless Vector Control (SVC), and closed-loop Flight Vector Control (FVC) via encoder options. [1, 2, 3]
Atmospheric Resilience: Built with standard 3C3 and 3S2 level conformal board coatings to insulate complex circuitry against conductive factory dust, humidity, and corrosive chemical vapors.
Functional Safety Integration: Includes Safe Torque Off (STO) hardware circuits certified to SIL3 PL e requirements. [1, 2]
Harmonic Mitigation: Features an integrated internal DC reactor to guarantee line stability.
