Price 68500.0 INR/ Number

MOQ : 1 Number

MD5204T37BS-INT AC Drive, Three Phase, 380V to 480V,37kw - Inovance Ac Drive Specification

  • Product Type
  • VFD
  • Application
  • Industrial Machinerry
  • Color
  • Grey And Black
  • Weight
  • 17.5 Kilograms (kg)
  • Usage & Applications
  • Industrial Machinerry
  • Warranty
  • 1 Year
  • Phase
  • 3 Phase
  • Material
  • Polycarbonate


MD5204T37BS-INT AC Drive, Three Phase, 380V to 480V,37kw - Inovance Ac Drive Trade Information

  • Minimum Order Quantity
  • 1 Number
  • Delivery Time
  • 24 Hours

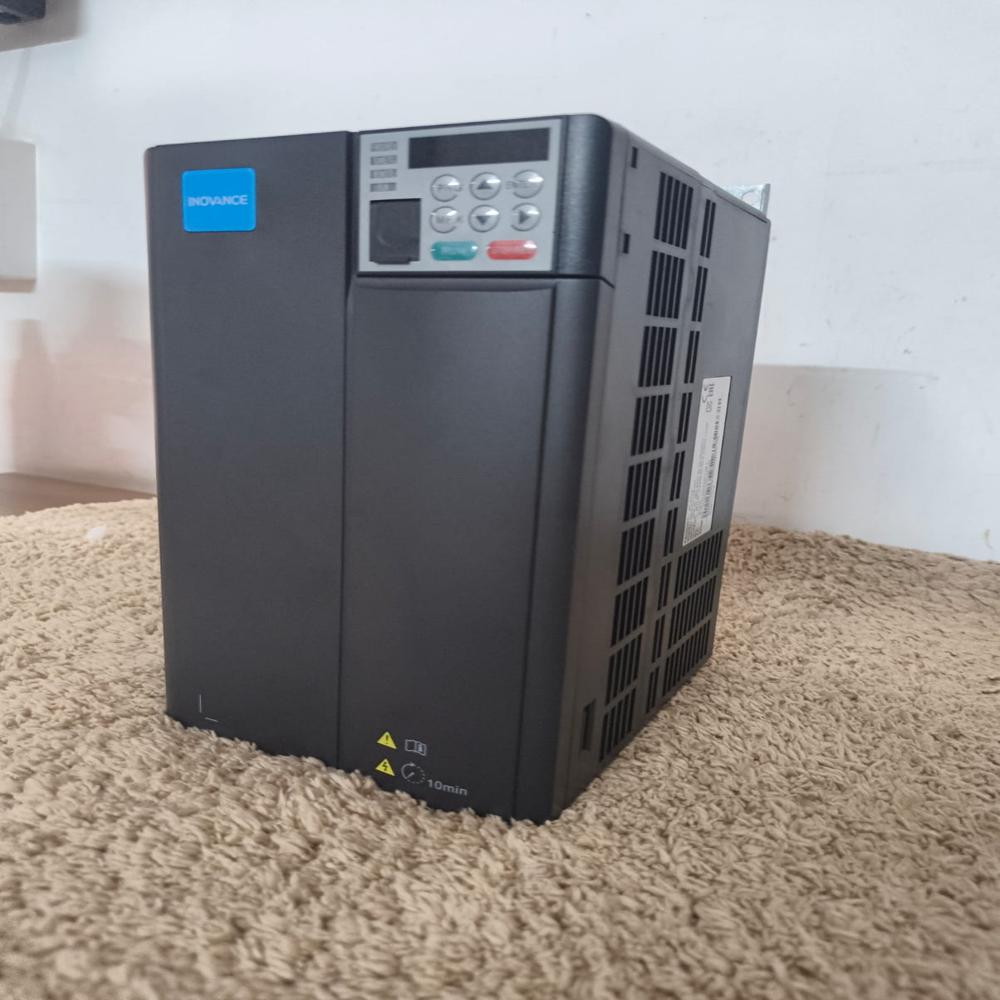

About MD5204T37BS-INT AC Drive, Three Phase, 380V to 480V,37kw - Inovance Ac Drive

The MD5204T37BS-INT is a specific 37 kW model within the Inovance MD520 high-performance universal AC variable frequency drive series. It is designed for precise speed, torque, and position control of three-phase asynchronous and permanent magnet synchronous motors across demanding industrial automation systems. [1, 2]


Part Number Breakdown
  • MD520: High-Performance Universal AC Drive Series.
  • 4T: Three-phase, 380 V to 480 V AC supply voltage rating.
  • 37: 37 kW power rating for Heavy Duty (HD) operation.
  • B: Integrated dynamic braking unit.
  • S: Integrated DC reactor for line harmonic mitigation.
  • INT: International variant compliant with European and global safety standards. [1, 2, 3, 4, 5]
Physical Dimensions & Weight
This 37 kW drive is engineered within the Inovance T6 Frame Size. [1]
Dimension / Metric [1] Imperial (Inches / Pounds) Metric (mm / kg)
Height 15.75 in 400 mm
Width 9.84 in 250 mm
Depth (Length) 8.70 in 221 mm
Weight 38.58 lbs 17.5 kg
Technical Specifications
  • Power Output: 37 kW (50 HP) Heavy Duty / 45 kW (60 HP) Normal Duty.
  • Rated Current: 75 A (Heavy Duty) / 91 A (Normal Duty).
  • Overload Capacity: 150% of rated current for 60 seconds (HD).
  • Control Modes: Open-loop V/F, Sensorless Vector Control (SVC), and Closed-loop Flux Vector Control (FVC).
  • Functional Safety: Built-in Safe Torque Off (STO) certified to SIL 3 / PL e safety standard criteria.
  • Environmental Resilience: Conformal-coated internal PCBs conforming to 3S2 and 3C3 environments for dust and chemical resistance. [1, 2, 3, 4, 5]
Fieldbus Integration
The drive natively supports Modbus-RTU. It accommodates optional communication expansion cards for seamless integration into upstream automation networks: [1, 2]
  • PROFINET
  • EtherCAT
  • PROFIBUS-DP
  • CANopen / CANlink [1]
