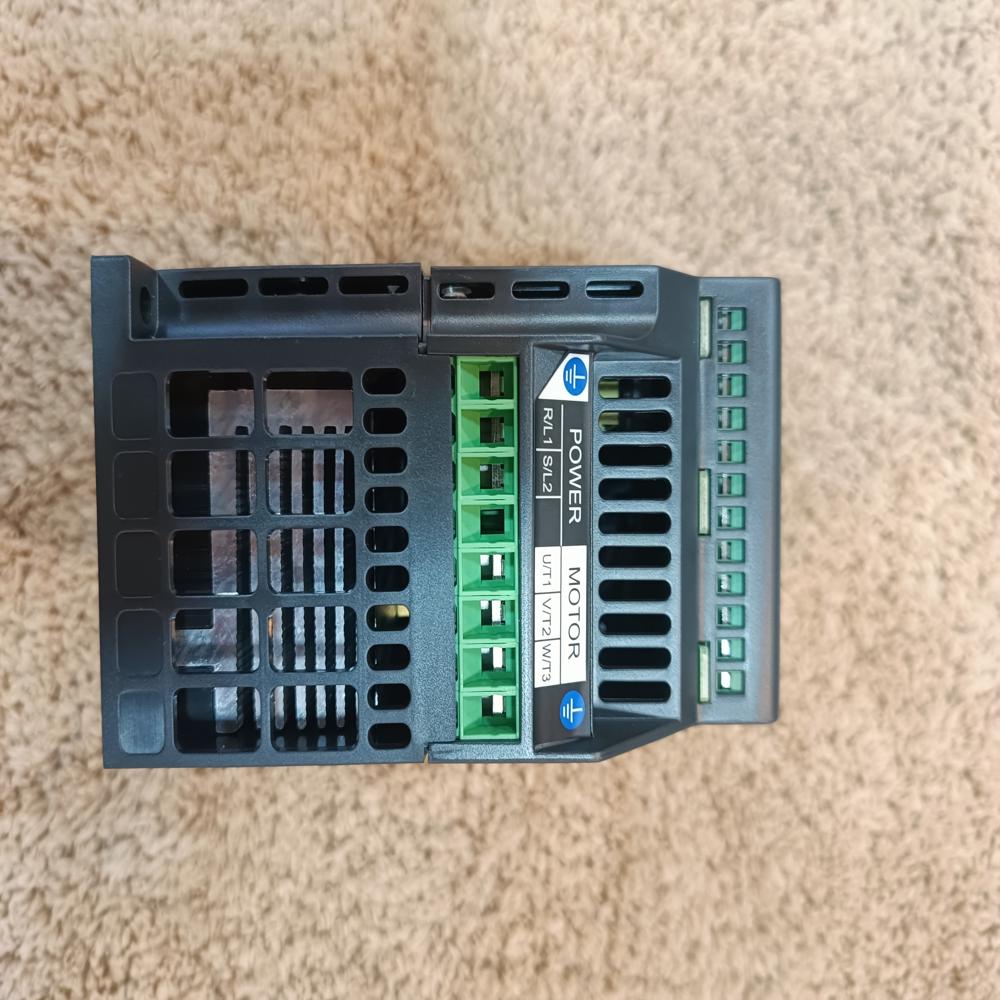

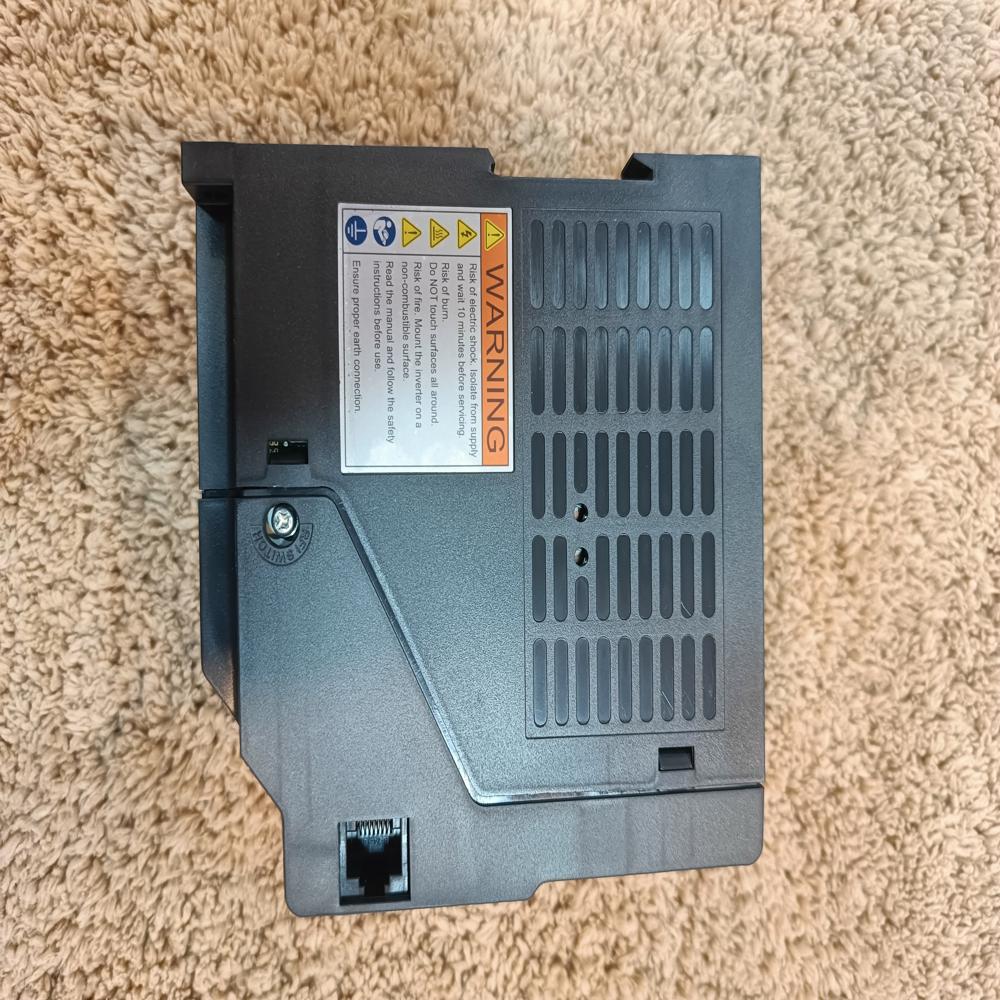

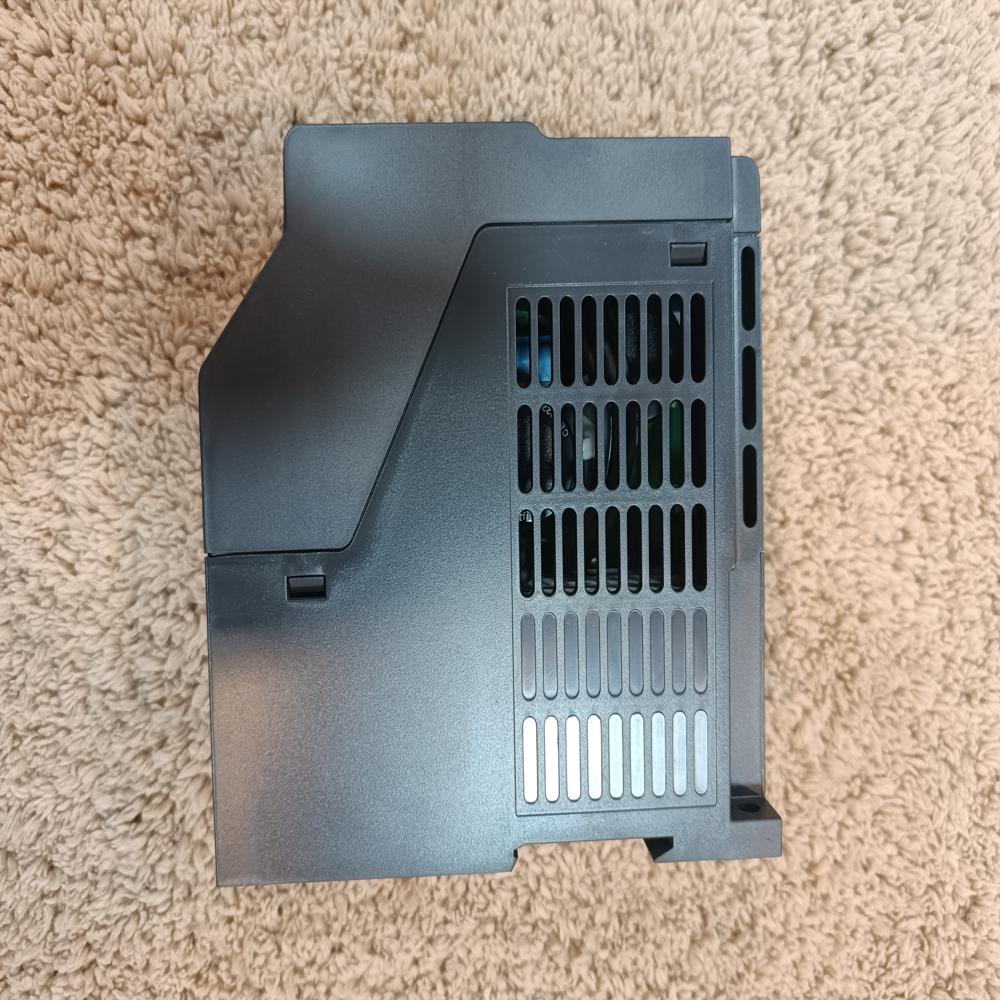

SC3-021-0.2K AC DRIVE 220V

Name: SC3-021-0.2K AC DRIVE 220V
Brand: Corbital Enterprise
Price: 5200.0 INR
Availability: InStock

Price 5200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Number

SC3-021-0.2K AC DRIVE 220V Specification

IP Rating
20

Humidity %
90

Product Type
VFD

Application
Industrial Machinerry

Color
Charcoal Black

Usage & Applications
Industrial Machinerry

Weight
660 Kilograms (kg)

Warranty
1 Year

Phase
1 Phase

Material
Polycarbonate

SC3-021-0.2K AC DRIVE 220V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About SC3-021-0.2K AC DRIVE 220V

The Shihlin SC3-021-0.2K AC Drive is a compact, high-performance inverter designed for small-scale automation and low-power 3-phase motors up to 0.2 kW (0.27 HP). It operates on single-phase 220V power, making it ideal for standard electrical outlets.

Key Specifications

Motor Capacity: 0.2 kW / 0.27 HP.
Input Voltage: Single-phase 200V to 240V AC, 50/60Hz.
Output Voltage: 3-phase 200V to 240V AC.
Control Type: Advanced magnetic flux vector control for high stability at low speeds.
Carrier Frequency: 1kHz to 15kHz adjustable for quiet operation.
Protective Features: Includes overcurrent, overvoltage, and stall prevention.
Mounting: Ultra-compact design to save space in electrical panels.

The Shihlin SC3-021-0.2K AC Drive is a high-performance compact vector control drive. It is designed for precise speed and torque control of 3-phase AC motors using a single-phase 220V power source. [1, 2, 3, 4, 5]

Functions and Features

According to the Shihlin SC3 User Manual, its primary functions include:

Vector Control: Uses a 32-bit CPU for high-performance motor management.
PID Control: Built-in feedback control for process regulation (e.g., maintaining constant pressure in pumps).
MODBUS Communication: Dual interfaces for system integration.
Protection: Includes safeguards against overcurrent, overvoltage, and overheating.
Versatility: Supports 5-point adjustable V/F curves and a wide output frequency range (0 to 599Hz). [1, 3, 4, 5]

Physical Specifications

The SC3-021-0.2K belongs to Frame A of the series. Based on technical data from Shihlin Electric and Amazen: [, 2]

Weight: Approximately 1.45 lbs (0.66 kg).
Dimensions (in inches):
- Height: 5.20 in (132 mm).
- Width: 2.68 in (68 mm).
- Depth: 5.04 in (128 mm). [1, 3, 4]
