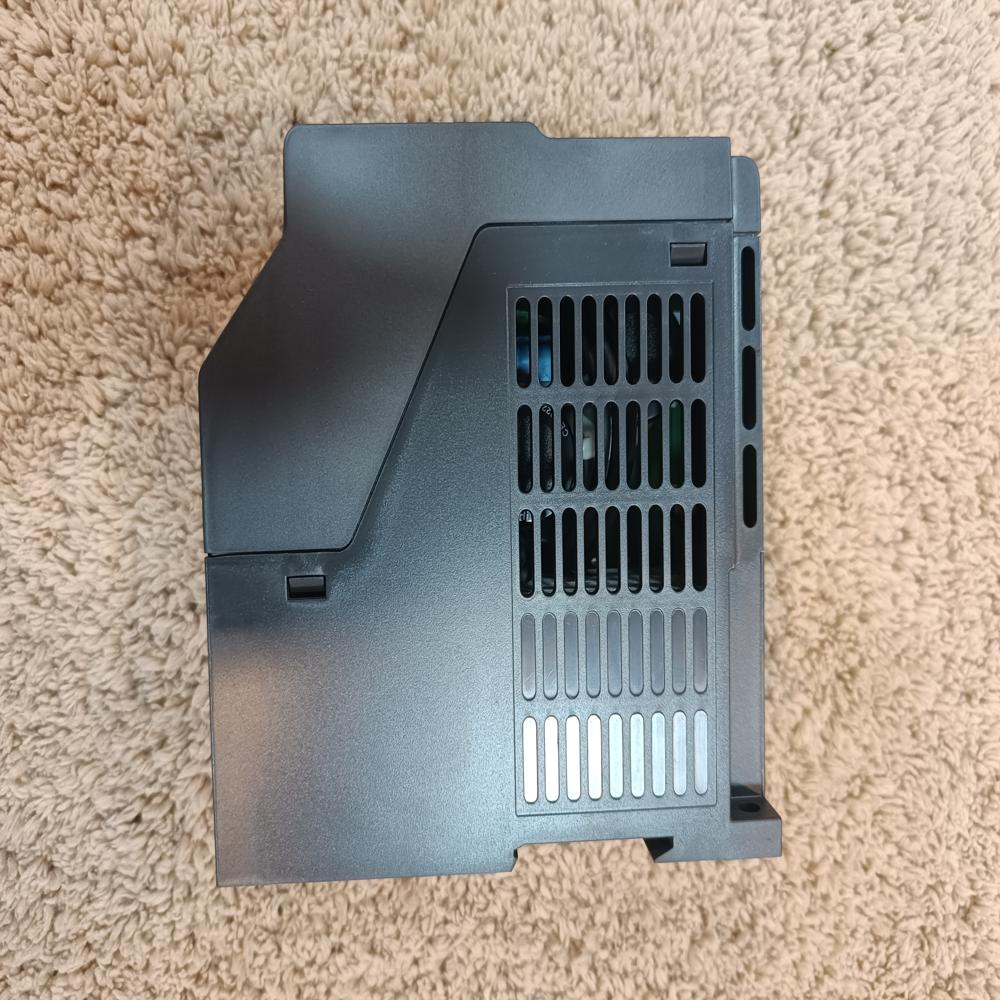

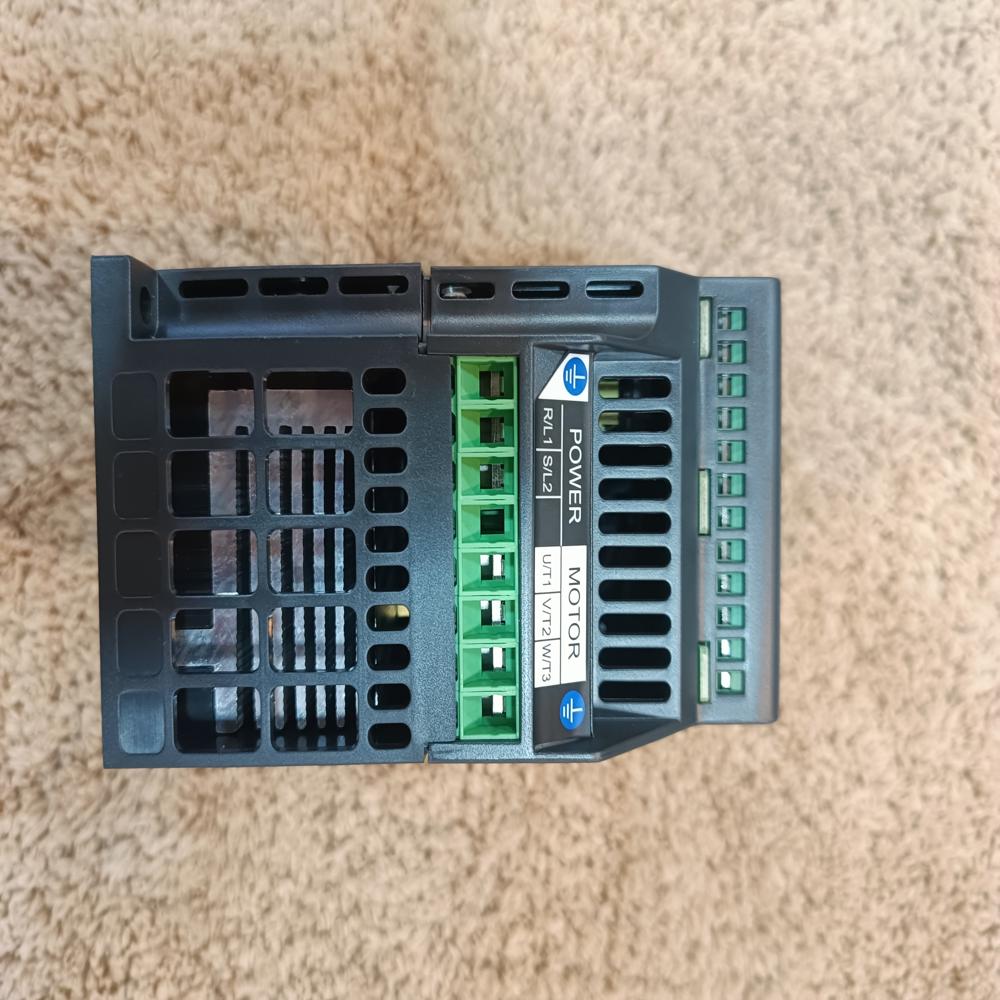

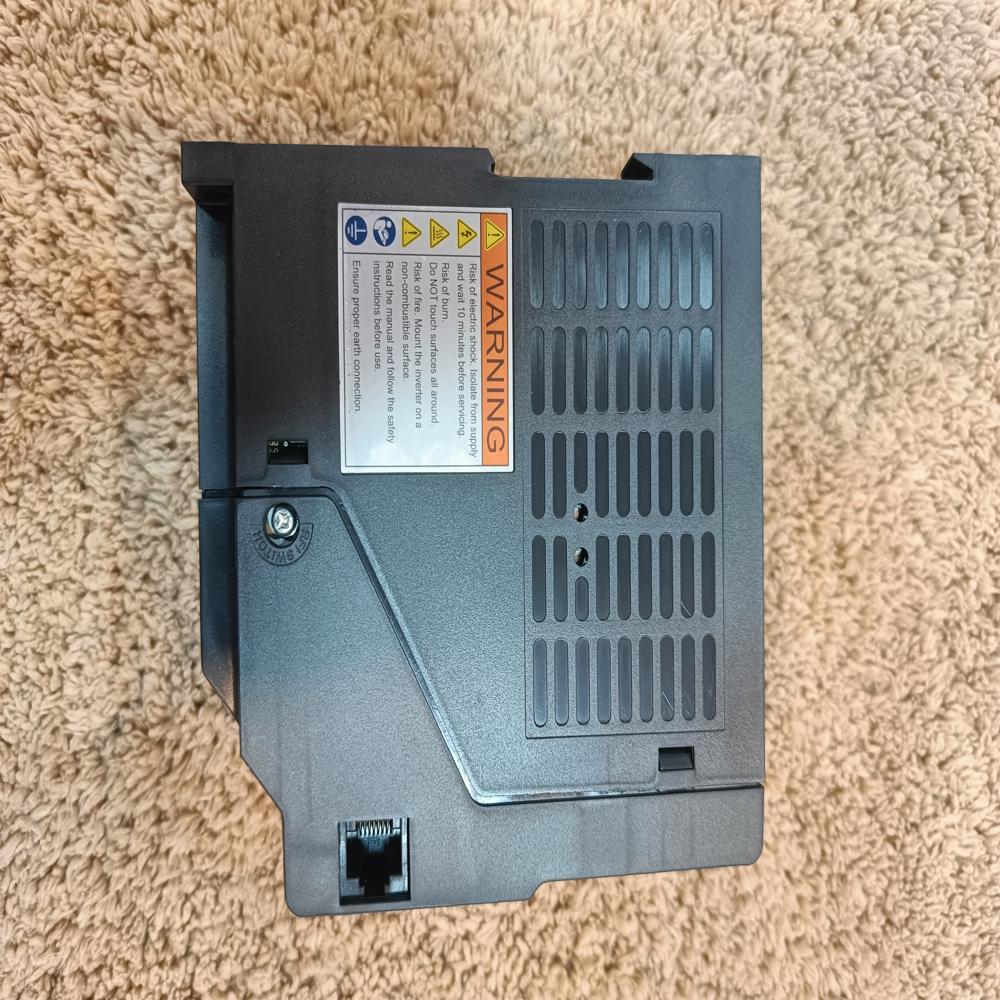

SE3-043-0.75K Shihlin AC Drive 440V

Price 15000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

SE3-043-0.75K Shihlin AC Drive 440V Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Charcoal Black

Usage & Applications
Industrial Machinerry

Weight
1 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

SE3-043-0.75K Shihlin AC Drive 440V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About SE3-043-0.75K Shihlin AC Drive 440V

The Shihlin SE3-043-0.75K is a 440V class AC drive with a power rating of 0.75 kW (1 HP). It belongs to Frame A of the SE3 series.

The Shihlin SE3-043-0.75K is a high-performance vector control AC drive designed for 440V industrial systems. It belongs to the Frame A category of the SE3 series and is built to handle both induction motors (IM) and permanent magnet motors (PM). [1, 2]

Core Electrical Specifications

Rated Power Output: 0.75 kW (1 HP).
Input Voltage: 3-Phase 380480V AC (50/60Hz).
Permissible Voltage Range: 323528V AC.
Rated Output Current: 2.6A to 2.7A.
Output Frequency Range: 0.00 to 599.00 Hz (Standard) or up to 1500 Hz for high-speed spindle applications. [1, 2, 3, 4, 5, 6]

Control and Performance

Control Modes: V/F control, General flux vector control, and Sensorless Vector Control (SVC).
Overload Capacity:
- Heavy Duty (HD): 150% for 60 seconds / 200% for 3 seconds.
- Normal Duty (ND): 120% for 60 seconds.
Starting Torque: 150% at 5Hz (with automatic torque boost).
Built-in PLC: Features a built-in PLC function for simple logic control without external hardware. [1, 2, 5]

Protection and Features

Safety Protections: Includes overcurrent, overvoltage, undervoltage, motor overheating, and output phase failure protection.
Filter: Integrated RFI filter to effectively reduce electromagnetic interference.
Communication: Built-in RS-485 supporting both Shihlin and MODBUS RTU protocols.
Cooling: Self-cooling (Frame A models in this power range often do not require a forced-air fan). [1, 3]
